AR01.00-P-1200SX Testing Compression Pressure
AR01.00-P-1200SX Testing Compression Pressure
AR01.00-P-1200SX Testing compression pressure

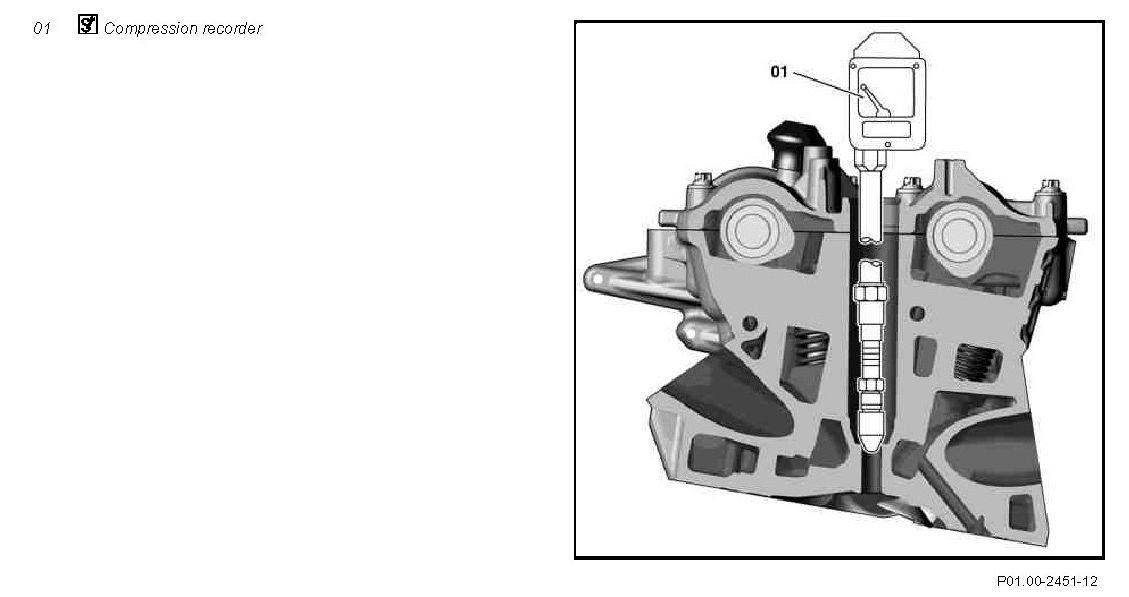

Component Identification:

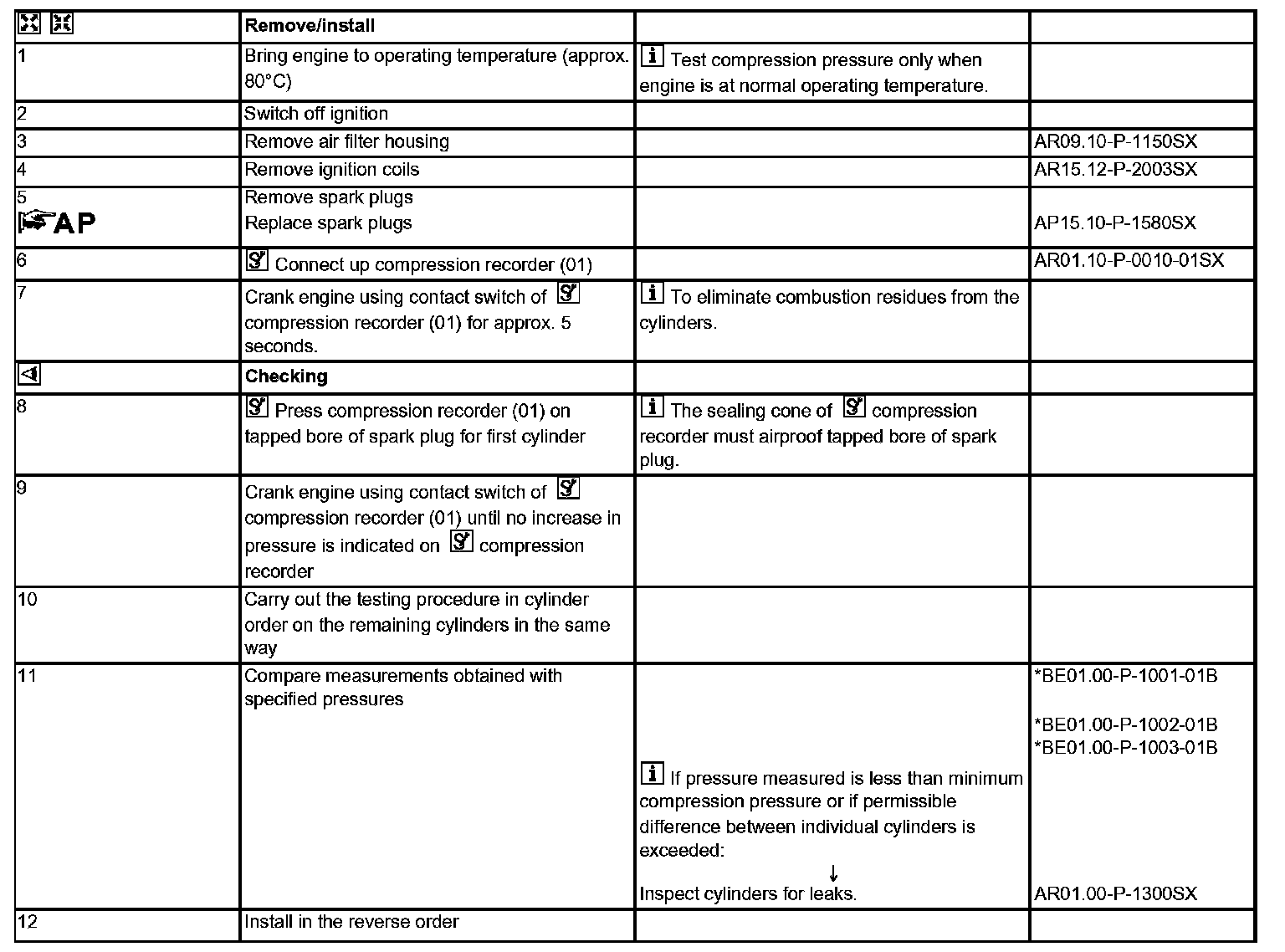

Remove/install Steps 1 - 12:
Compression pressure:
