AR01.10-P-2500SW Remove/Install Engine With Front Axle Carrier

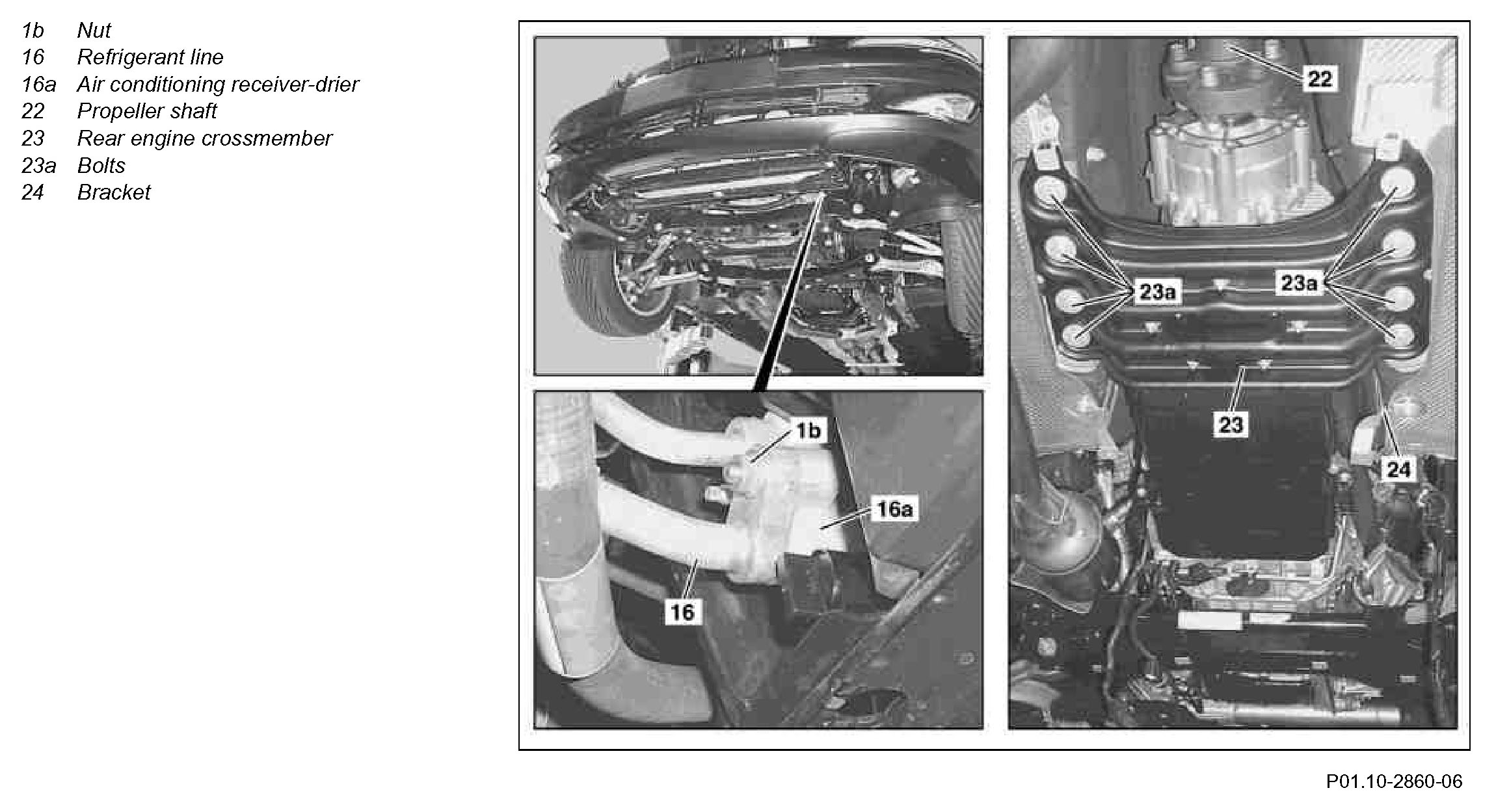

Component Identification:

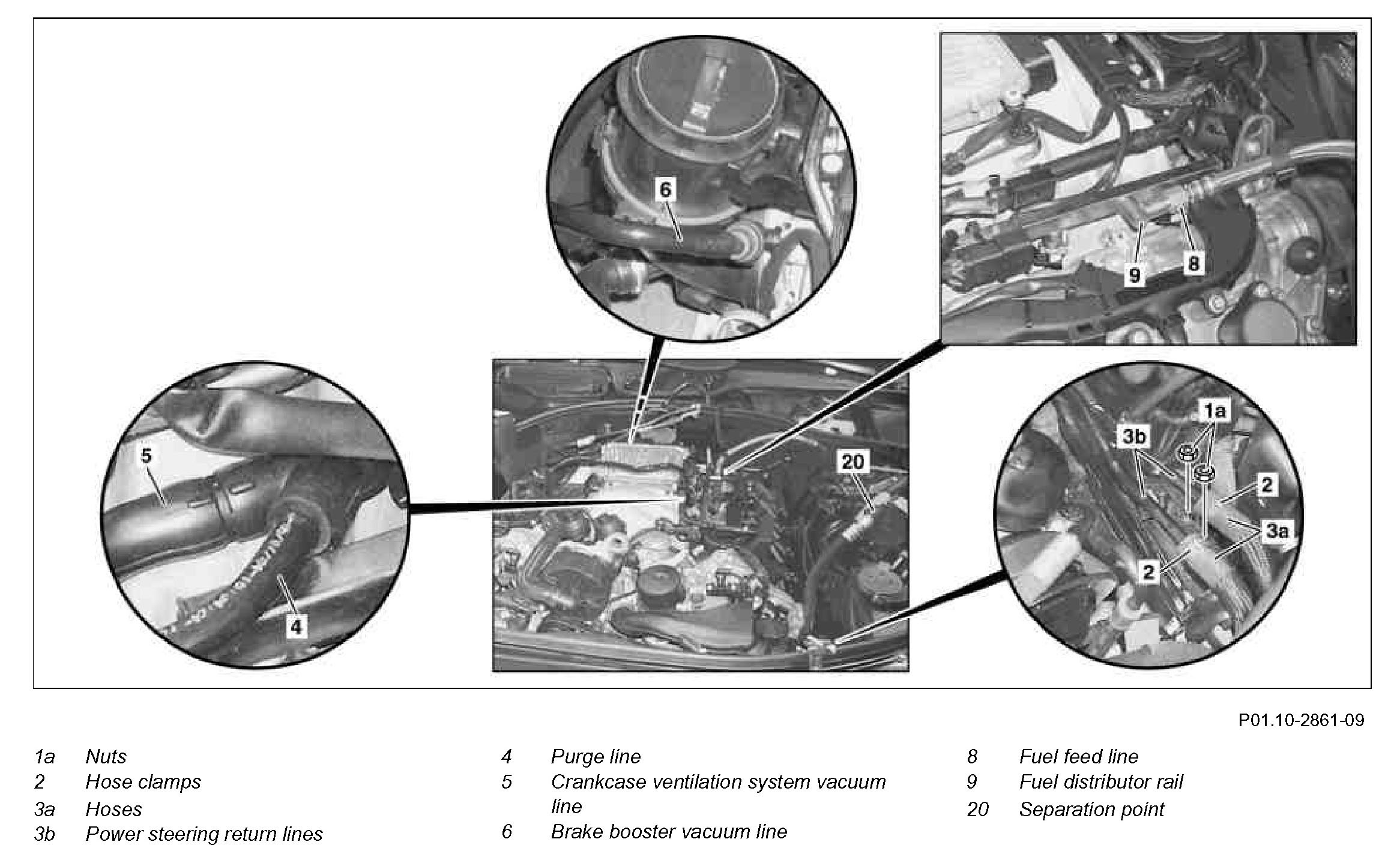

Component Identification:

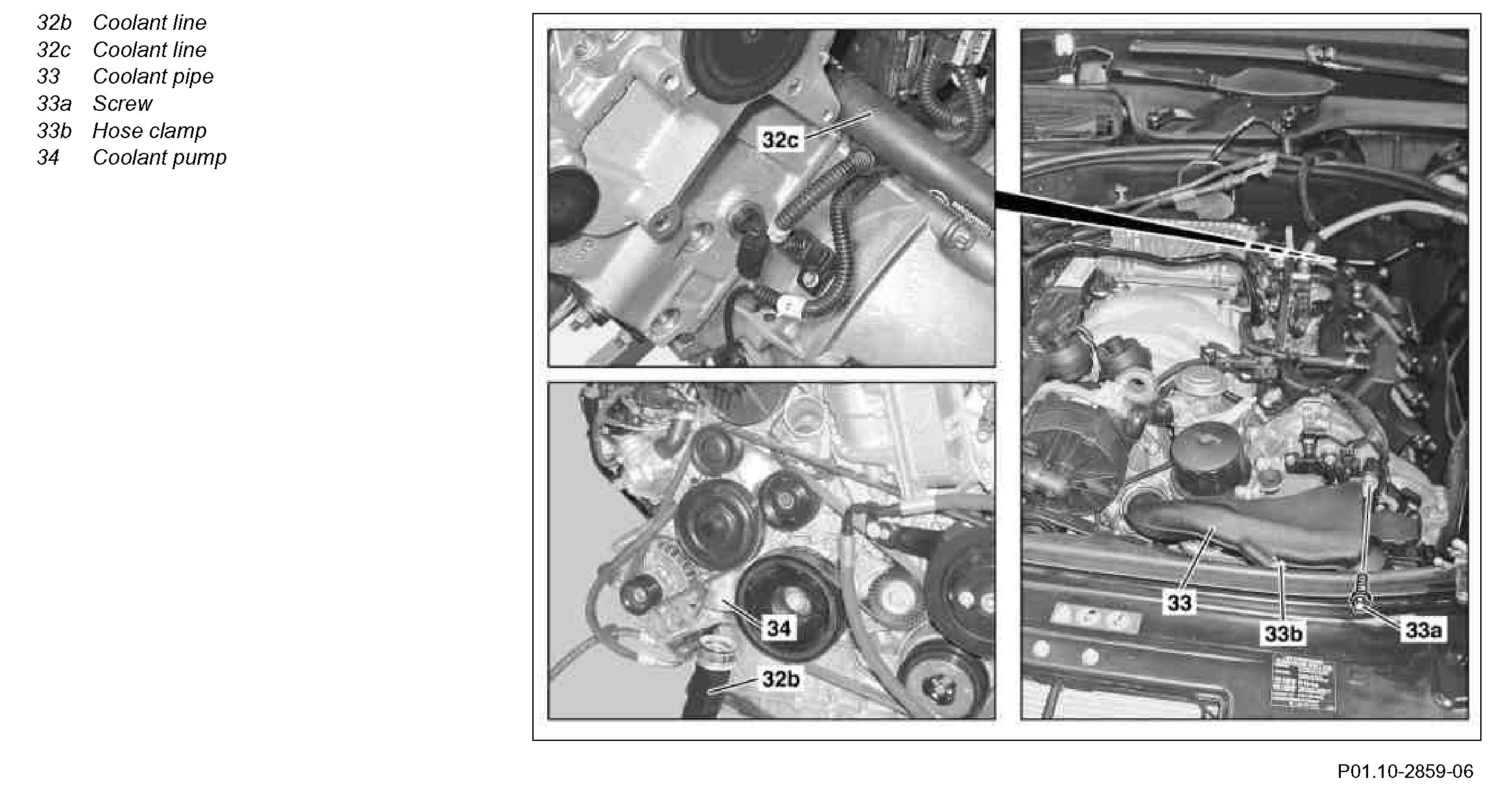

Component Identification:

Modification notes:

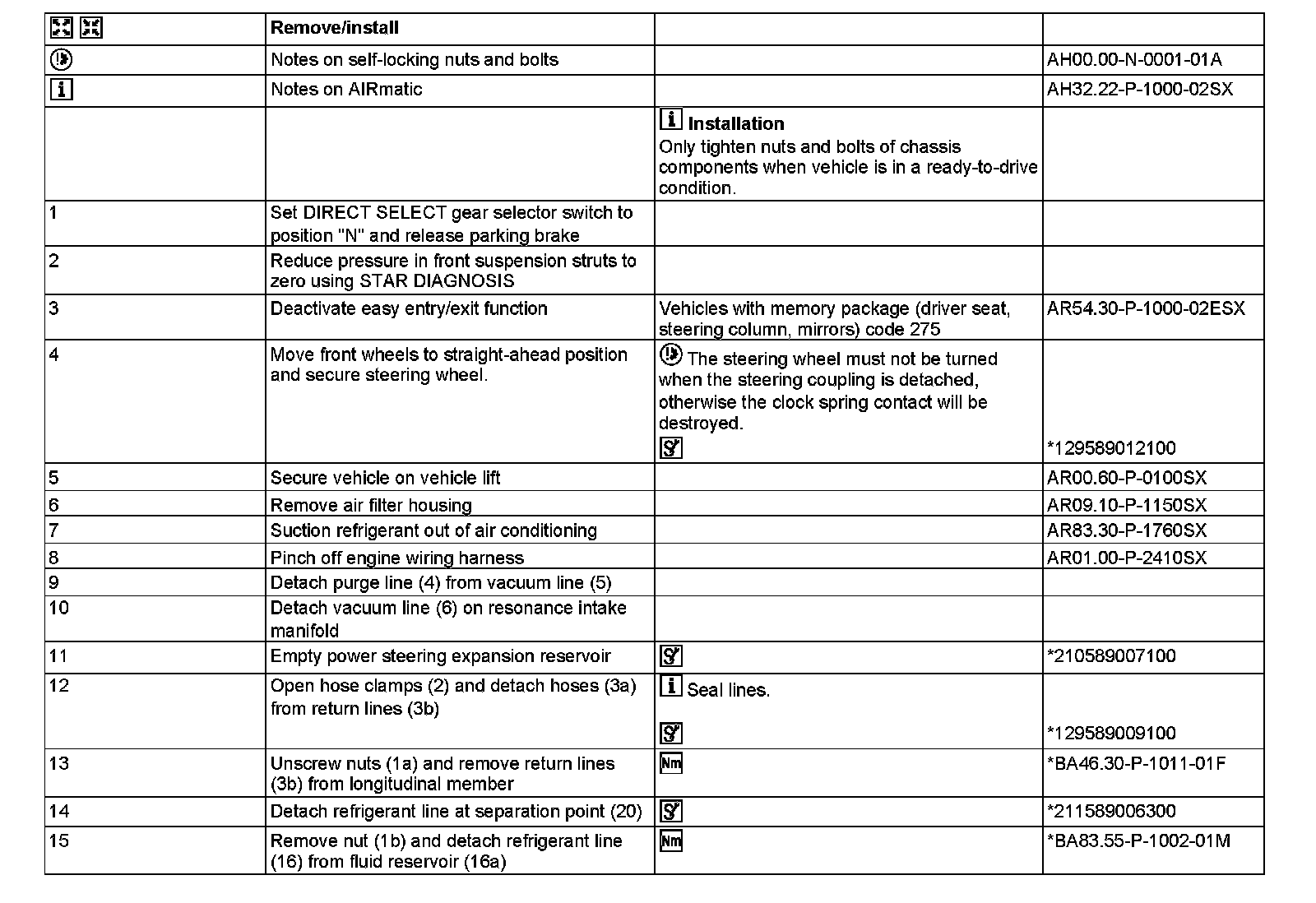

Steps 1-15:

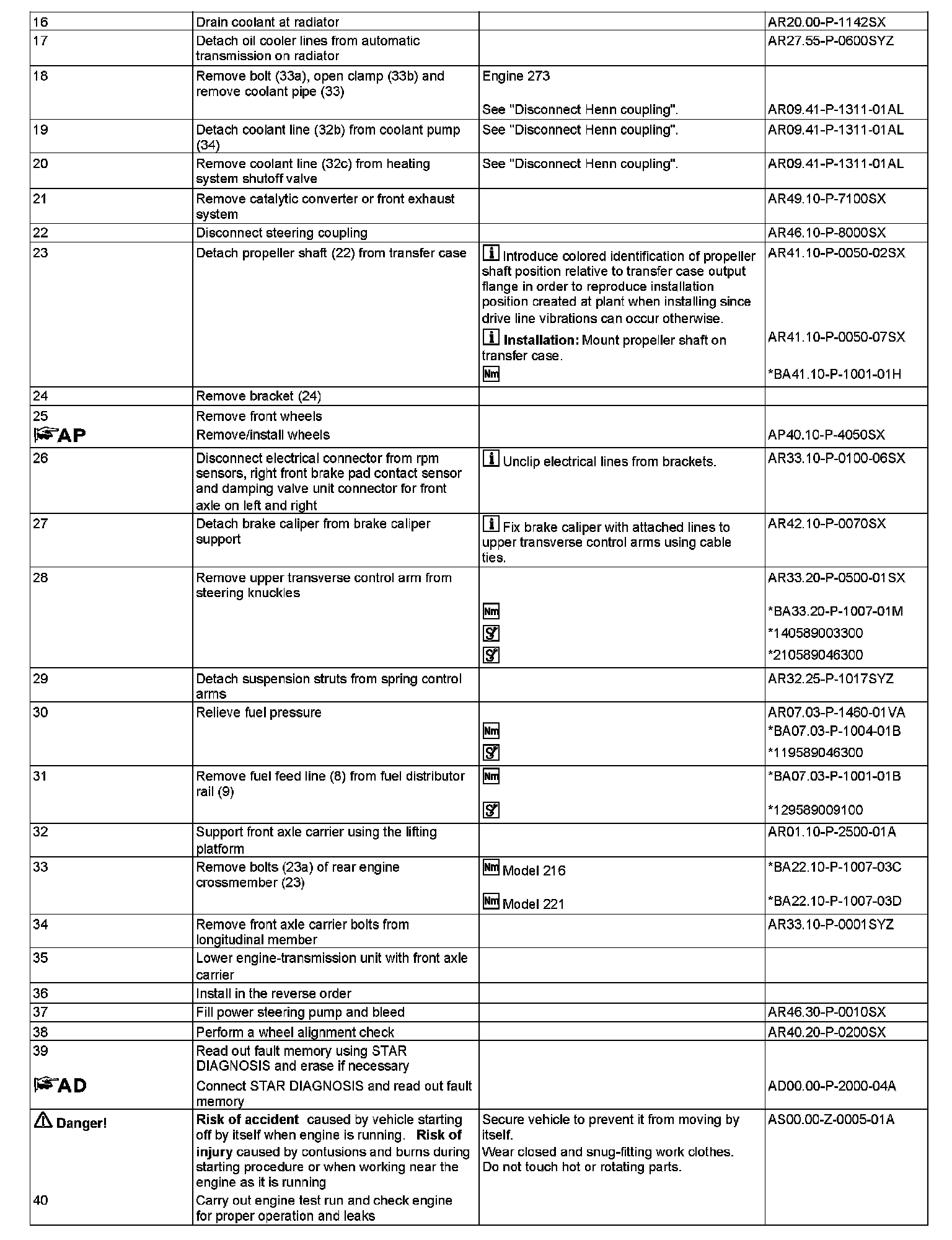

Steps 16-40:

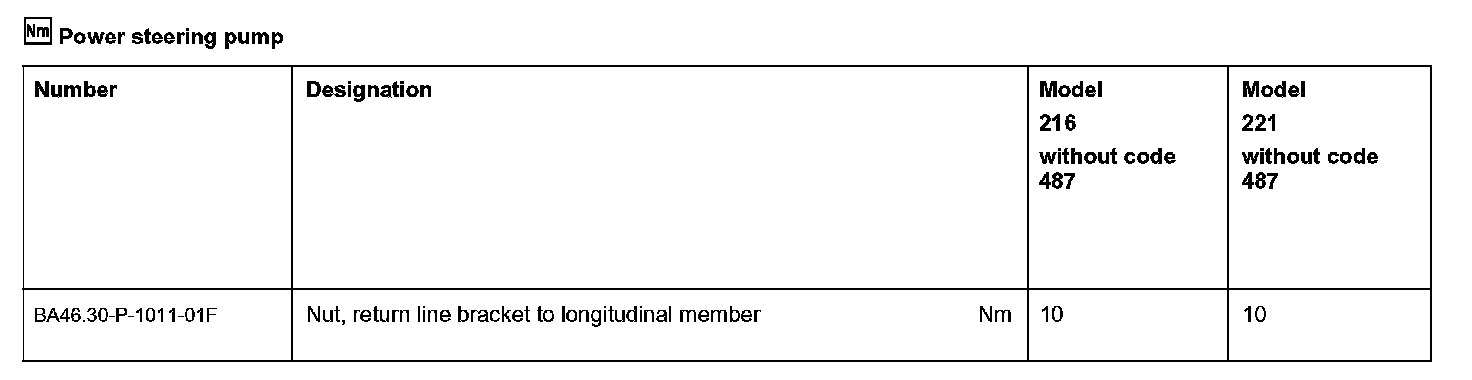

Power steering pump:

Refrigerant compressor:

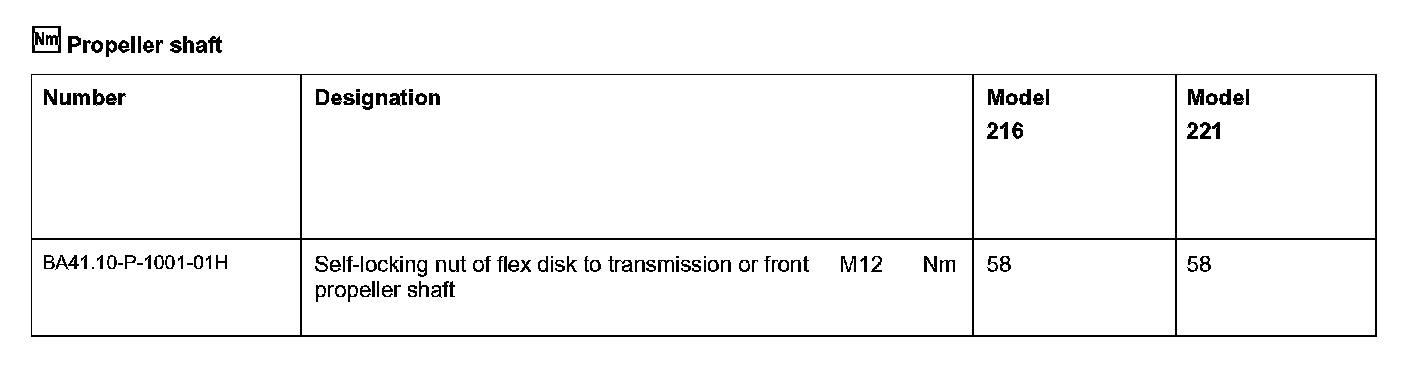

Propeller shaft:

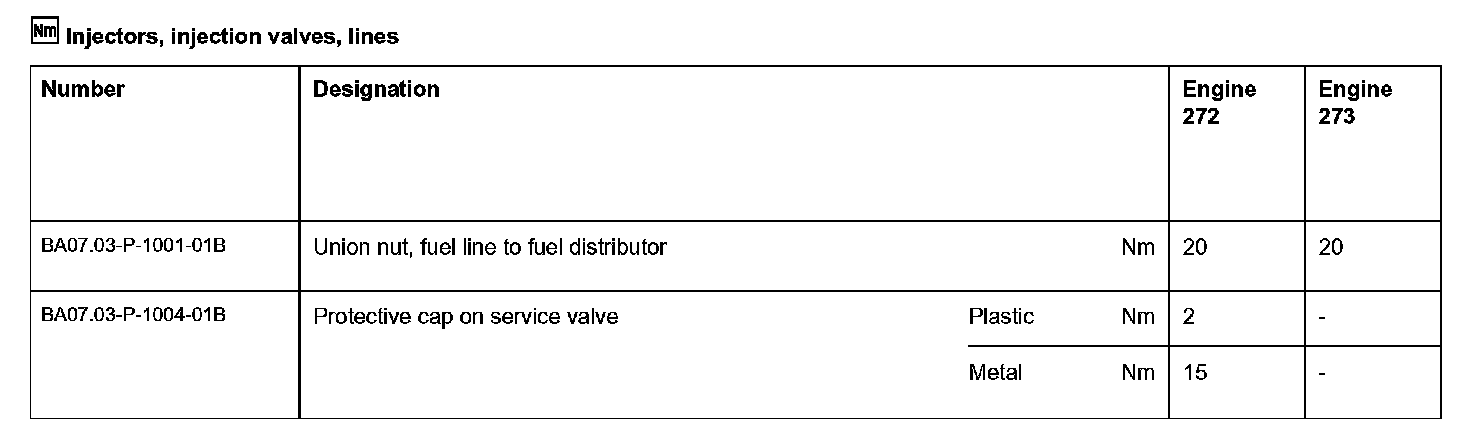

Injectors, injection valves, lines:

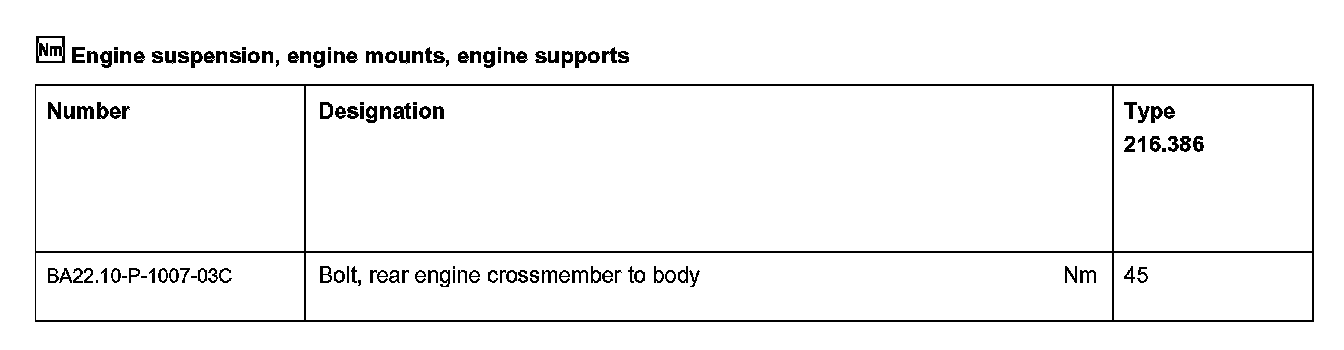

Engine suspension, engine mounts, engine supports:

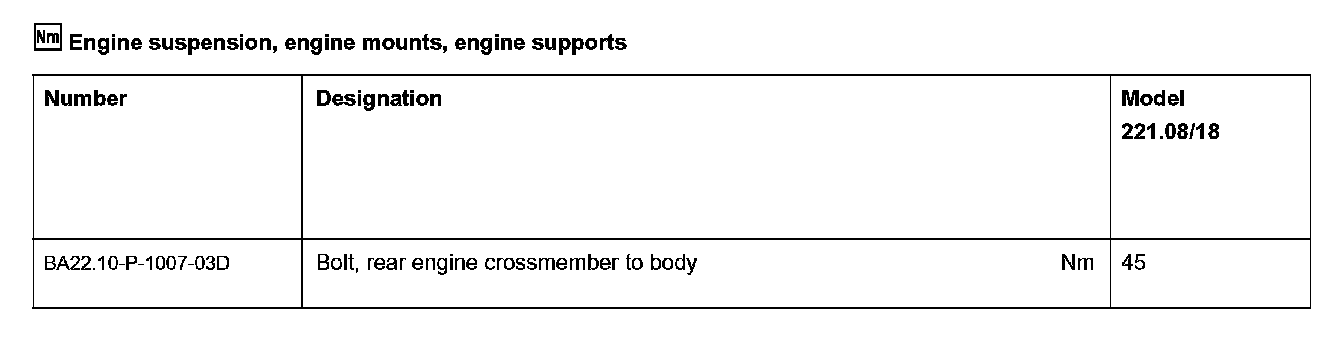

Engine suspension, engine mounts, engine supports:

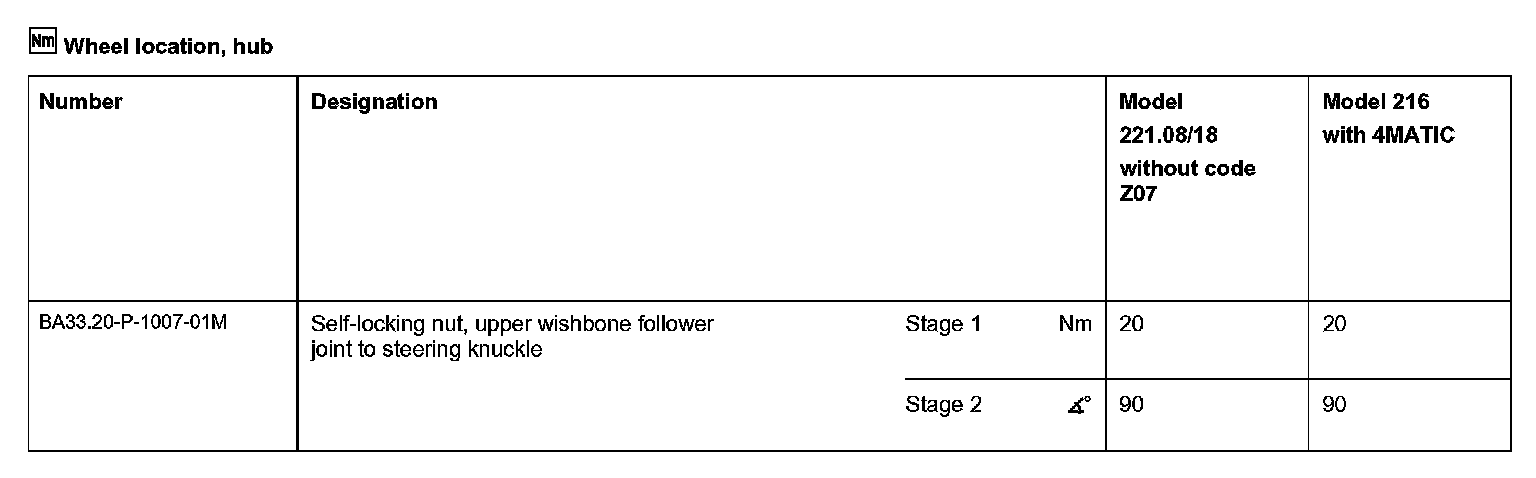

Wheel location, hub:

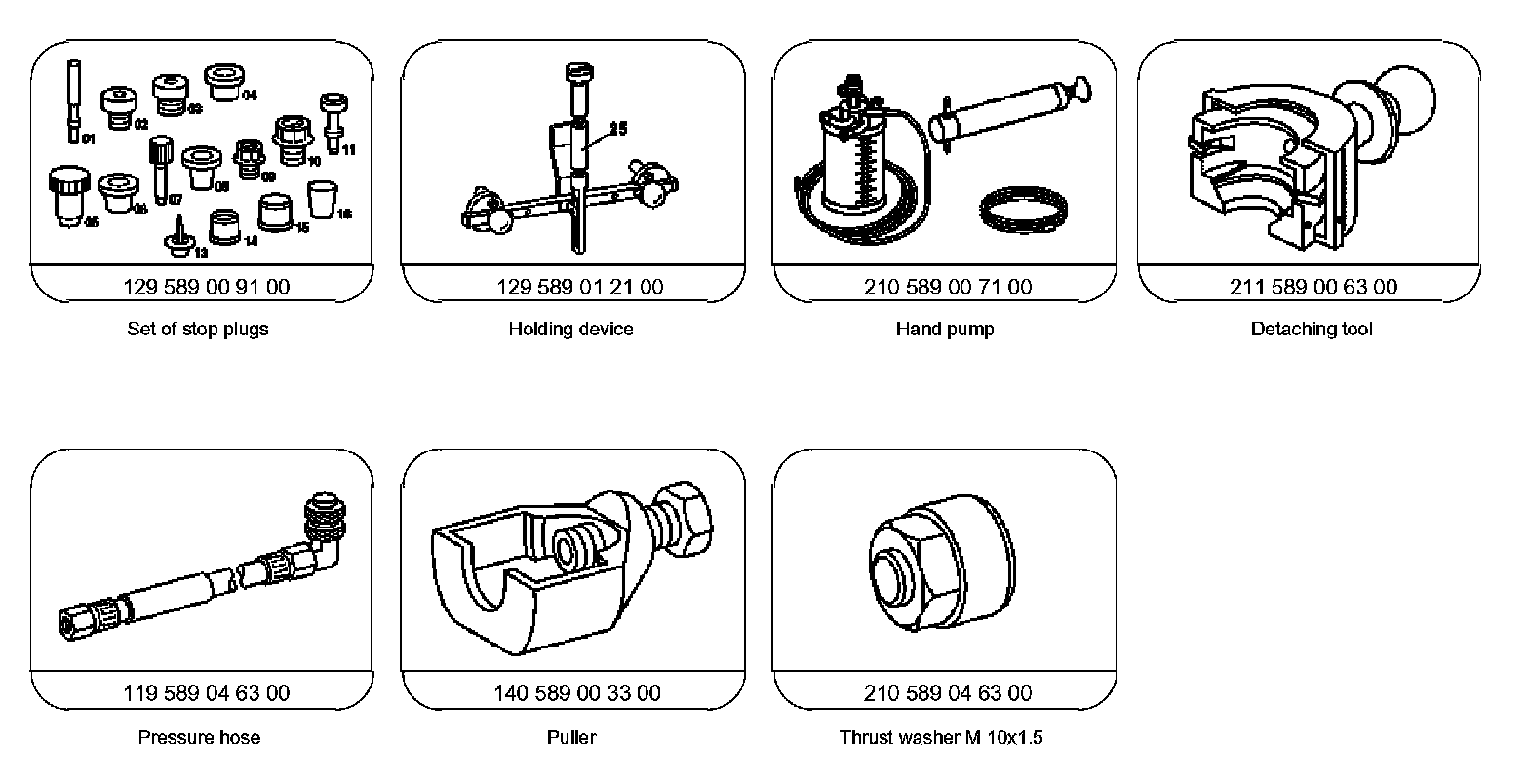

Special Tools:
