Home
>>
Mercedes Benz
>>
2007
>>
S 550 4MATIC (221.186) V8-5.5L (273.968)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
AAC - At
>>

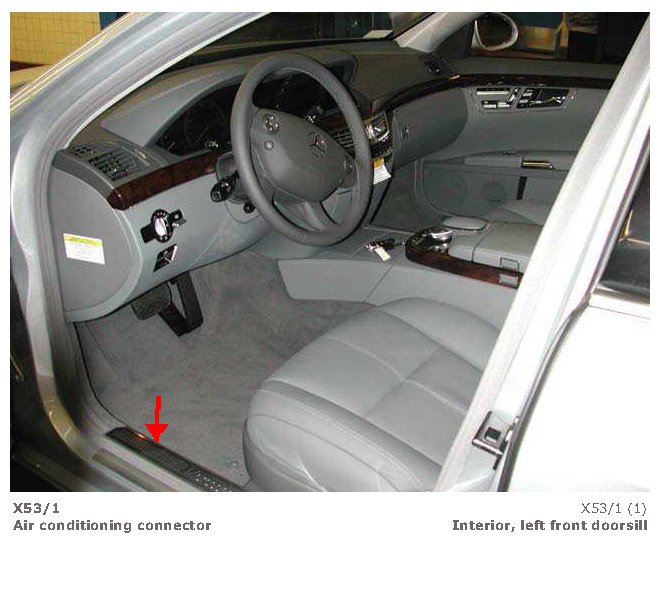

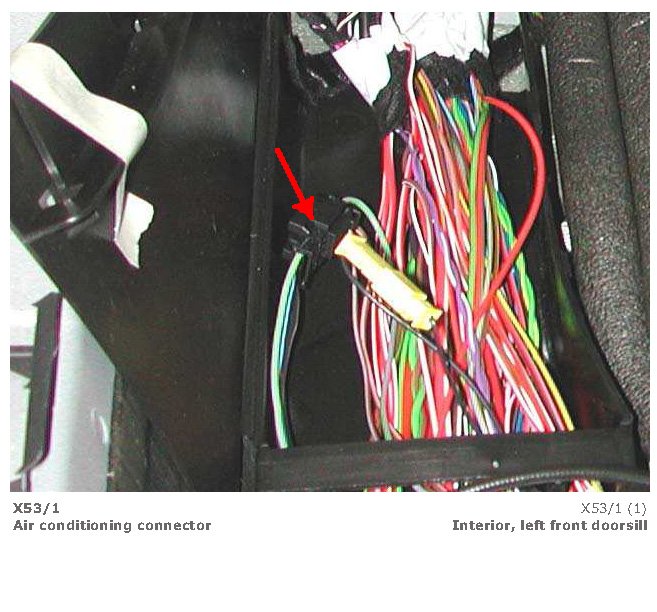

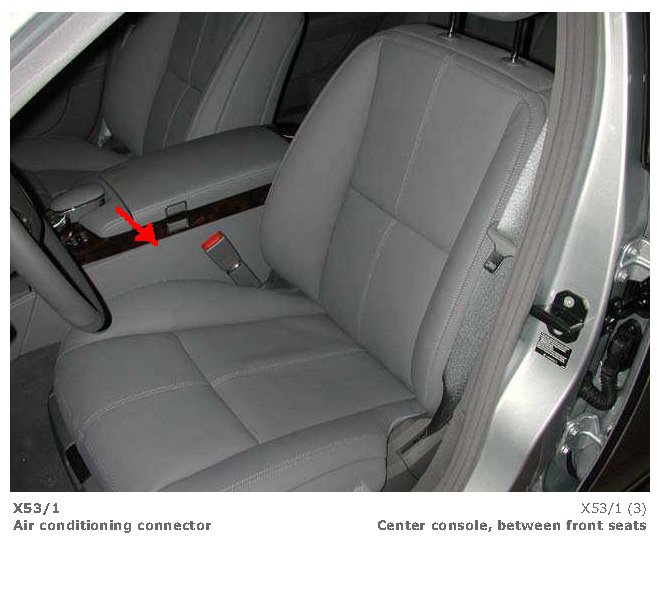

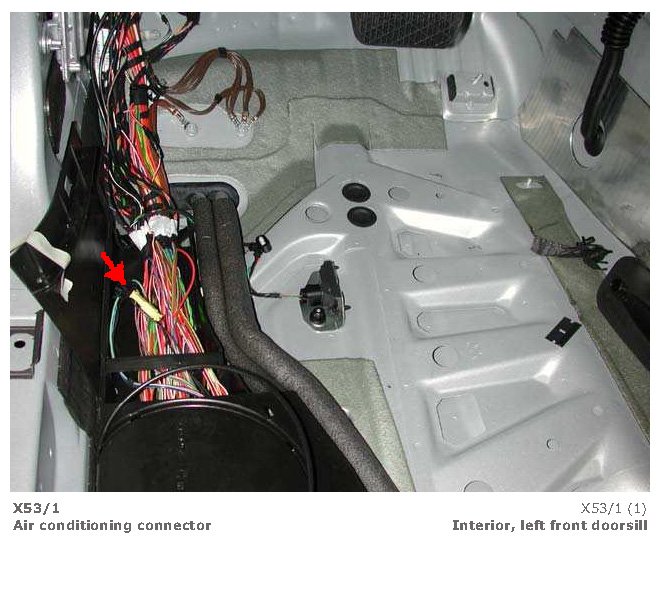

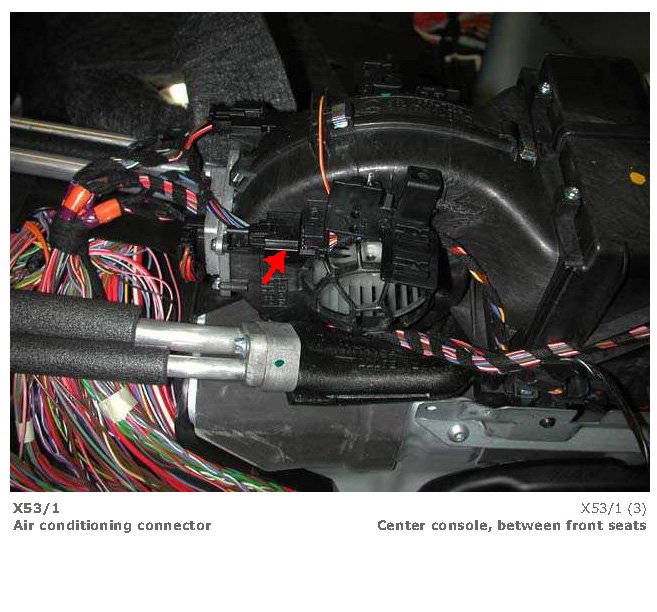

Air Conditioning Connector
Air Conditioning Connector
Air Conditioning Connector
