Seat Back Frame: Service and Repair
AR91.10-P-3331SX Remove/Install Front Seat Backrest
Frame

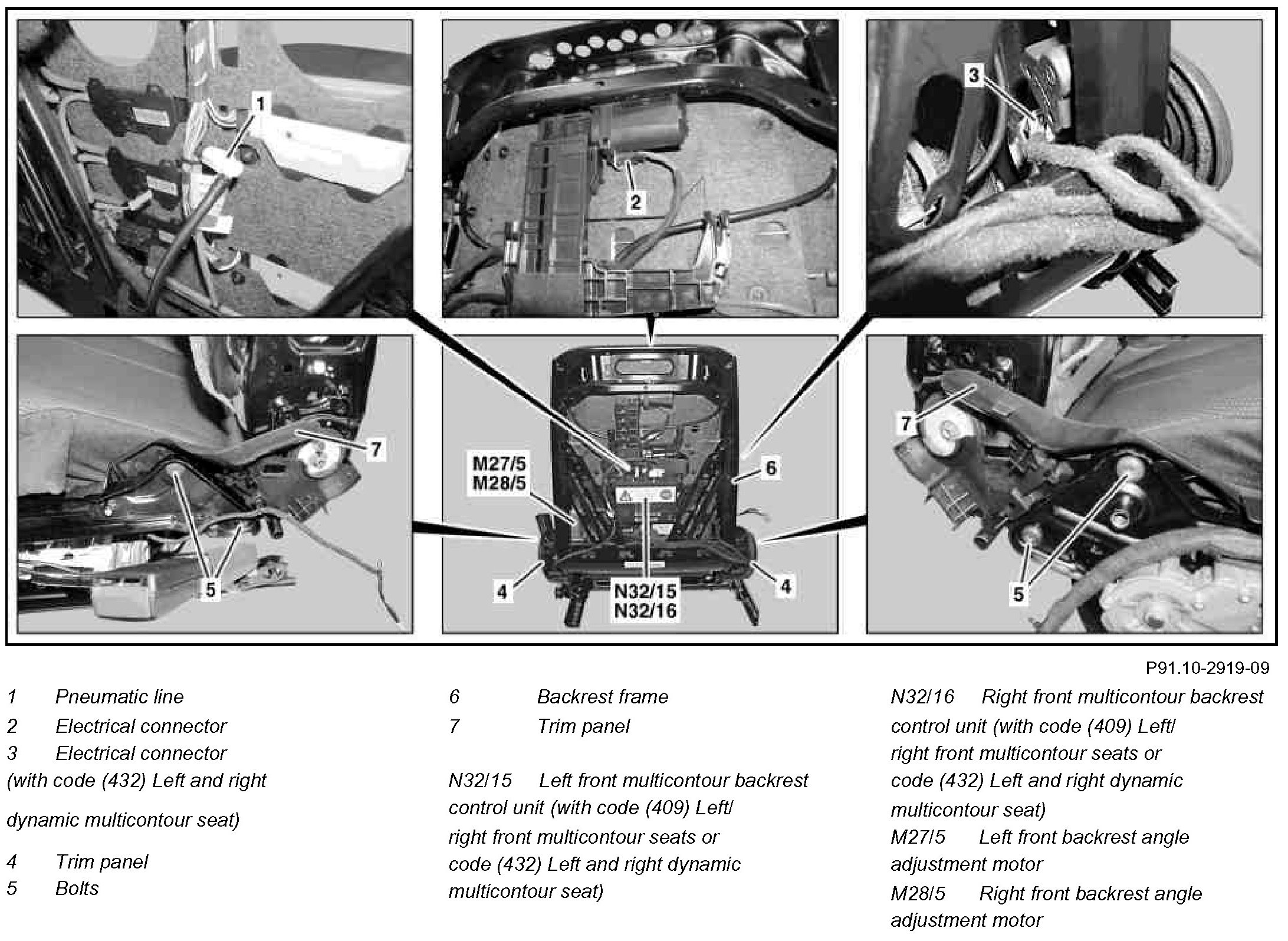

Component Identification:

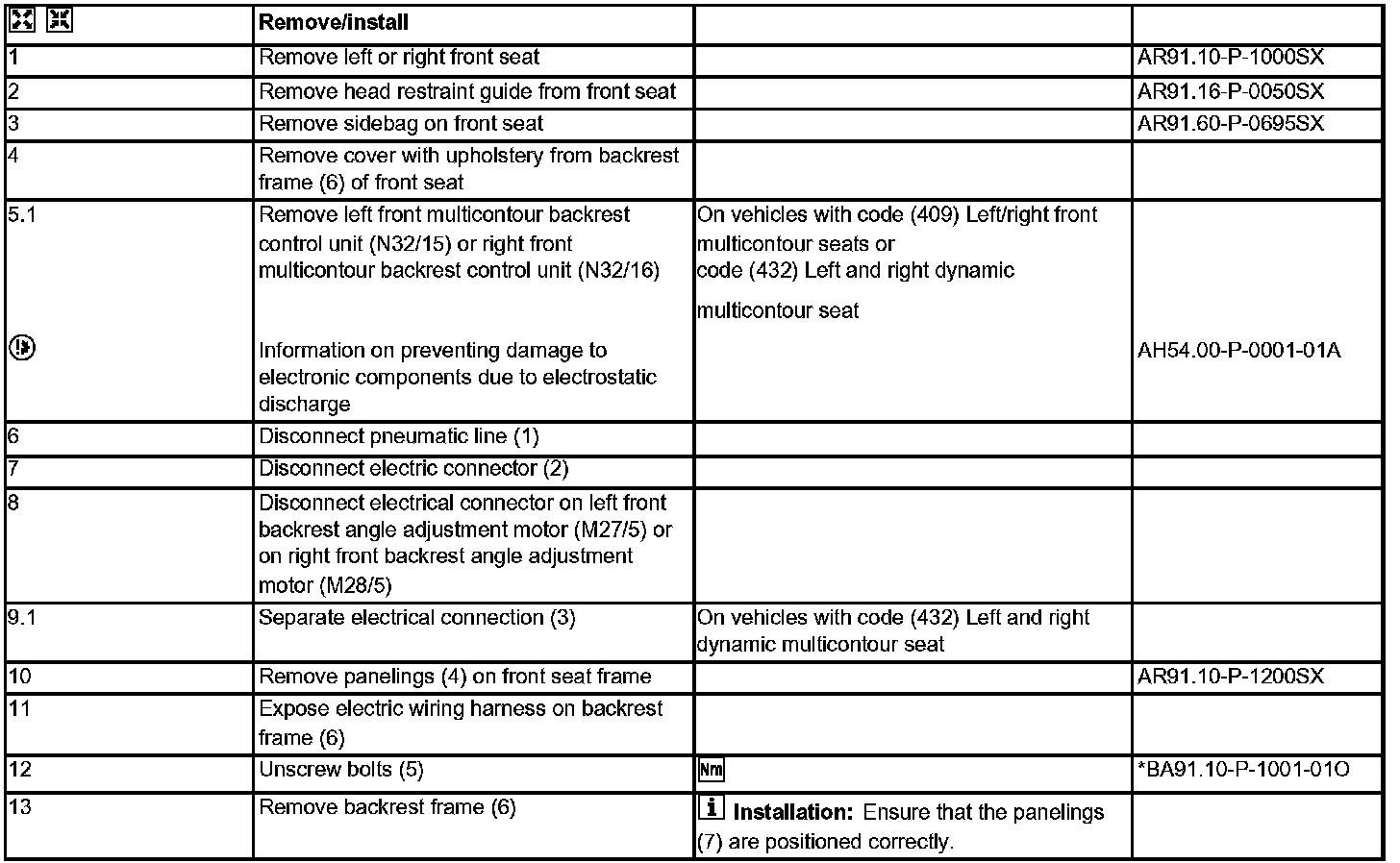

Steps 1 - 13:
Steps 14.1 - 15:

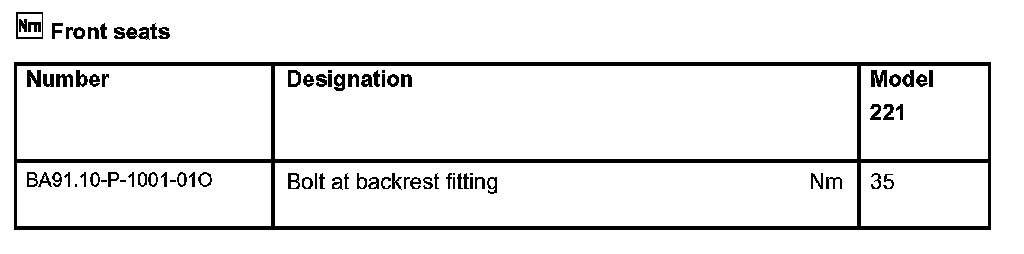

Front Seats:
