AR68.30-P-4600SXS Remove/Install Paneling In Trunk



AR68.30-P-4600SXS Remove/Install Paneling In Trunk
- with CODE (Z07) Top protection

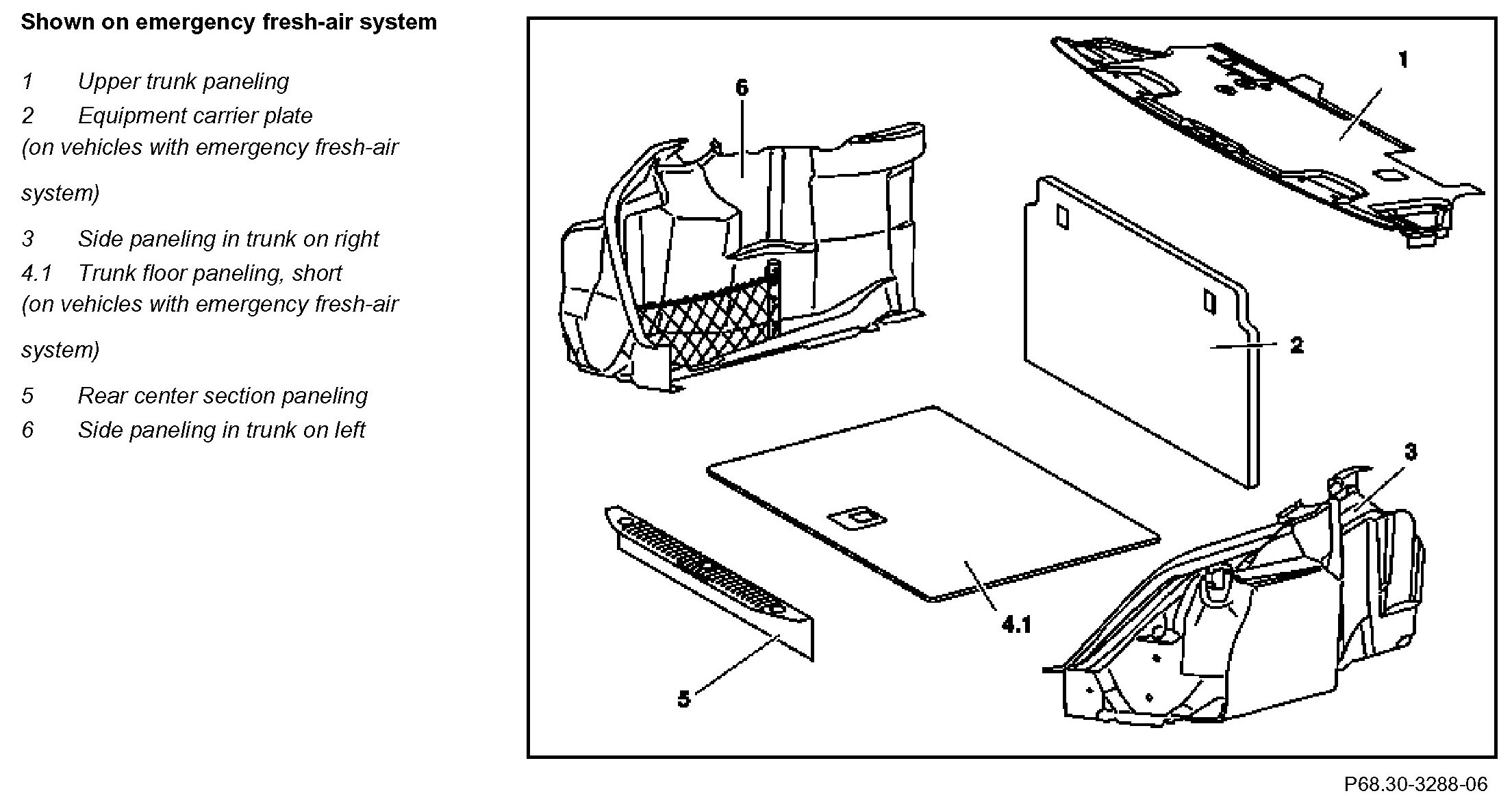

Component Identification:

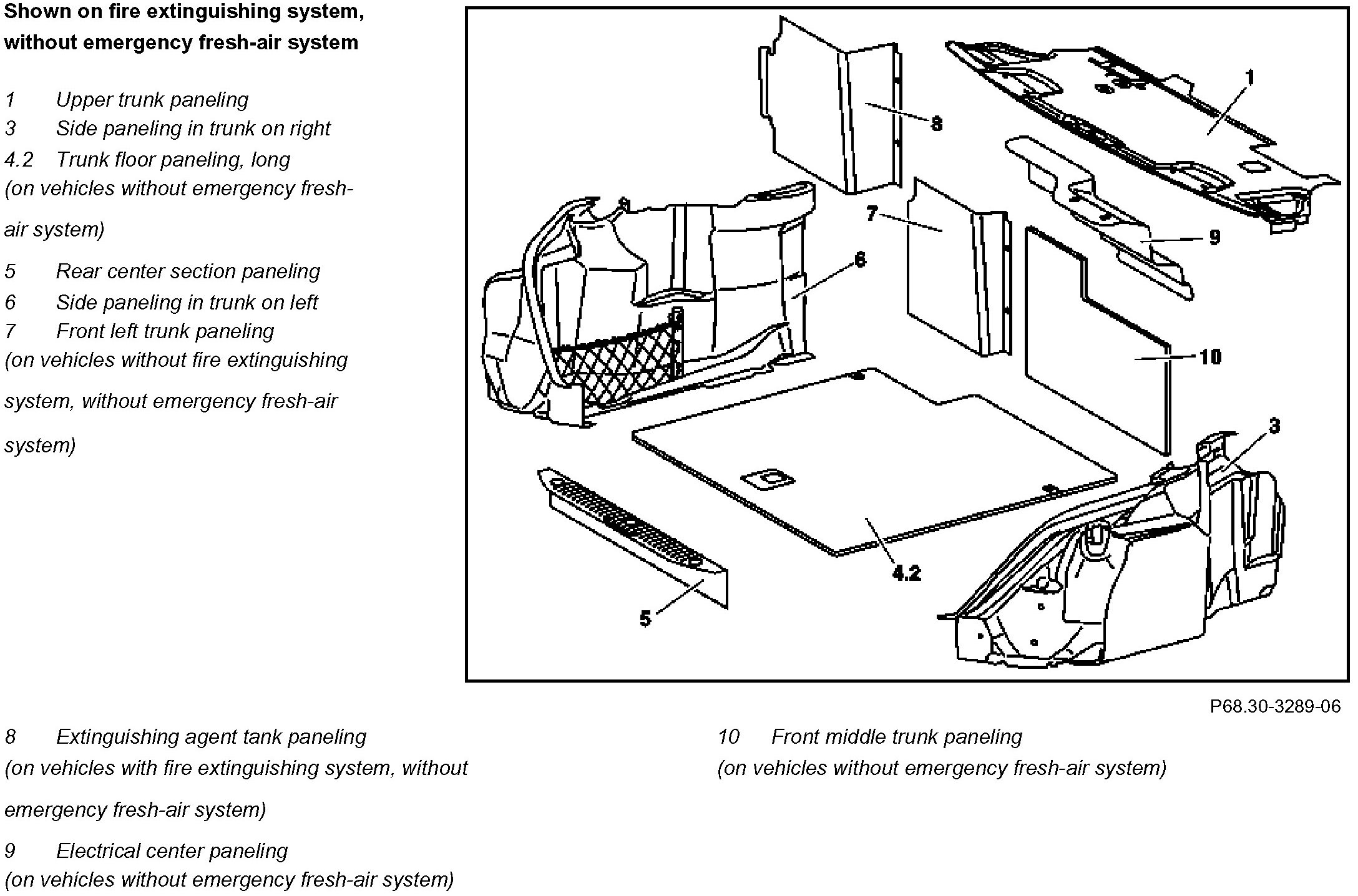

Component Identification:

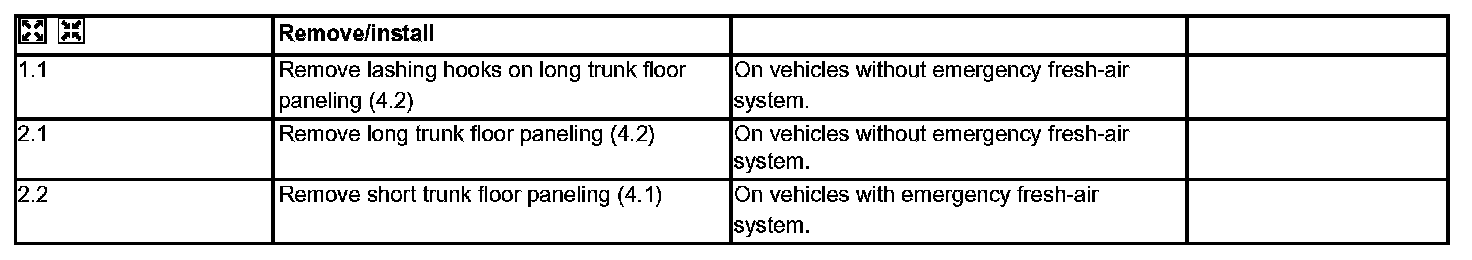

Steps 1 - 2.2:

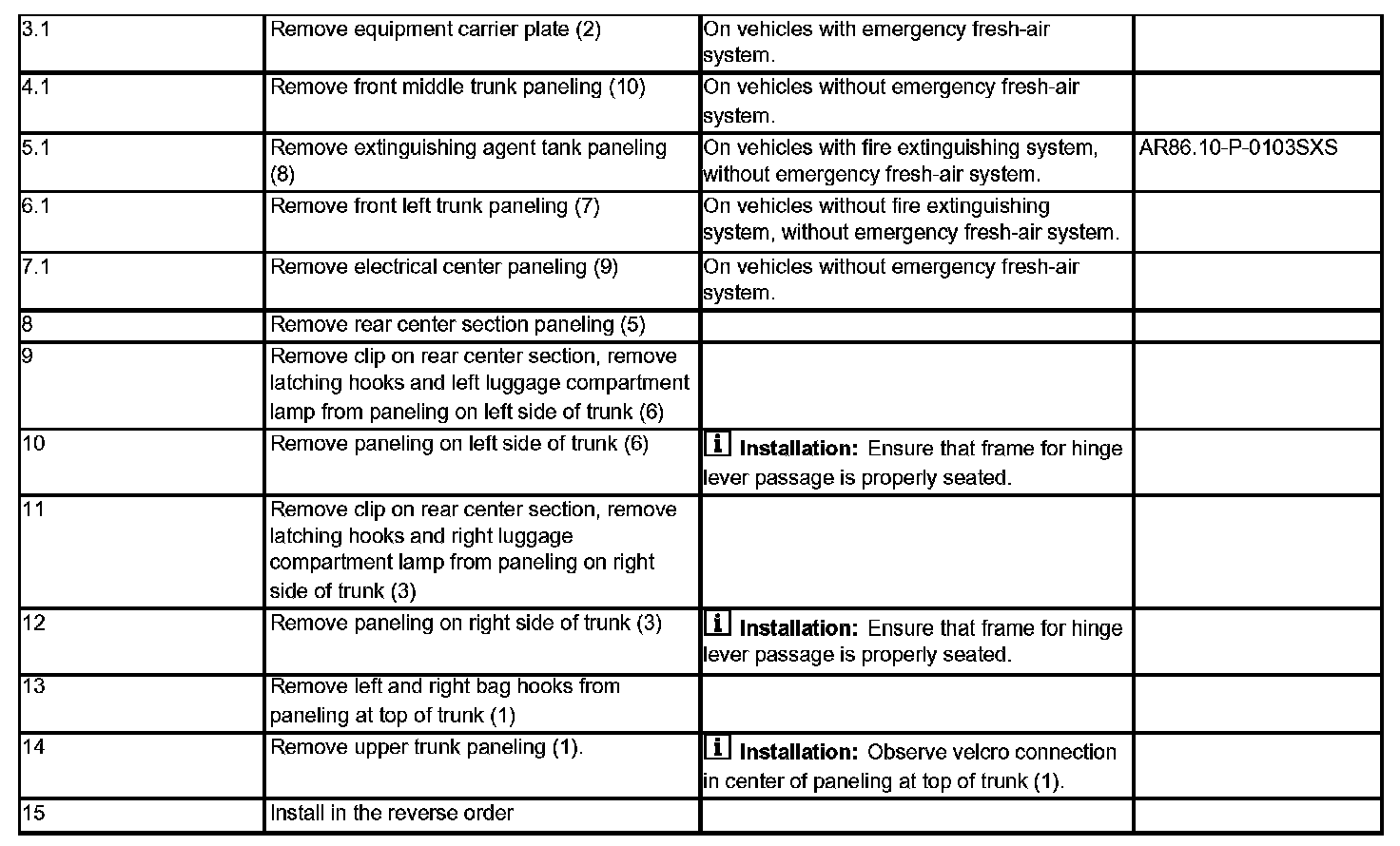

Steps 3.1 - 15:
