Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2007
>>
S 550 4MATIC (221.186) V8-5.5L (273.968)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Console
>>
Service and Repair
>>
Removal and Replacement
>>
AR68.20-P-2000SX Remove/Install Center Console
AR68.20-P-2000SX Remove/Install Center Console
AR68.20-P-2000SX Remove/Install Center Console
- up to 31.5.09

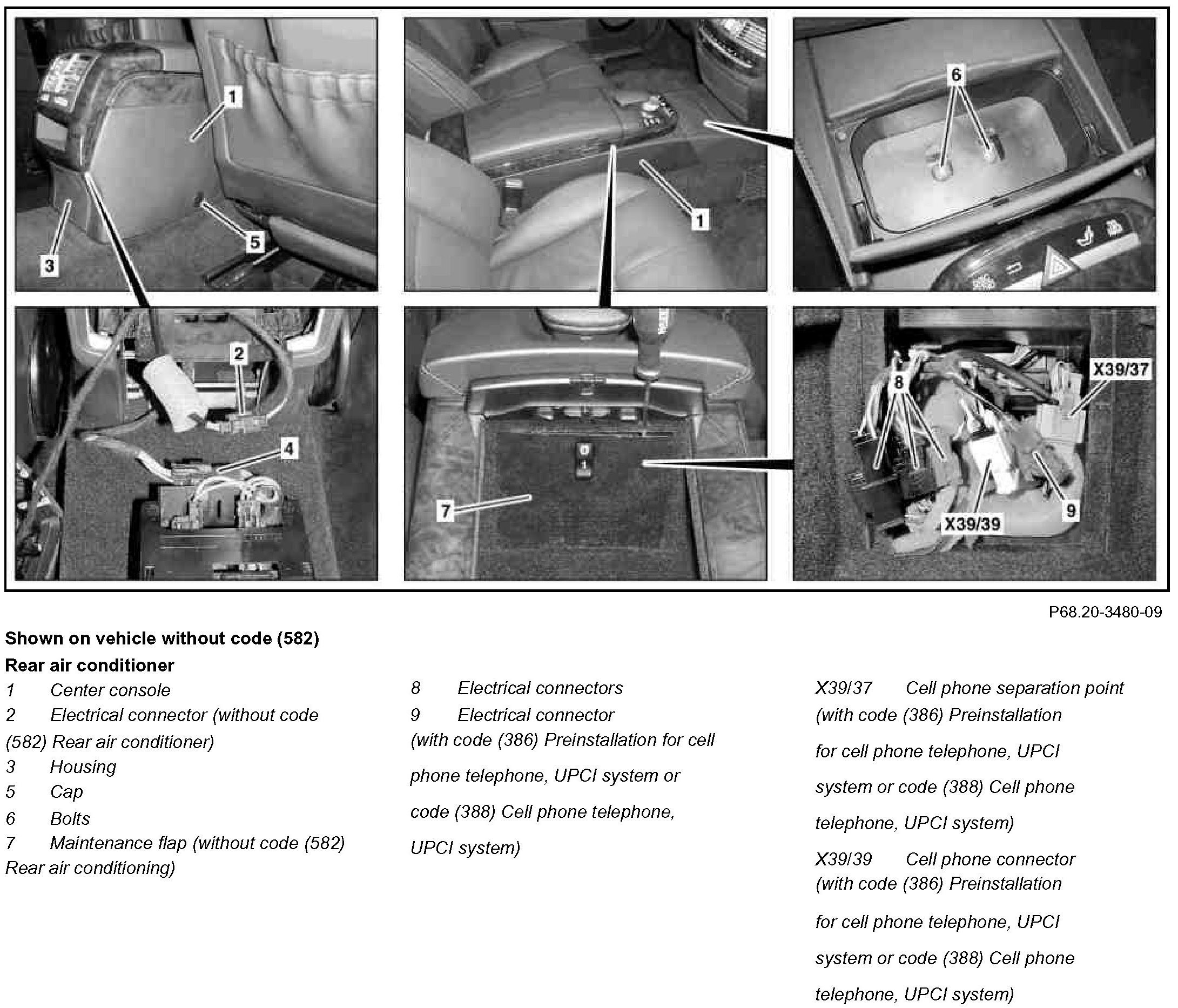

Component Identification:

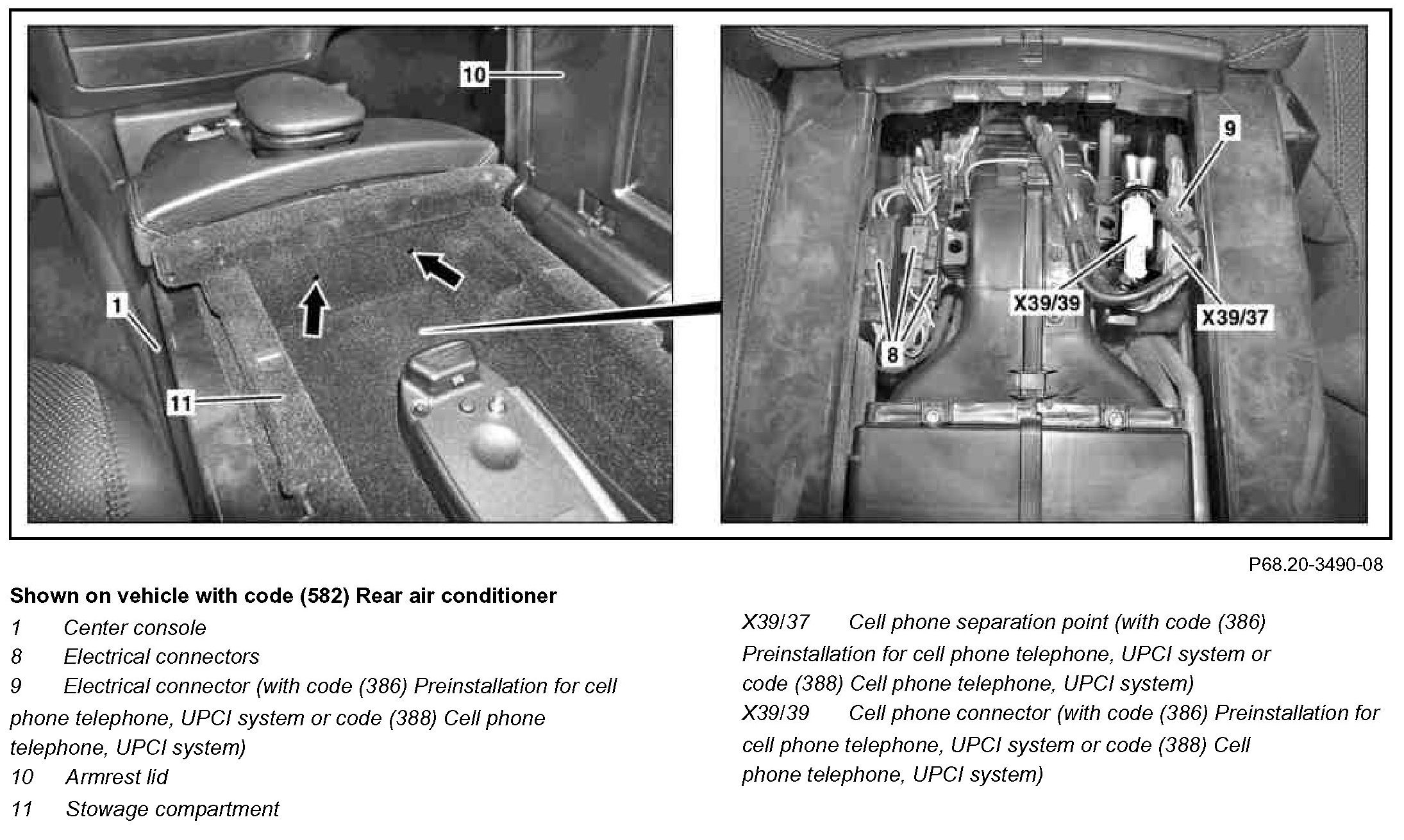

Component Identification:

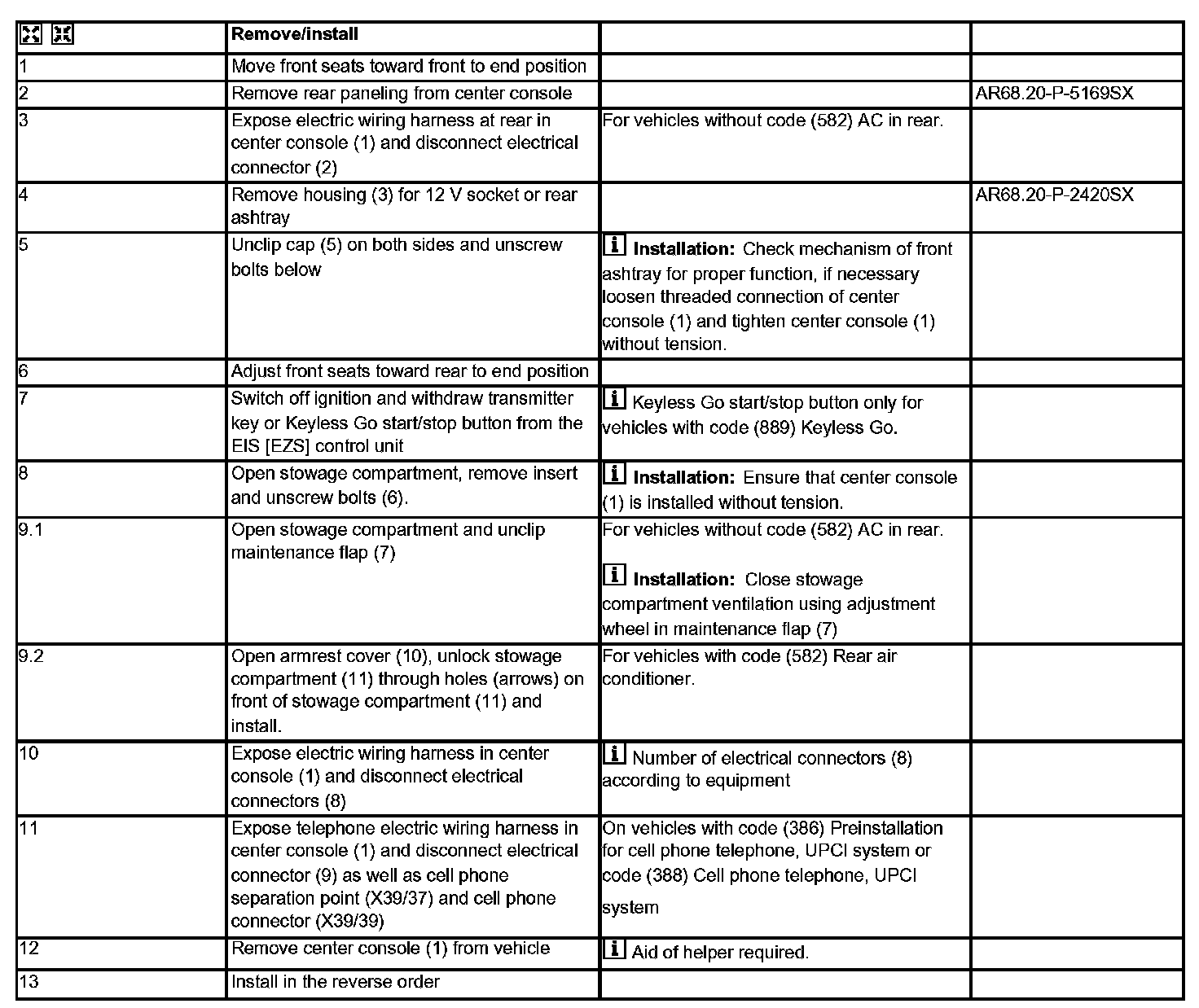

Steps 1 - 13:
