AP31.11-P-3152SX Check Condition and Operation of Trailer Hitch



AP31.11-P-3152SX Check Condition And Operation Of Trailer Hitch
- with CODE (550) Trailer hitch

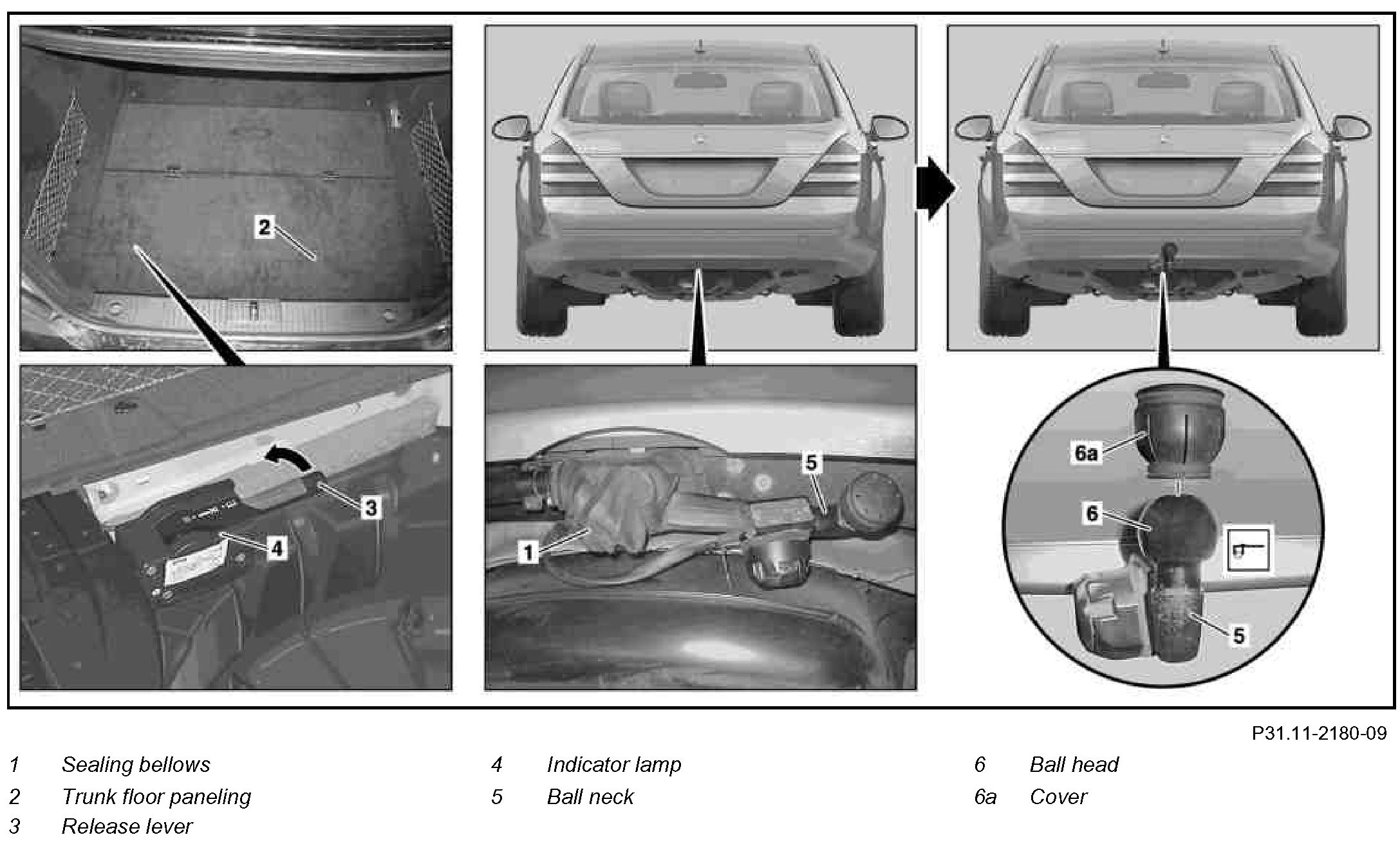

Component Identification:

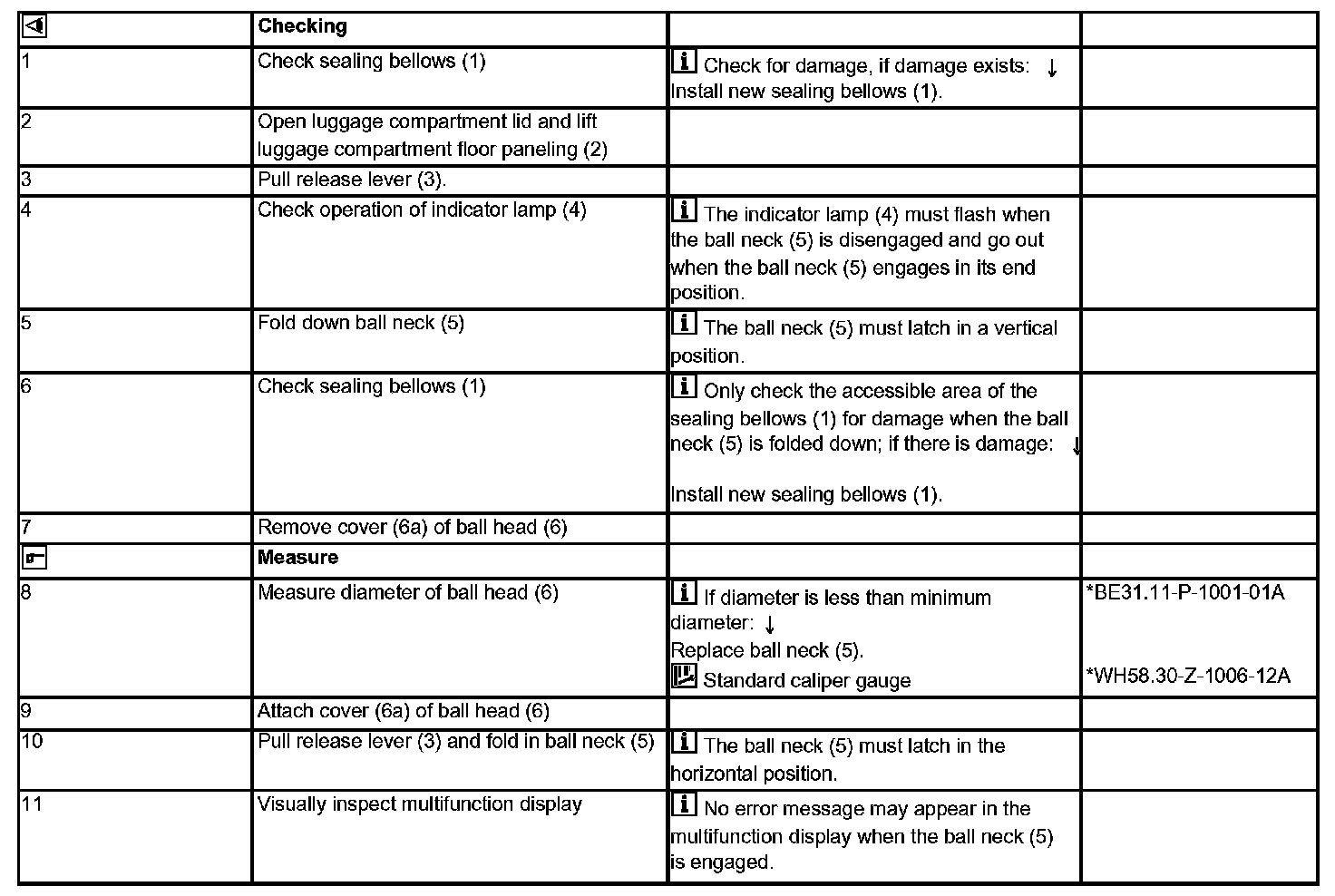

Steps 1 - 11:

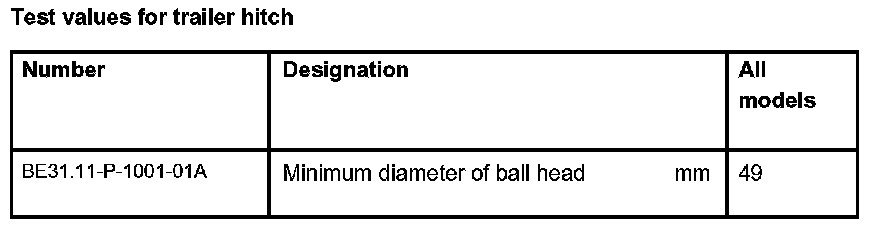

Test Values For Trailer Hitch:

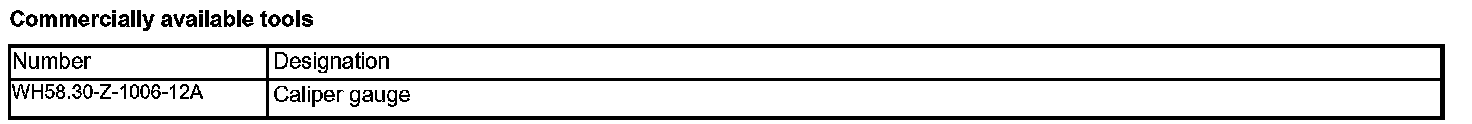

Commercially Available Tools:
