AN31.19-P-8080-05SX Retrofit trailer coupling control unit

AN31.19-P-8080-05SX Retrofit trailer coupling control unit
- 221.0##/1## 1#

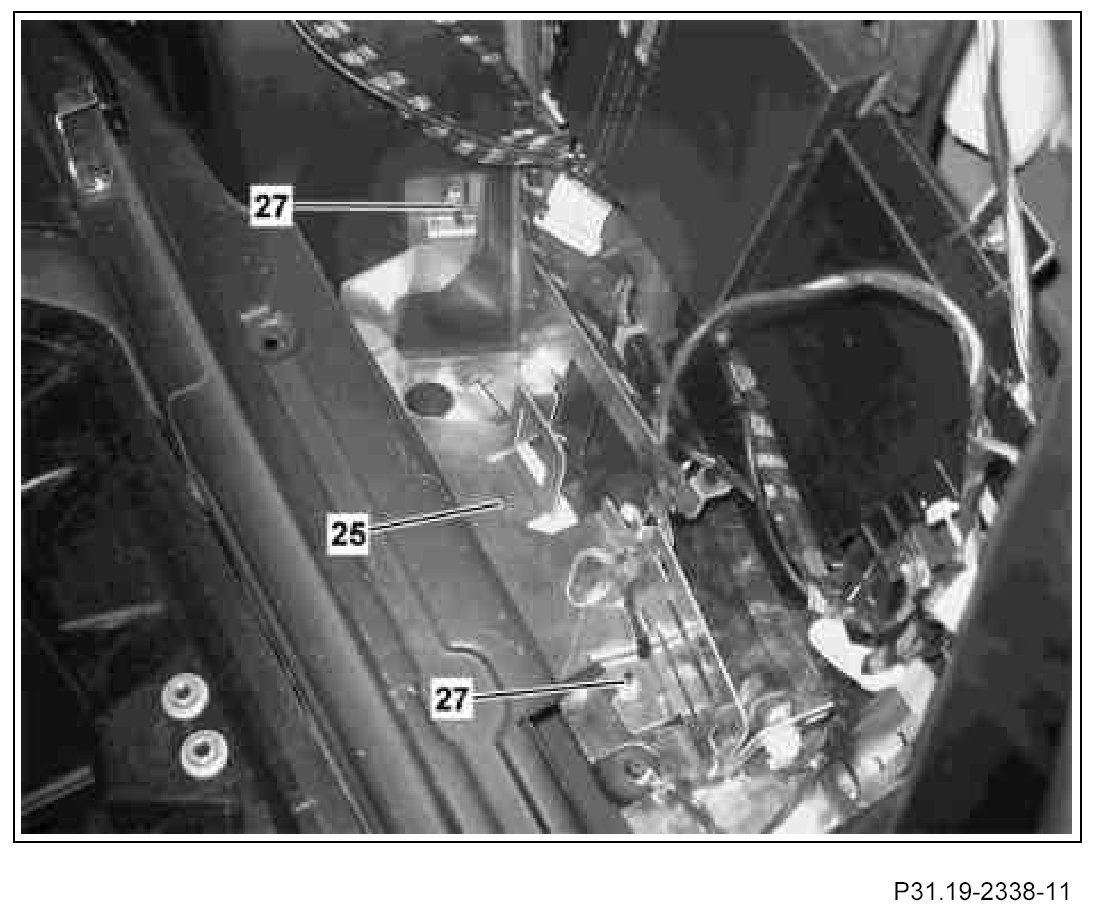

1. Mount bracket (25) on existing body bolts and fasten with two nuts M6 (27).
On vehicles without code (220) PARKTRONIC, without code (229) Park Assist, without code (230) Exclusive parking aid (APG), without code (233) Plus adaptive cruise control (Distronic plus), without code (234) Blind spot monitoring (BSM) or without code (881) Trunk lid remote closing.

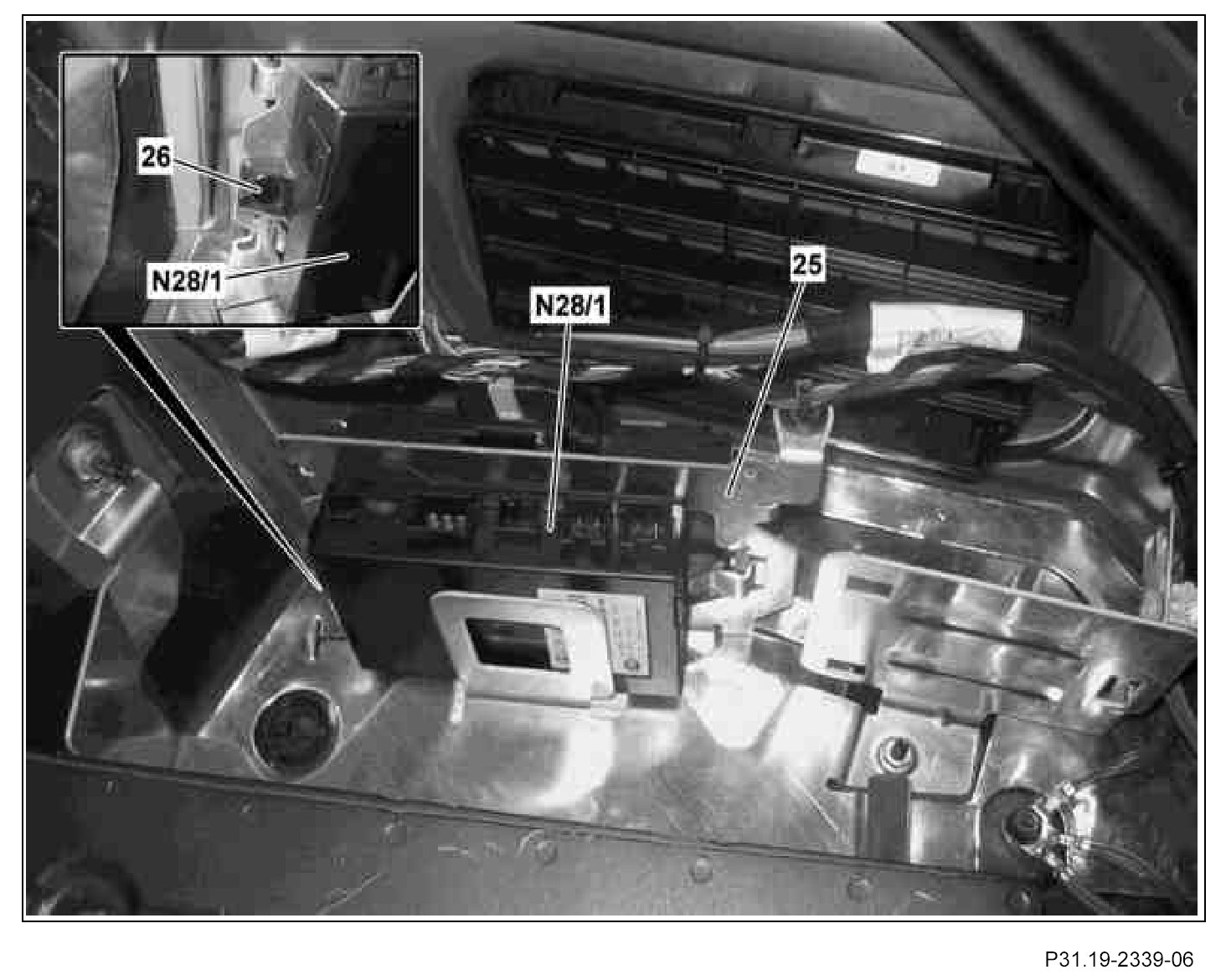

2. Insert trailer recognition control unit (N28/1) into bracket (25) and fasten in place using plastic clip (26).
