AR61.40-P-1010SXS Remove/Install Transmission Protection Plate



AR61.40-P-1010SXS Remove/Install Transmission Protection Plate
- with CODE (Z07) Top protection

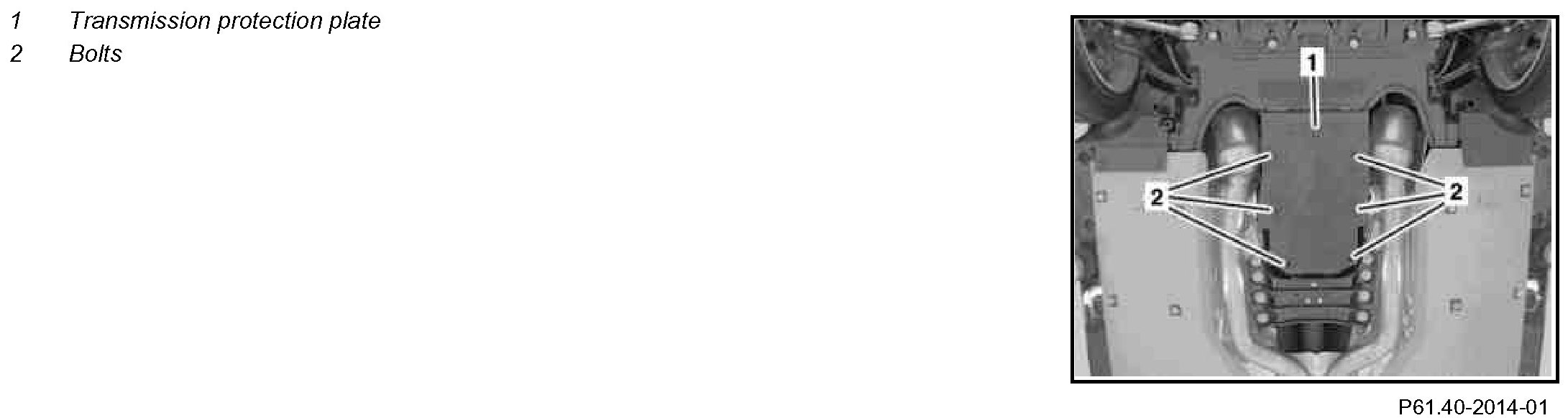

Component Identification:

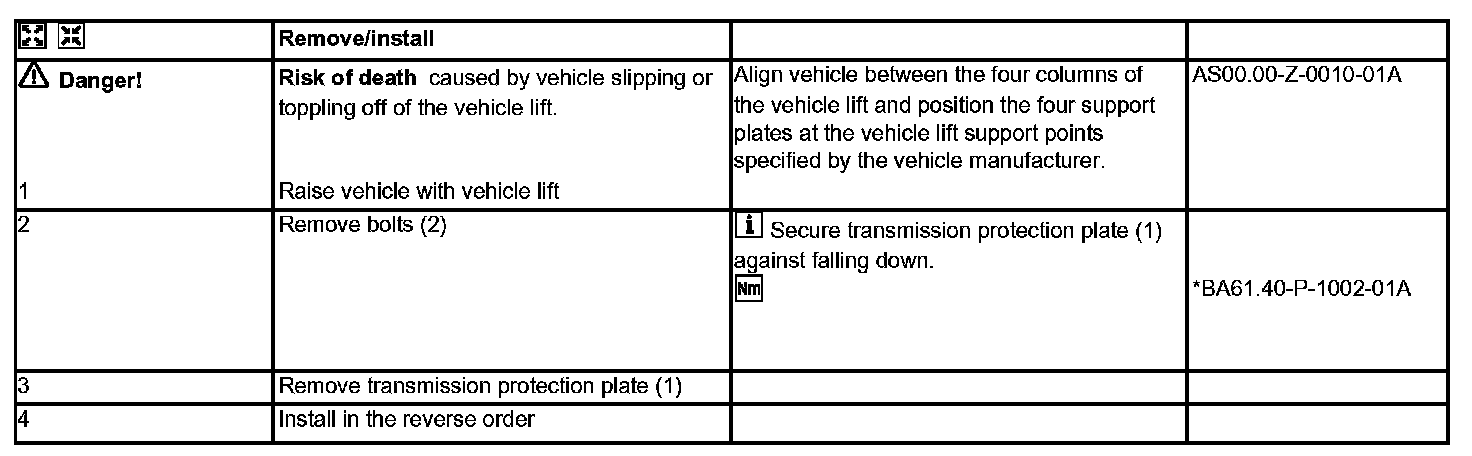

Steps 1 - 4:

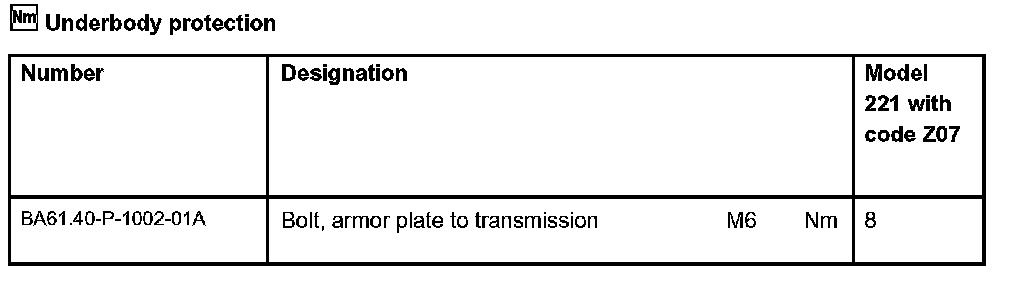

Underbody Protection:
