AR54.21-P-0500SX Remove/Install Front Central Operating Unit Control Unit



AR54.21-P-0500SX Remove/Install Front Central Operating Unit Control Unit

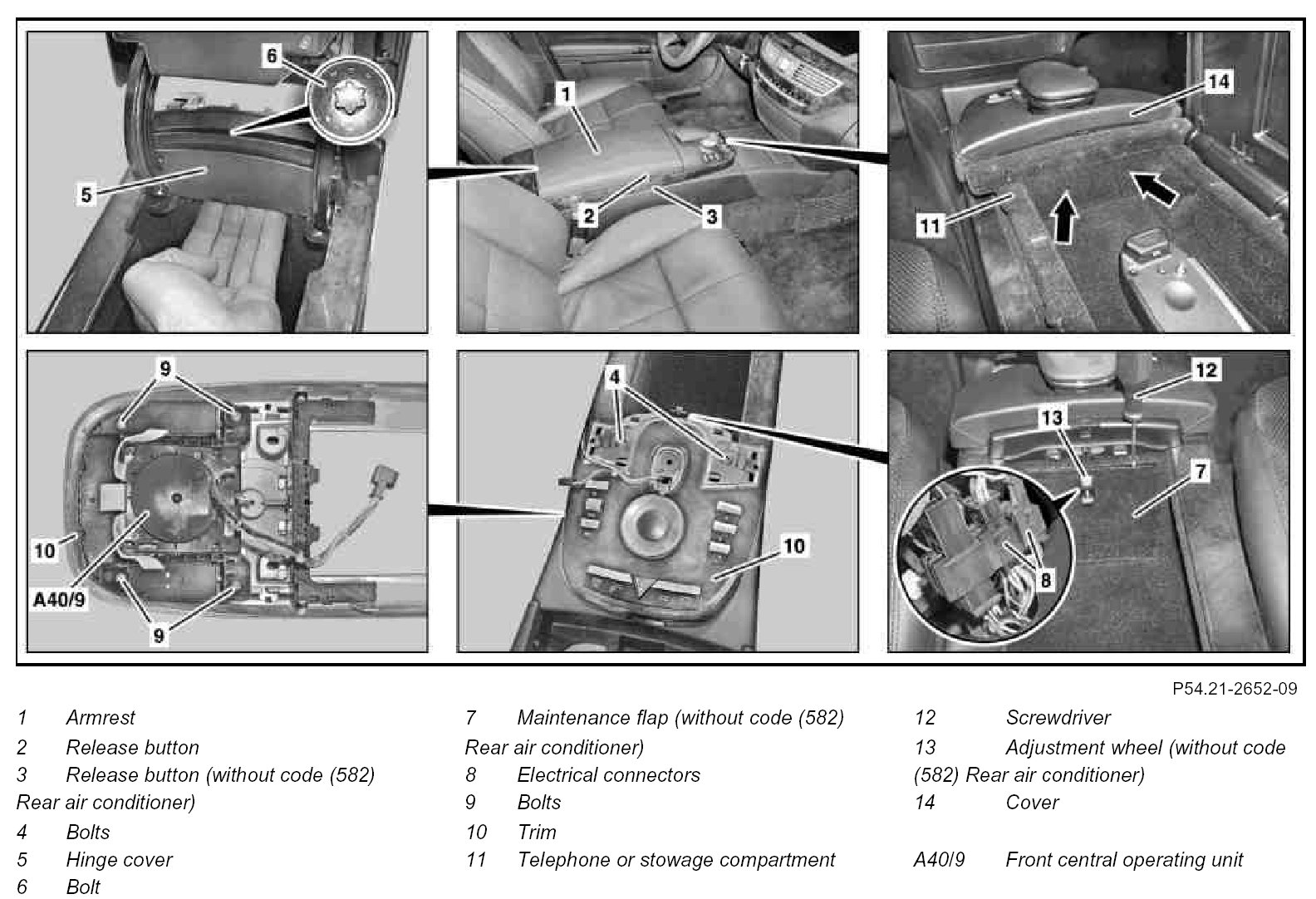

Component Identification:

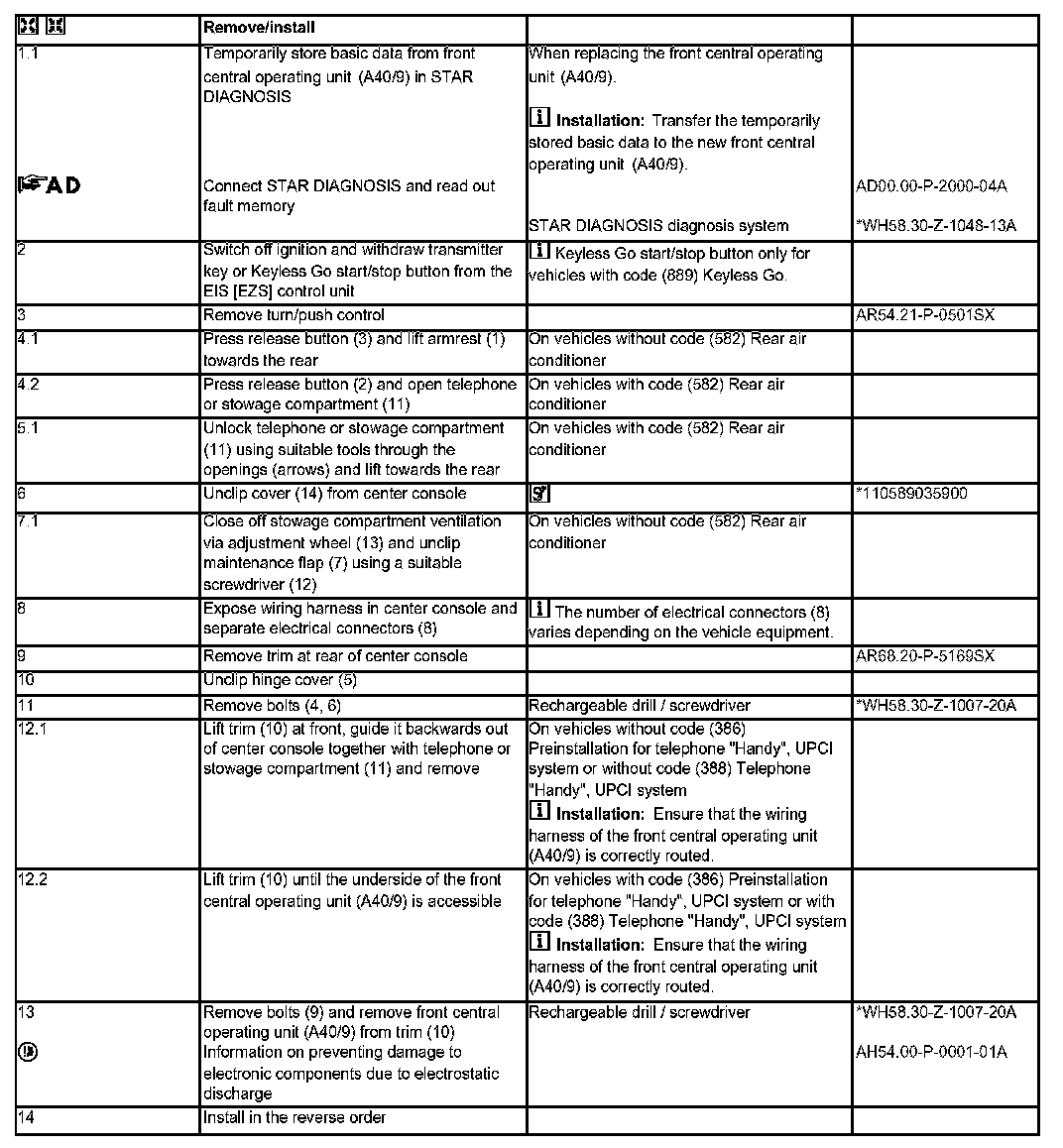

Steps 1.1 - 14:




Special Tools:

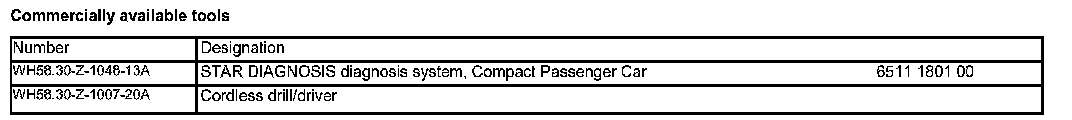

Commercially Available Tools:
