AR82.85-P-7429SX Remove/Install COMAND Display
AR82.85-P-7429SX Remove/Install COMAND Display
AR82.85-P-7429SX Remove/Install COMAND Display

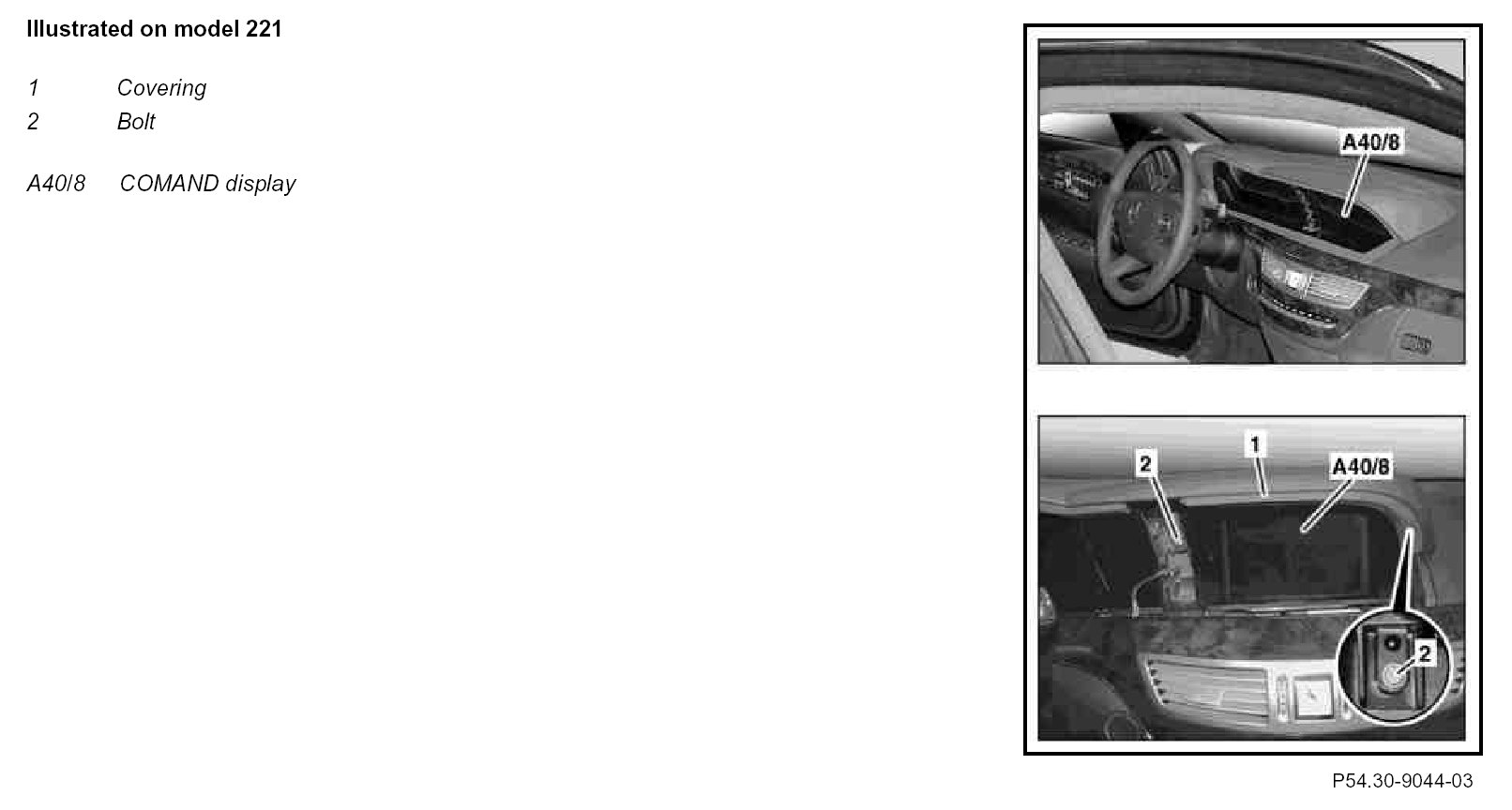

Component Identification:

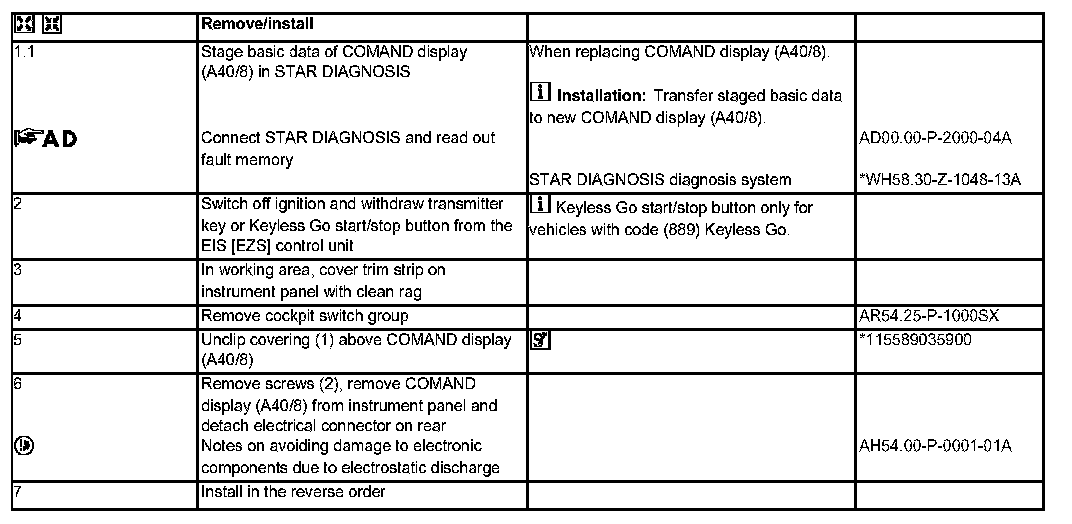

Steps 1.1 - 7:
Special Tools:

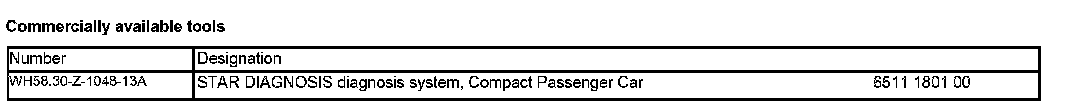

Commercially Available Tools:
