AN82.85-P-0010SX Retrofit Comand Remote Control



AN82.85-P-0010SX Retrofit COMAND Remote Control
- except CODE (494) USA version
- except CODE (498) Japan version
- except CODE (Z07) Top protection

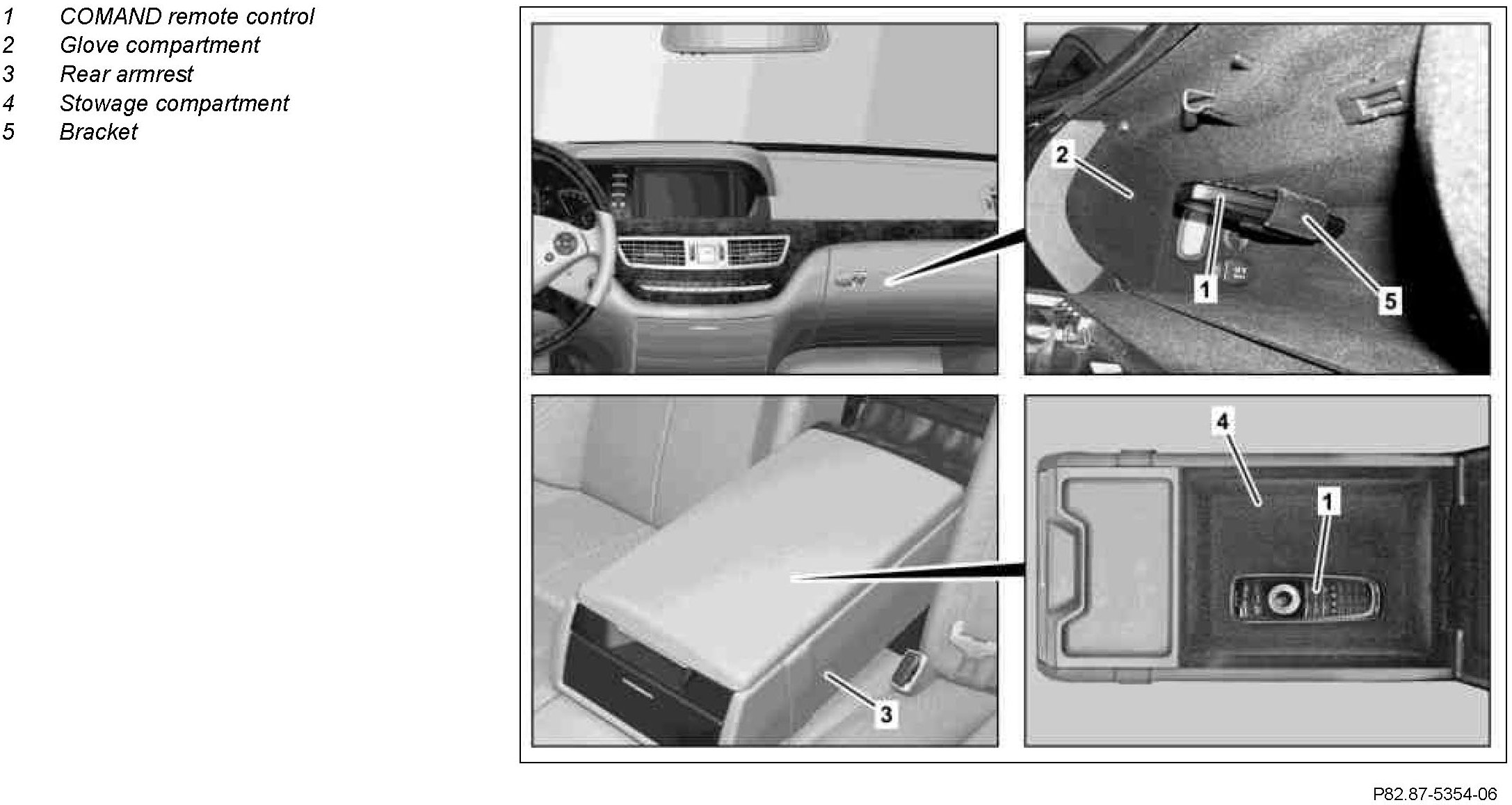

Component Identification:

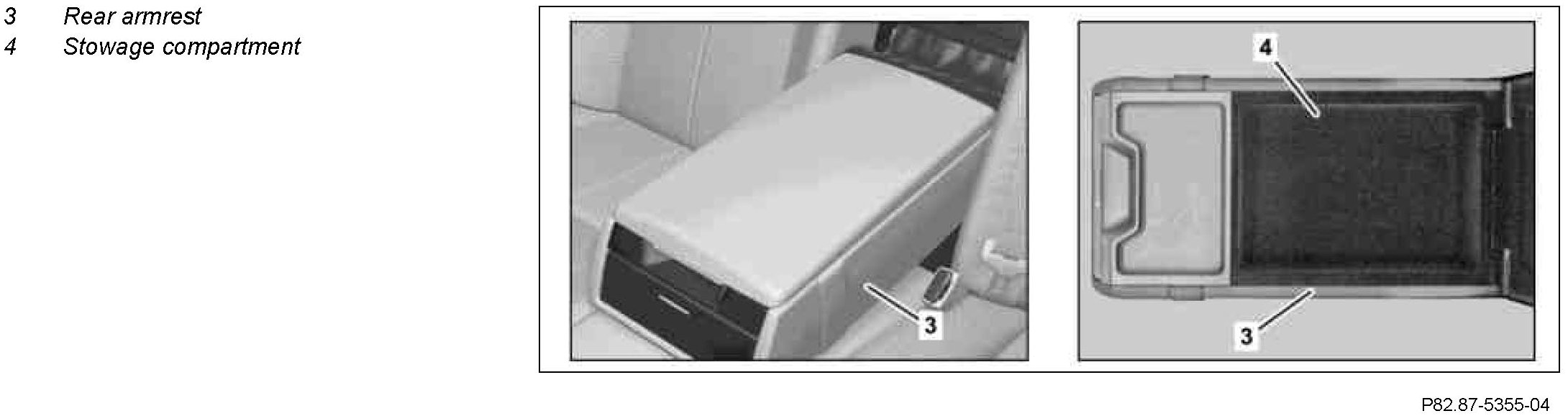

Component Identification:

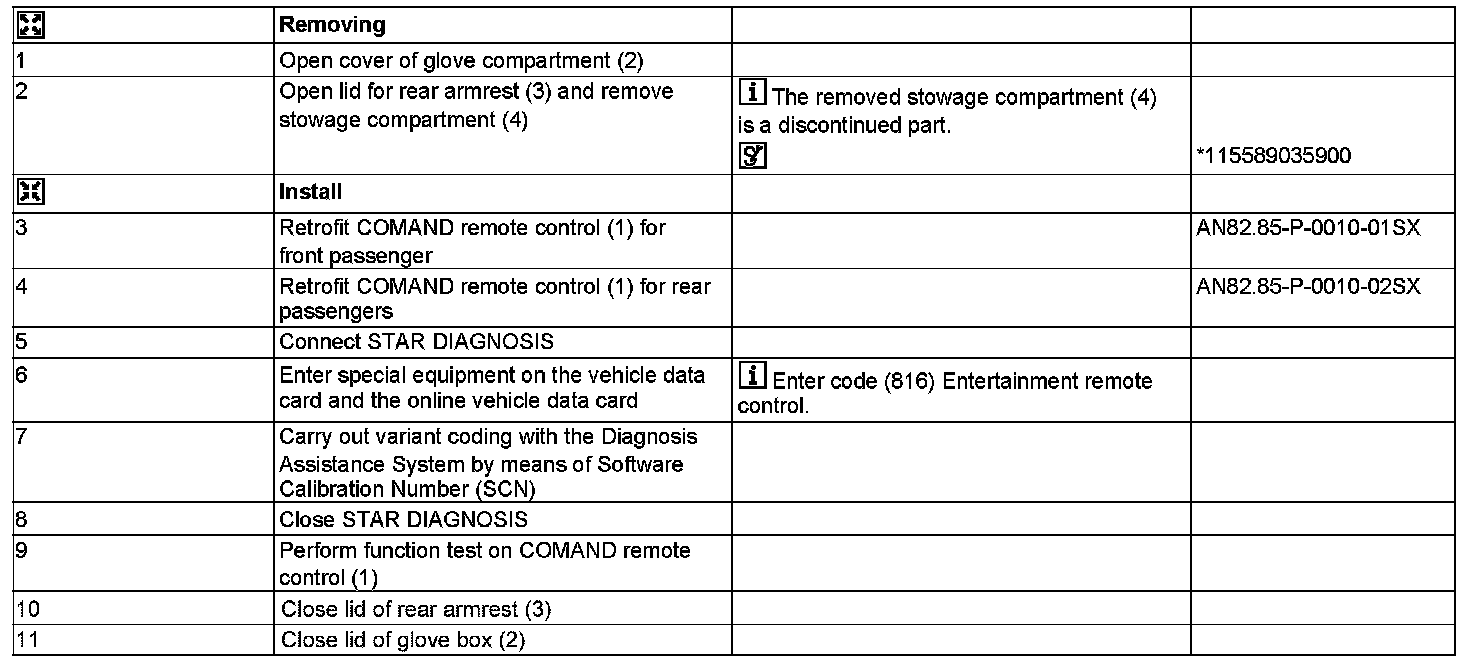

Steps 1 - 11:




Special Tools:

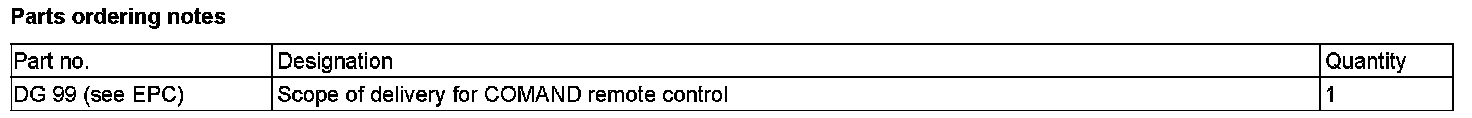

Parts Ordering Notes:
