PE82.85-P-2101SFA Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram PE82.85-P-2101SFA
- with CODE (352) COMAND APS (with navigation)
- with CODE (527) COMAND APS (with navigation)
- with CODE (Z07) Top protection
- control unit A40/3

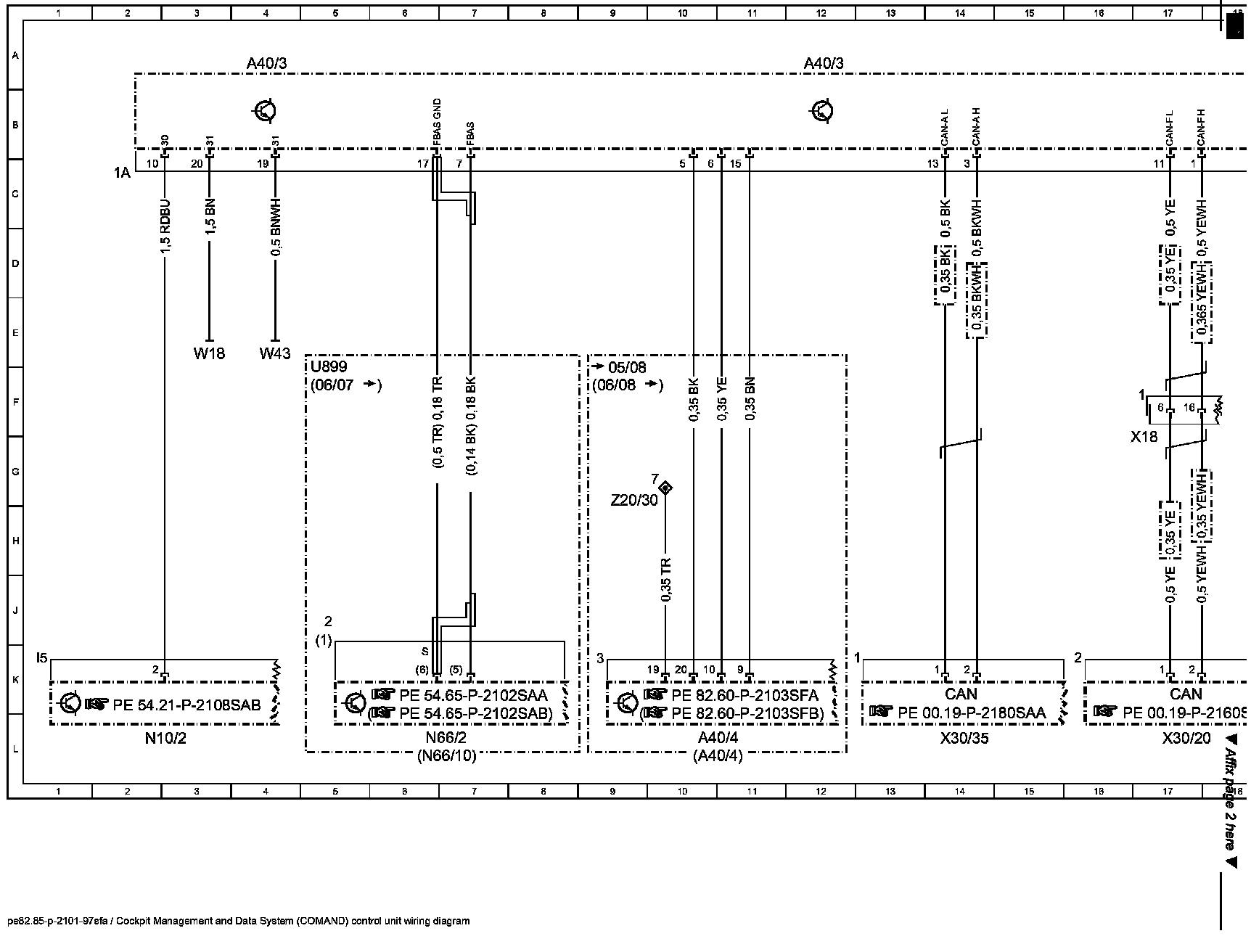

Wiring Diagram (Part 1):

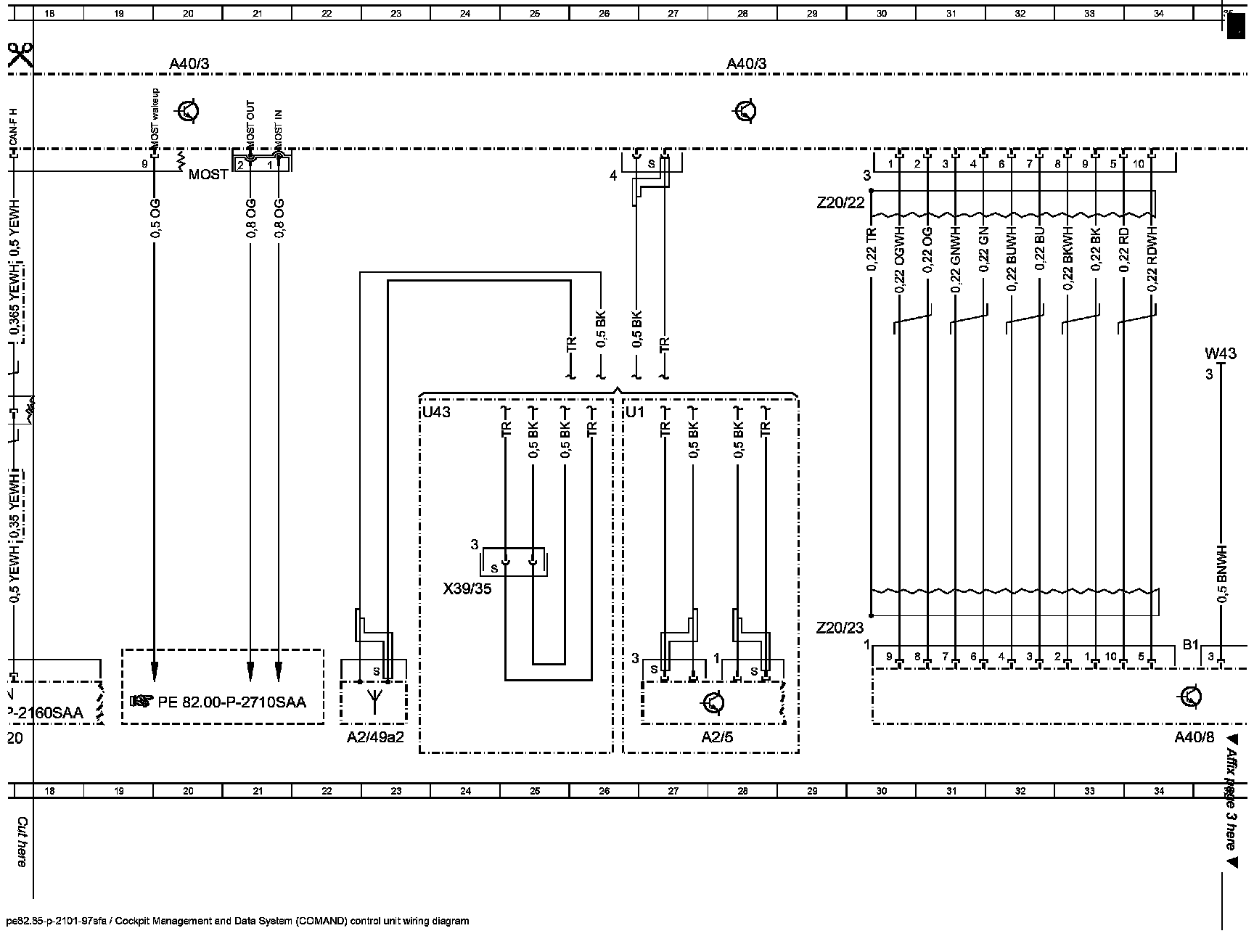

Wiring Diagram (Part 2):

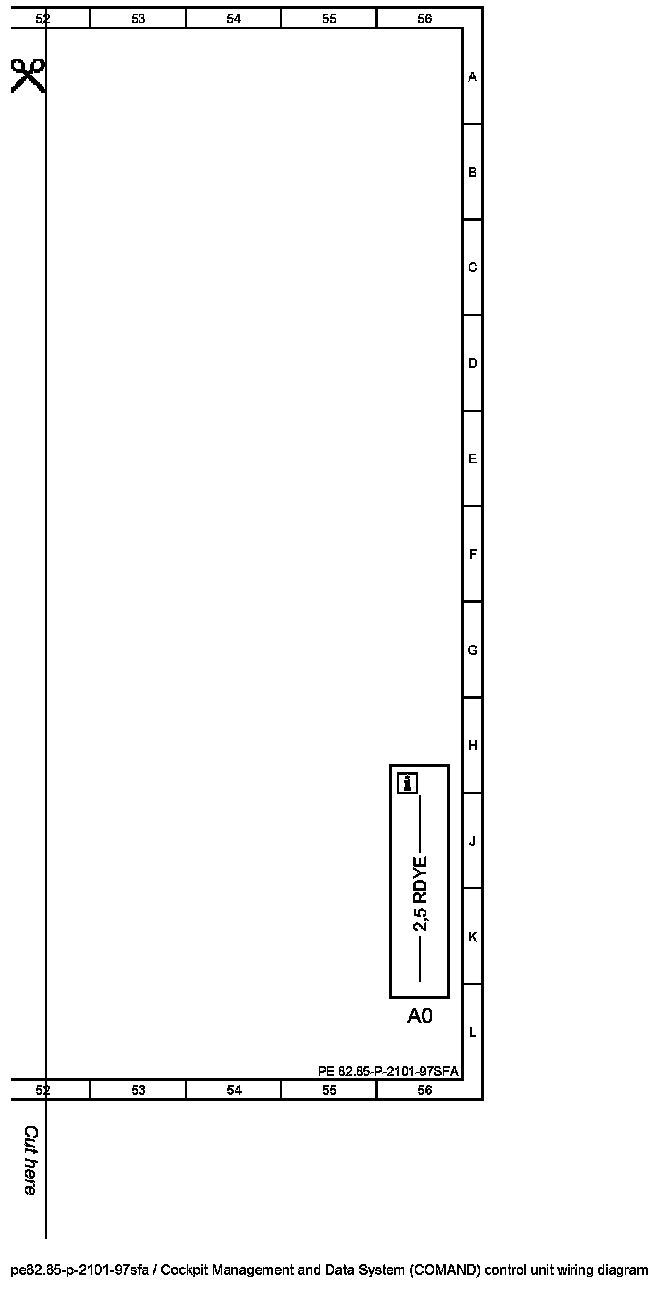

Wiring Diagram (Part 3):

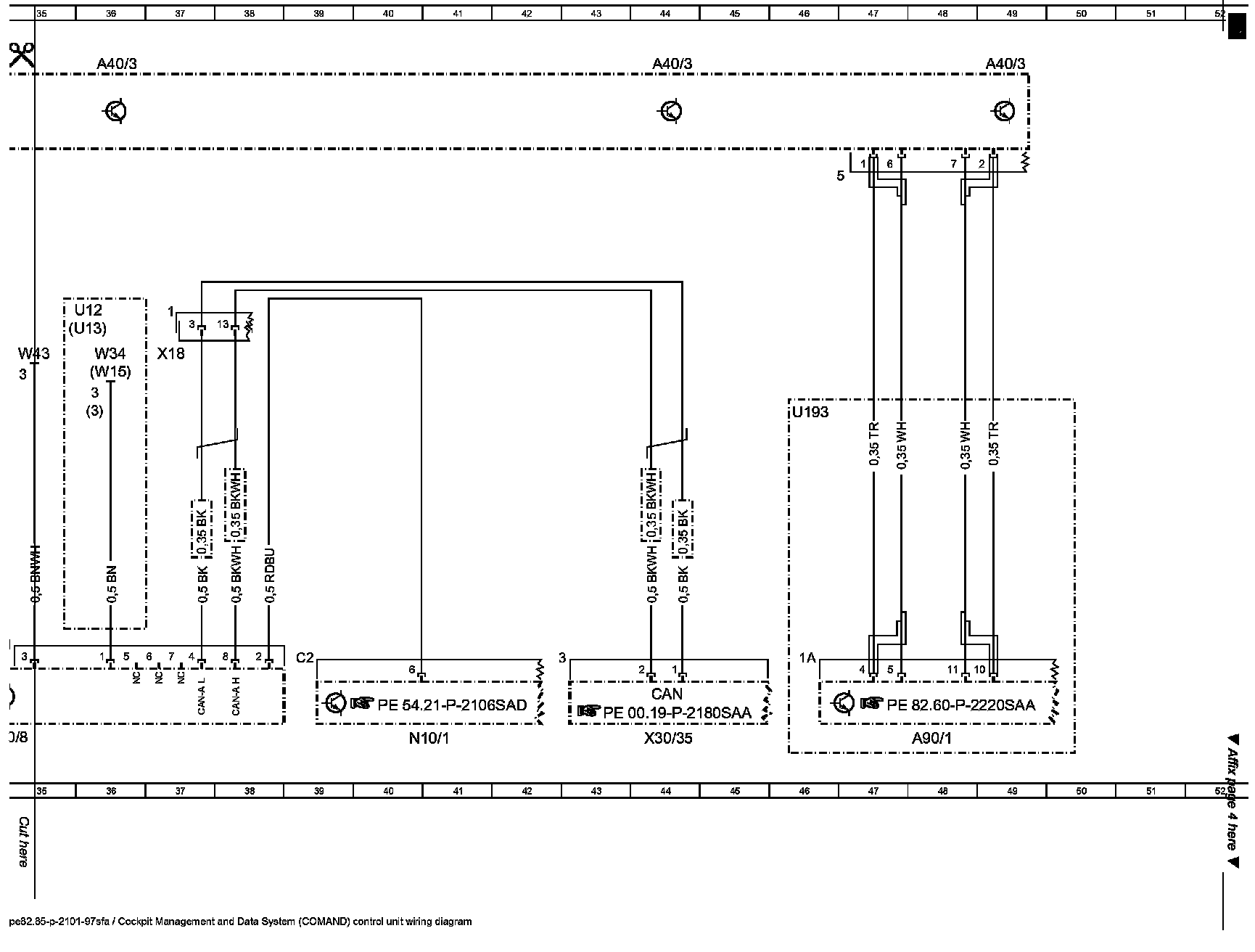

Wiring Diagram (Part 4):

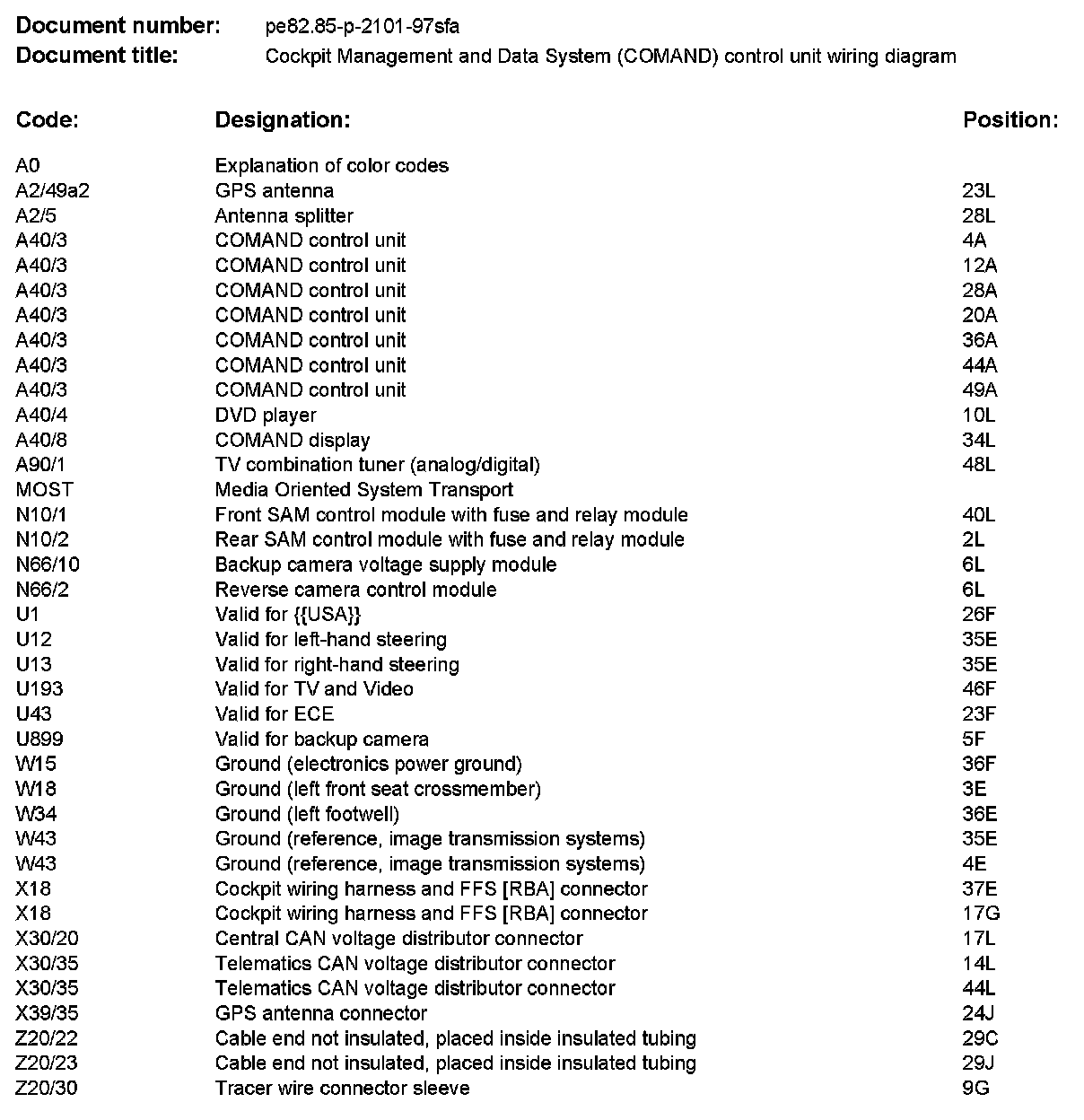

Component Description/Coordinates, A0 To Z20/30:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
