AR83.50-P-9080SX Removing And Installing Rear Air Conditioning System Evaporator Temperature Sensor



AR83.50-P-9080SX Removing And Installing Rear Air Conditioning System Evaporator Temperature Sensor
- with CODE (582) Rear air conditioner

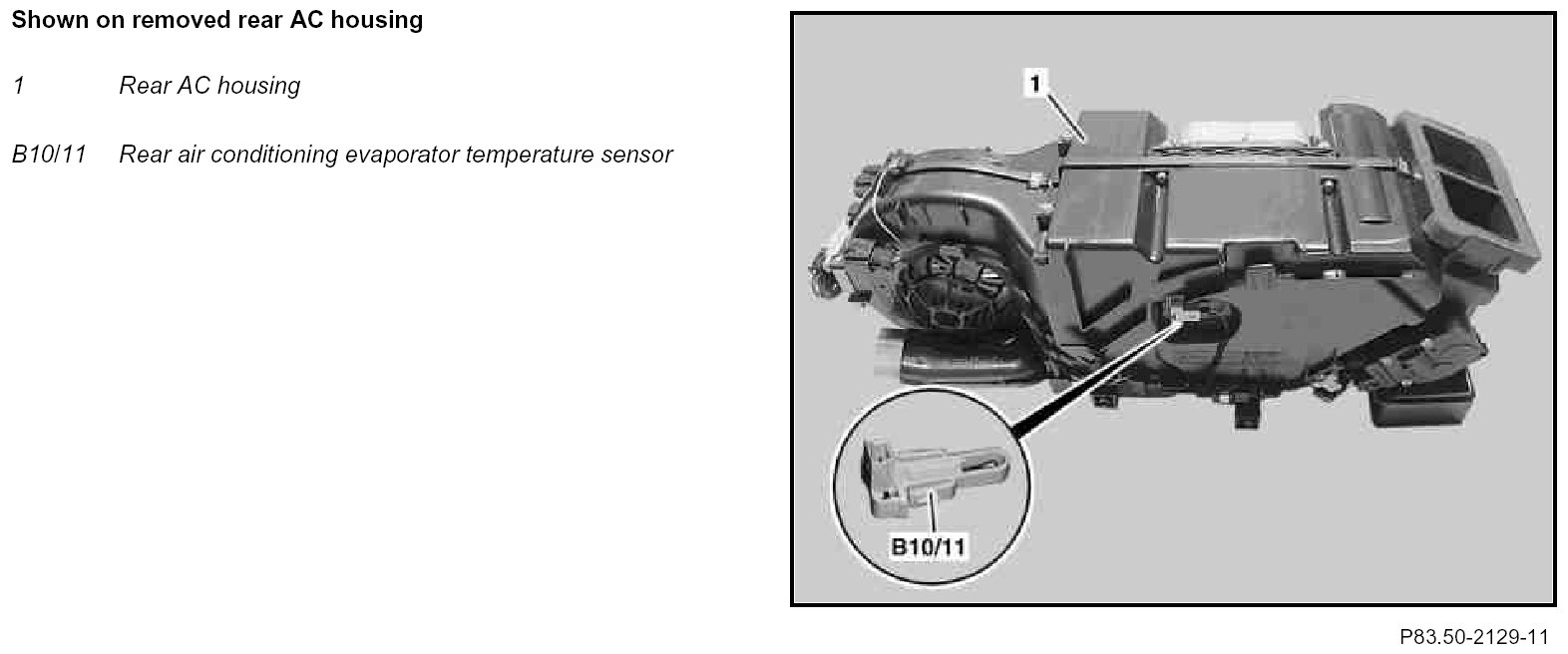

Component Identification:

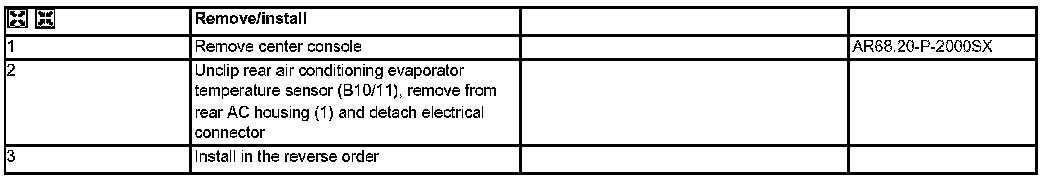

Steps 1 - 3:
