GF54.30-P-3170SX Operation of Climate Control, Function

GF54.30-P-3170SX Operation Of Climate Control, Function

Operation of climate control system via the Man Machine Interface (MMI)
In the air conditioning row the values currently adjusted can be displayed in the COMAND display (A40/8). The values can be set in the air conditioning functions row via the turn/push control (A40/9s11) of the front central operating unit (A40/9).
The climate control settings can be separately adjusted using the MMI, both for the driver, front passenger and rear passengers.

The following climate control functions can be operated using the MMI:
^ Temperature
^ Air distribution
^ Air volume
^ Switch off air conditioning "AC off"
^ Operate climate control centrally "Mono"
^ Footwell temperature
^ Ventilation nozzle air flow
^ Rear air conditioning
^ Departure time with stationary heater

Component Identification:

The position indicator is on the settings menu item for the climate control system. The settings menu is activated by pressing the rotating control button of the front central operating unit.







The following settings can be selected:
^ "Climate control off"
Switch off the air conditioning system
^ "Defrost"
Defrost the windows
^ "AC off"
Switch off the air conditioning
^ "Mono"
Operate the climate control centrally
^ "Footwell temperature"
Adjust the temperature in the footwell
^ "Air flow focused/medium/diffus"
Adjust the air flow from the ventilation nozzles
^ "Rear"
Adjust the rear climate control from the front
^ "Stationary heater departure time"
Set stationary heater







Shown on model 221 up to 31.8.06

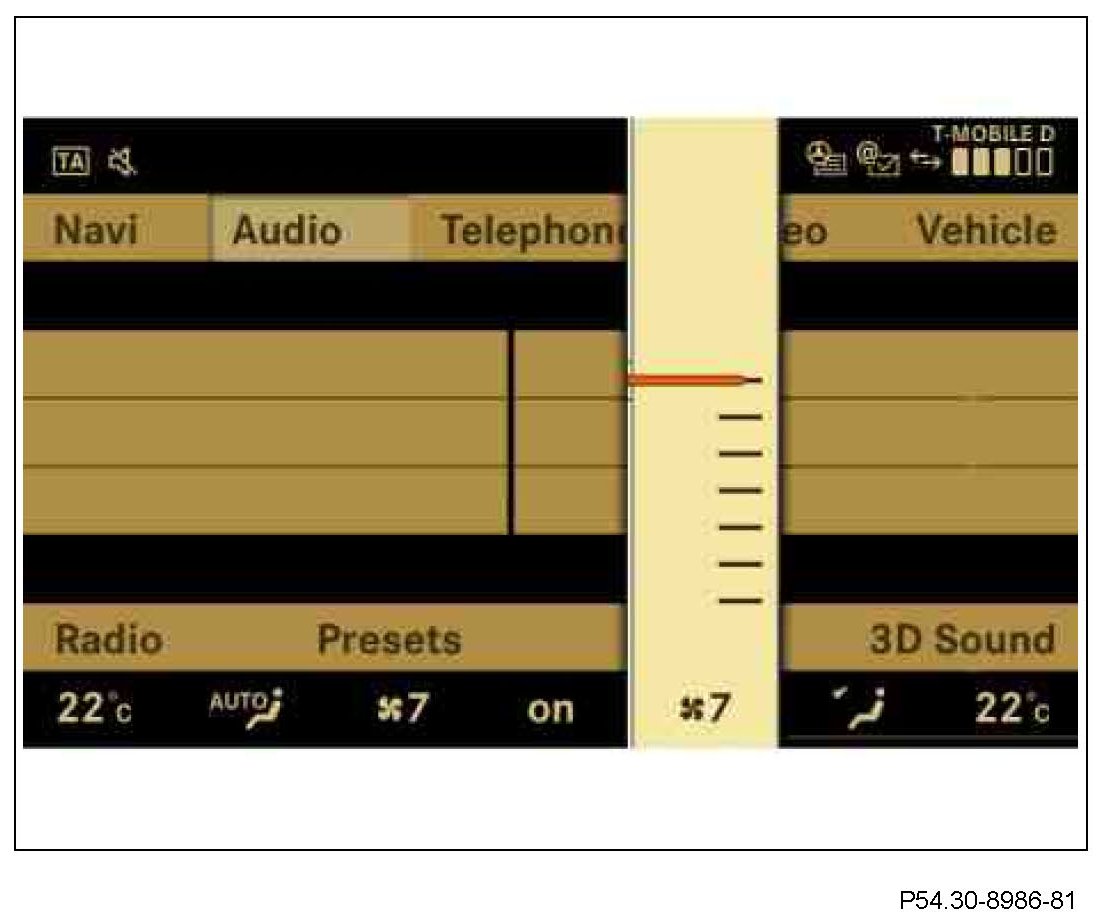

Setting of air volume in the air conditioning functions row for the right side of the vehicle
The air volume can be set separately for the driver and front passenger.







Shown on model 221 up to 31.8.06
Setting of air distribution in the air conditioning functions row for the right side of the vehicle
The air distribution can be set separately for the driver and front passenger.







Shown on model 221 up to 31.8.06
Setting of temperature in the air conditioning functions row for the left side of the vehicle
The temperature can be set separately for the driver and front passenger.

Component Identification:

Activated air conditioning row for the rear area of the air conditioning system shown only for model 221 up to 31.8.06

The operation of the rear climate control is modeled on the operation of the climate control for the driver and front passenger.







Shown only for model 221 up to 31.8.06.
Setting menu for the rear area of the air conditioning system in the air conditioning functions row
The following settings can be selected:
^ "front climate control"
Change back for operating of the front climate control
^ "Rear climate control off"
Switch off the rear climate control
^ "Rear automatic"
Switch off or switch on the rear air conditioning automatic
^ "Rear manual"
Set the rear climate control manually

On model 216 only the blower setting can be adjusted for the left and right side for the rear area.
