Removal and Replacement

AR27.10-P-0502-01TS Remove/install lines at automatic transmission
- TRANSMISSION 722.9

Transmission Oil Cooling:

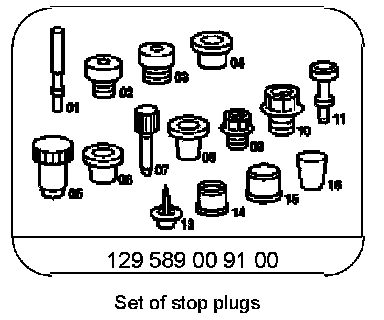

Special Tools:

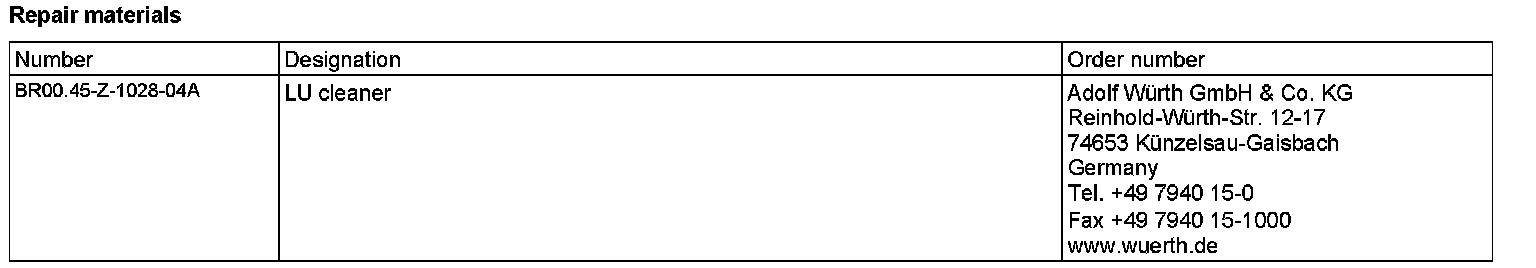

Repair Materials:

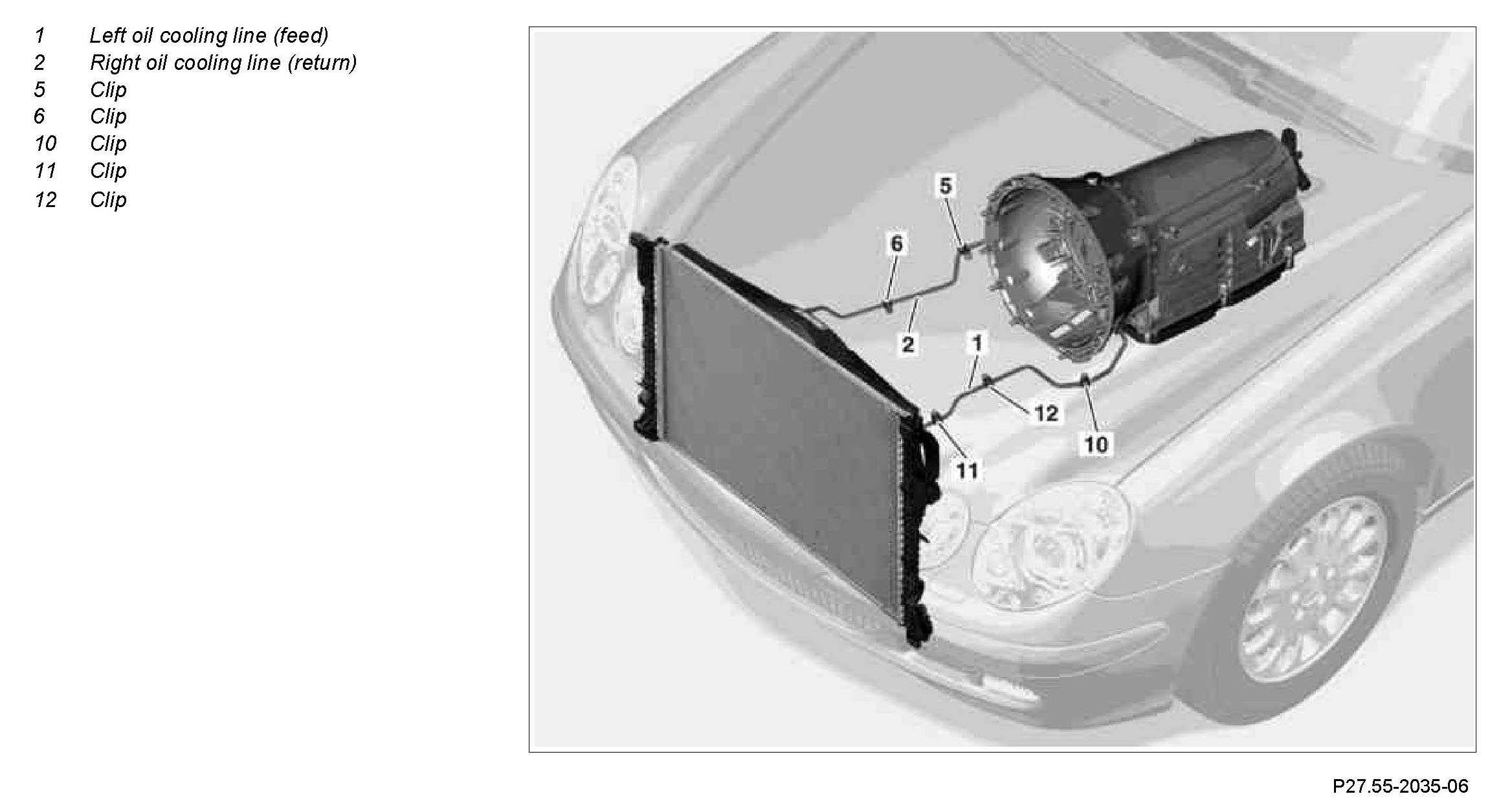

Component Identification:

1 Thoroughly clean area around separation point at hydraulic system.

Even the smallest of dirt particulates in the hydraulic components can lead to malfunctions and a total transmission breakdown.

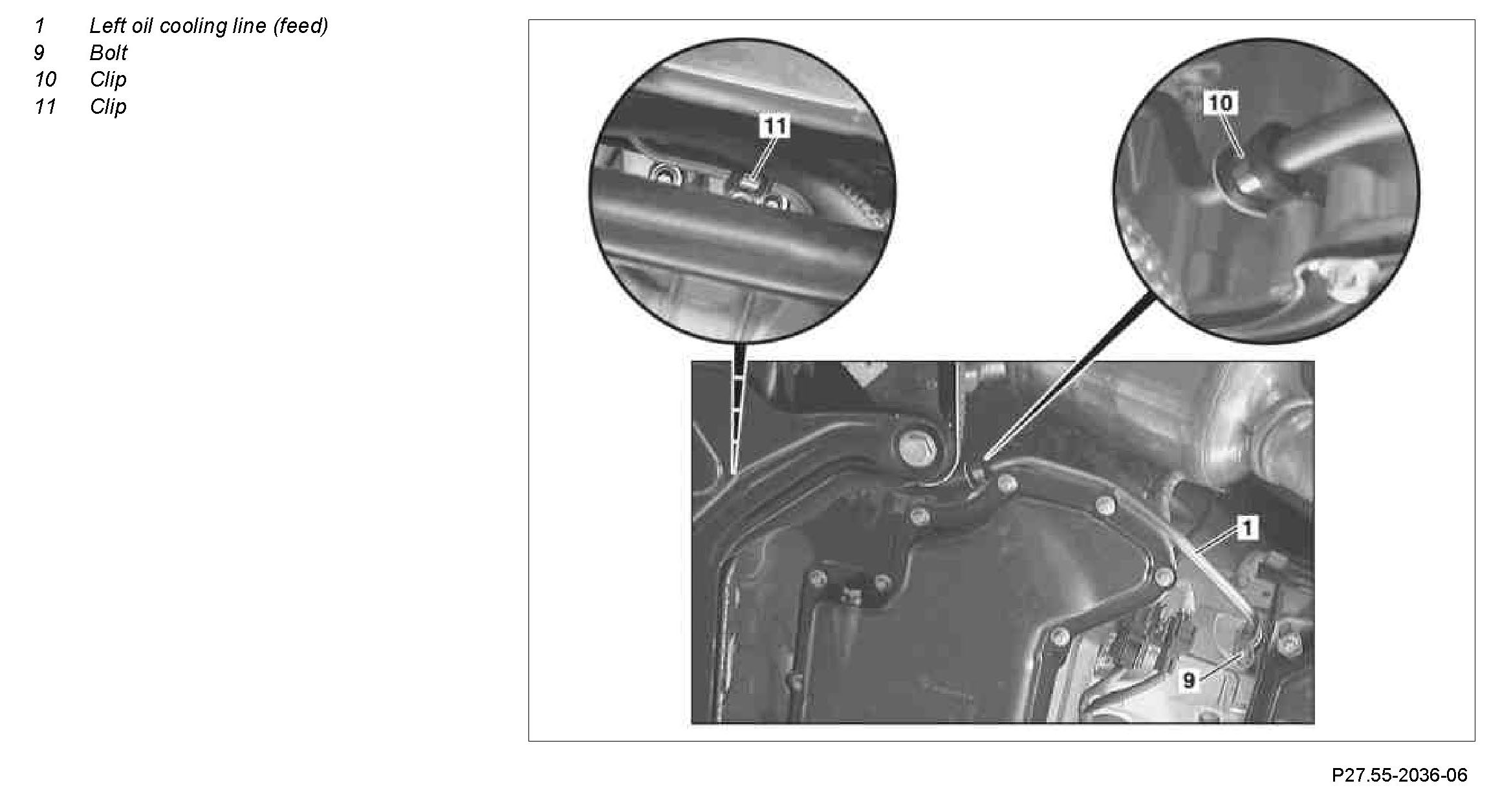

2 Remove retaining clamps (10, 11, 12).
3 Remove bolt (9).
4 Pull left oil cooling line (1) out of transmission and seal off line connection and oil hole in transmission with stop plugs.

To prevent damage and leaks, do not bend or kink oil cooling line (1).

Installation: Install new O-ring.

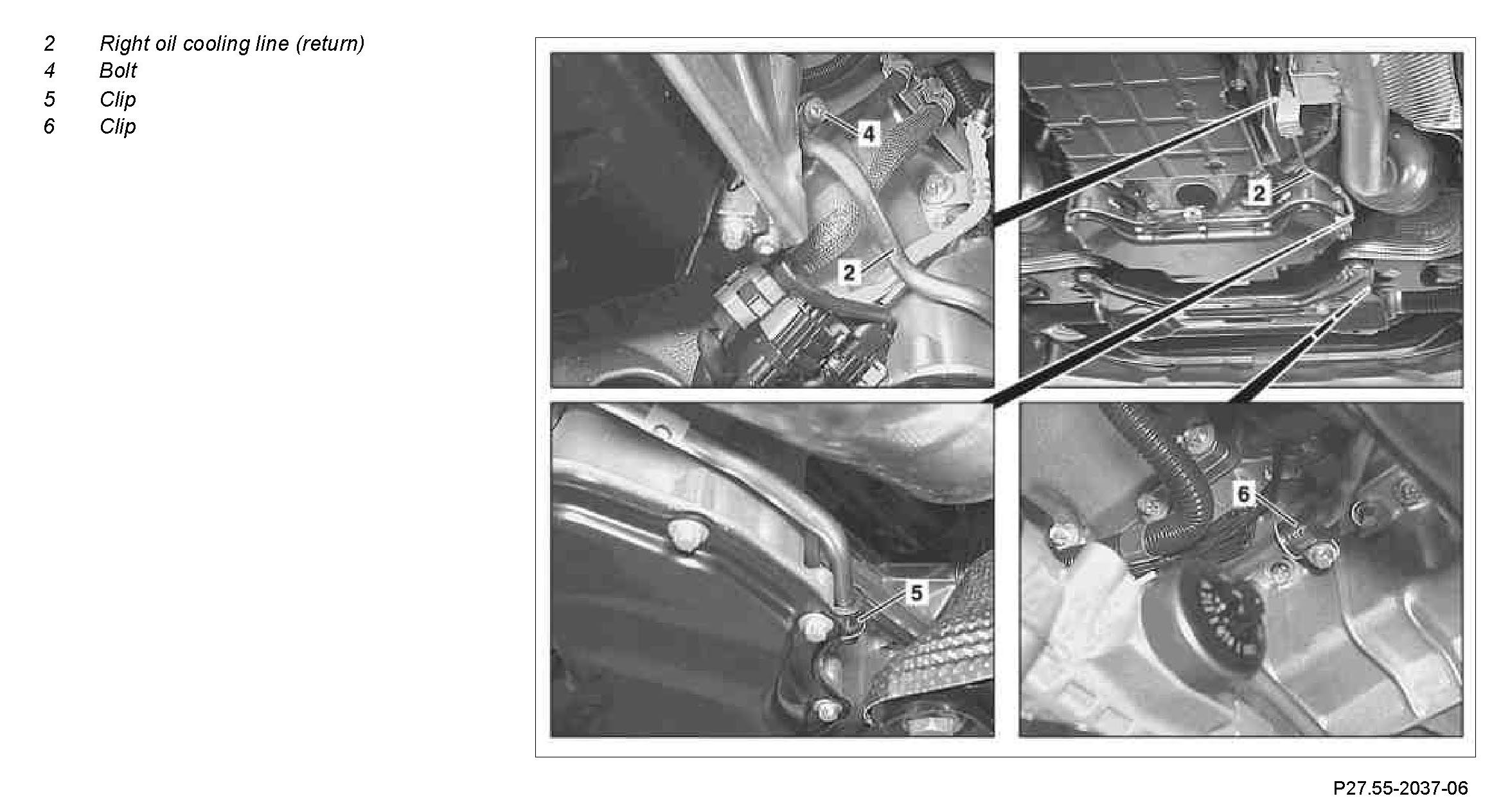

5 Remove retaining clamps (5, 6).
6 Remove bolt (4).
7 Pull right oil cooling line (2) out of transmission and seal off line connection and oil hole in transmission with stop plugs.

To prevent damage and leaks, do not bend or kink oil cooling line (2).

Installation: Install new O-ring.

8 Install in the reverse order.
