Starter Motor: Service and Repair
AR15.30-P-7100TMG Remove/install starter

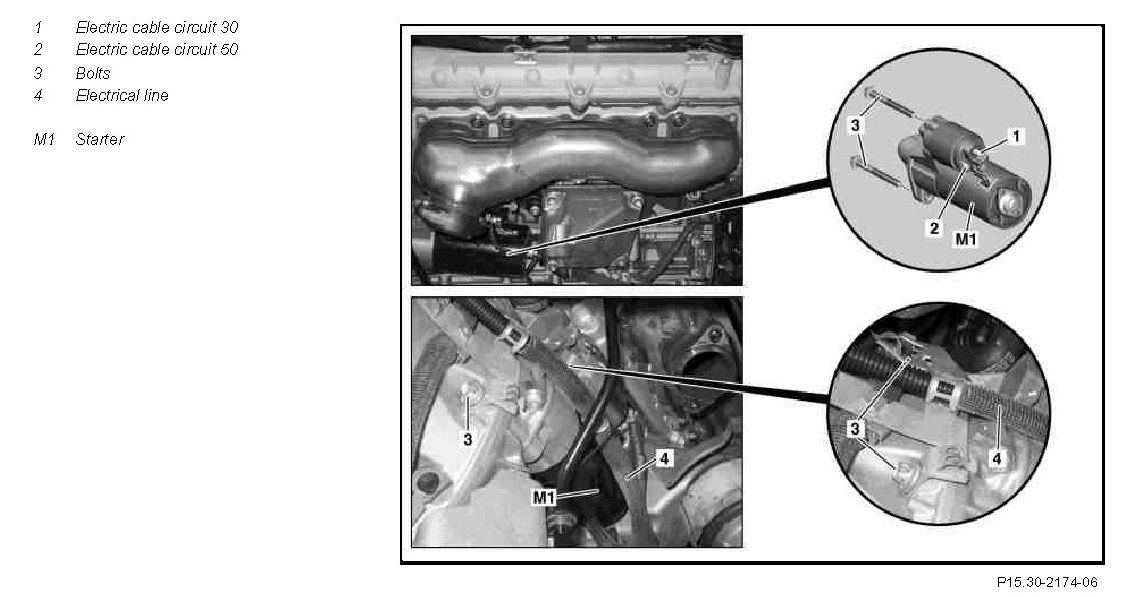

Component Identification:

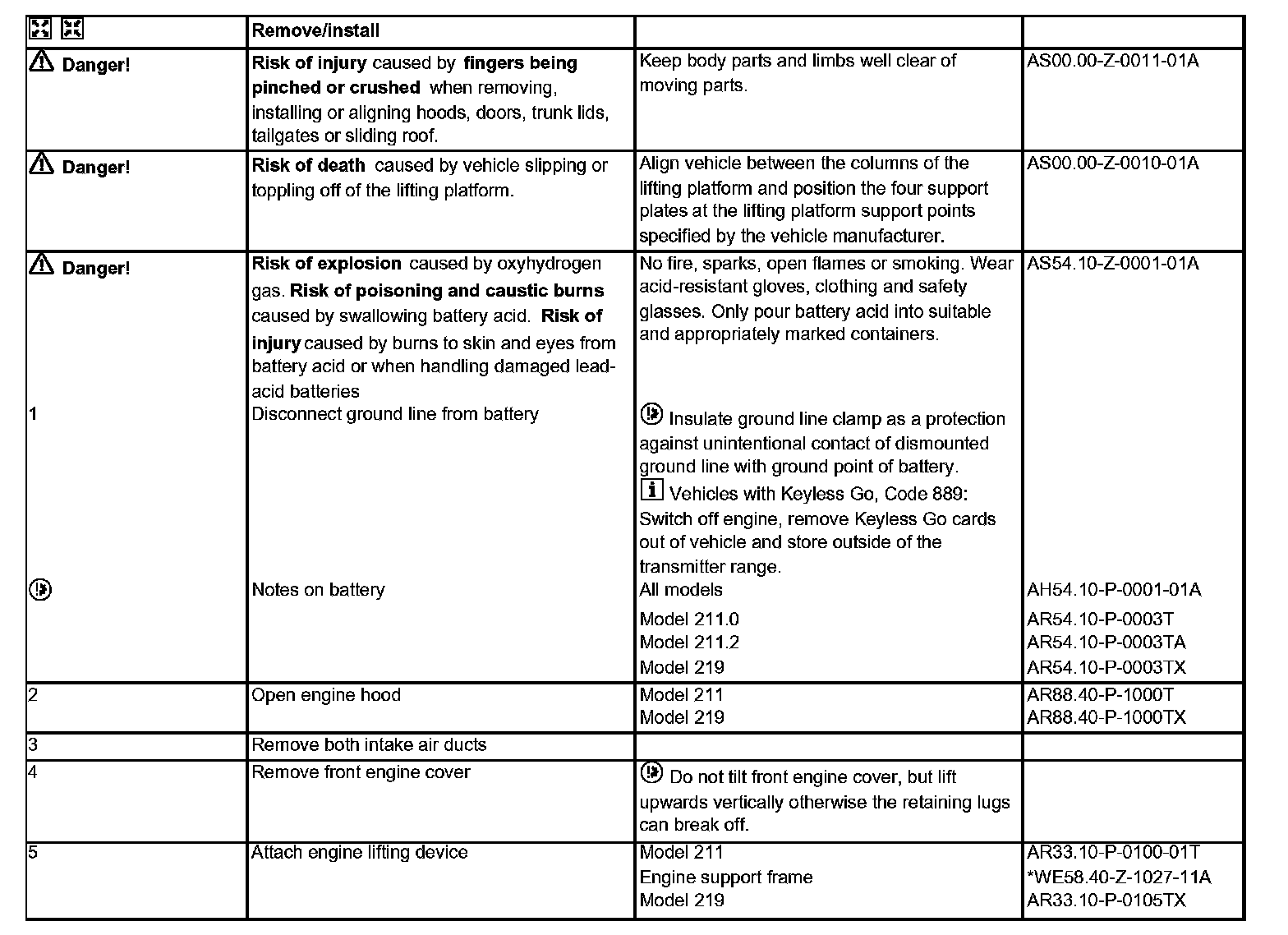

Remove/install Steps 1-5:

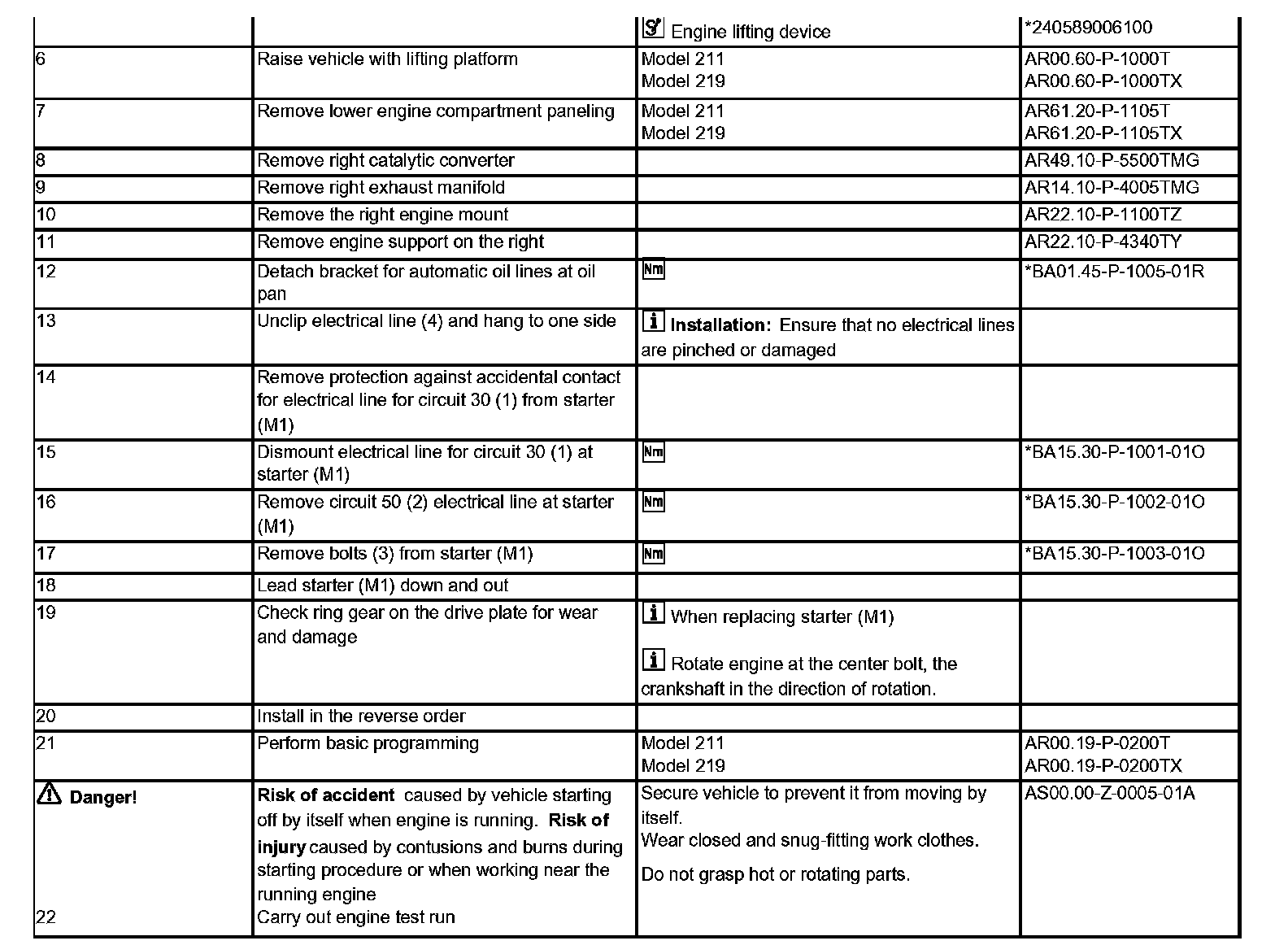

Remove/install Steps 5 (Continued)-22:

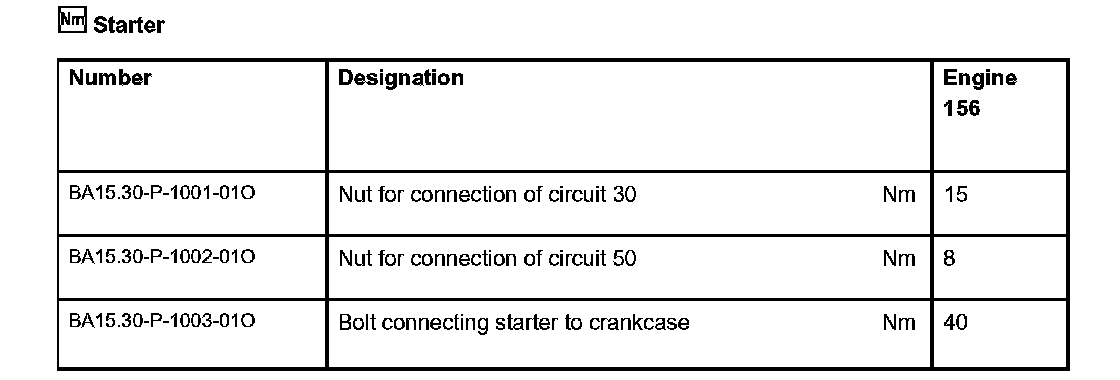

Starter:

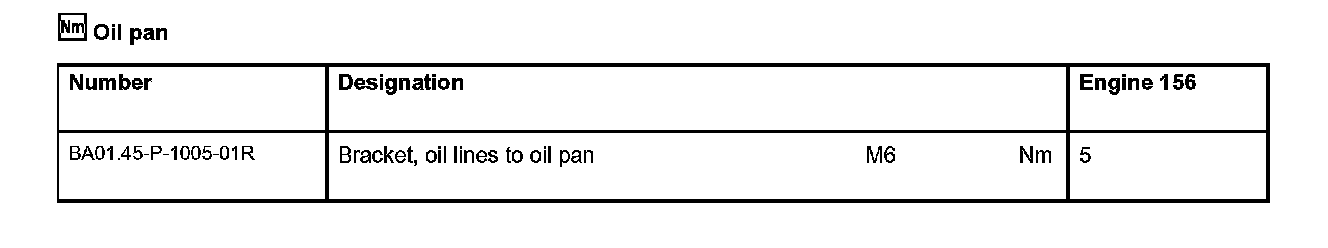

Oil pan:

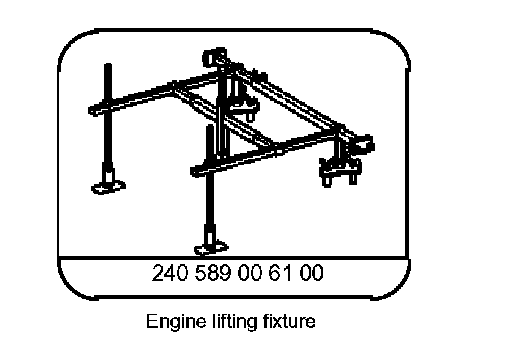

Special Tools:

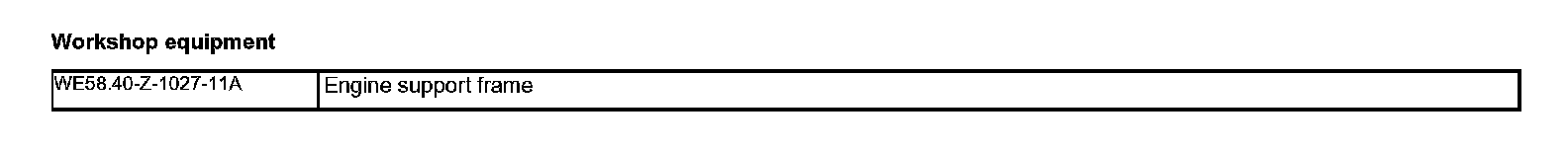

Workshop equipment:
AR15.30-P-7100TMG Remove/install starter
