Starter Motor: Service and Repair
AR15.30-P-7100TS Remove, install starter

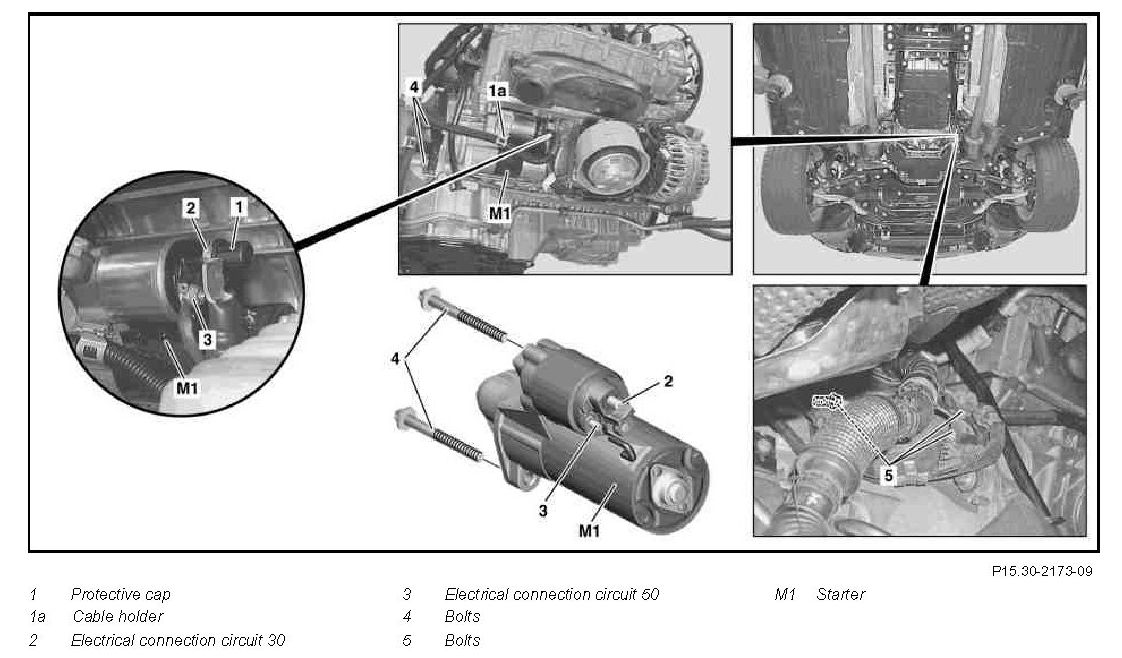

Component Identification:

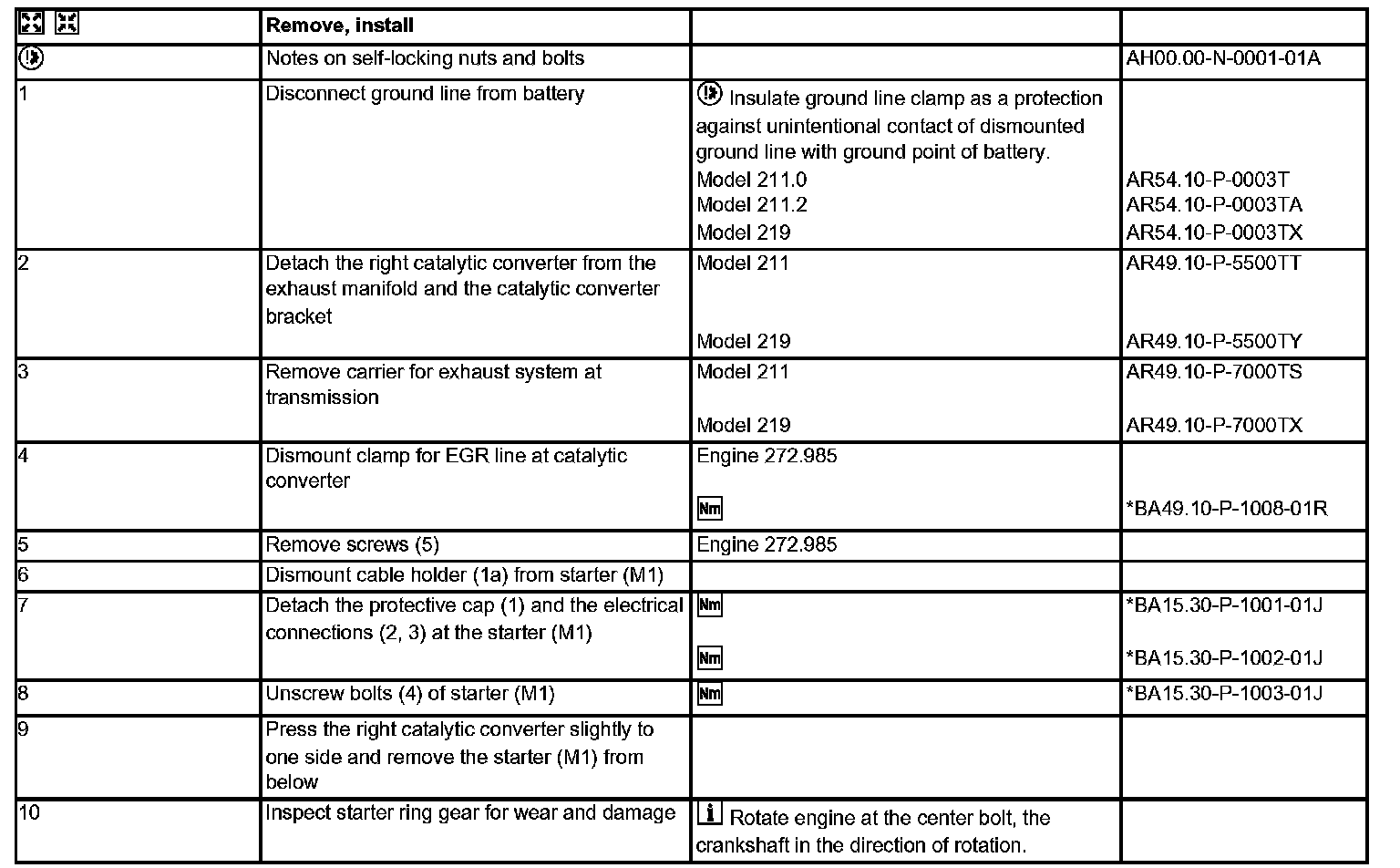

Remove/install Steps 1-10:
Remove/install Step 11:

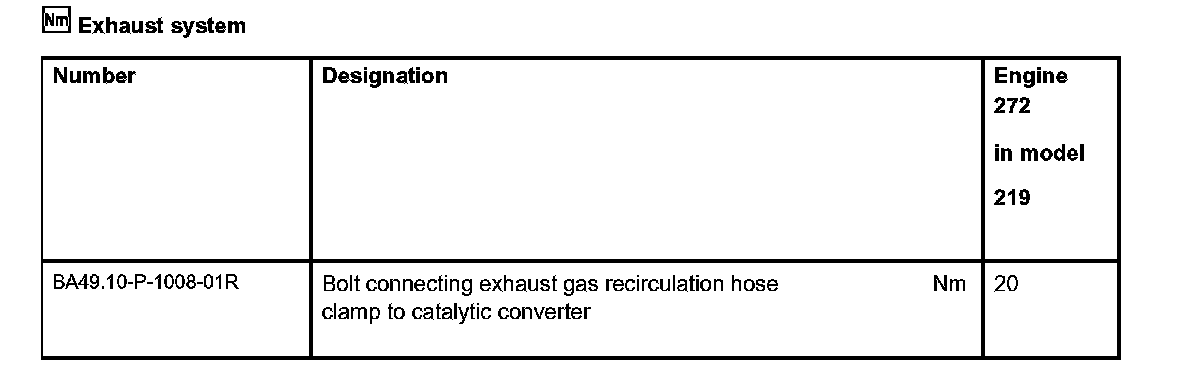

Exhaust system:

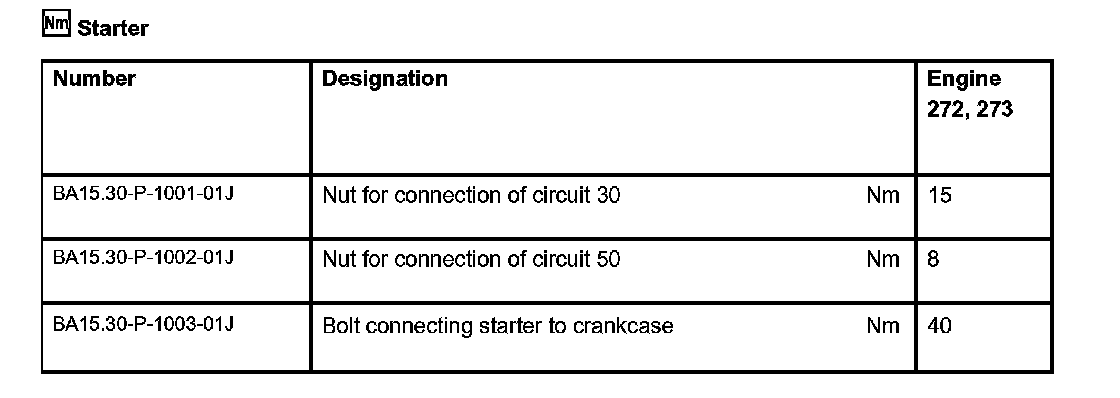

Starter:
