Drive Belt: Testing and Inspection

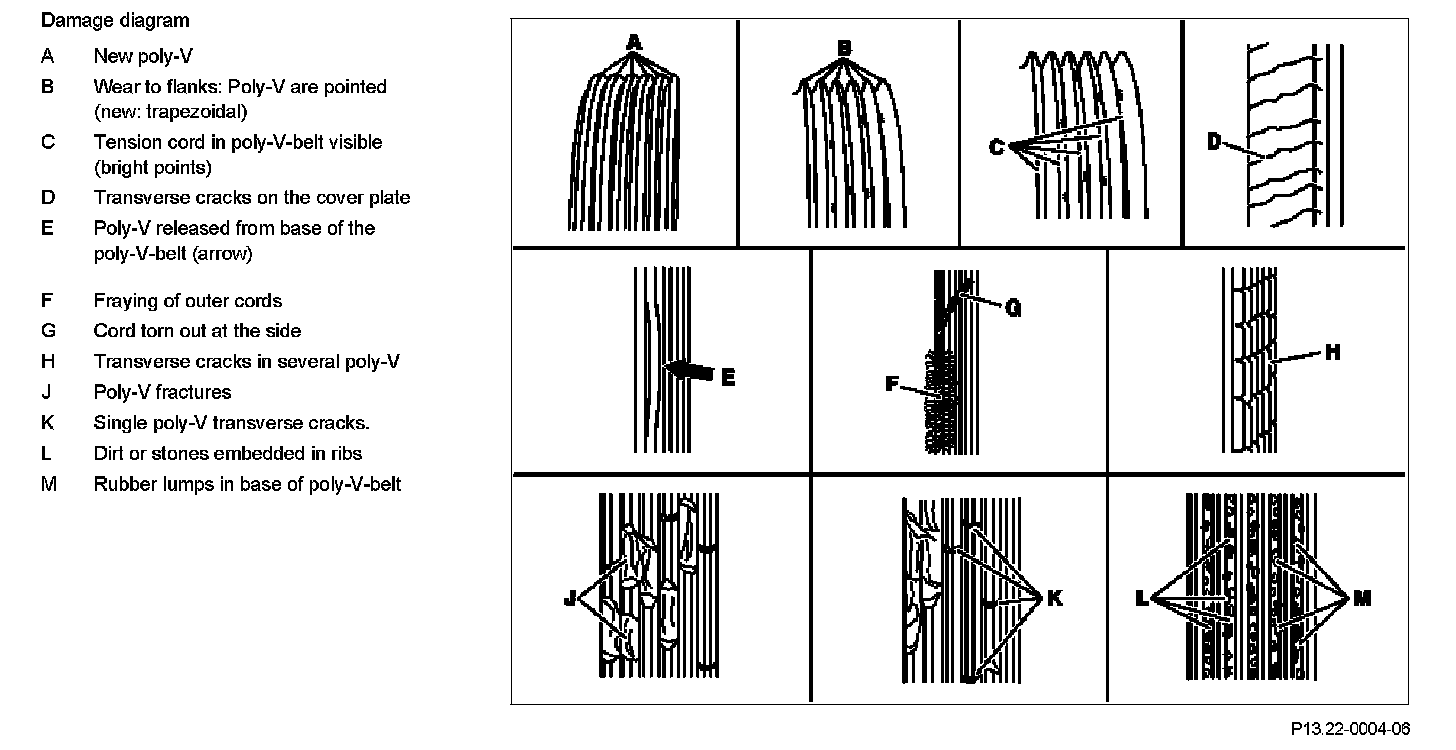

AP13.22-P-1352TS Check Poly-V-Belt In Visible Area For Wear

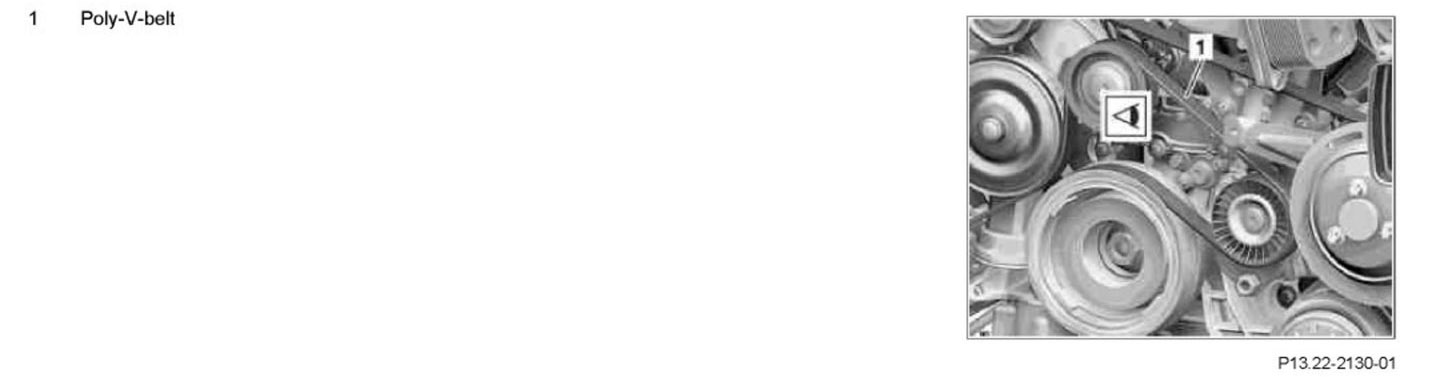

Component Identification:
Component Identification:

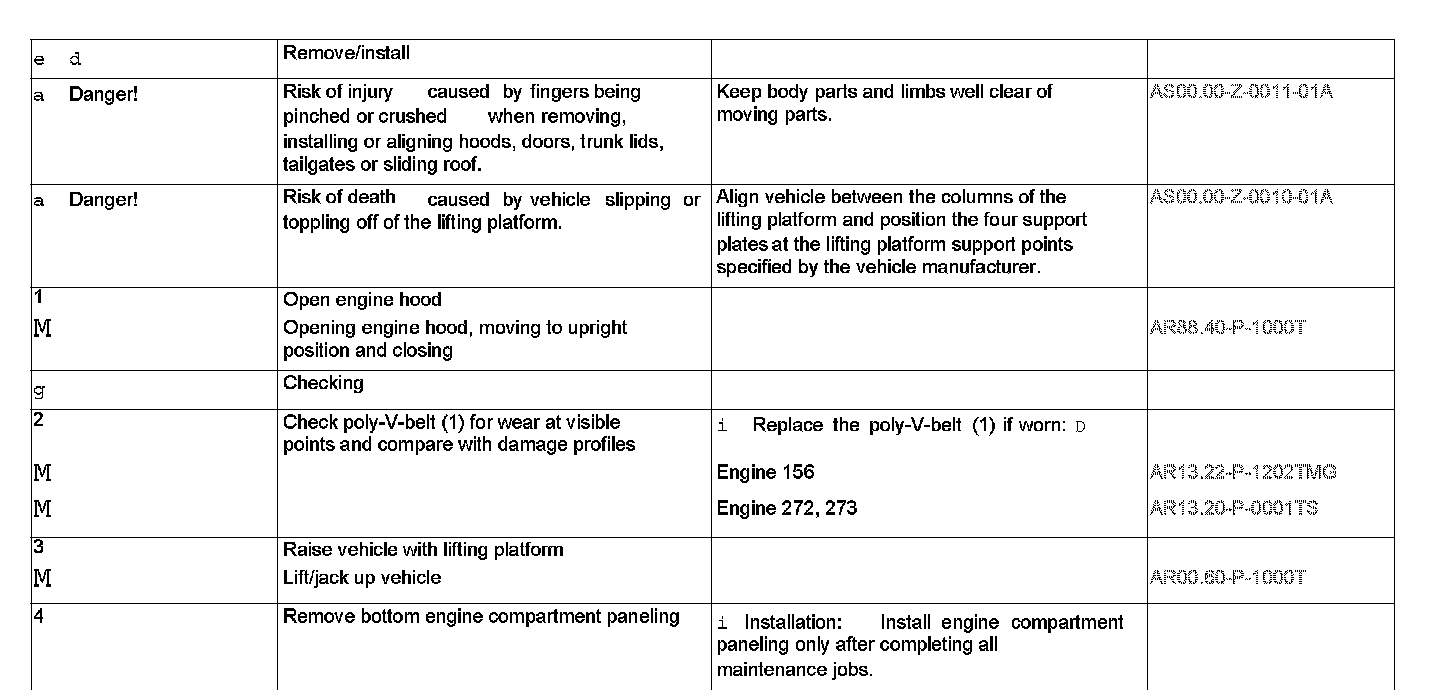

Steps 1 - 4:

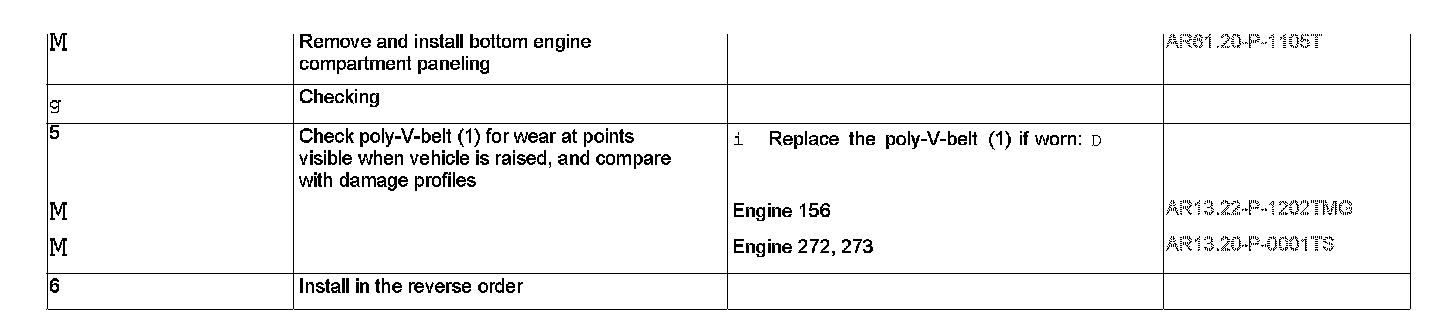

Steps 5 - 6:
