Seals and Gaskets: Service and Repair



AR27.40-P-0205TX Remove/install radial shaft sealing ring at output flange
- Transmission 722.6, 722.9

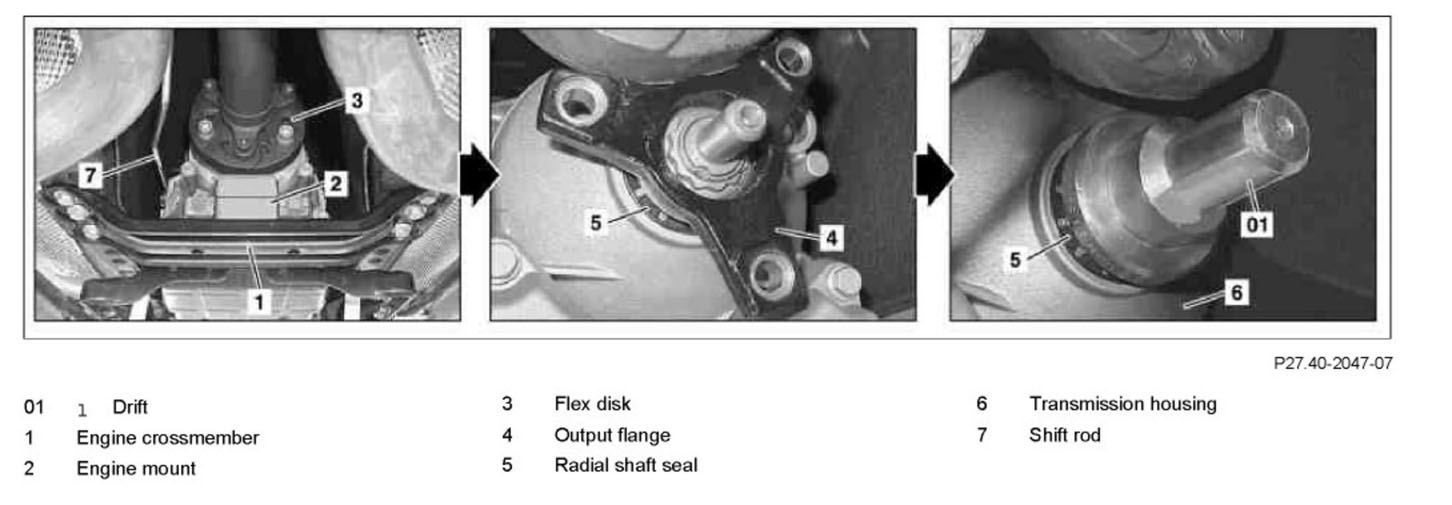

Component Identification:

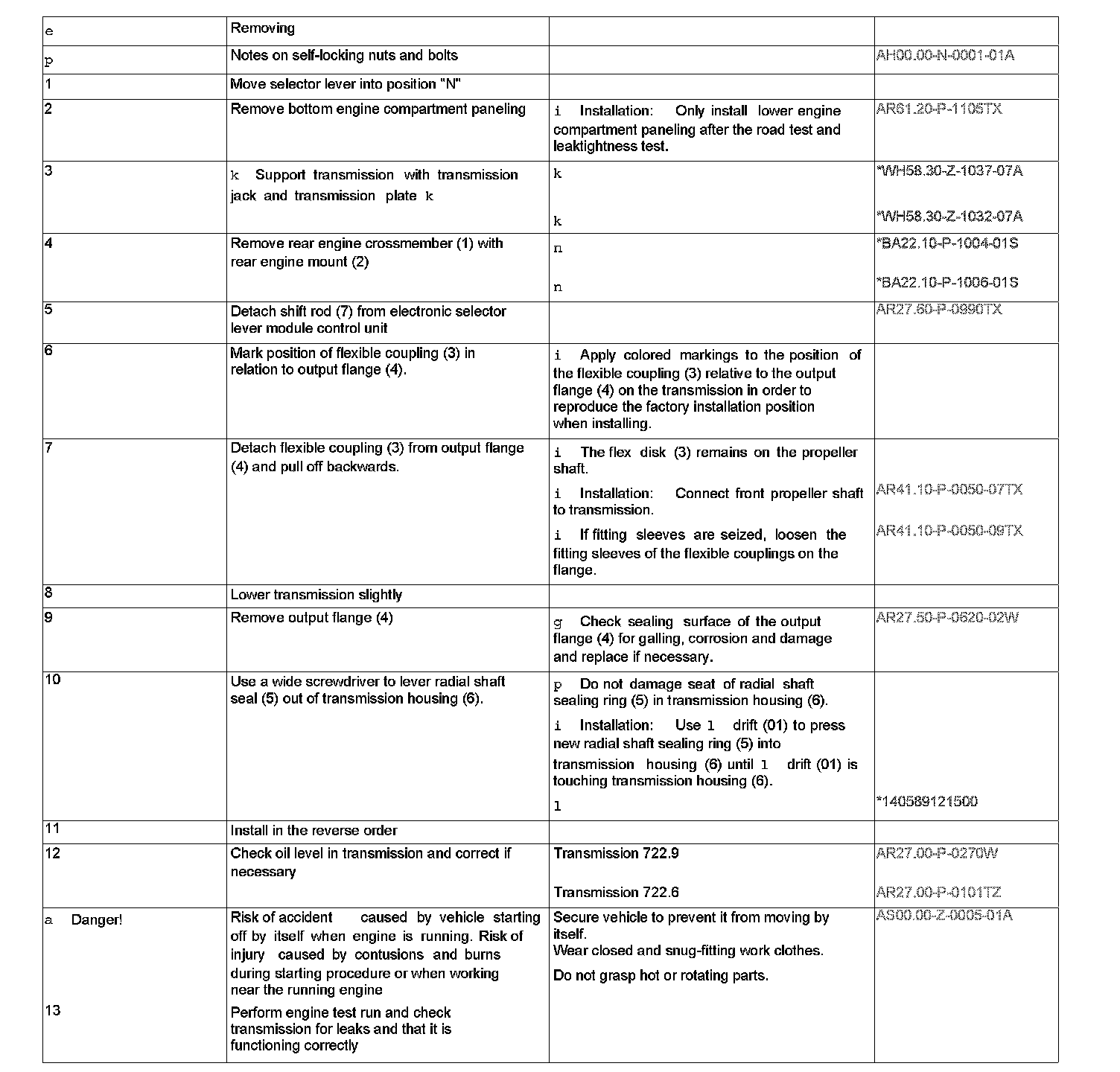

Steps 1-13:

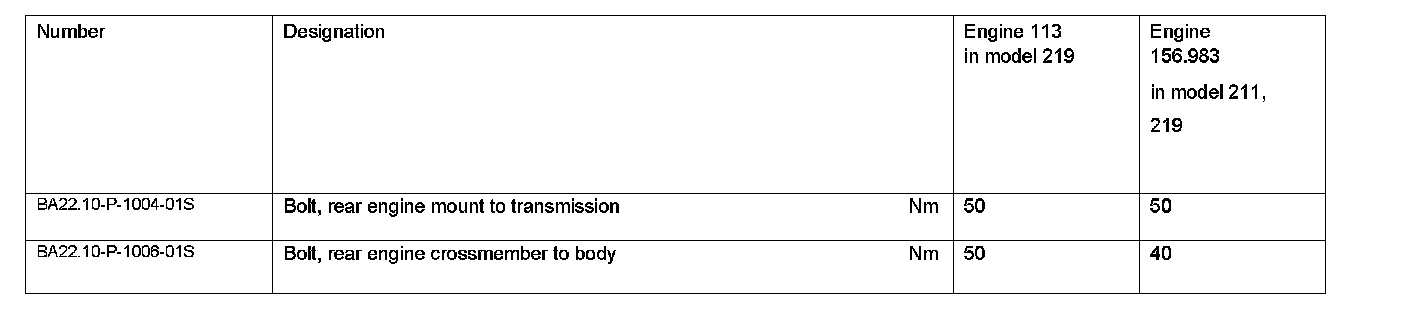

Engine suspension, engine mounts, engine supports:

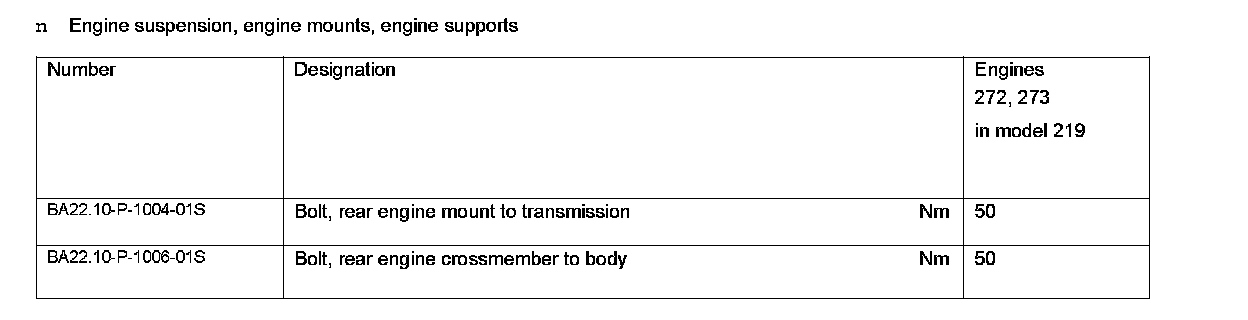

Engine suspension, engine mounts, engine supports:

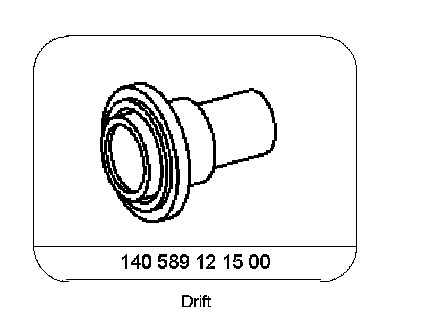

Special Tools:

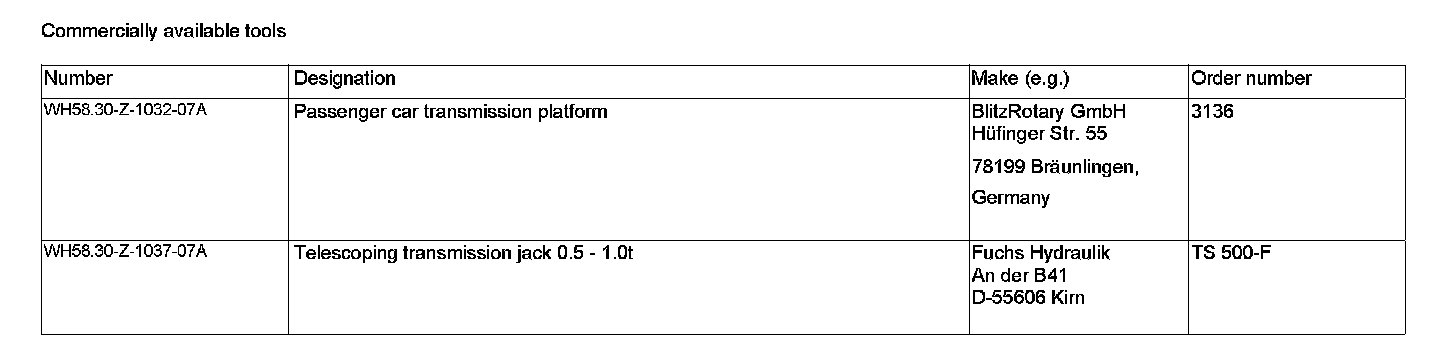

Commercially available tools:
