Campaign - Engine Dipstick/Crankcase Pressure Regulator
FILE:SERVICE: GROUP 00 OF SERVICE INFORMATION BINDER
PARTS: GROUP I OF INFORMATION _ PARTS & ACCESSORIES BINDER
Campaign No. 2008020005, March 2008
TO:
ALL MERCEDES-BENZ CENTERS
SUBJECT:
MODELS 209, 211, 219 WITH ENGINE 156, MODEL YEARS 2007 AND 2008
REPLACE OIL DIPSTICK; REPLACE CRANKCASE VENTILATION PRESSURE REGULATOR VALVE IF NECESSARY
This Service Campaign has been initiated because DAG has determined that due to increased crankcase pressure the oil dipstick may be pushed out of the guide tube. To prevent customer complaints concerning rough engine idle dealers will replace the oil dipstick on all affected vehicles during the next workshop visit. In addition, Dealers will also replace the crankcase ventilation pressure regulator valve on certain affected vehicles.
Prior to performing this Service Campaign:
^ Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired.
^ Please review the entire Service Campaign bulletin and follow the procedure steps exactly as described.
Please note that Recall and Service Campaigns do not expire and may also be performed on a vehicle with a vehicle status indicator.
Approximately 130 vehicles are affected.
Procedure
A. REPLACE OIL DIPSTICK
1. Open hood, replace oil dipstick.

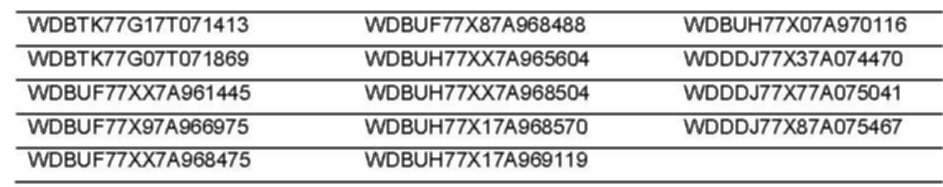

2. If vehicle is in the VIN list above proceed to Subject B. If vehicle is not in VIN list, procedure is complete.
B. REPLACE CRANKCASE VENTILATION PRESSURE REGULATOR VALVE
1. Replace crankcase ventilation pressure regulator valve:
^ Remove intake manifold, refer to WIS: AR09.20-P-1961TMG.
Note (regarding above WIS instructions):

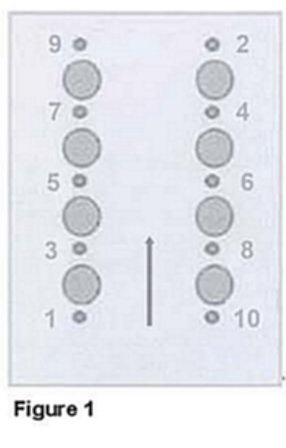

^ Modified torque pattern (Figure 1) for reinstallation of intake manifold.
^ Arrow (Figure 1) points towards direction of travel.
^ Replacement of sealing ring on fuel distributor/rail (Note for step 7 in above WIS instructions) does not apply to this procedure.
^ Use tire mounting lube (shop supply) on mounts for air cleaner housing prior to reinstallation.
^ Intake manifold bolts must be replaced.

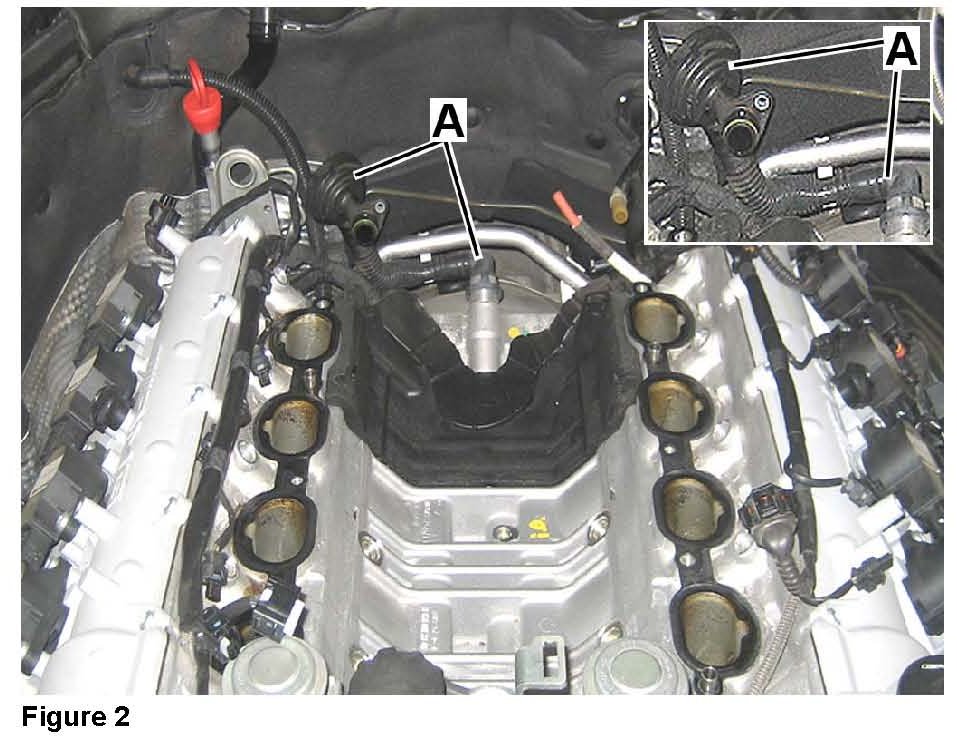

2. Replace crankcase ventilation pressure regulator valve (A, Figure 2).
Note:
Crankcase ventilation pressure regulator valve comes as an assembly with corrugated pipe.
^ Reassemble in reverse order

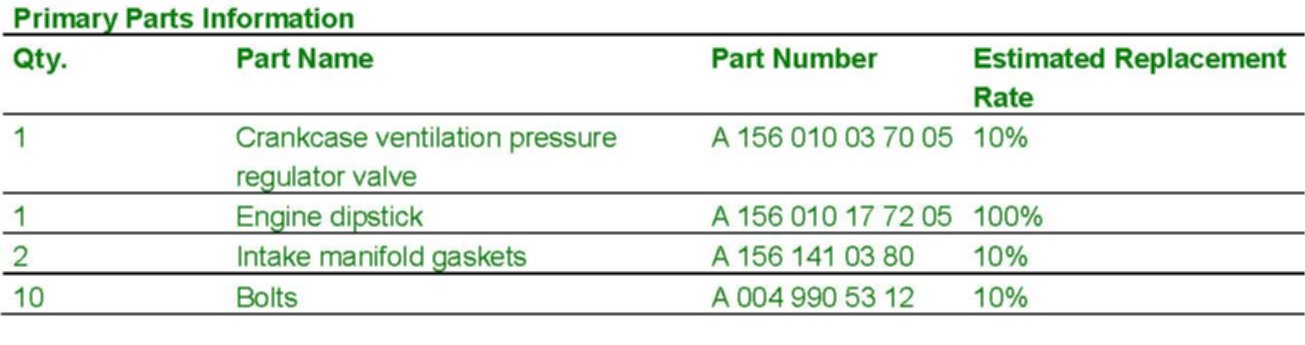

Primary Parts Information
Note:
^ Please be aware that only the part number(s) referenced in the Campaign Bulletin is/are approved for use to repair the vehicle. Repairs performed using any other part(s) will not have been performed in accordance with the campaign. Accordingly, warranty claims submitted with reference to an improper part number(s) will be denied.
^ The following allowable labor operation should be used when submitting a warranty claim for this repair:

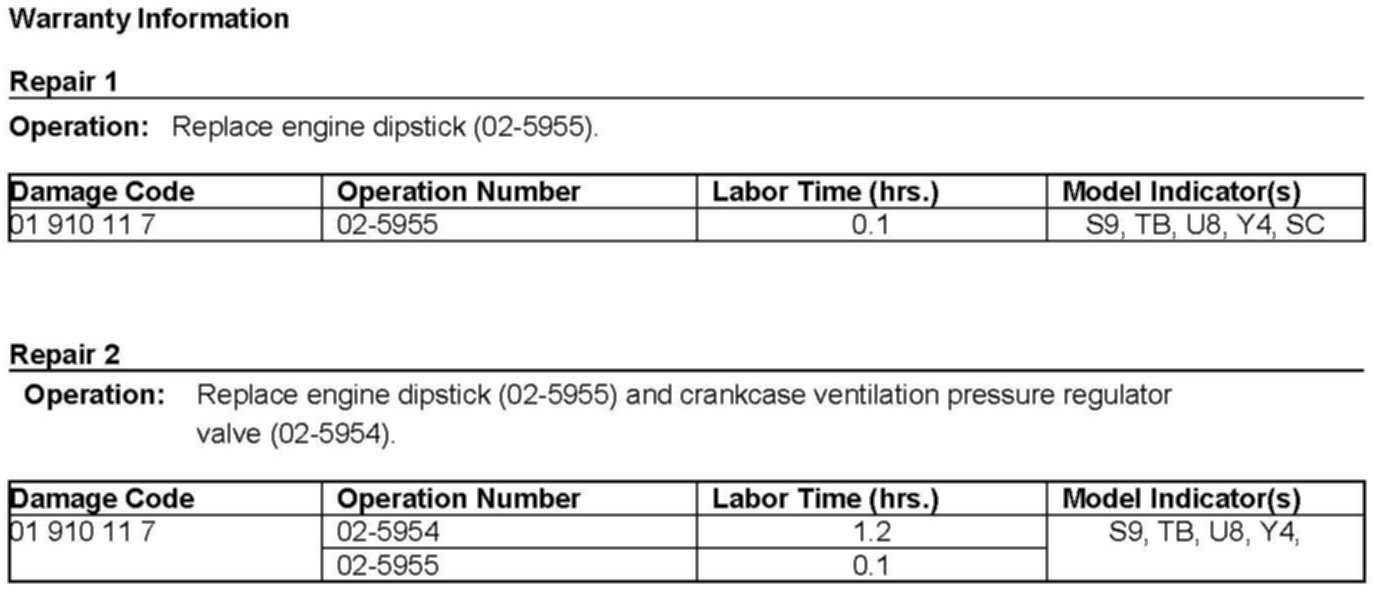

Warranty Information
