Air Injection Pump: Service and Repair



AR14.30-P-7251TZ Remove/Install Air Pump
- except CODE (P98) Black Series [model 209]

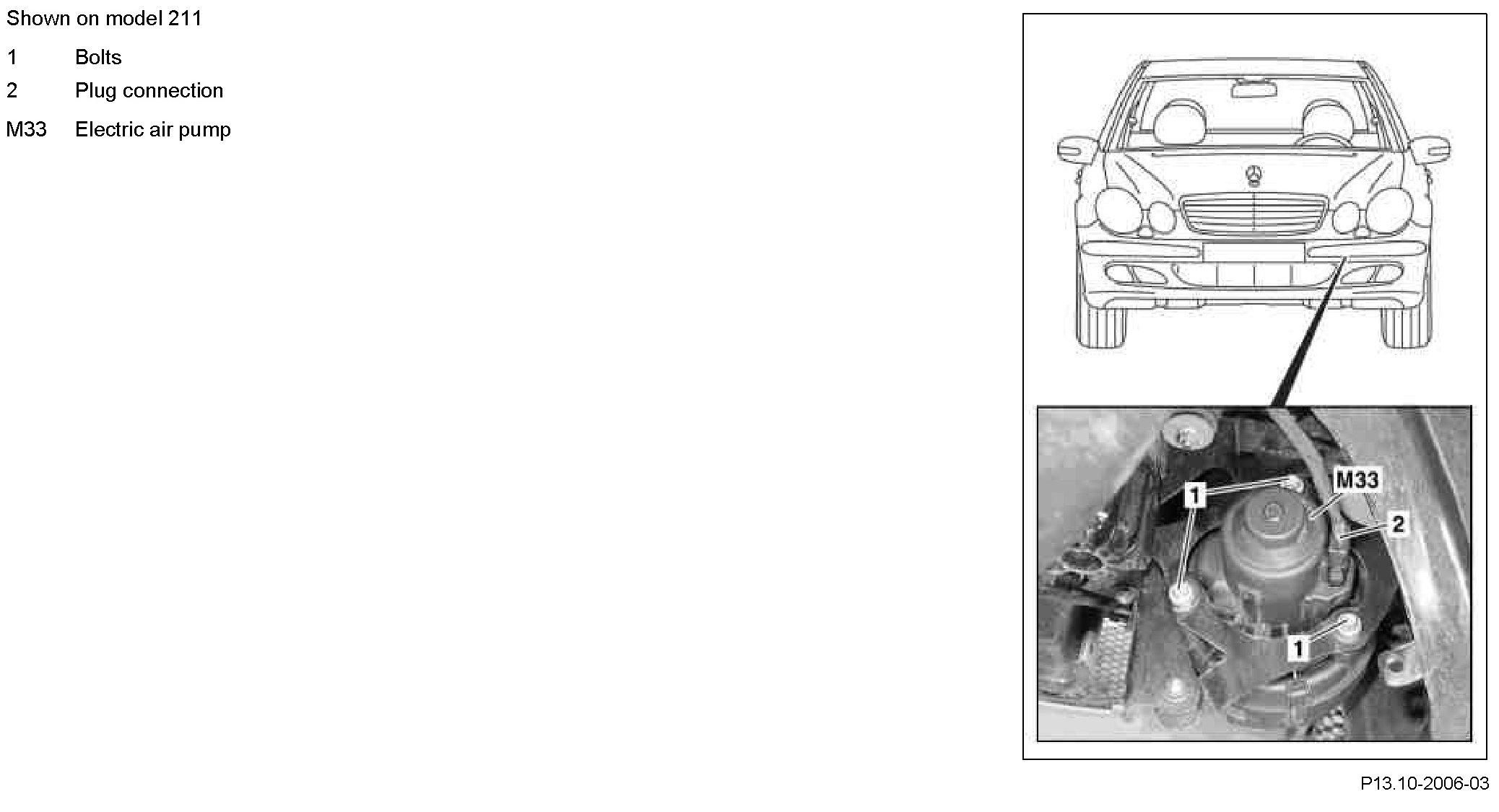

Component Identification:

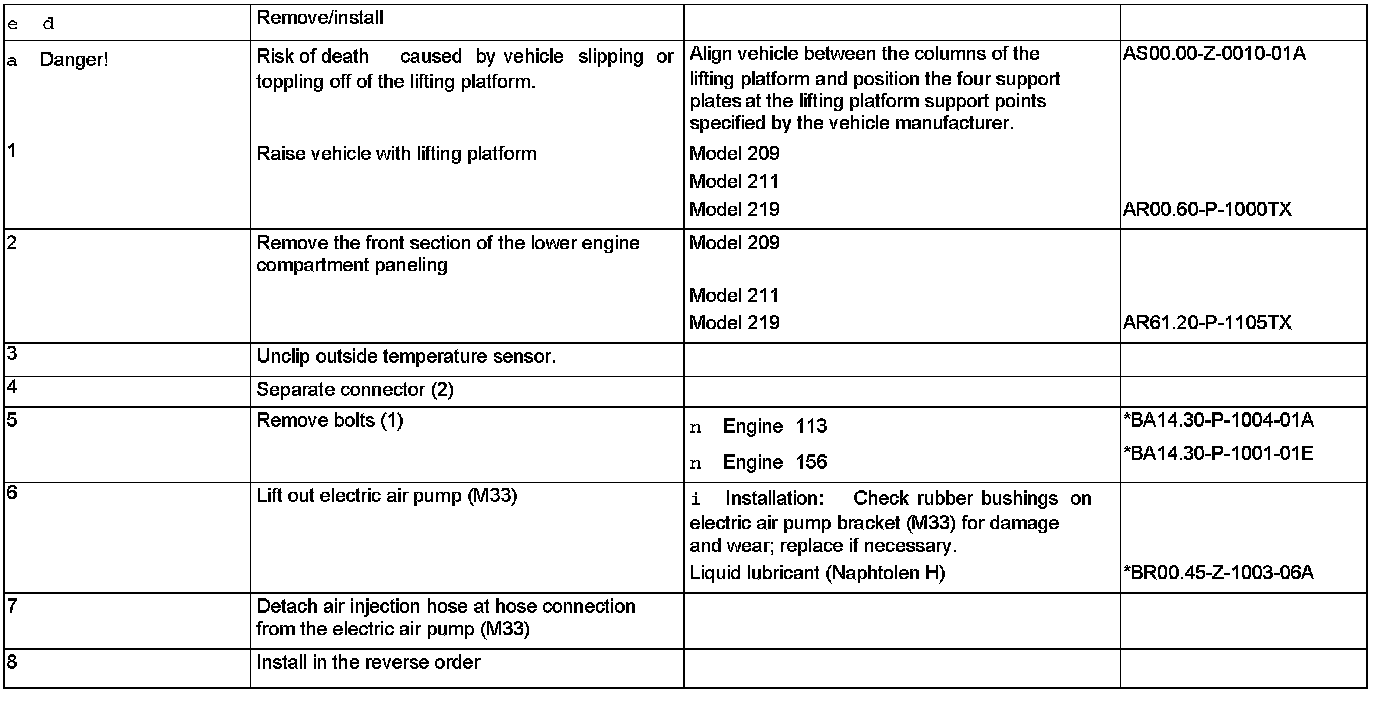

Steps 1 - 8:

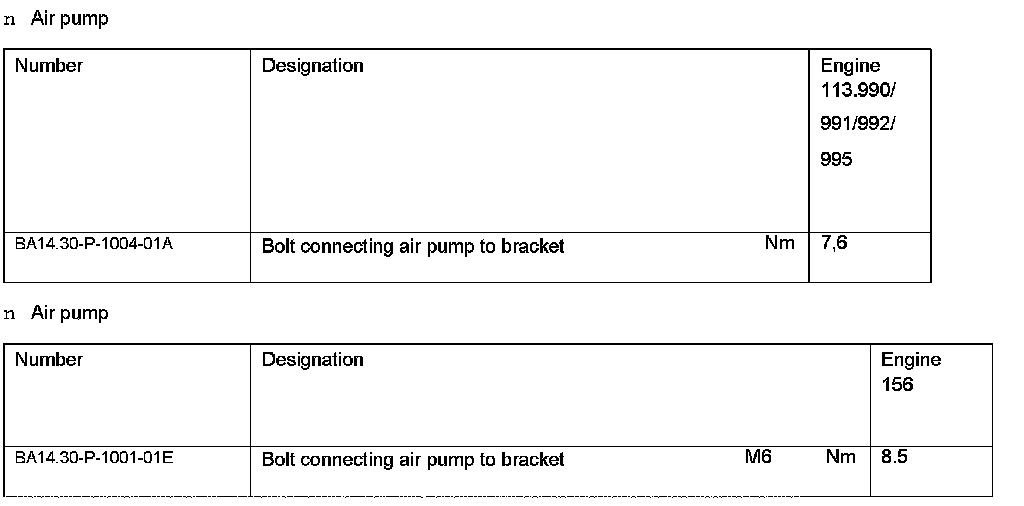

Air Pump:

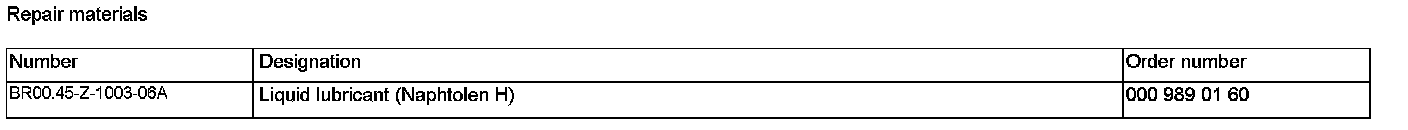

Repair Materials:
