Air Diverter Valve: Service and Repair
AR14.30-P-7200TMG Remove/install air shutoff valve

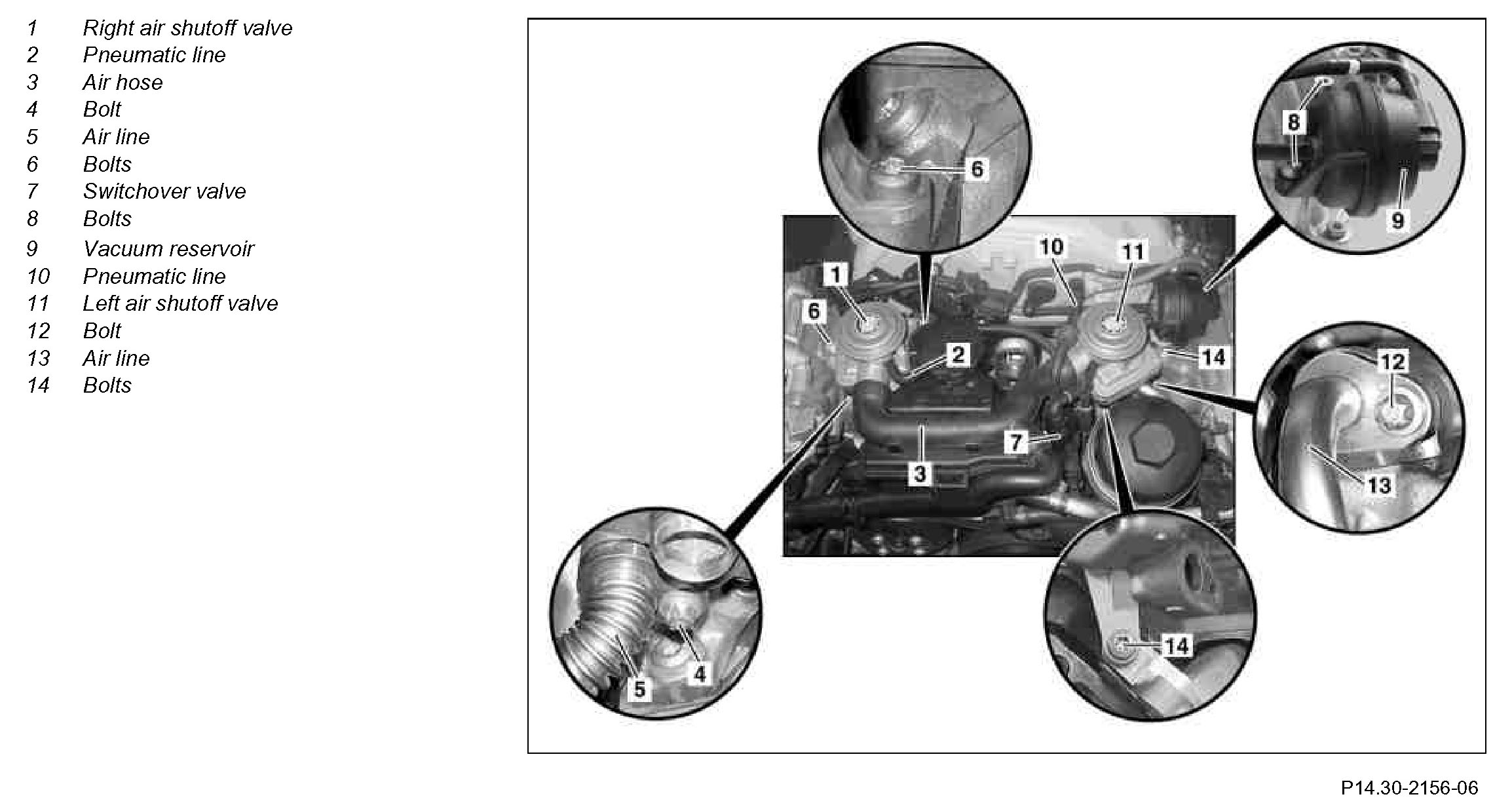

Component Identification:

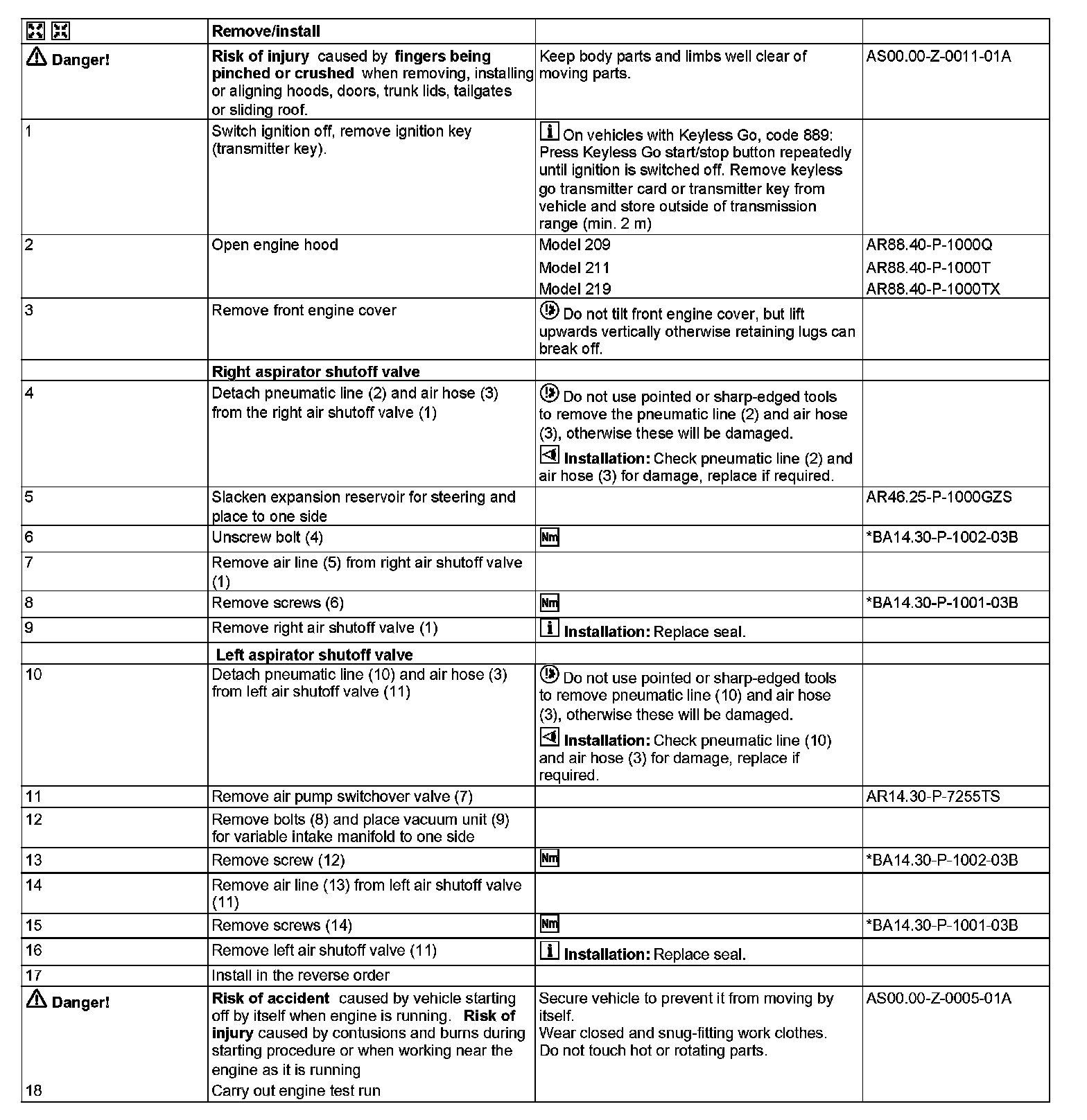

Steps 1-18:

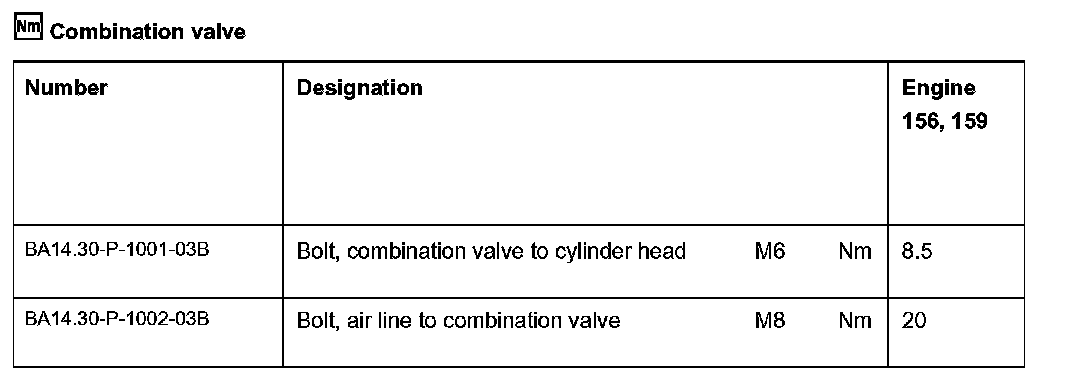

Combination valve:
