Power Steering Line/Hose: Service and Repair
AR46.25-P-3015TZB Remove/install hydraulic line of power steering
- High-pressure expansion hose

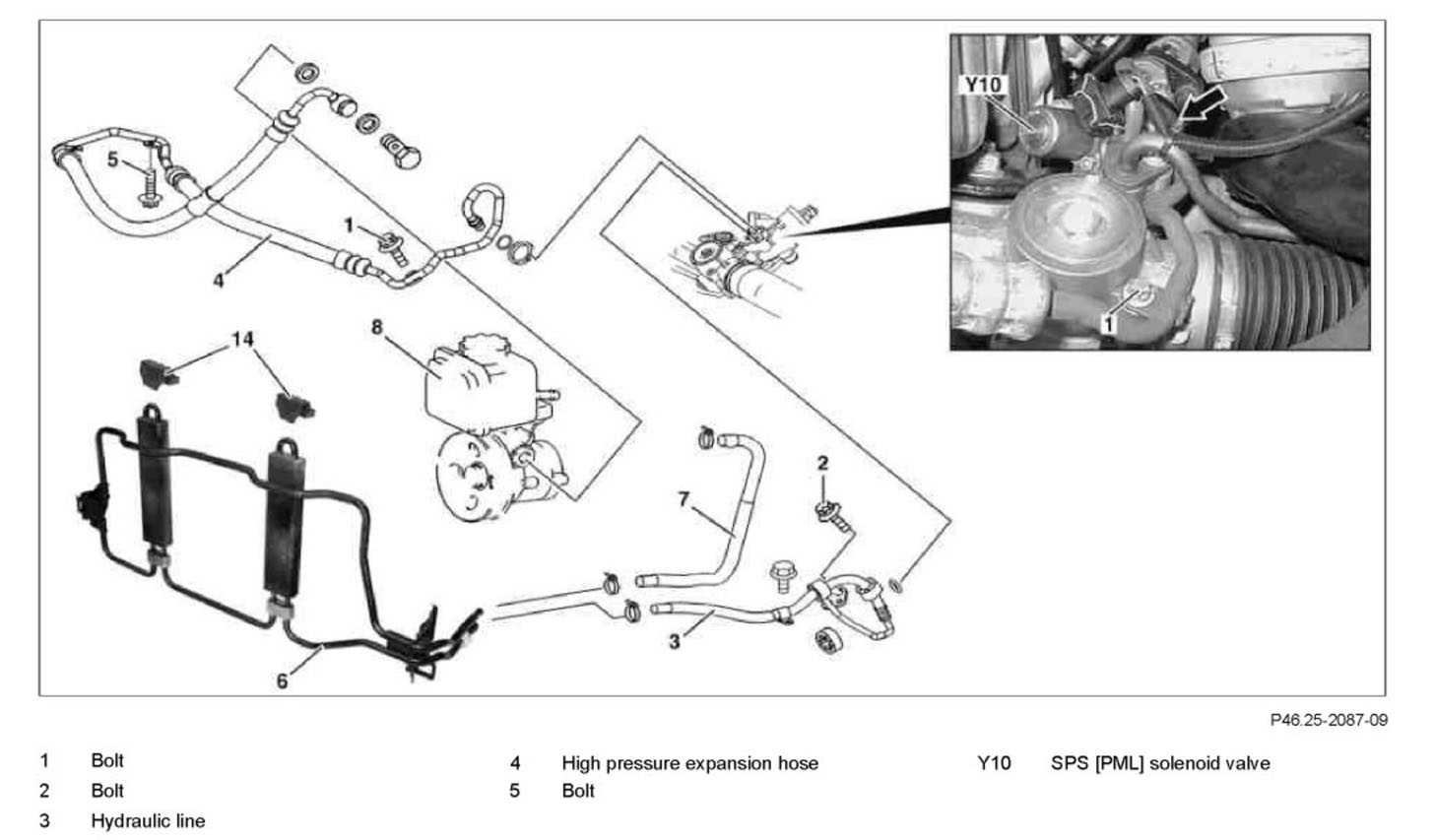

Component Identification:

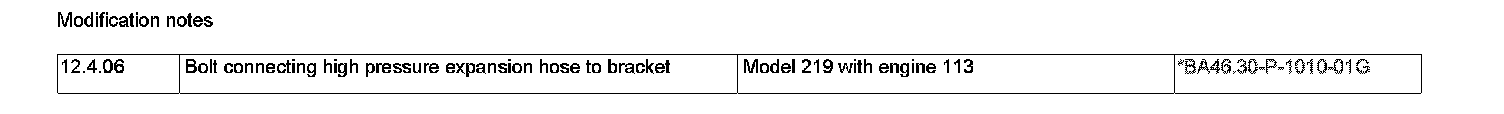

Modification notes:

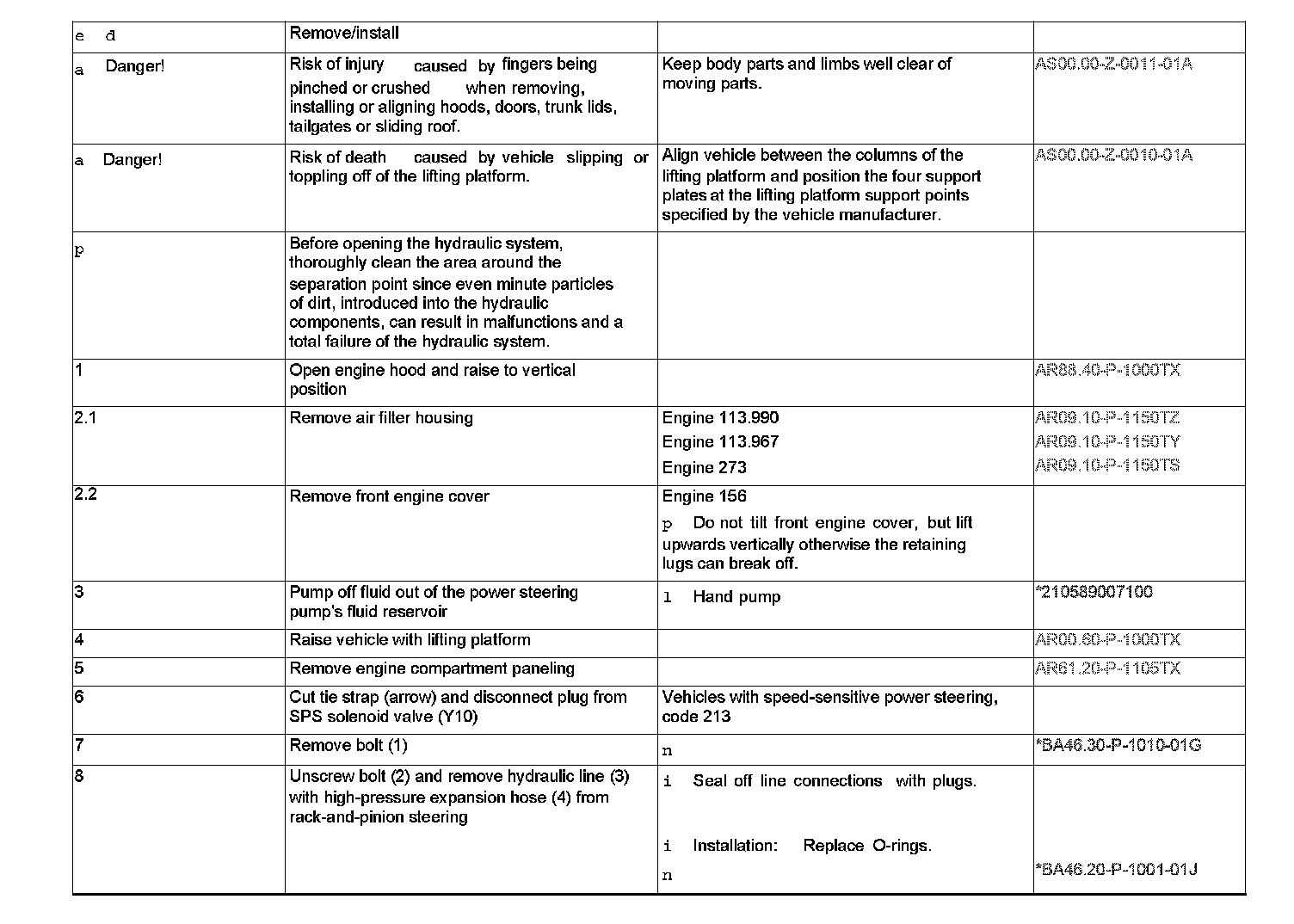

Steps 1-8:

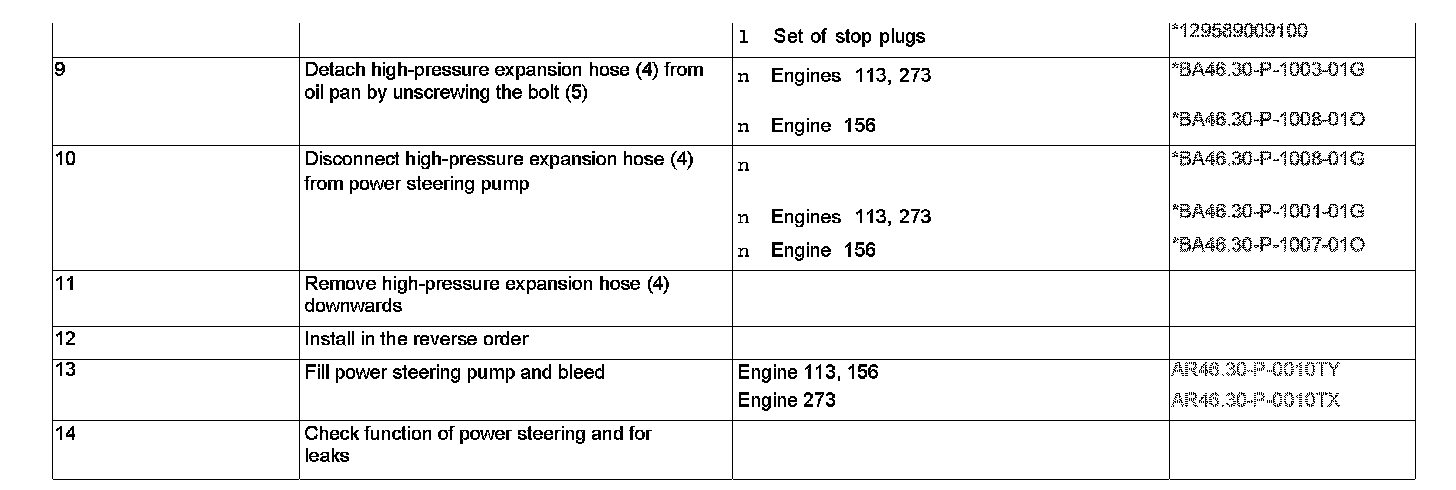

Remove/install Steps 9-14:

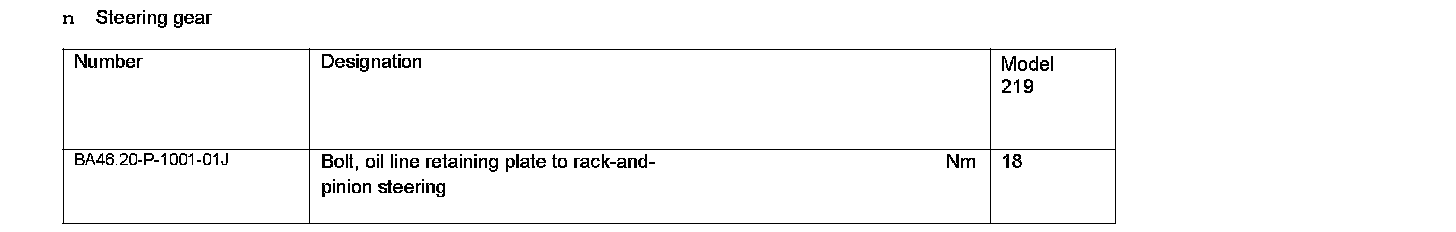

Steering gear:

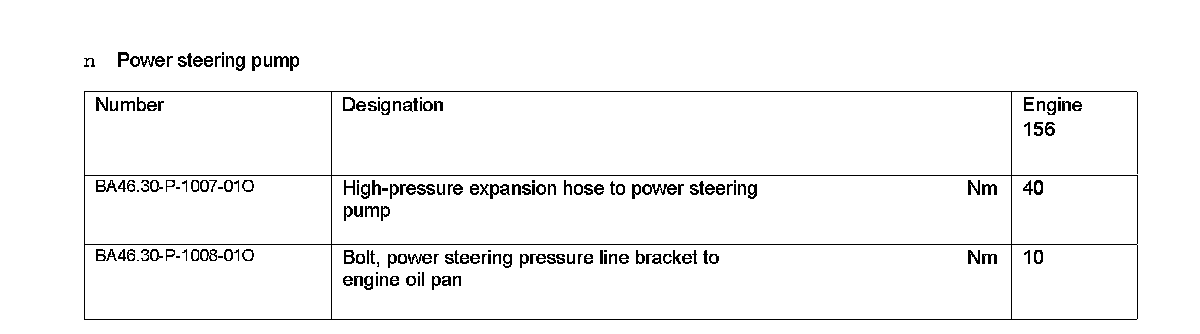

Power steering pump:

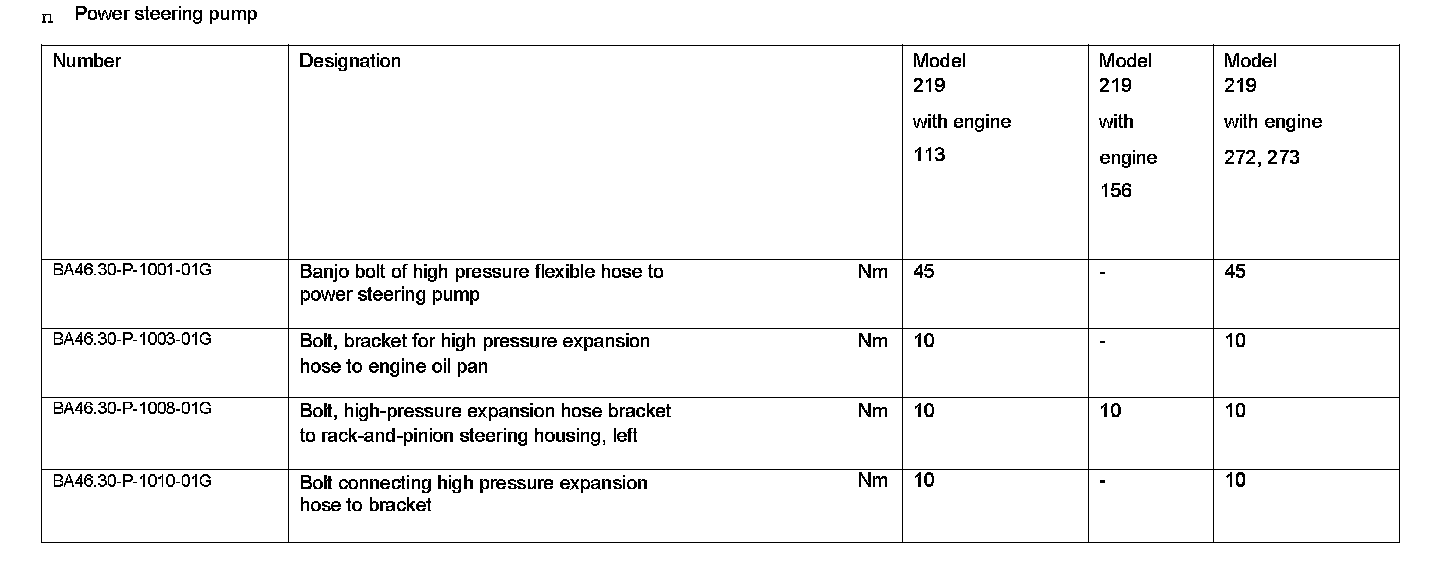

Power steering pump:

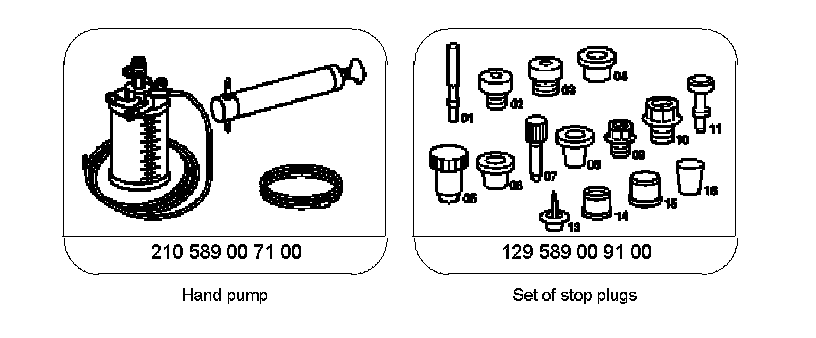

Special Tools:
