AR54.25-P-2000TX Remove/Install Contact Switch For Door



AR54.25-P-2000TX Remove/Install Contact Switch For Door
- door contact switch (front)

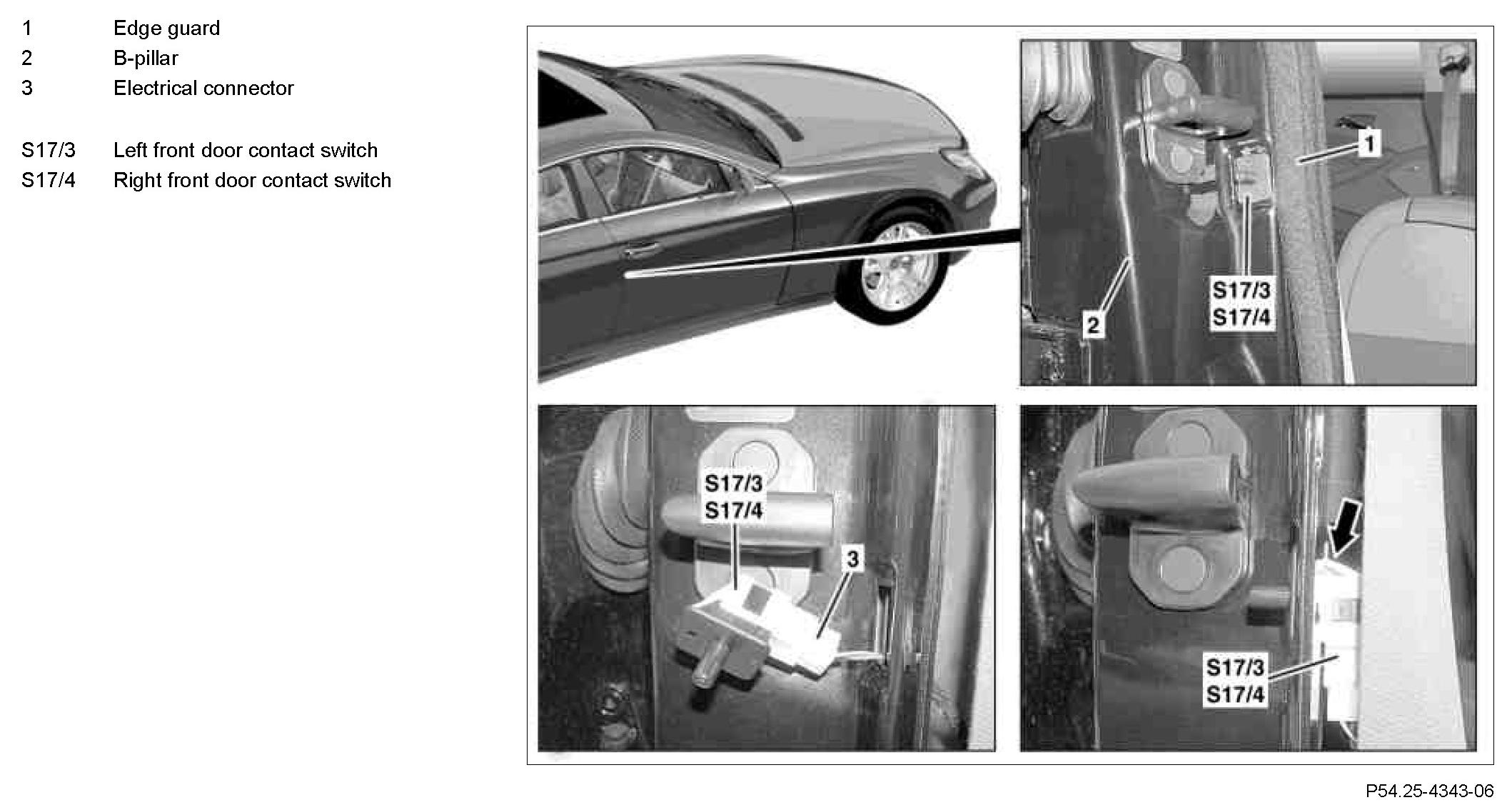

Component Identification:

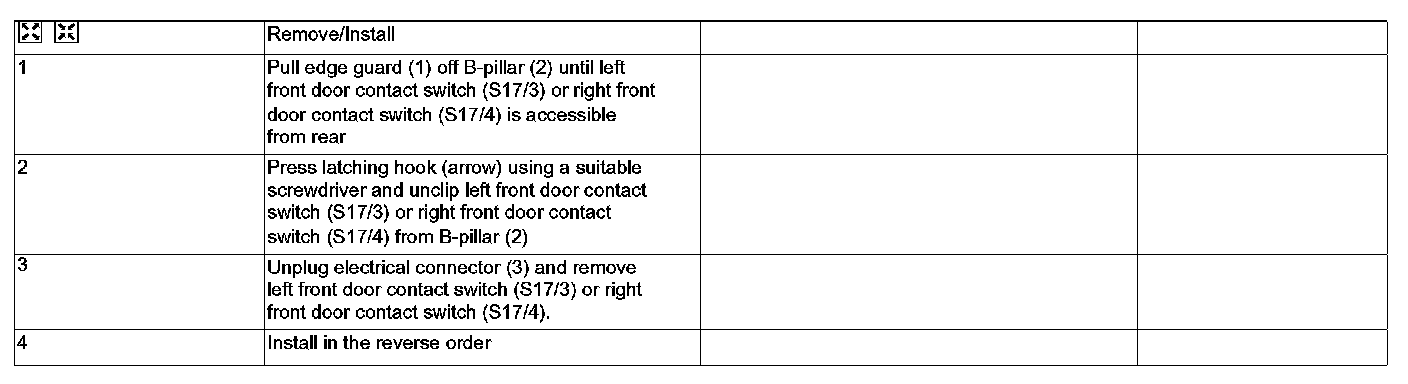

Steps 1 - 4:
