AP83.00-P-8384TX Replace Combination Filter

AP83.00-P-8384TX Replace Combination Filter

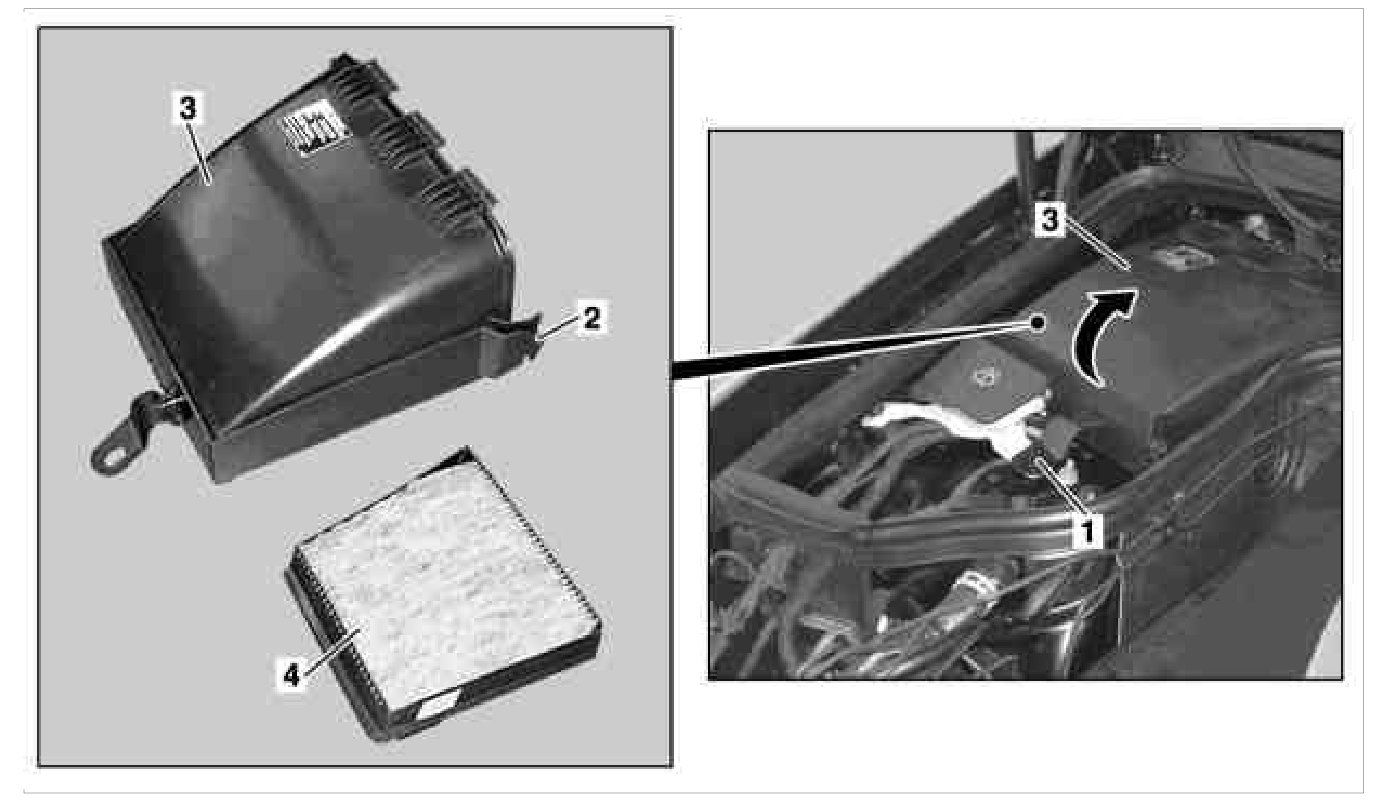

1 Plastic nuts
2 Snap lock
3 Combination filter housing
4 Combination filter

Remove/install

1. Open engine hood and raise to vertical position

2. Unscrew plastic nut (1)
3. Release left and right snap fasteners (2) on combination filter housing (3)
4. Swivel combination filter housing (3) in direction of arrow and remove
5. Remove combination filter (4) out of the combination filter housing (3)

Note: The combination filter (4) is not to be cleaned: It is to be replaced.

6. Install in the reverse order
