Heat Shield: Service and Repair

AR49.00-P-1000-01TX Remove/Install Heat Shield

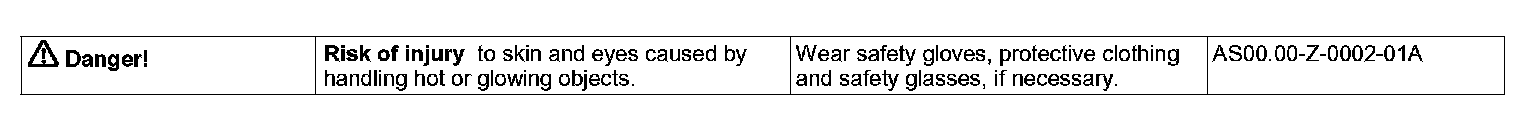

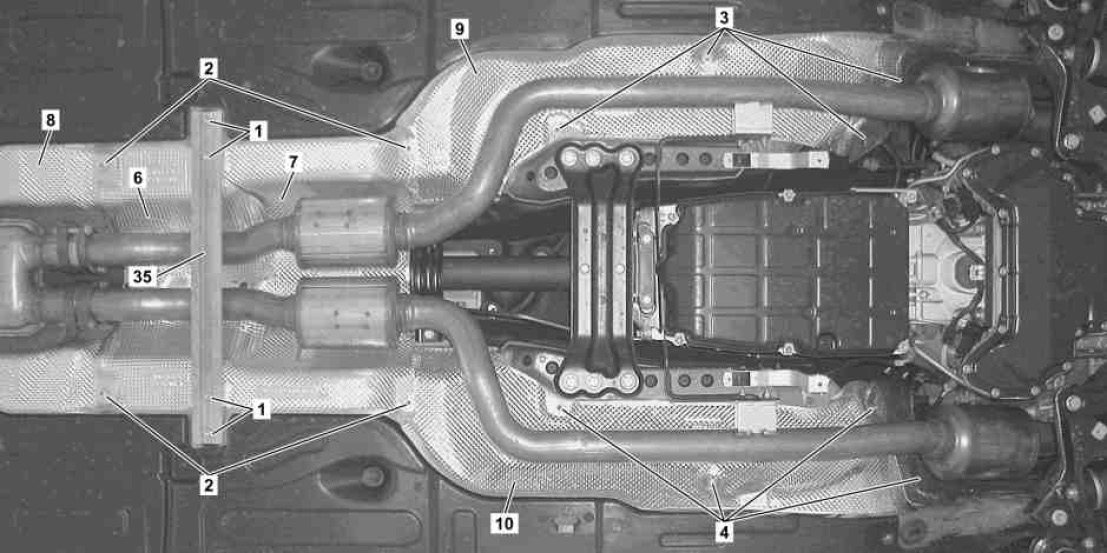

1 Bolts
2 Sheet metal nuts
3 Sheet metal nuts
4 Sheet metal nuts
6 Heat shield
7 Heat shield
8 Heat shield
9 Right heat shield
10 Left heat shield
35 Cross strut

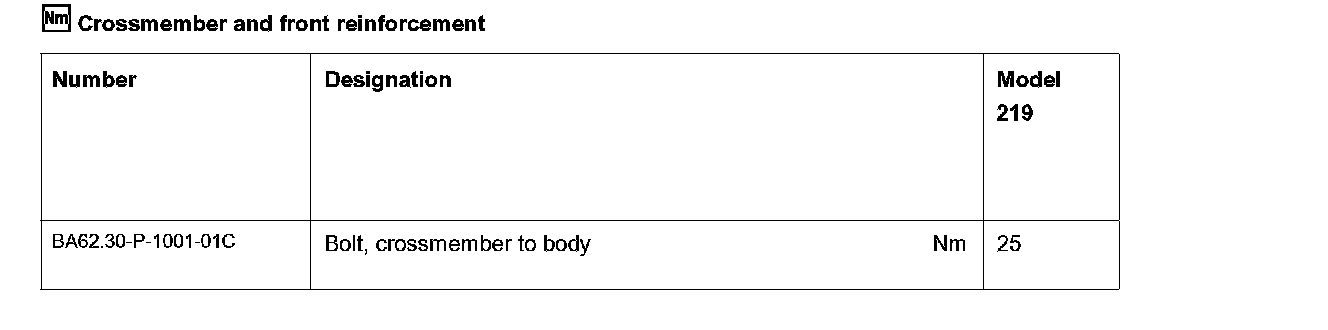

1 Unscrew bolts (1) and remove cross strut (35).
2 Unscrew sheet metal nuts (2) and remove heat shield (6).
3 Remove heat shields (7, 8).
4 Unscrew sheet metal nuts (3) and remove right heat shield (9).
5 Unscrew sheet metal nuts (4) and remove left heat shield (10).

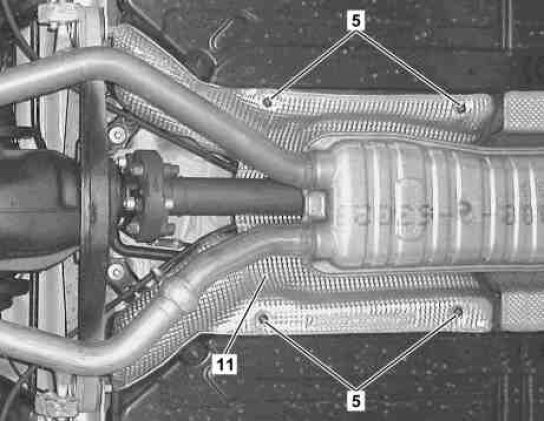

6 Unscrew sheet metal nuts (5) and remove heat shield (11).
