Timing Chain Tensioner: Service and Repair



AR05.10-P-7800TMG Remove/install chain tensioner

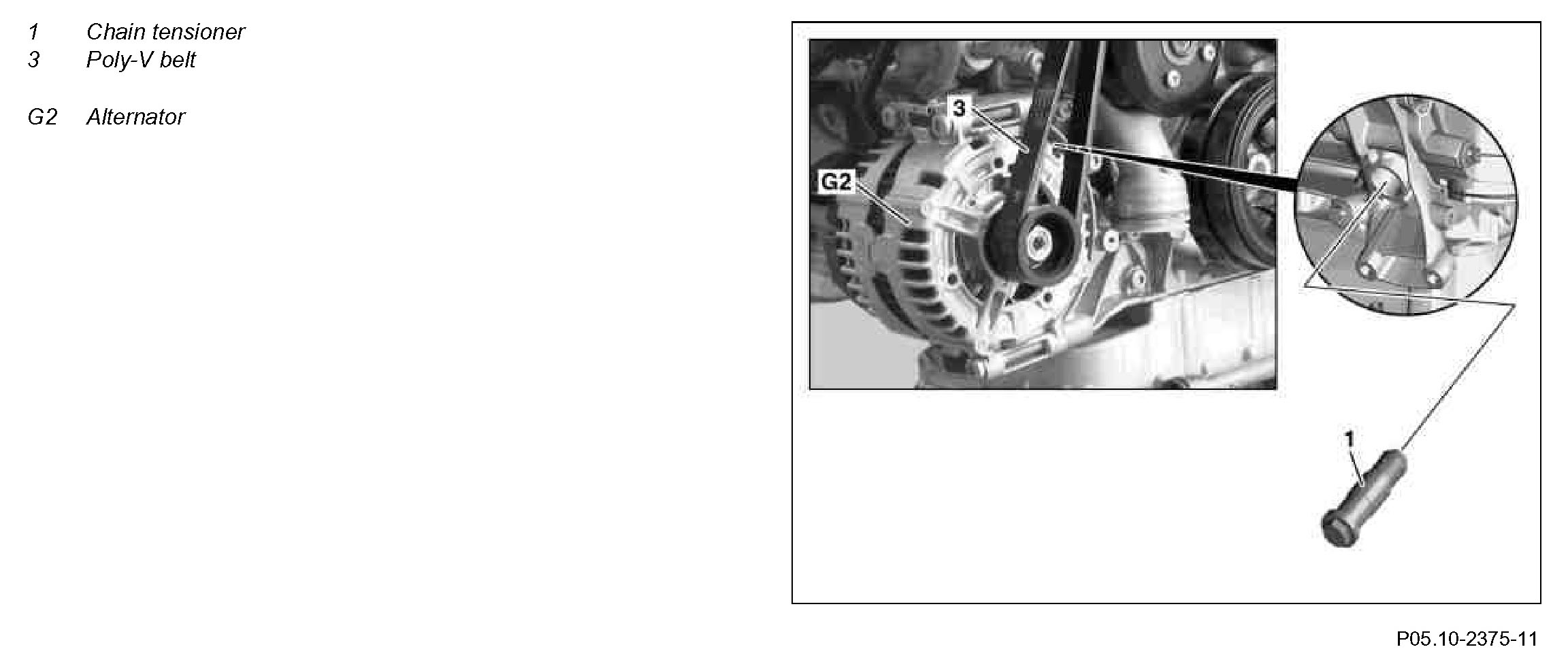

Component Identification:

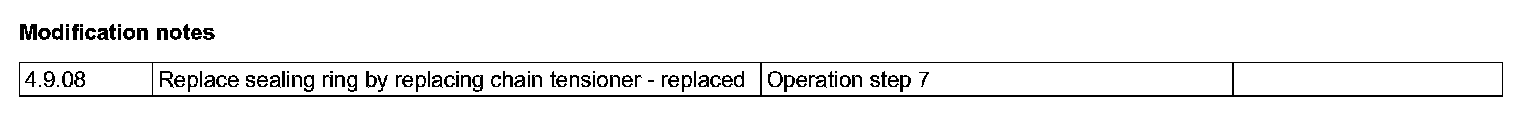

Modification notes:

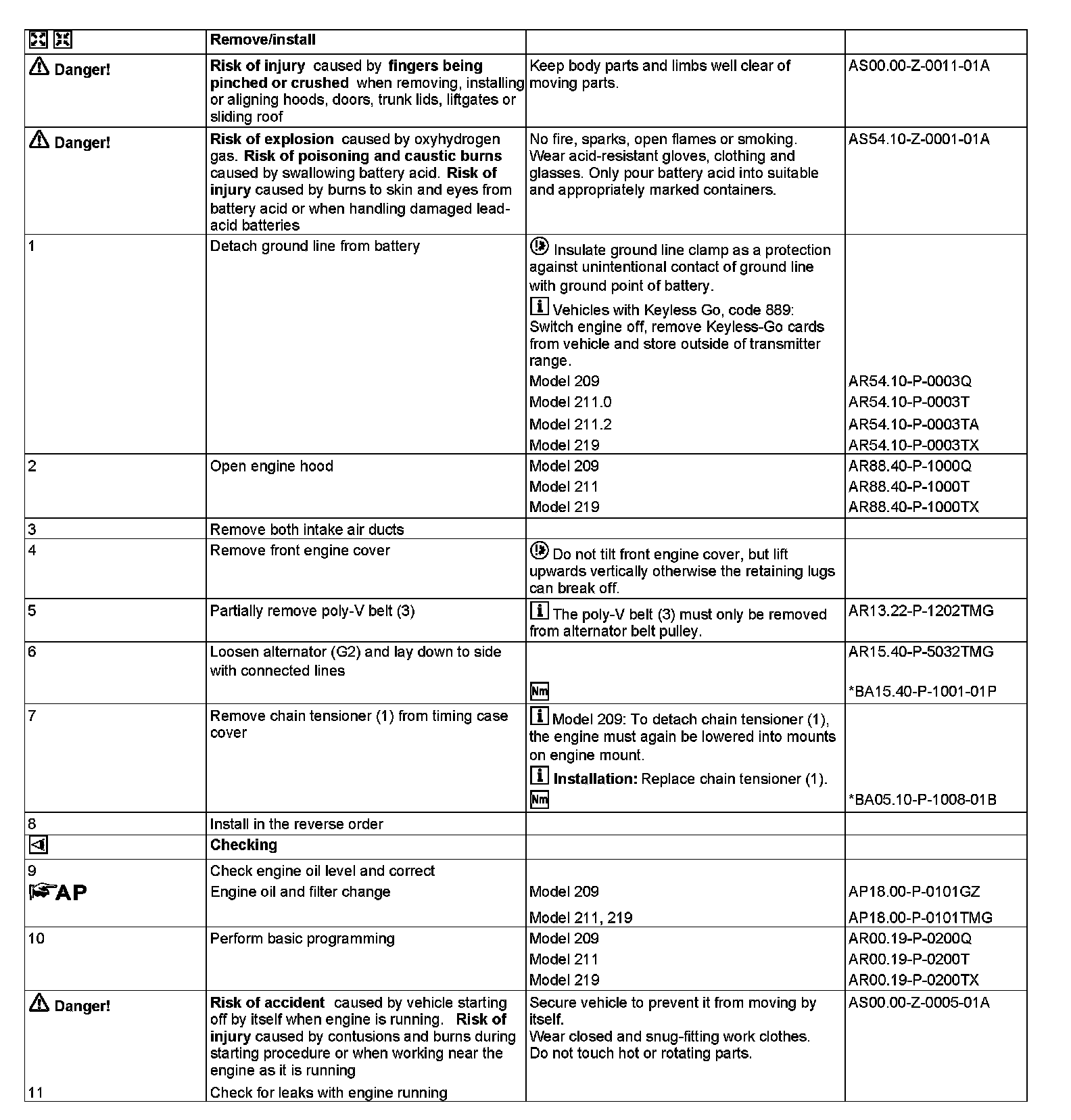

Steps 1-11:

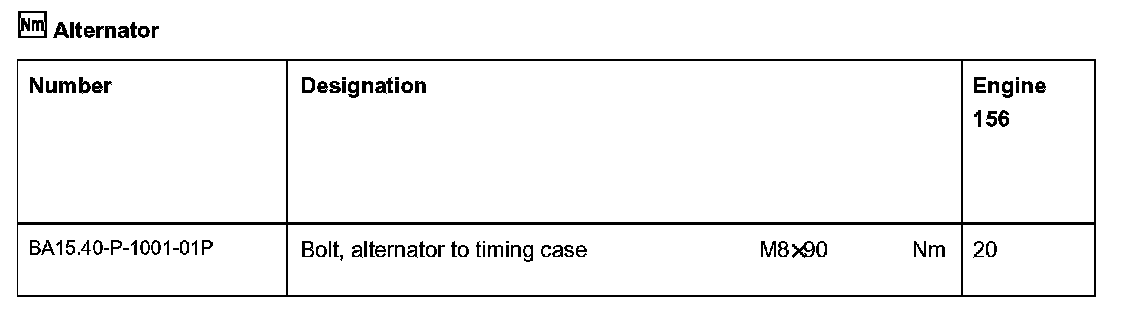

Alternator:

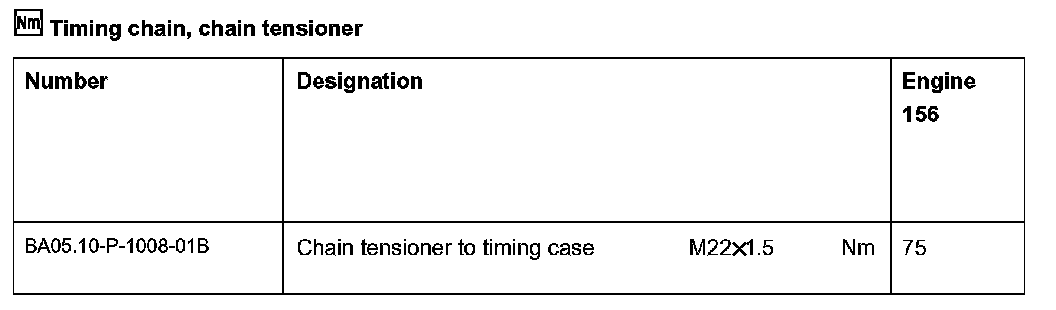

Timing chain, chain tensioner:
