Valve Spring: Service and Repair



AR05.30-P-3500AMG Remove/install valve springs and/or valve stem seals

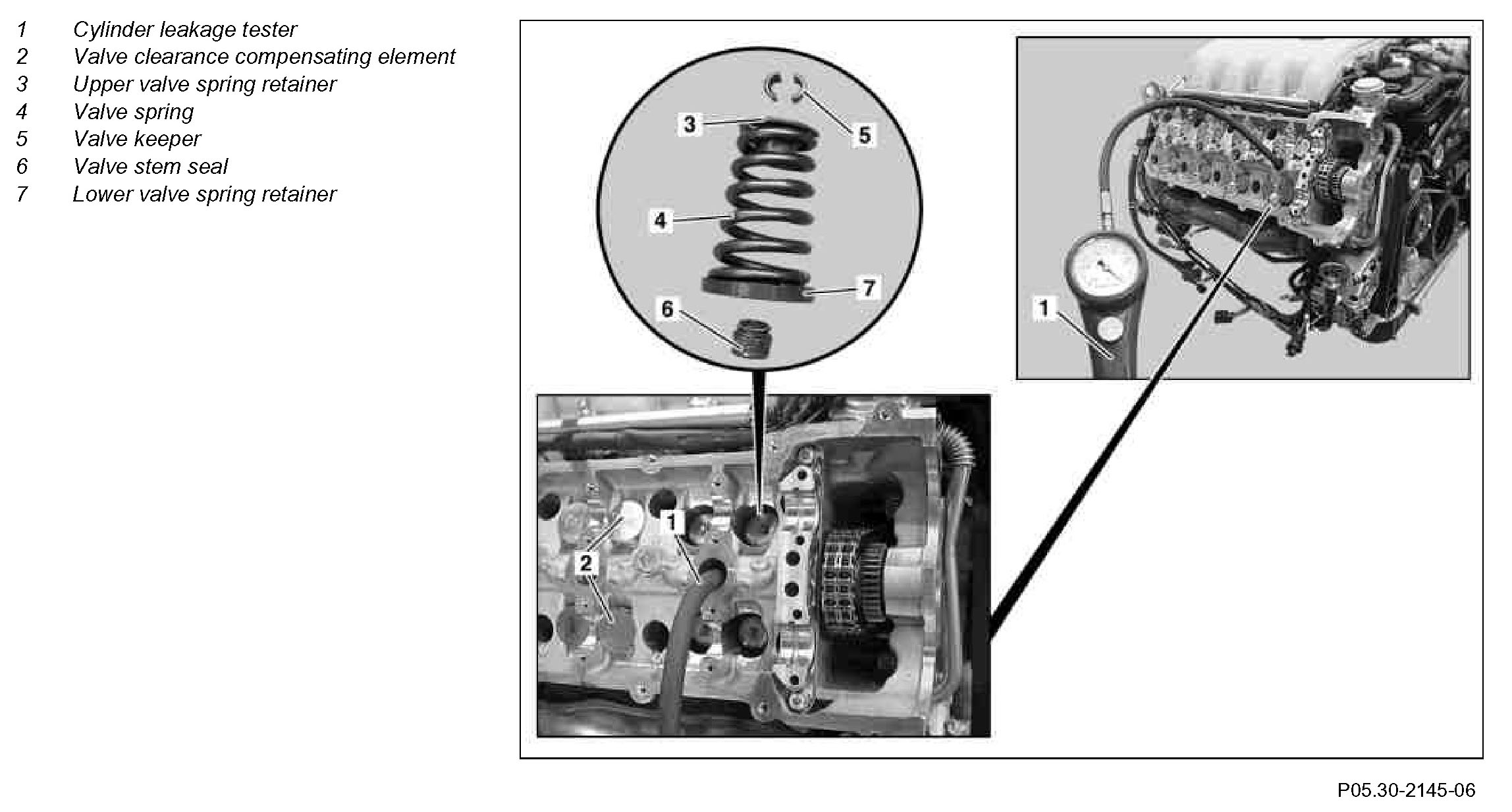

Component Identification:

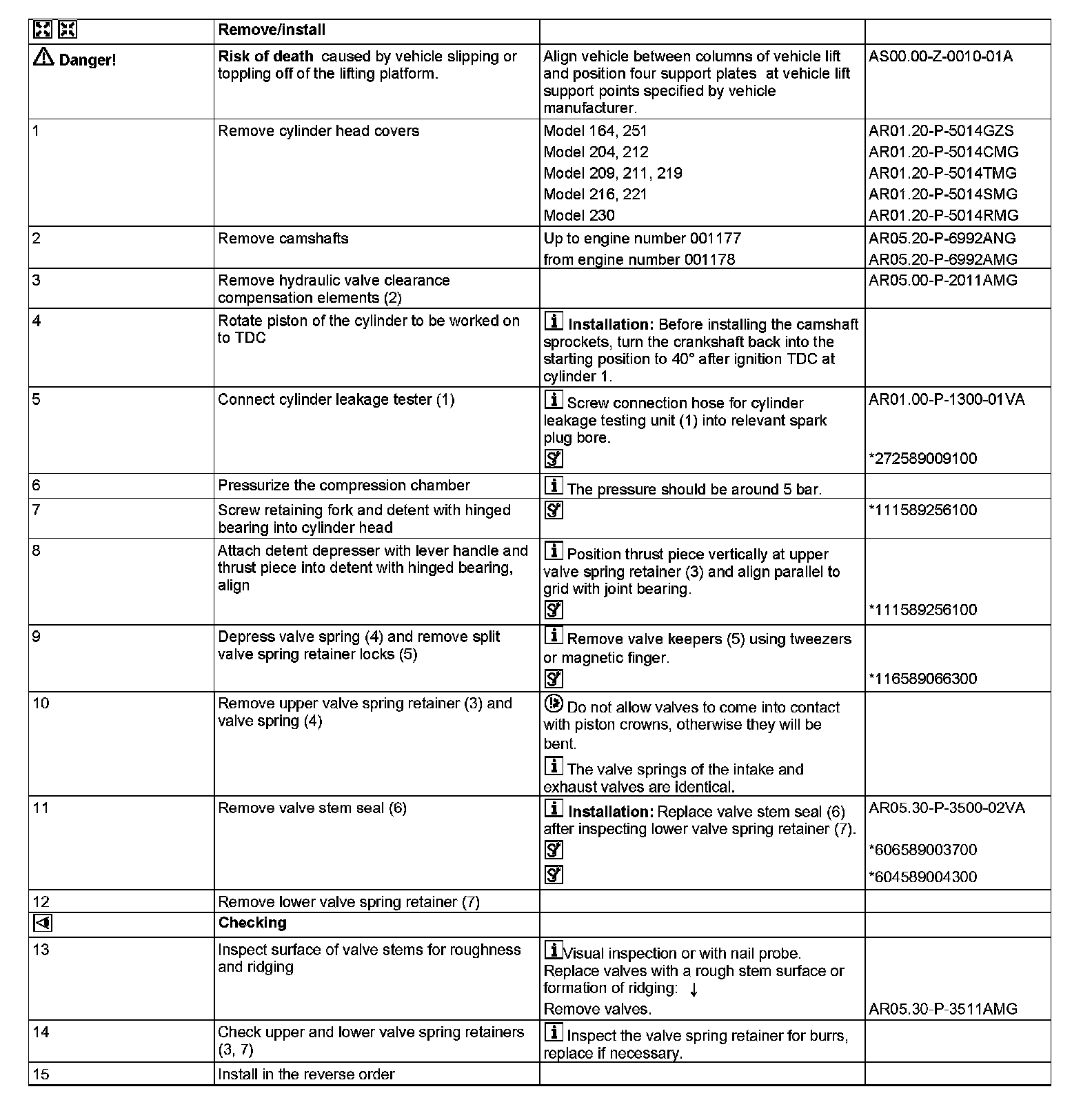

Steps 1-15:

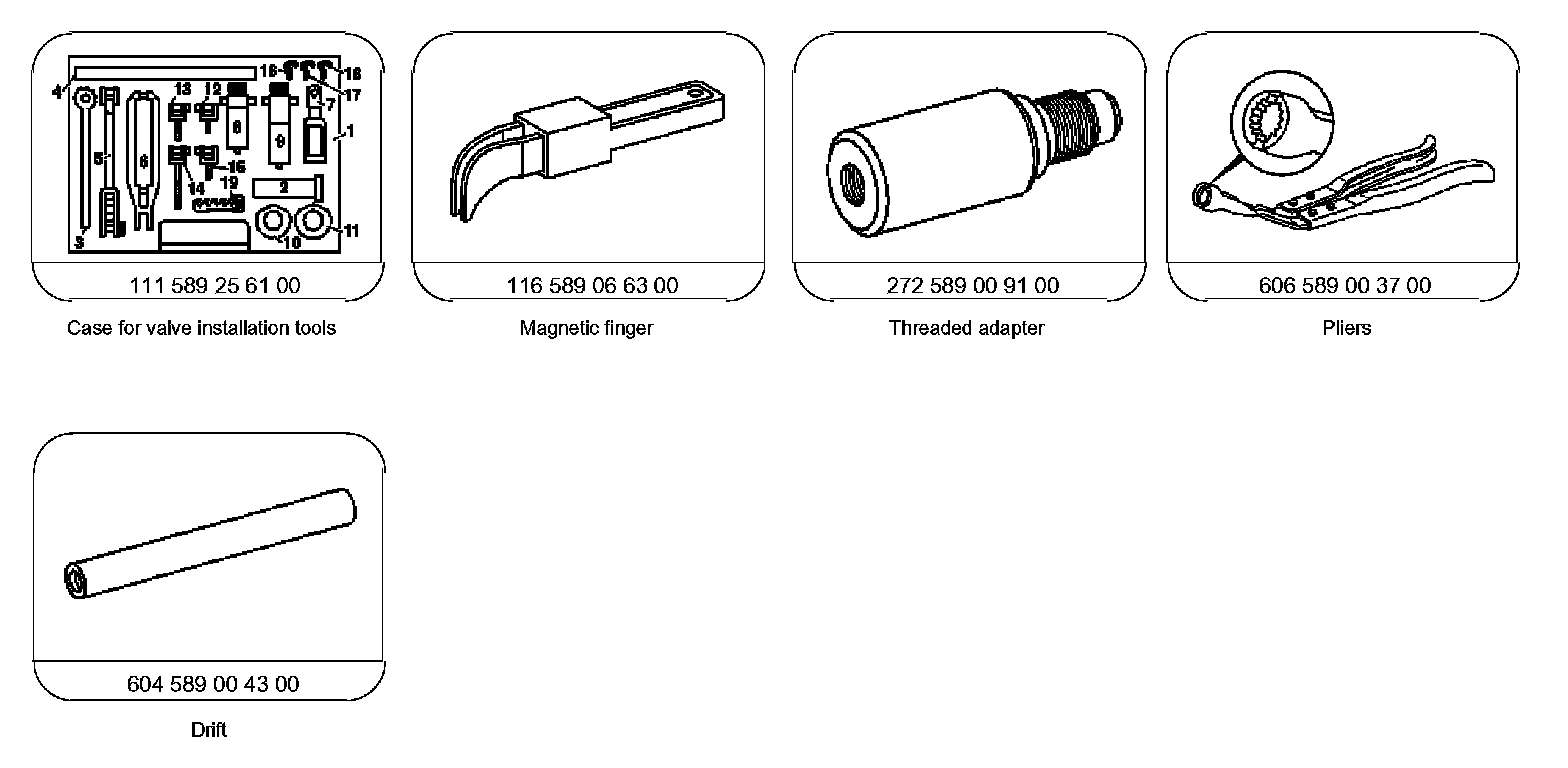

Special Tools:
