Piston Ring: Service and Repair
AR03.10-P-7311AMG Remove/install
piston rings

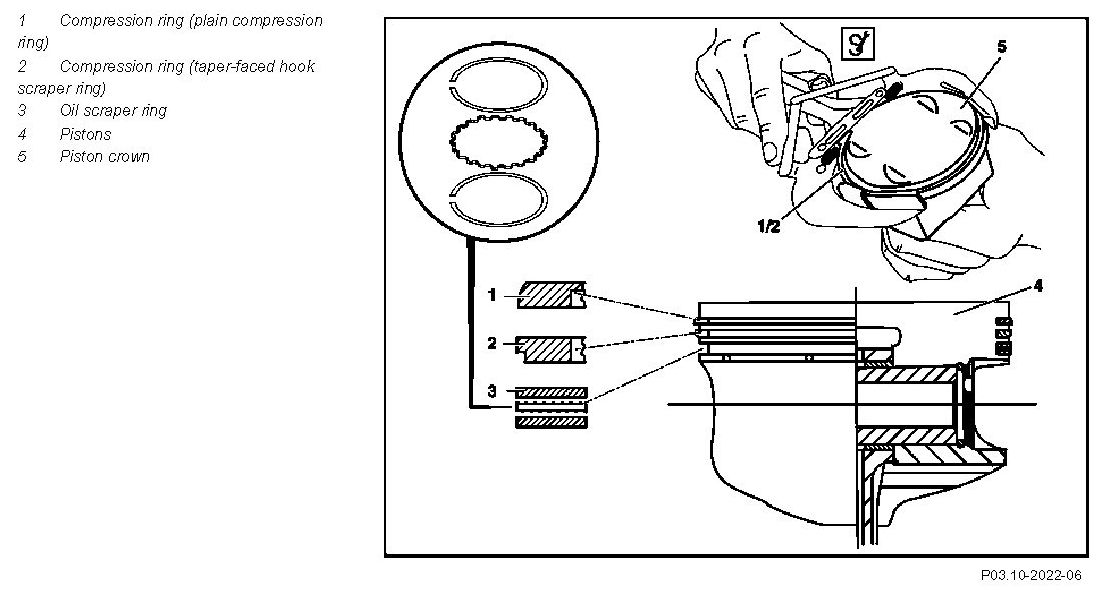

Component Identification:

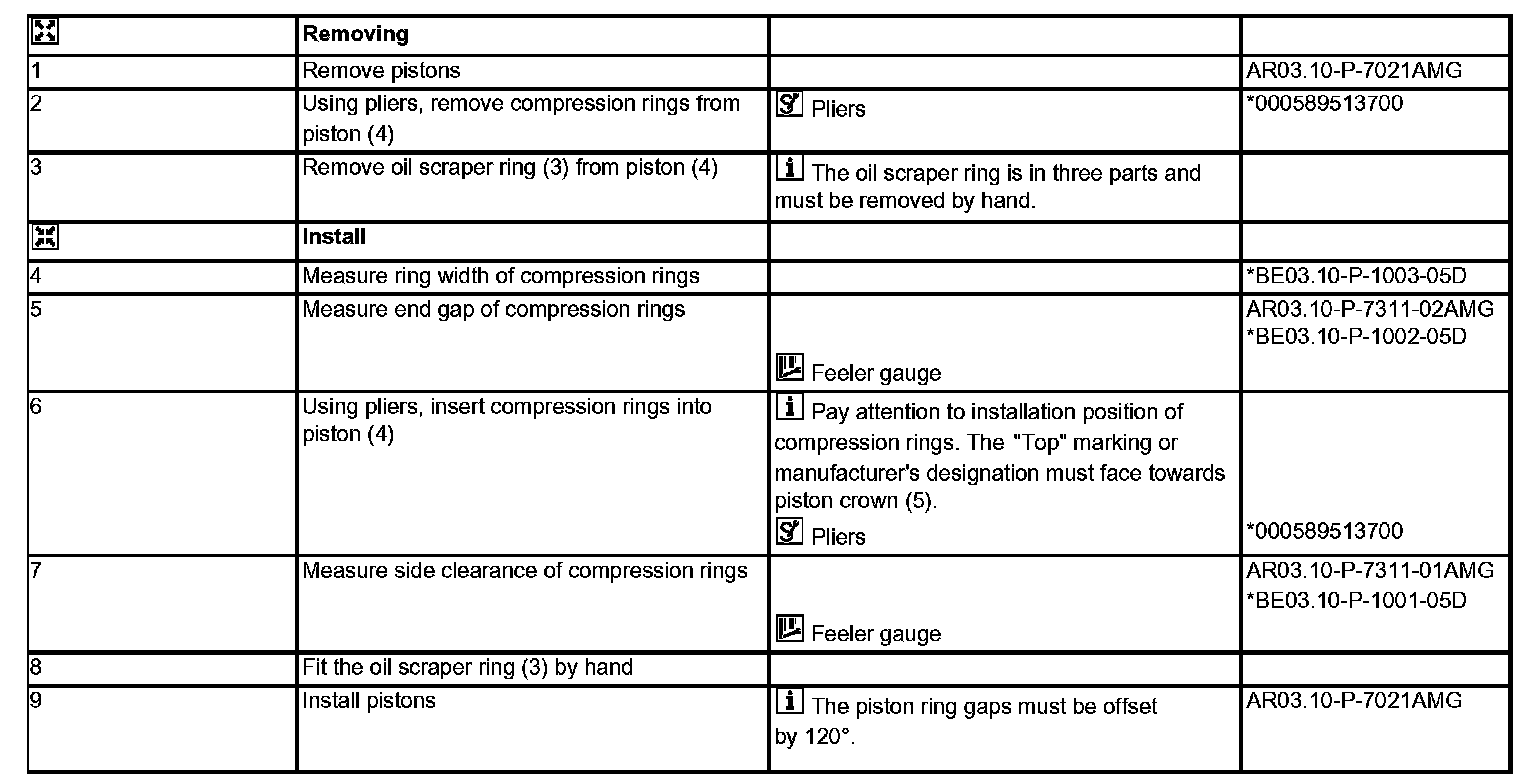

Remove/install Steps 1-9:
Check values for piston rings:
Special Tools:
