AR68.20-P-5169TX Remove/Install Center Console Paneling
AR68.20-P-5169TX Remove/Install Center Console Paneling
AR68.20-P-5169TX Remove/Install Center Console Paneling

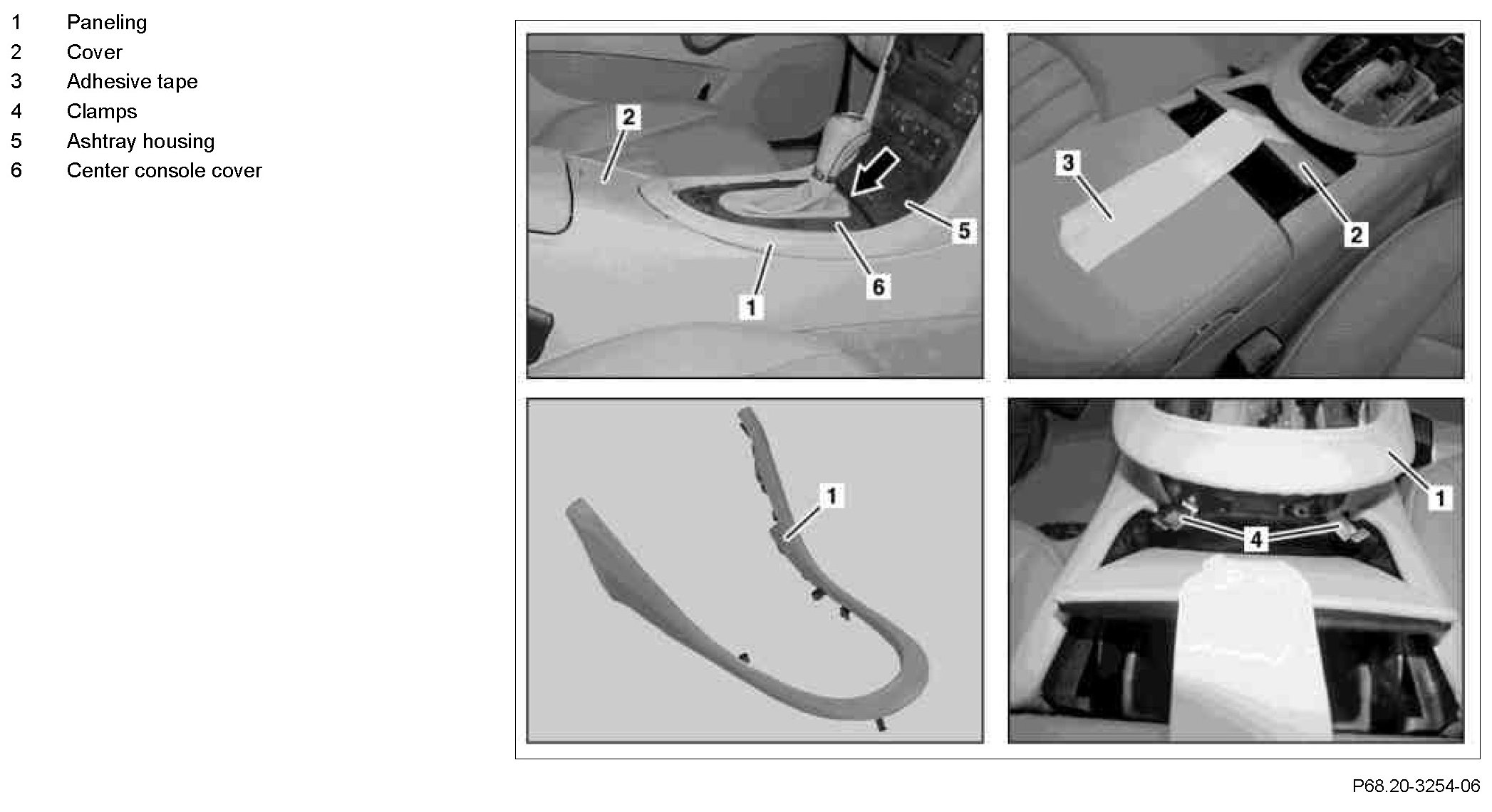

Component Identification:

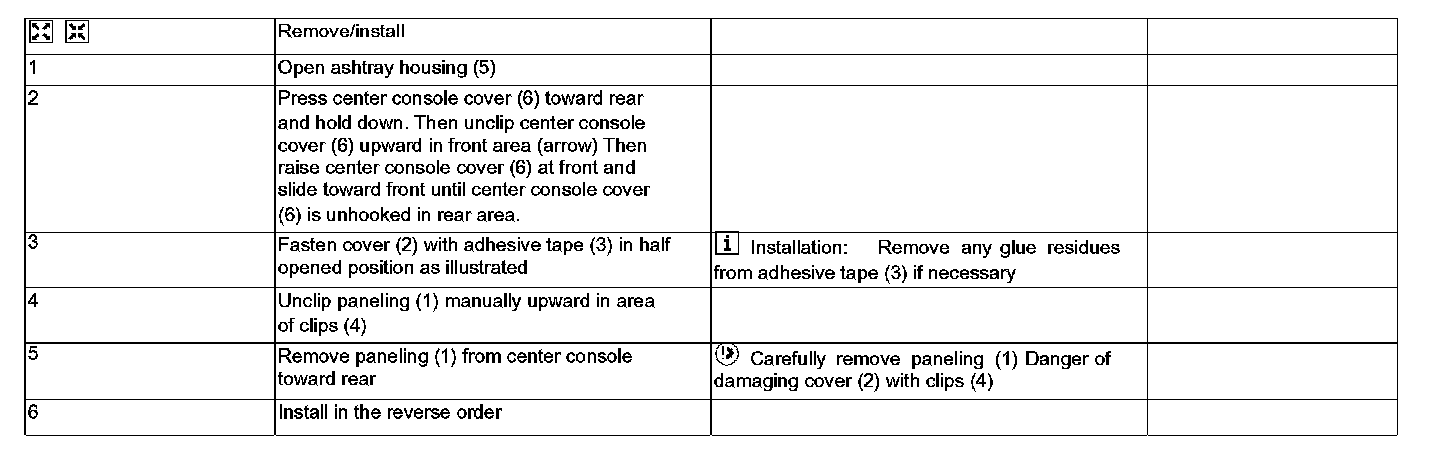

Steps 1 - 6:
