AR68.20-P-2020TX Remove/Install Rear Center Console
AR68.20-P-2020TX Remove/Install Rear Center Console
AR68.20-P-2020TX Remove/Install Rear Center Console

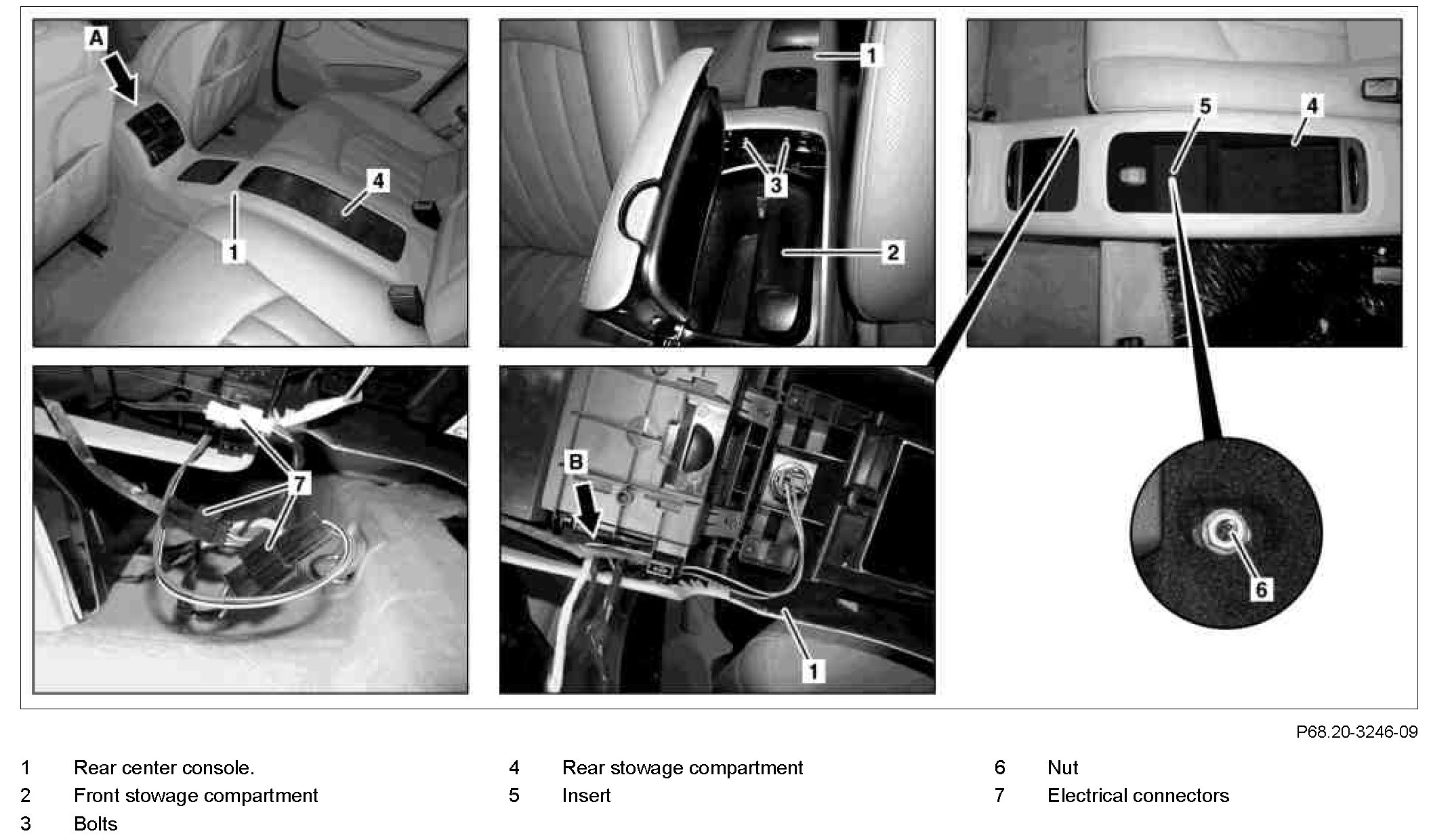

Component Identification:

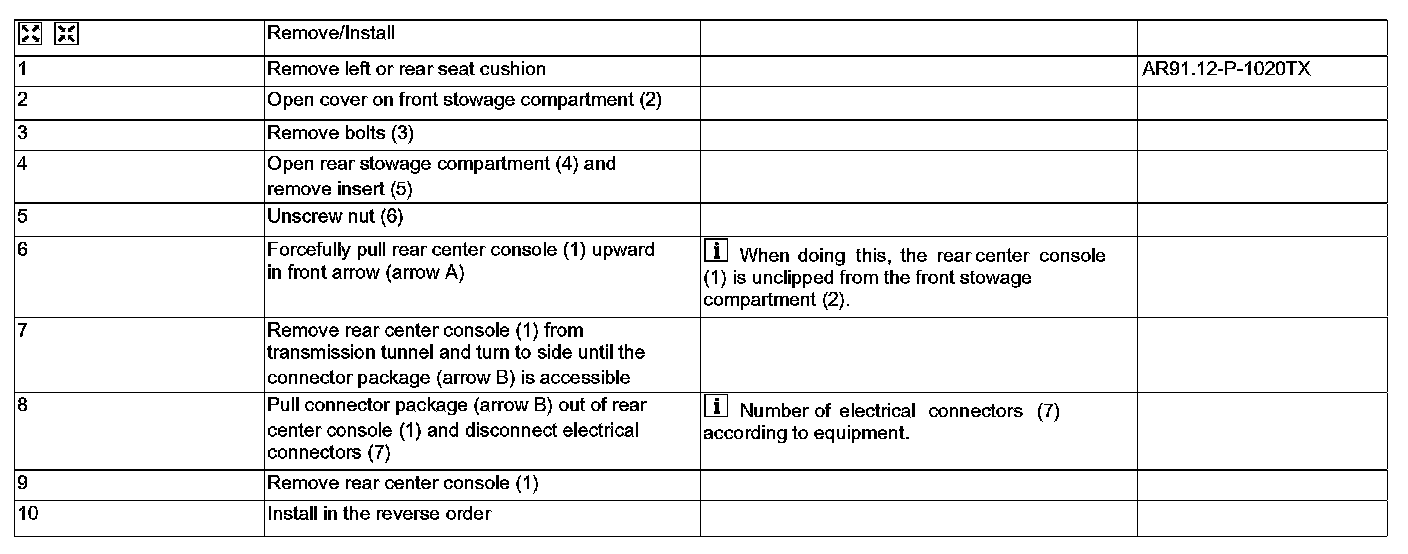

Steps 1 - 10:
