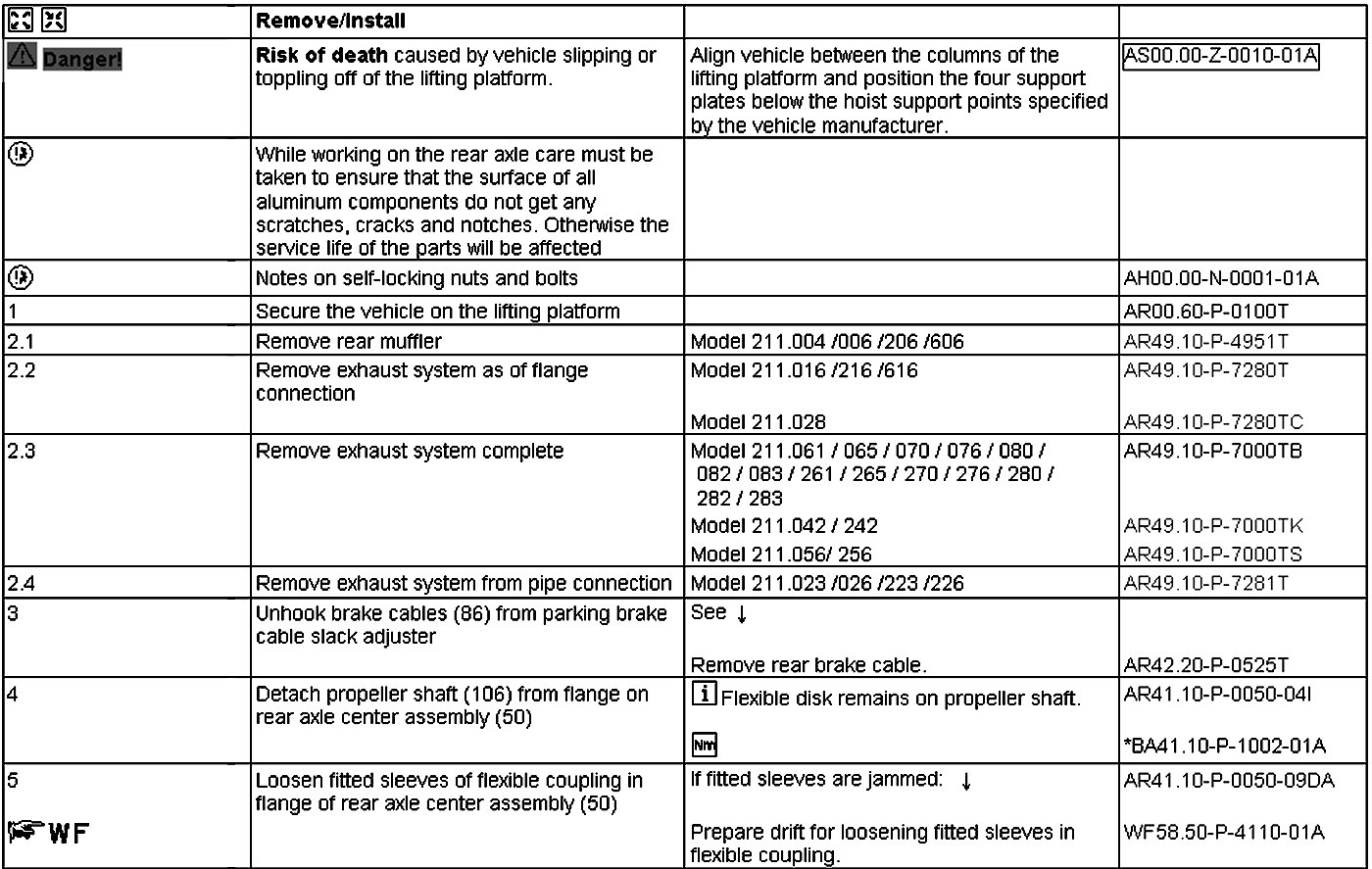

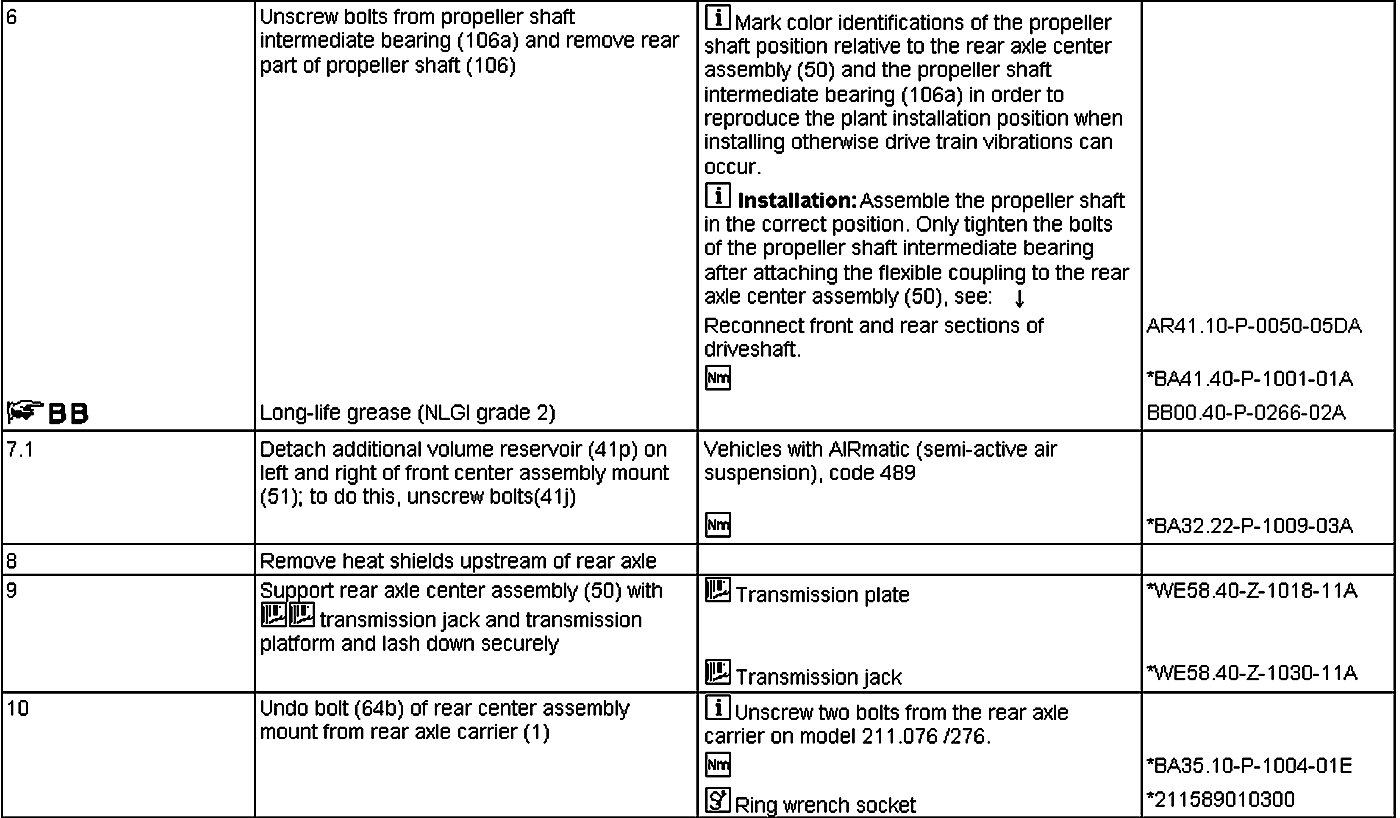

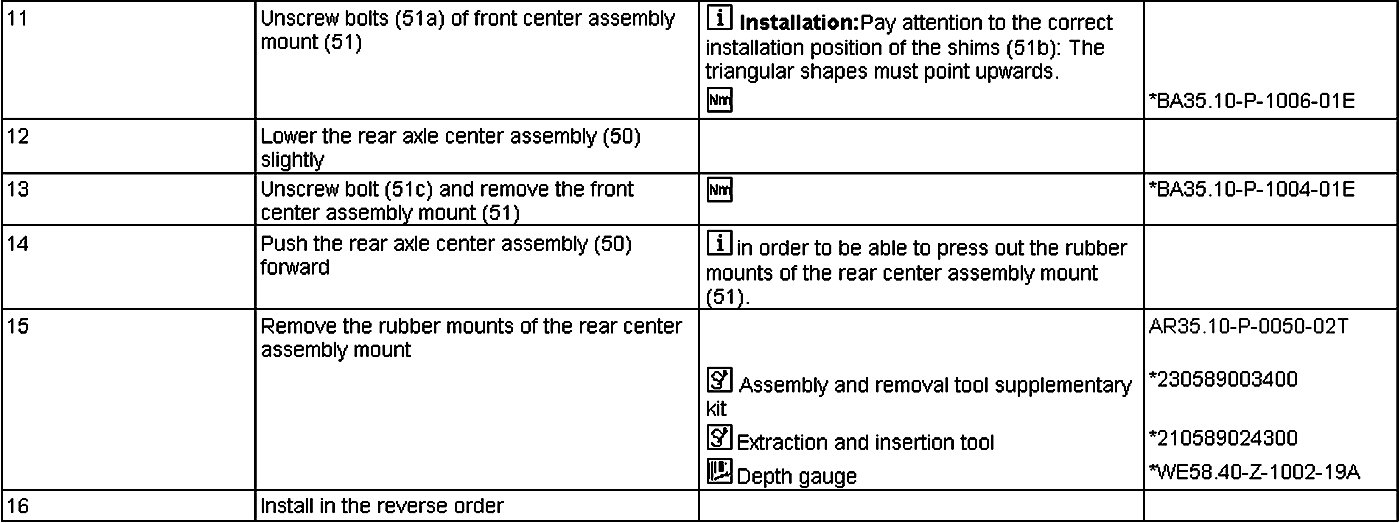

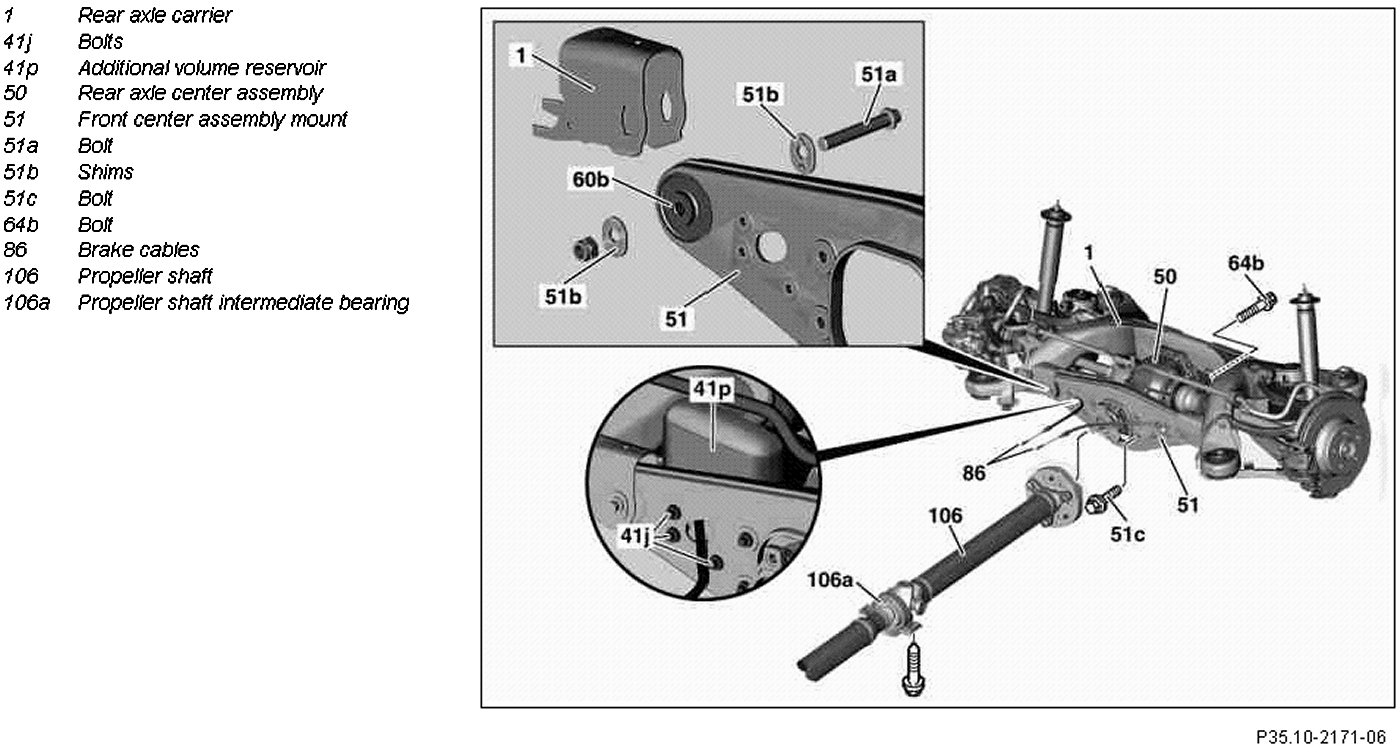

AR35.10-P-0050T Remove/ Install Rear Rubber Bushing For Center Assembly Mount In Rear Axle Carrier




AR35.10-P-0050T Remove/ Install Rear Rubber Bushing for Center Assembly Mount in Rear Axle Carrier
