AR88.10-P-1310TX Remove/Install Fender Liner Front Section In Front Fender



AR88.10-P-1310TX Remove/Install Fender Liner Front Section In Front Fender


Component Identification:

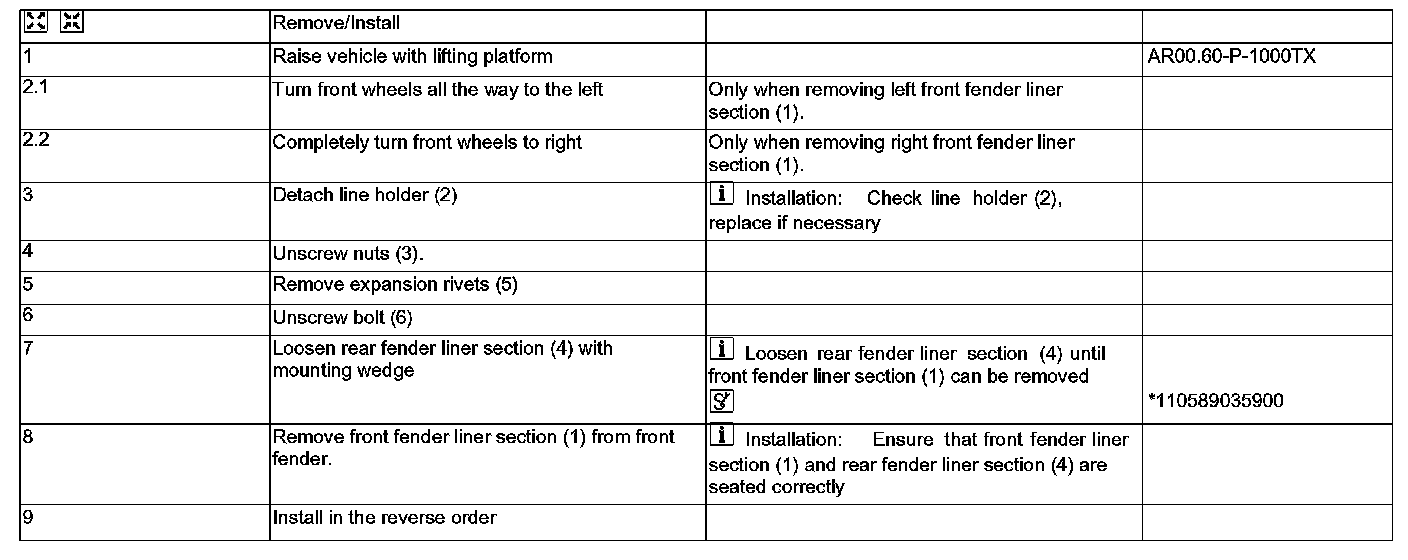

Steps 1 - 9:

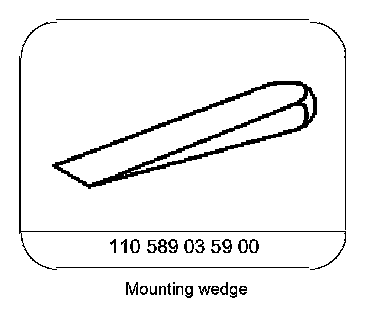

Special Tools:
