Procedures
AR27.55-P-0001TX Flushing out oil cooler lines and oil cooler
- Transmission 722.9

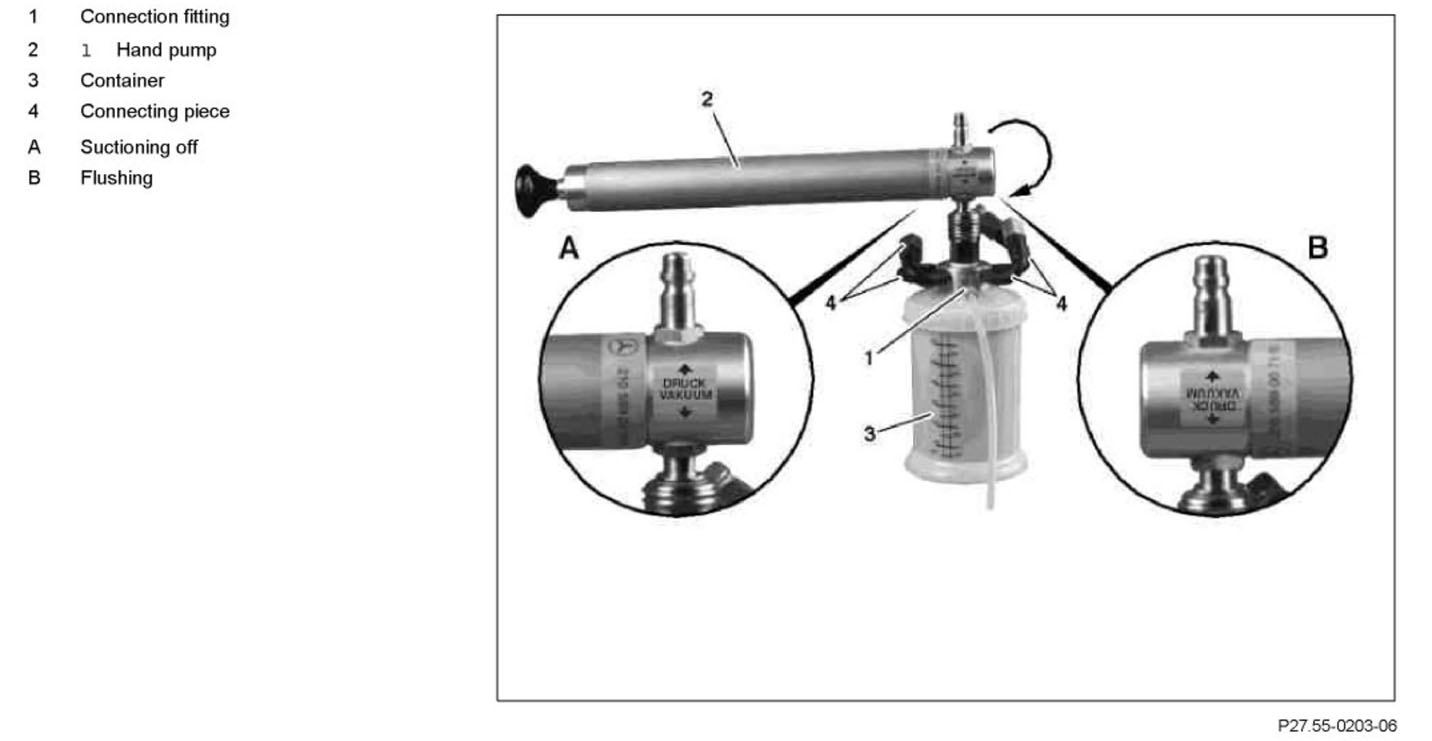

Component Identification:

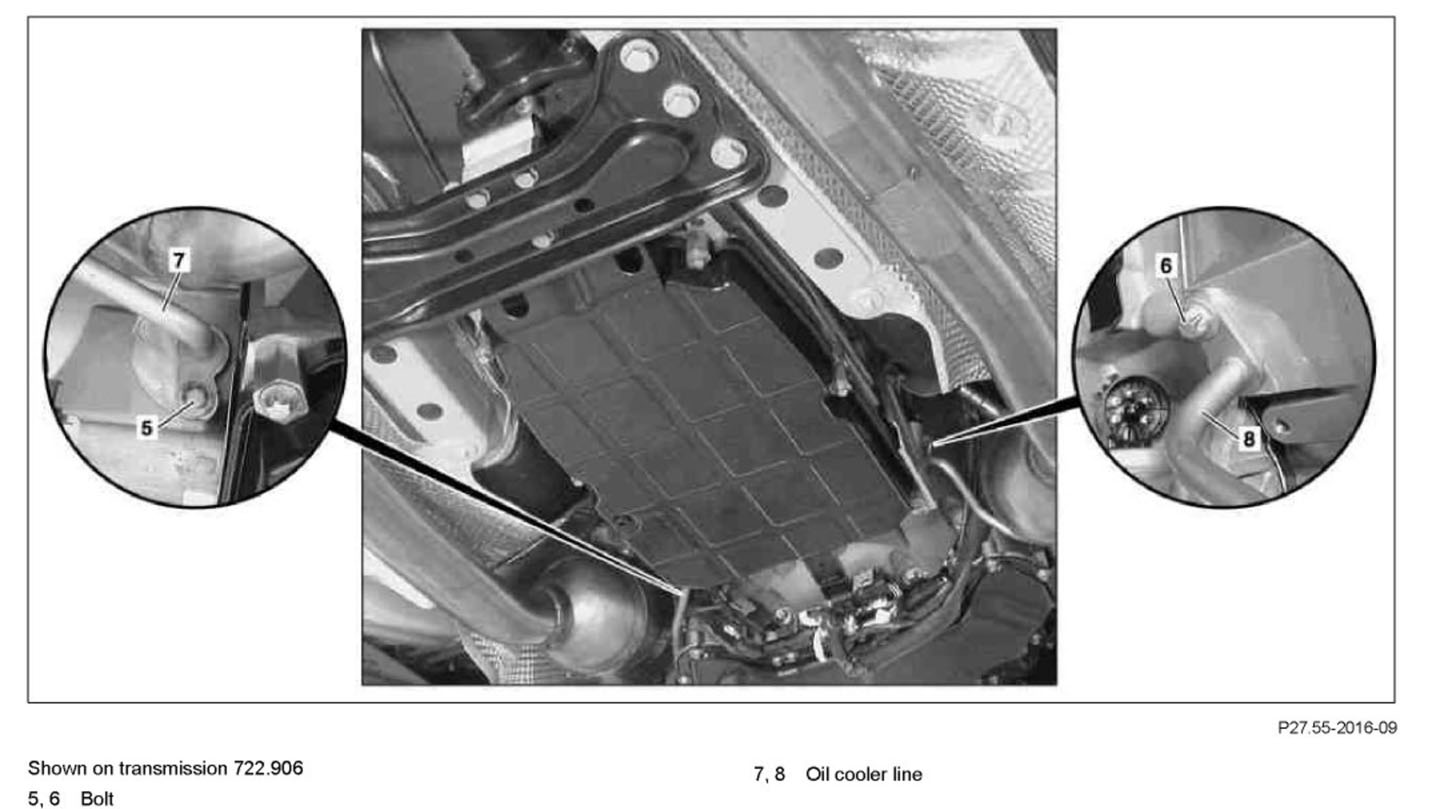

Component Identification:

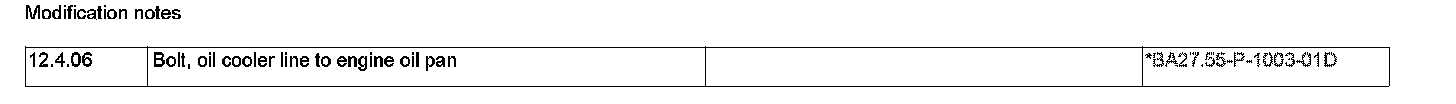

Modification notes:

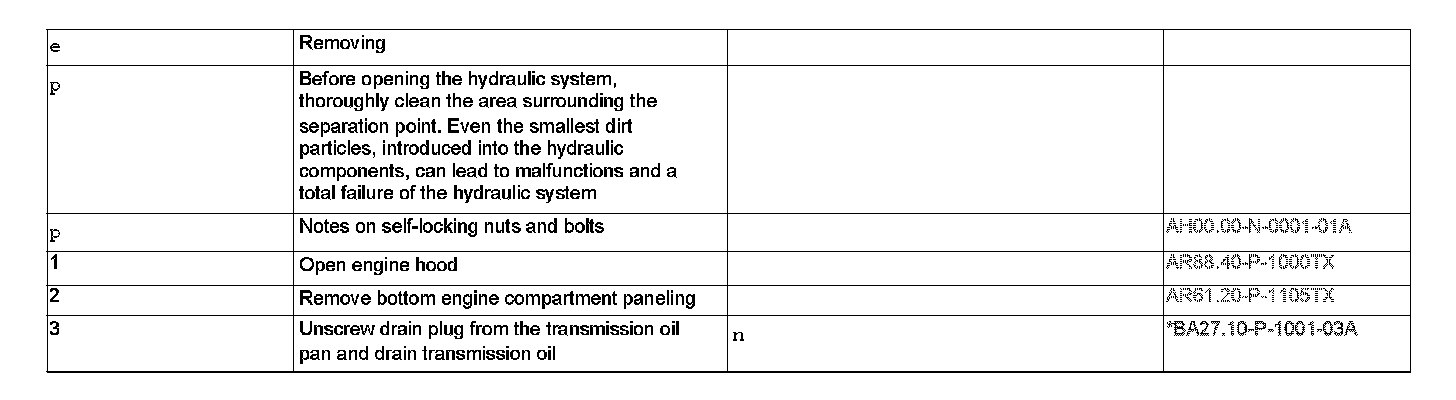

Steps 1-3:

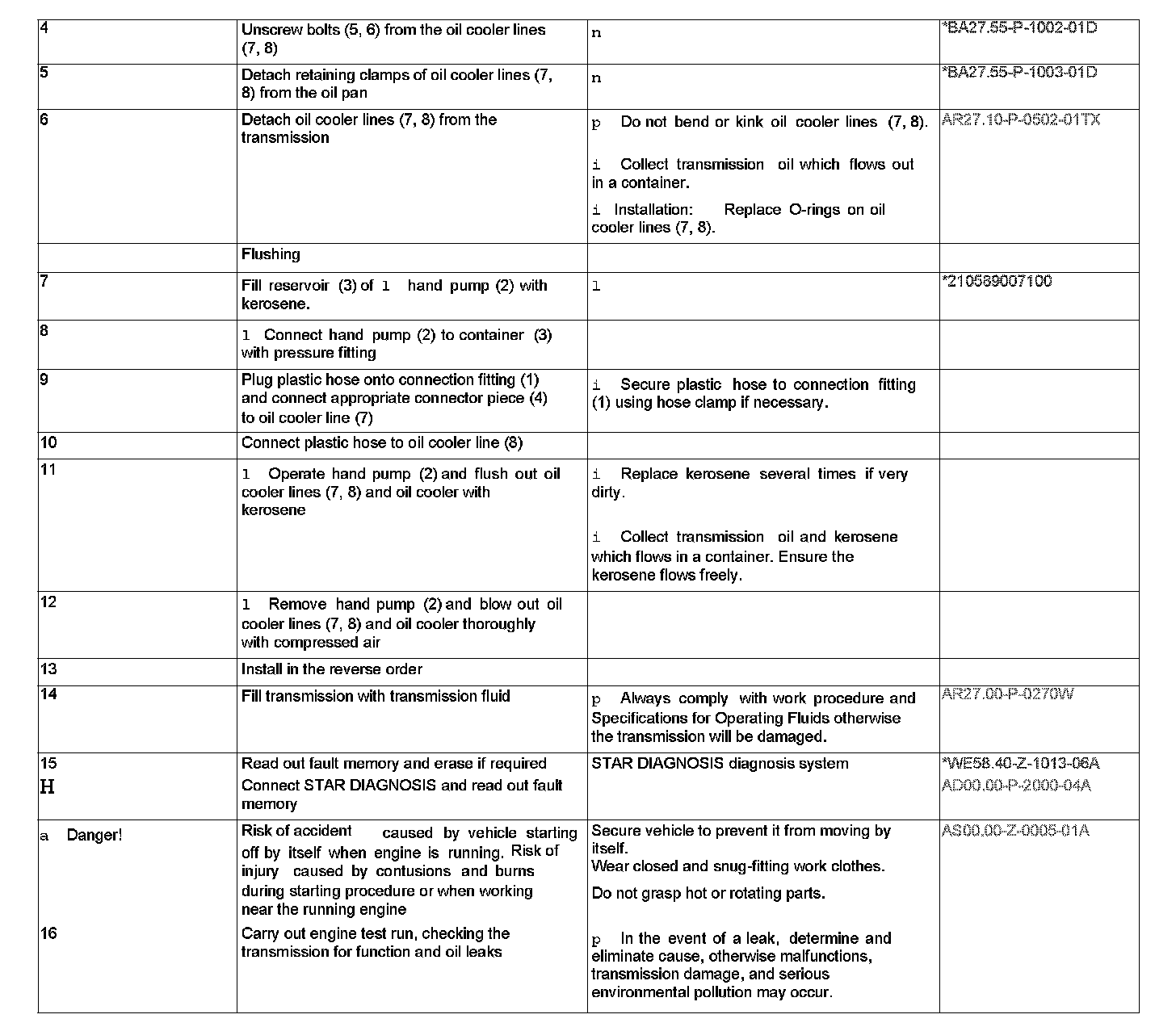

Steps 4-16:

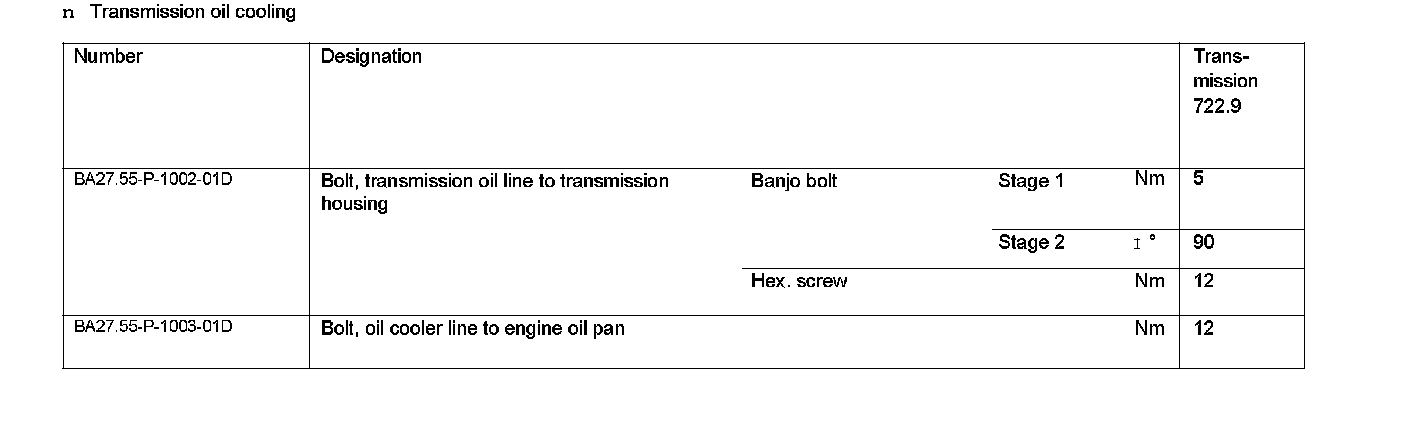

Transmission oil cooling:

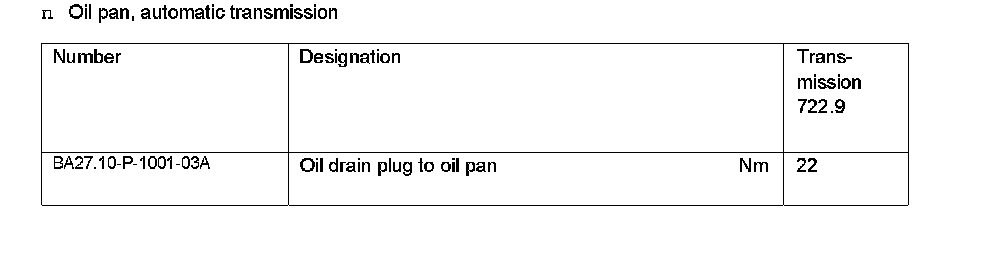

Oil pan, automatic transmission:

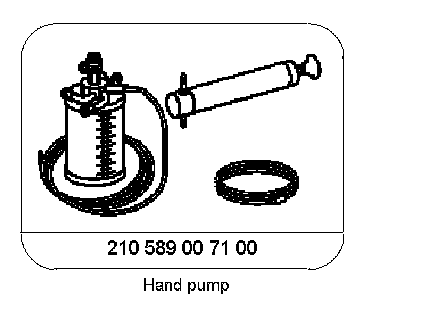

Special Tools:

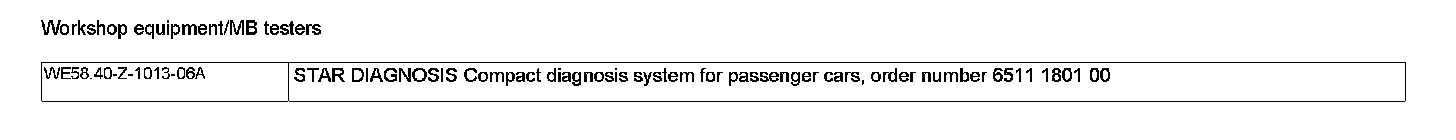

Workshop equipment/MB testers:
