AR33.20-P-0500TX Remove/Install Upper Control Arm
AR33.20-P-0500TX Remove/Install Upper Control Arm
AR33.20-P-0500TX Remove/install upper
control arm

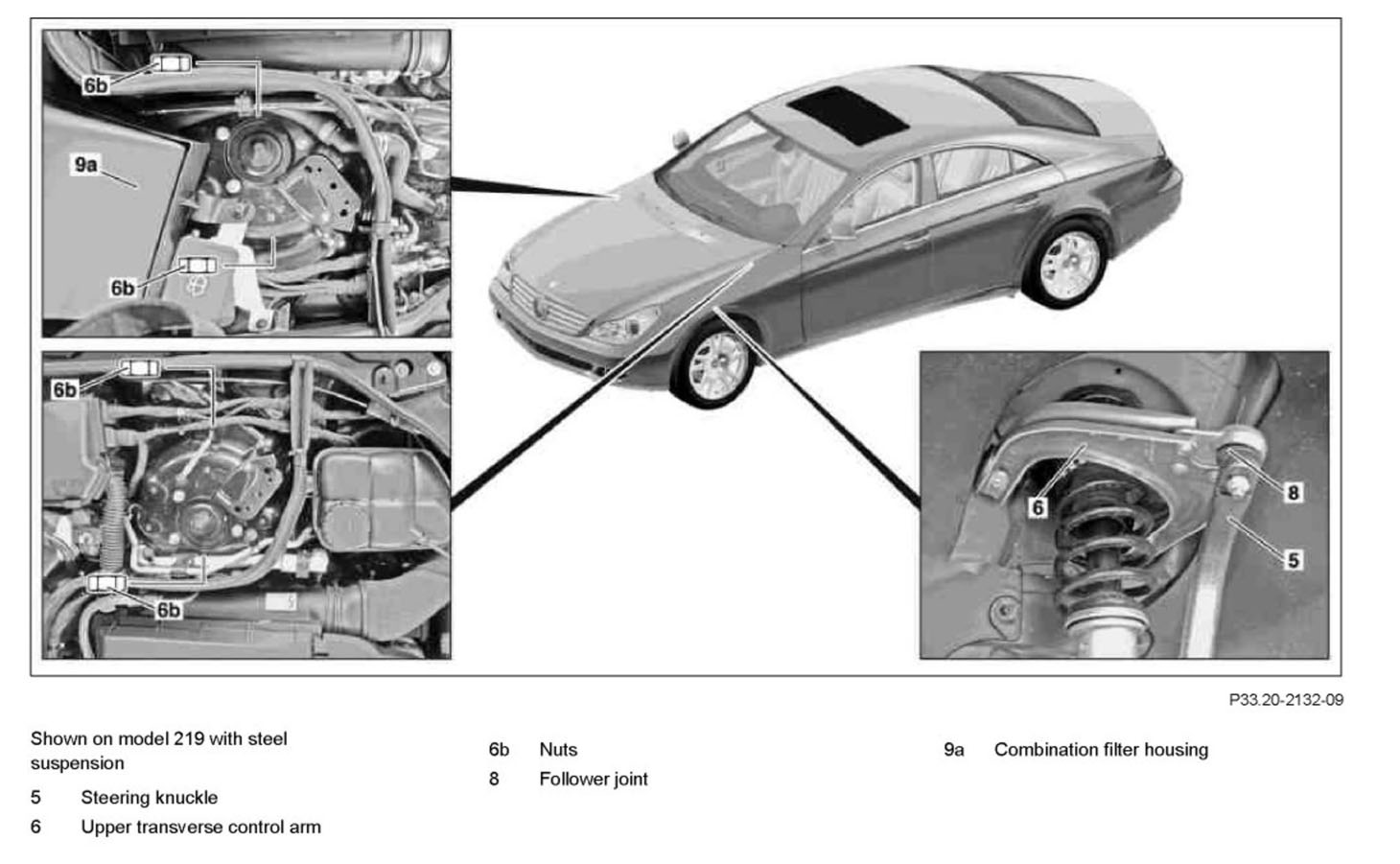

Component Identification:
Modification notes:

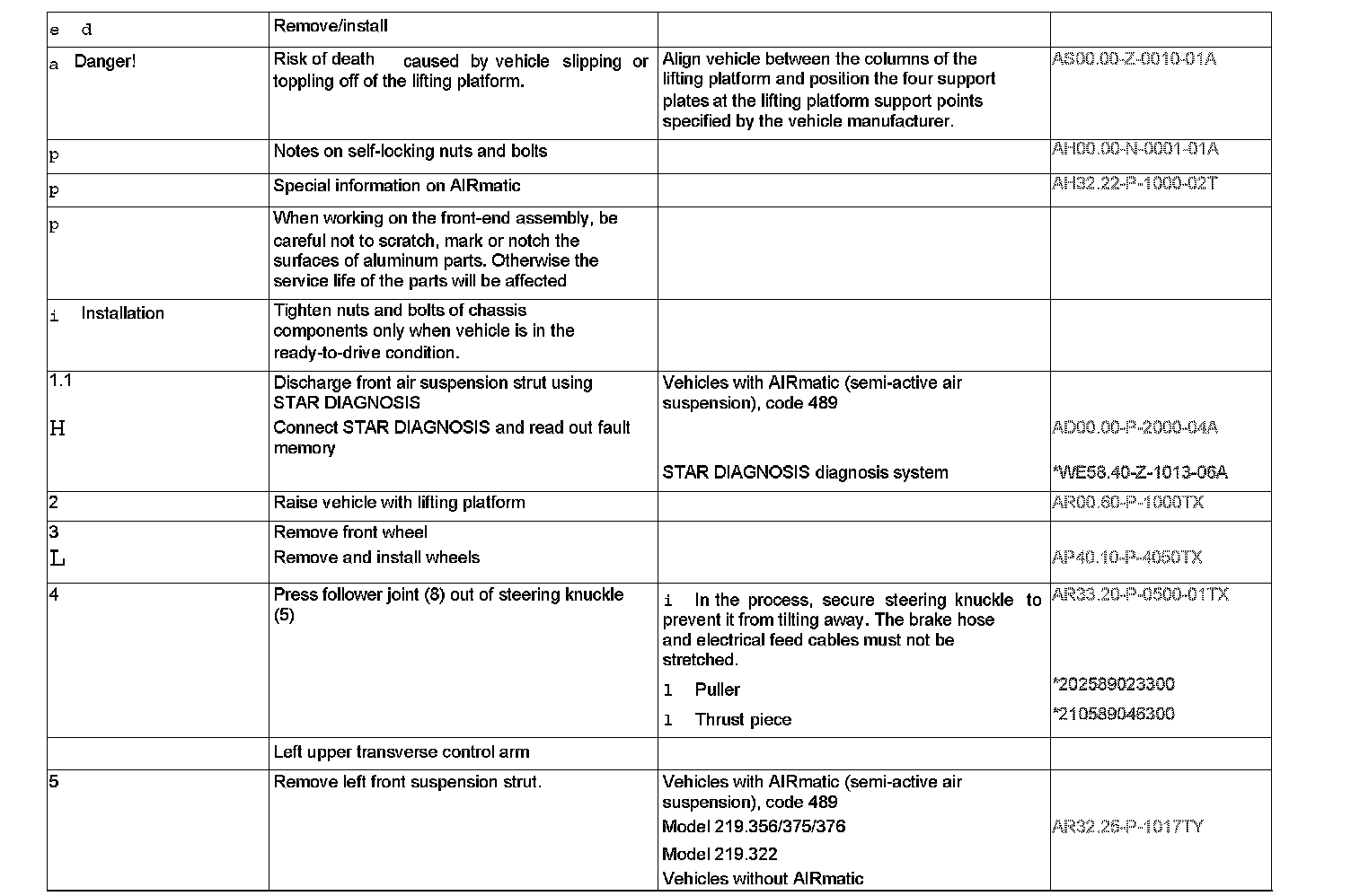

Steps 1.1-5:

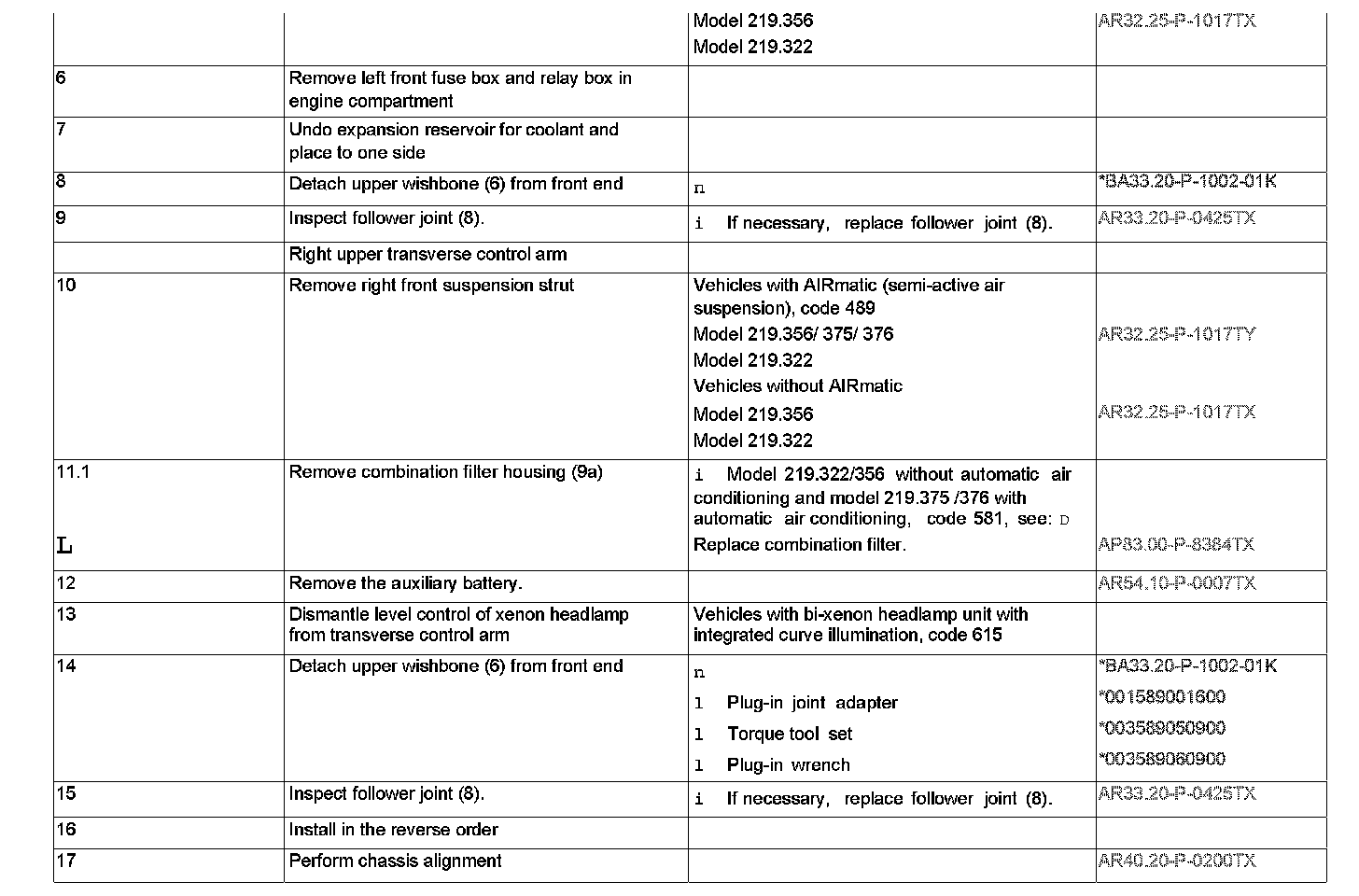

Steps 6-17:

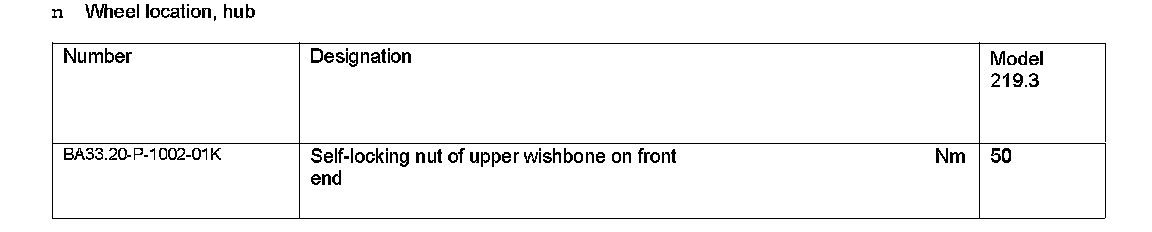

Wheel location, hub:

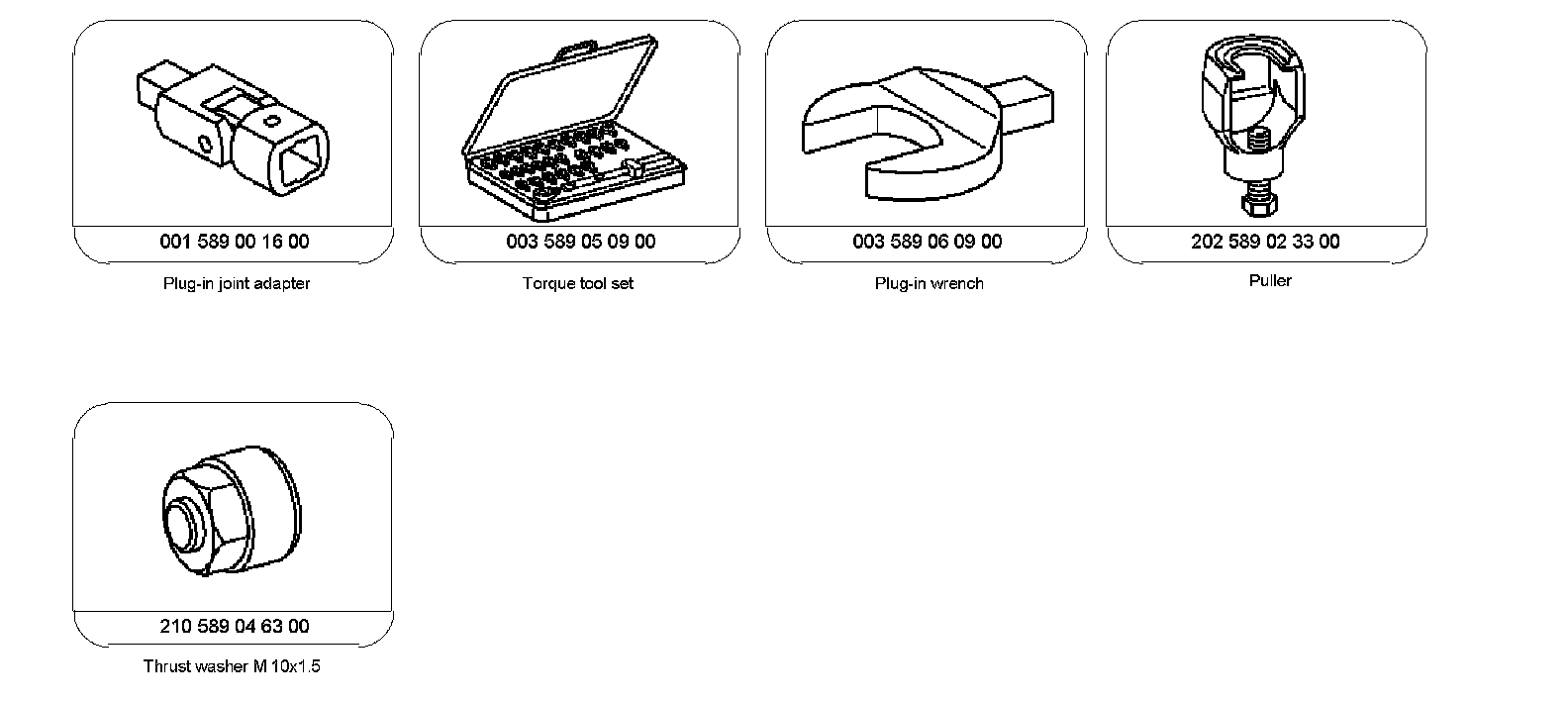

Special Tools:

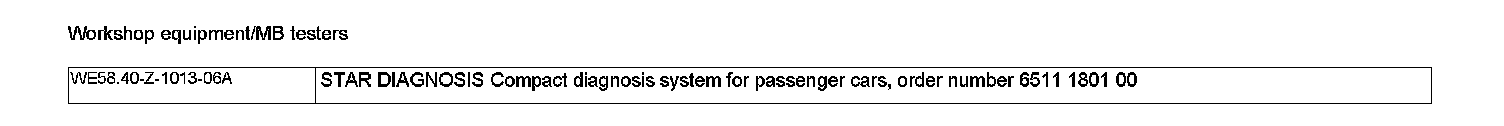

Workshop equipment/MB testers:
