Alternator Pulley / Clutch: Service and Repair
AR15.40-P-5710TS Remove, install
alternator
belt pulley

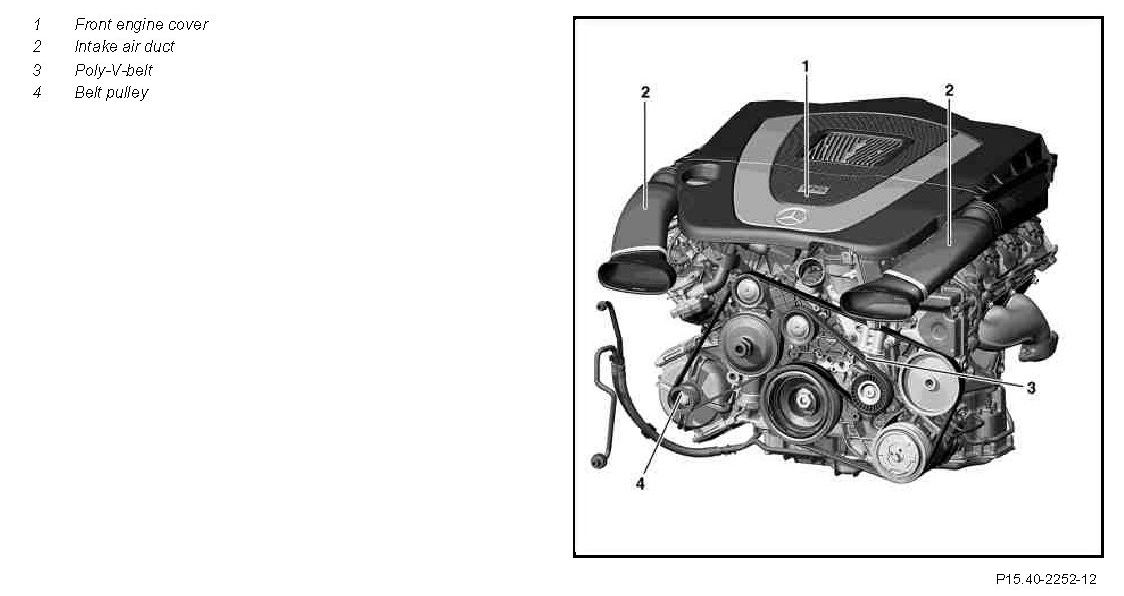

Component Identification:

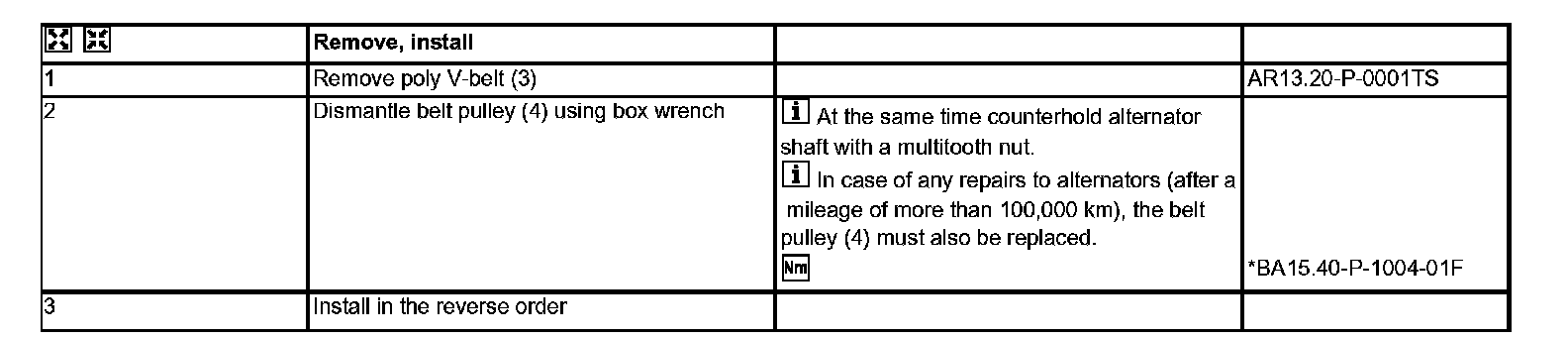

Remove/install Steps 1-3:

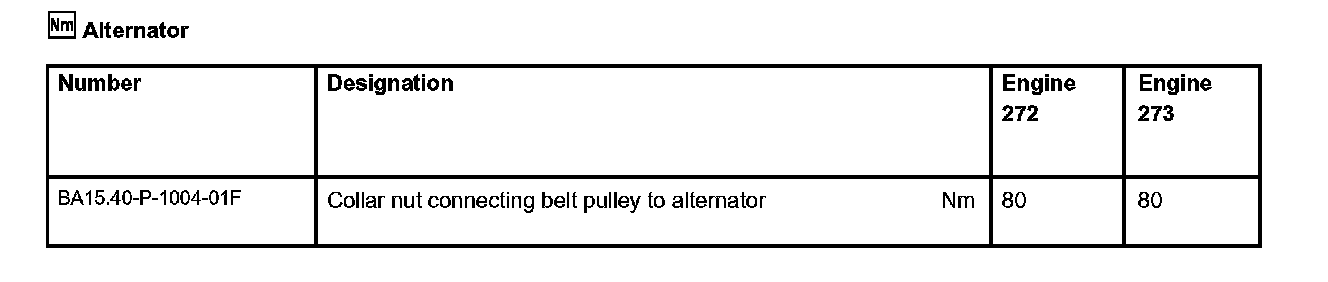

Alternator:
