Positive: Service and Repair



AR54.18-P-0057TX Remove/Install Line From Positive Terminal Of On-board Electrical System Battery To Front Prefuse Box

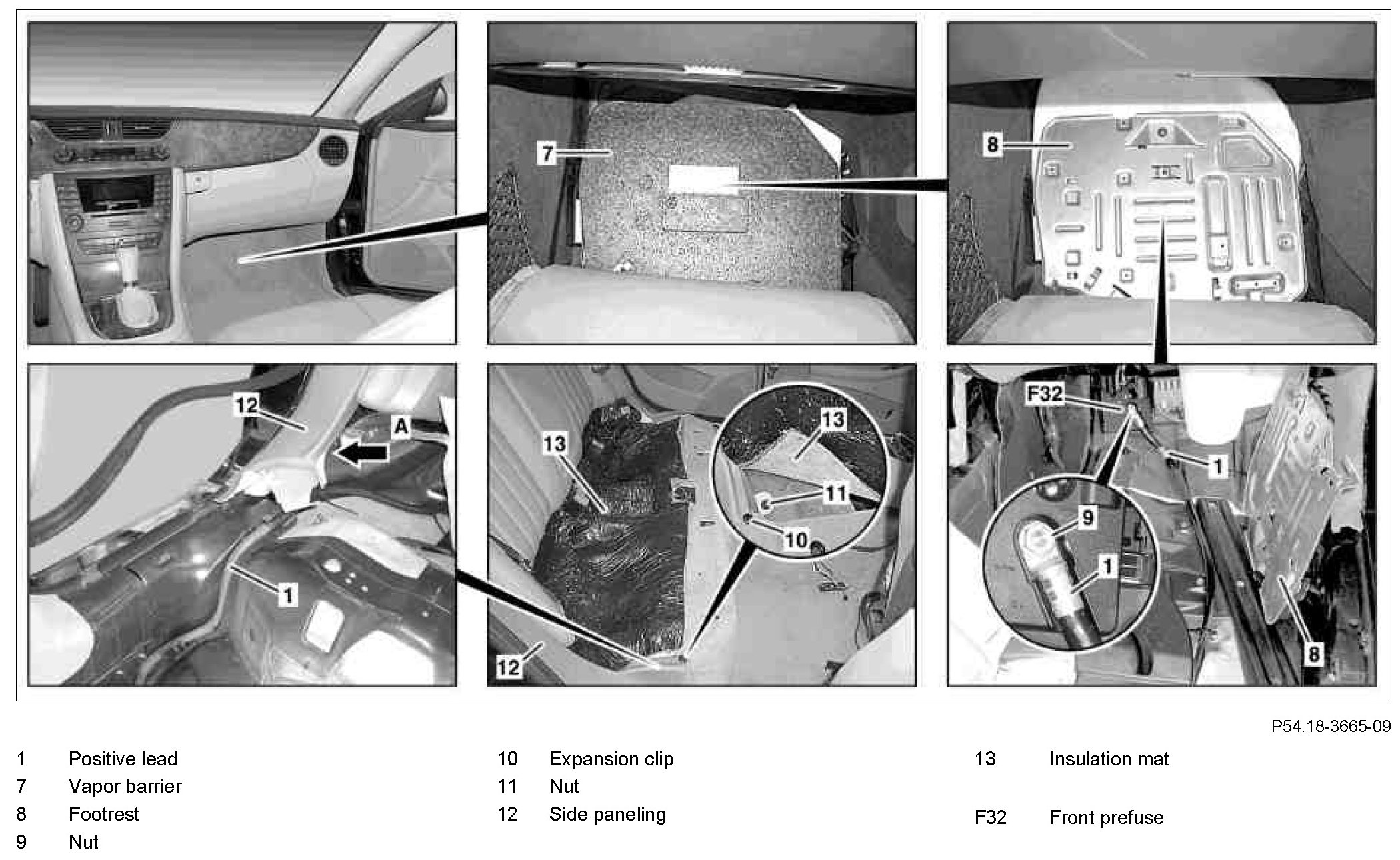

Component Identification:

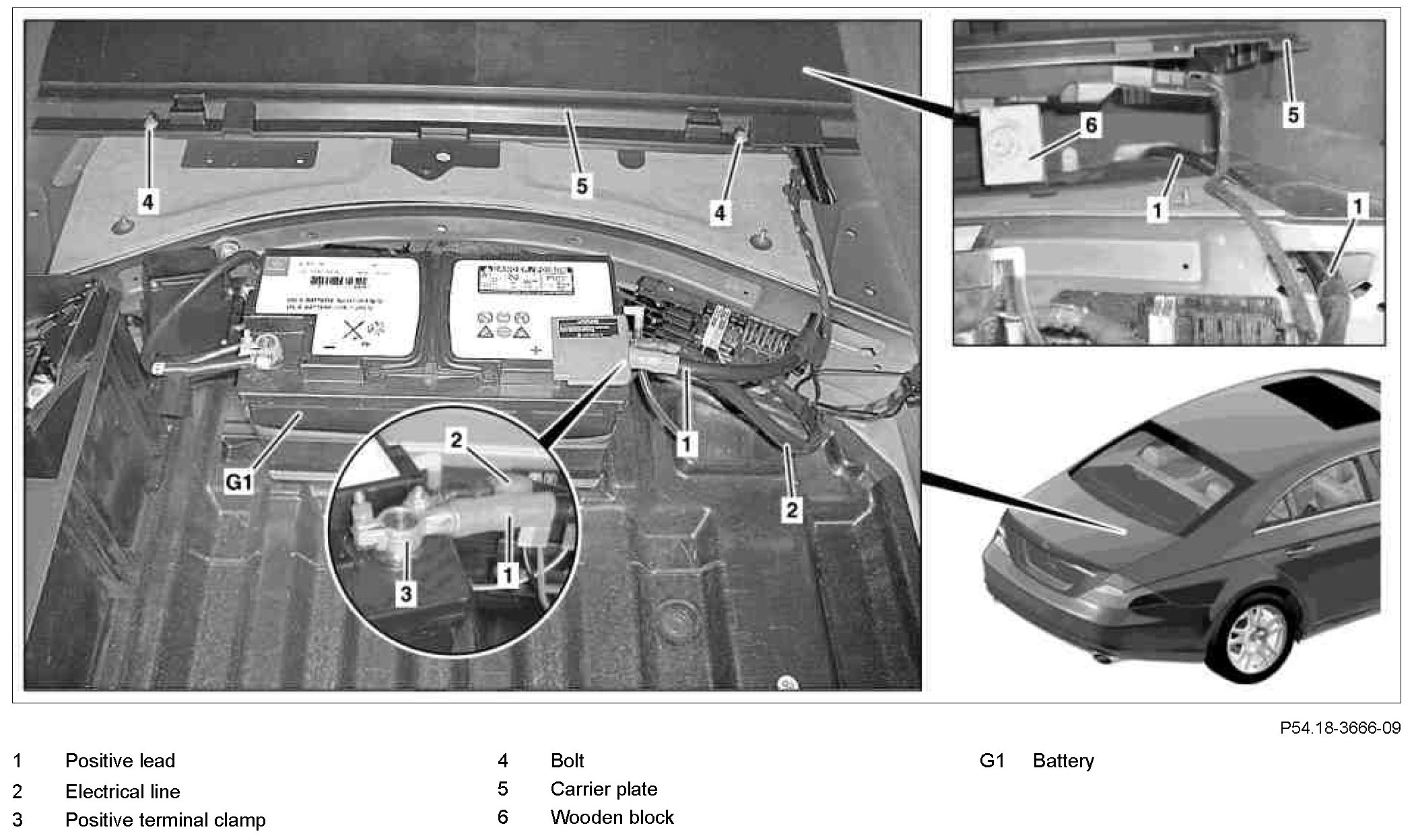

Component Identification:




Component Identification:

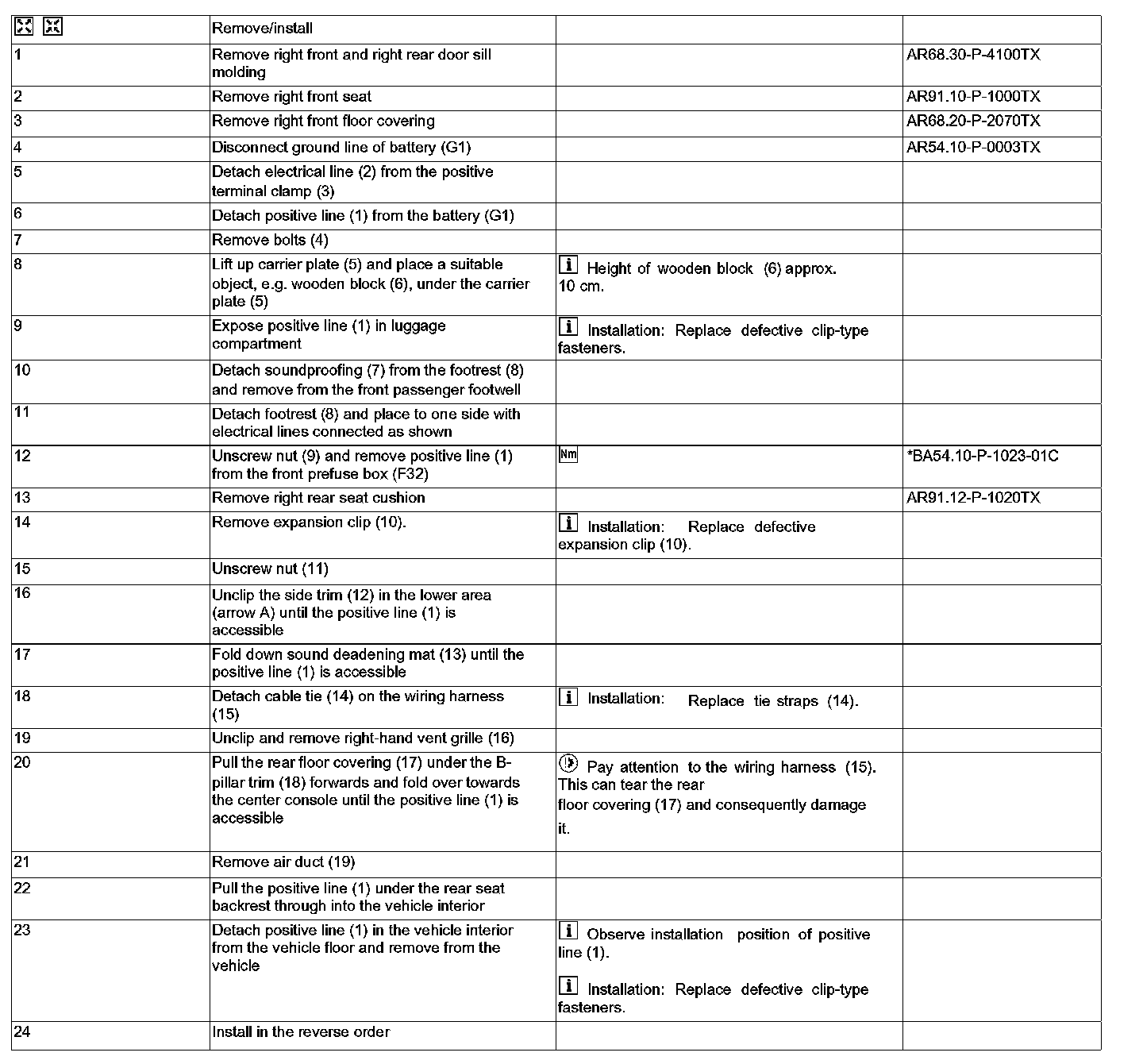

Steps 1 - 24:

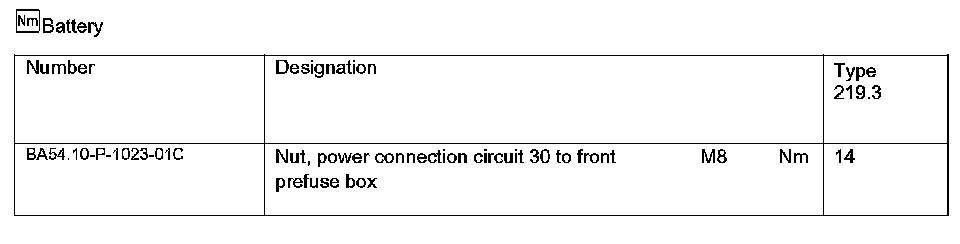

Battery:
