Clockspring Assembly / Spiral Cable: Service and Repair



AR46.10-P-0200TX Remove/install clock spring contact

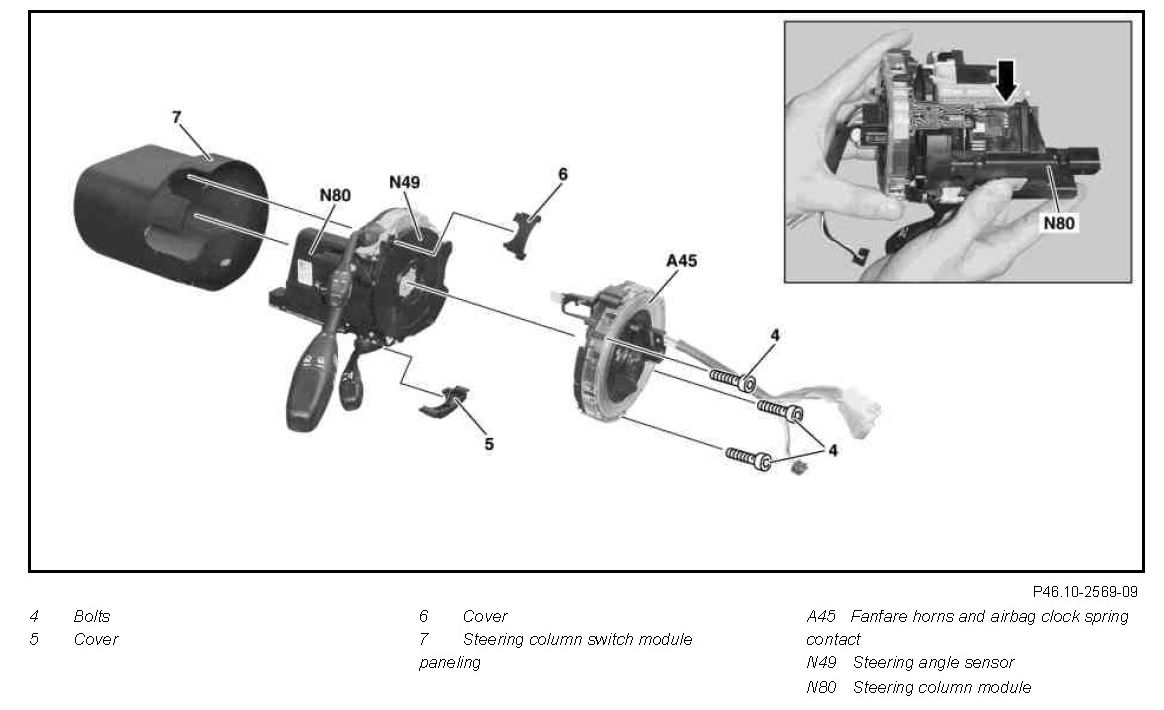

Component Identification:




Component Identification:

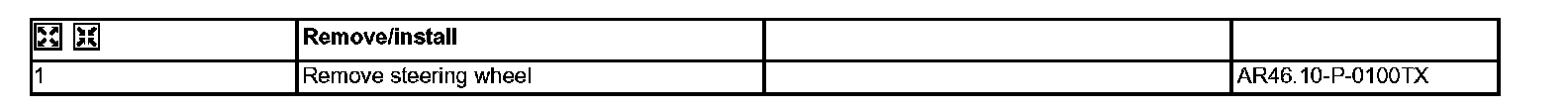

Remove/install Step 1:

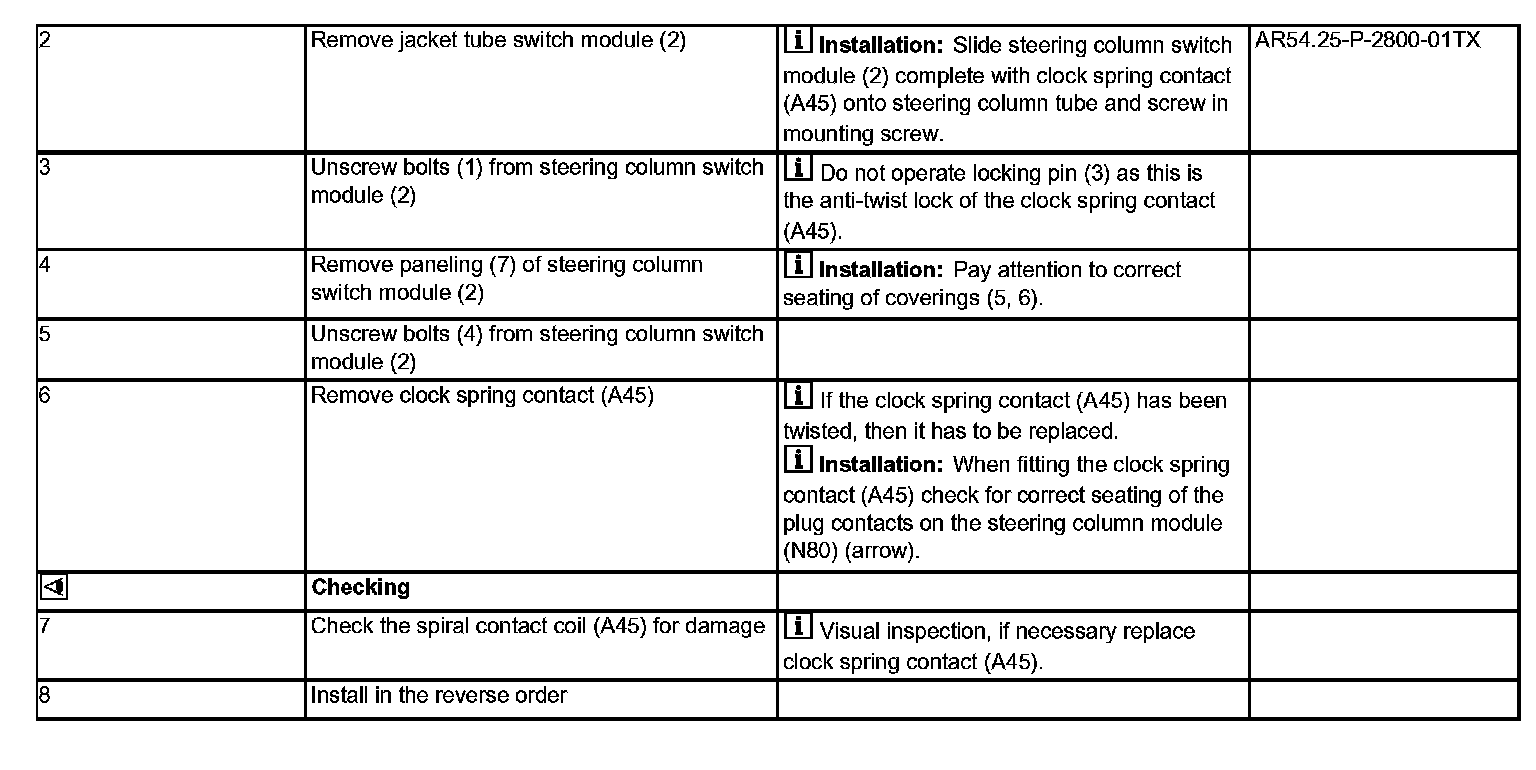

Remove/install Steps 2-8:
