Home
>>
Mercedes Benz
>>
2007
>>
CLS 550 (219.372) V8-5.5L (273.960)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Positive Crankcase Ventilation
>>
Oil Separator
>>
Service and Repair
Oil Separator: Service and Repair
AR01.20-P-9750TS Remove/install
oil separator

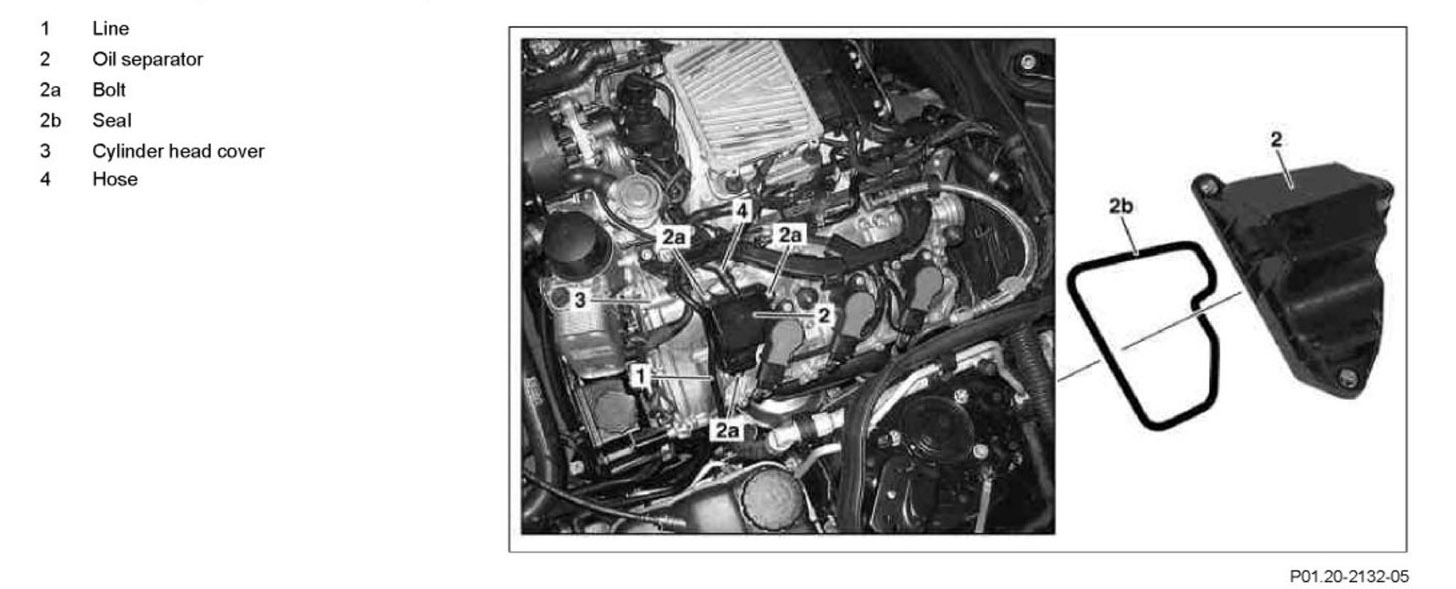

Component Identification:

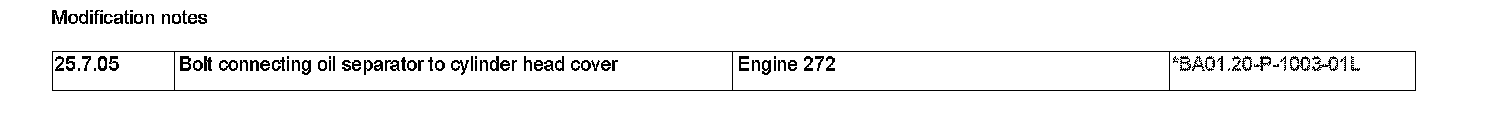

Modification Notes:

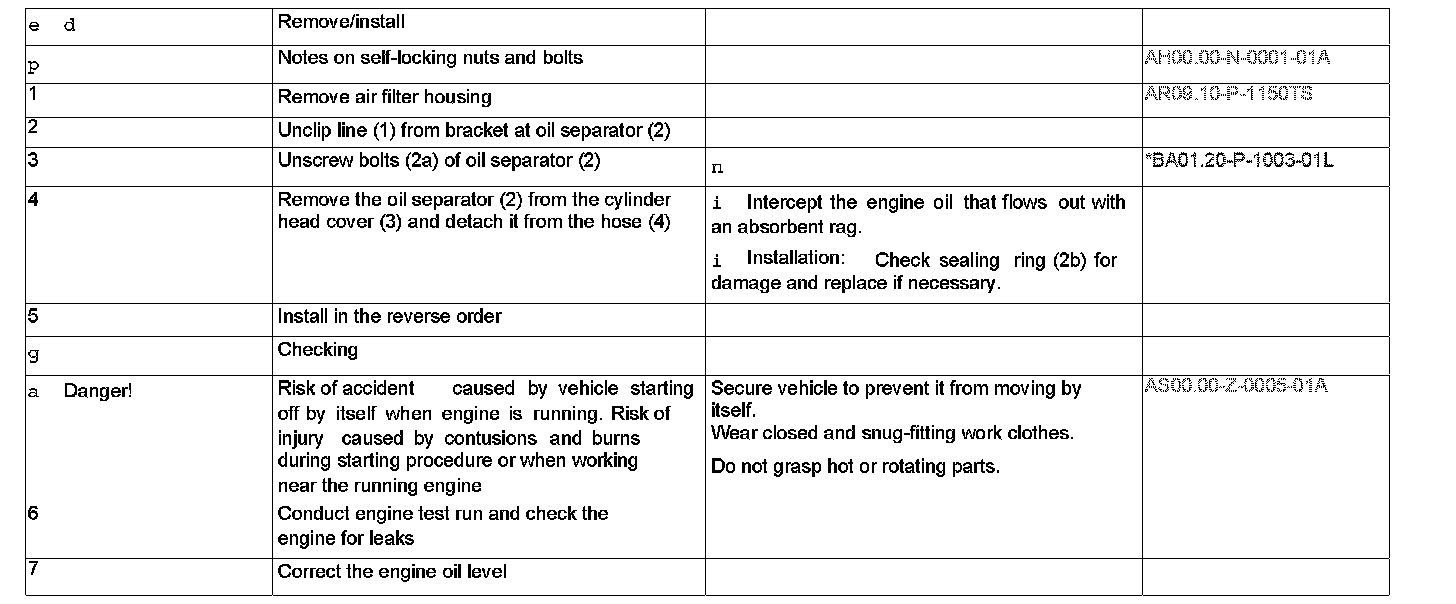

Steps 1 - 7:

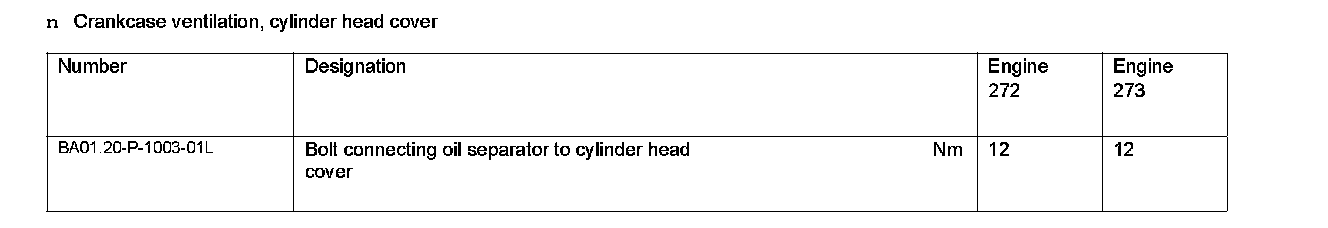

Crankcae Ventilation, Cylinder Head Cover:
