AR54.25-P-2000TY Remove/Install Contact Switch For Door



AR54.25-P-2000TY Remove/Install Contact Switch For Door
- door contact switch (rear)

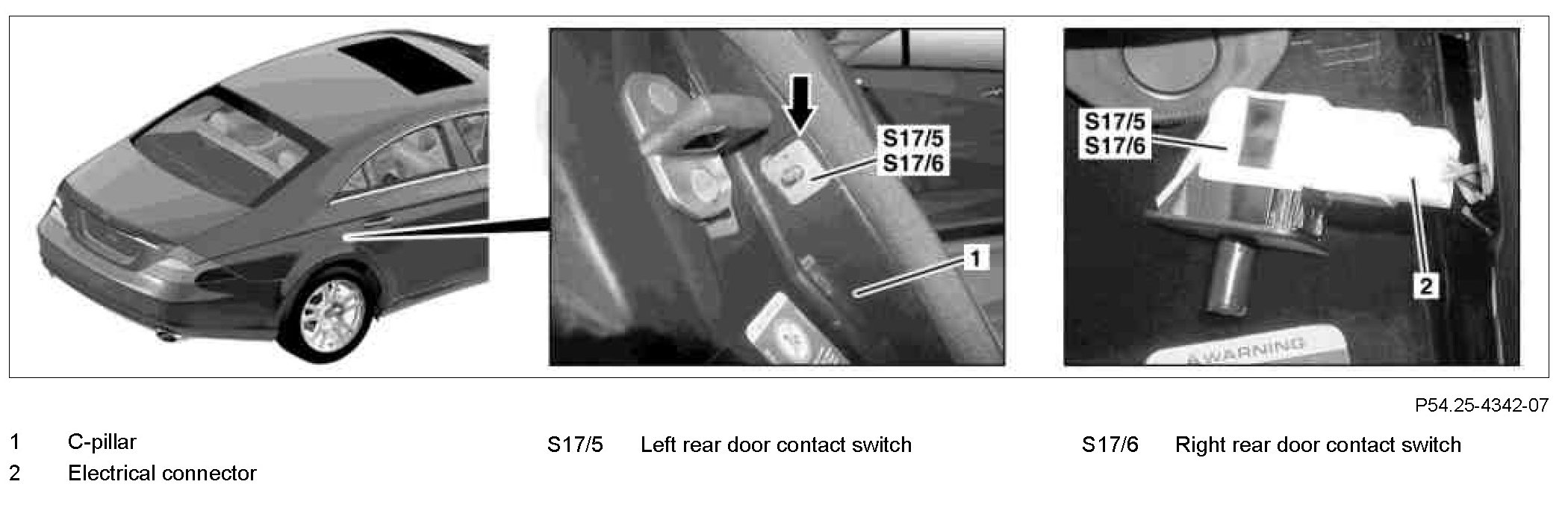

Component Identification:

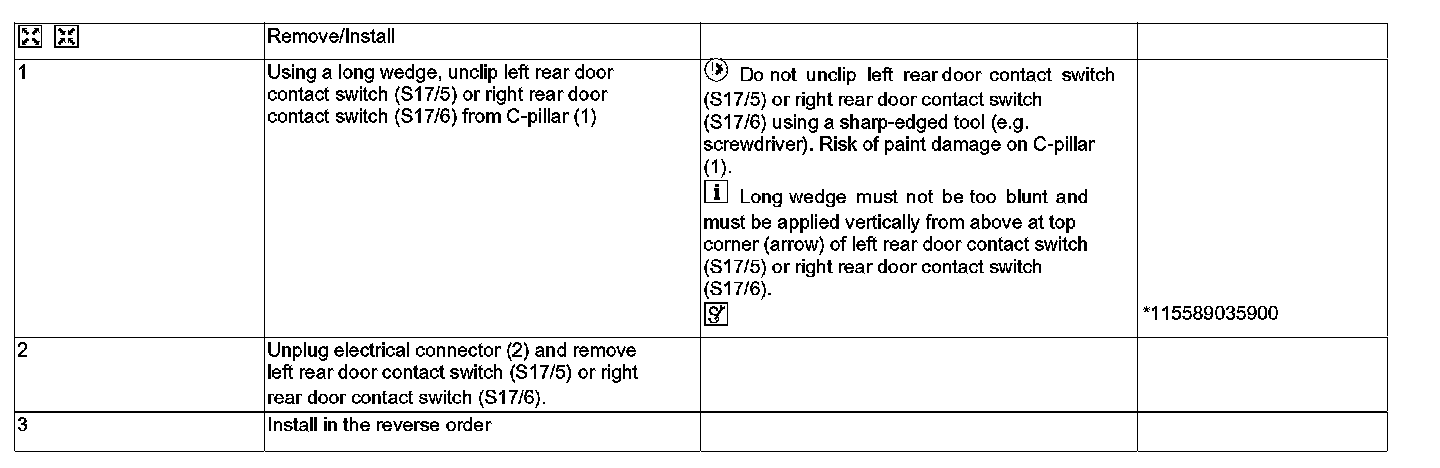

Steps 1 - 3:

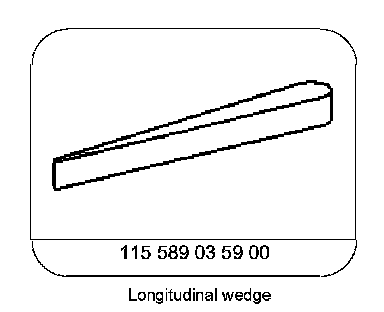

Special Tools:
