AR83.30-P-5540TX Remove/Install Evaporator

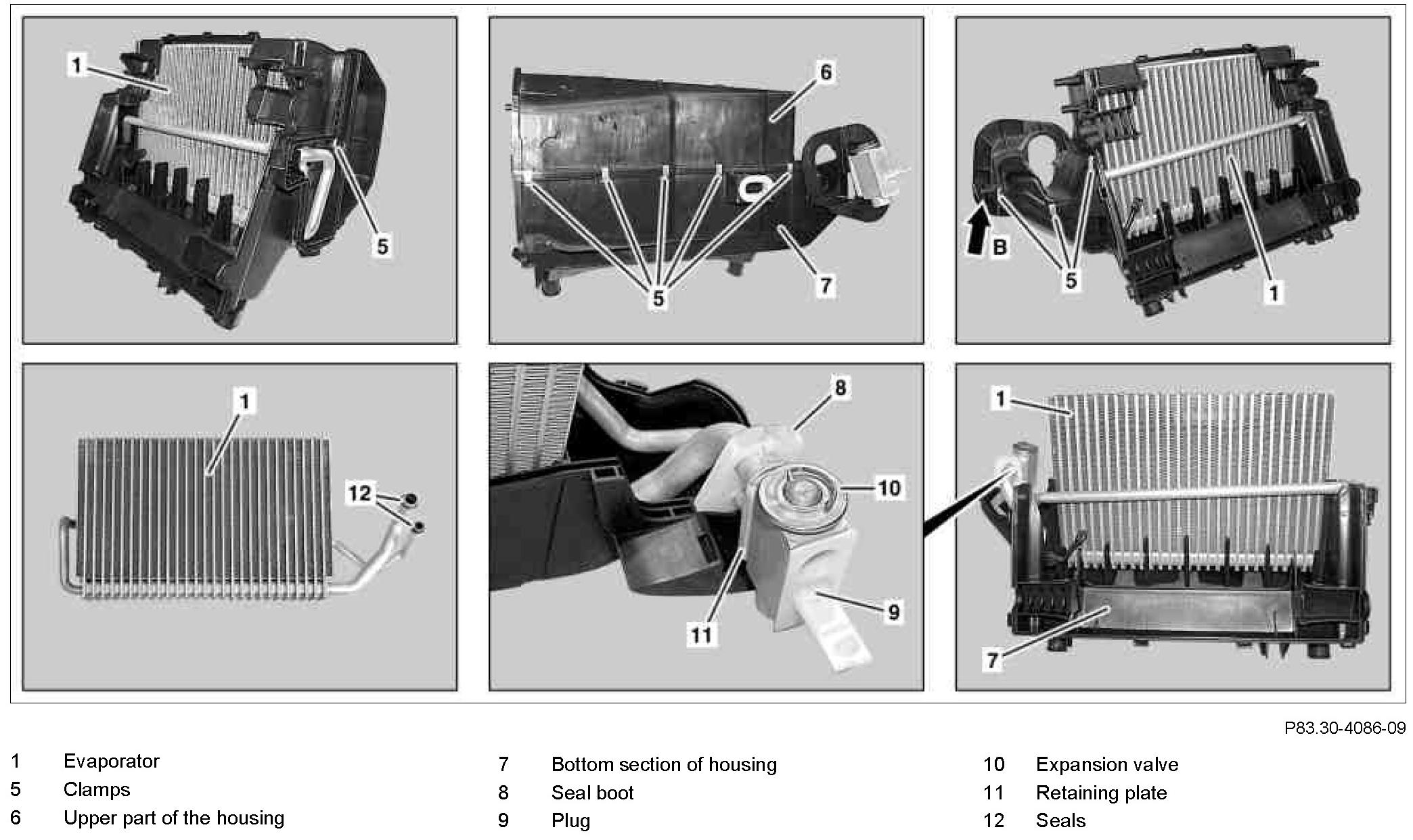

Component Identification:

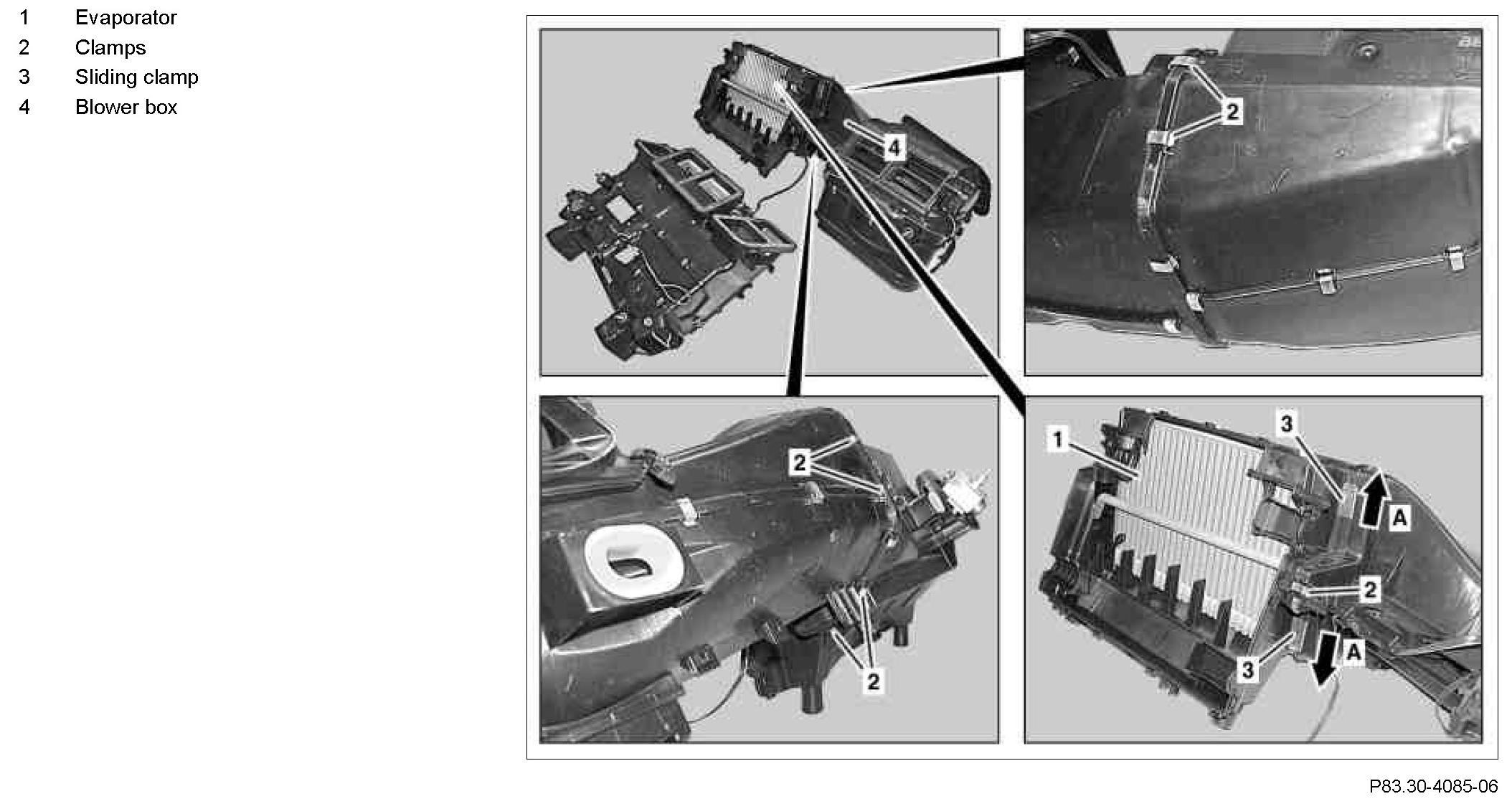

Component Identification:

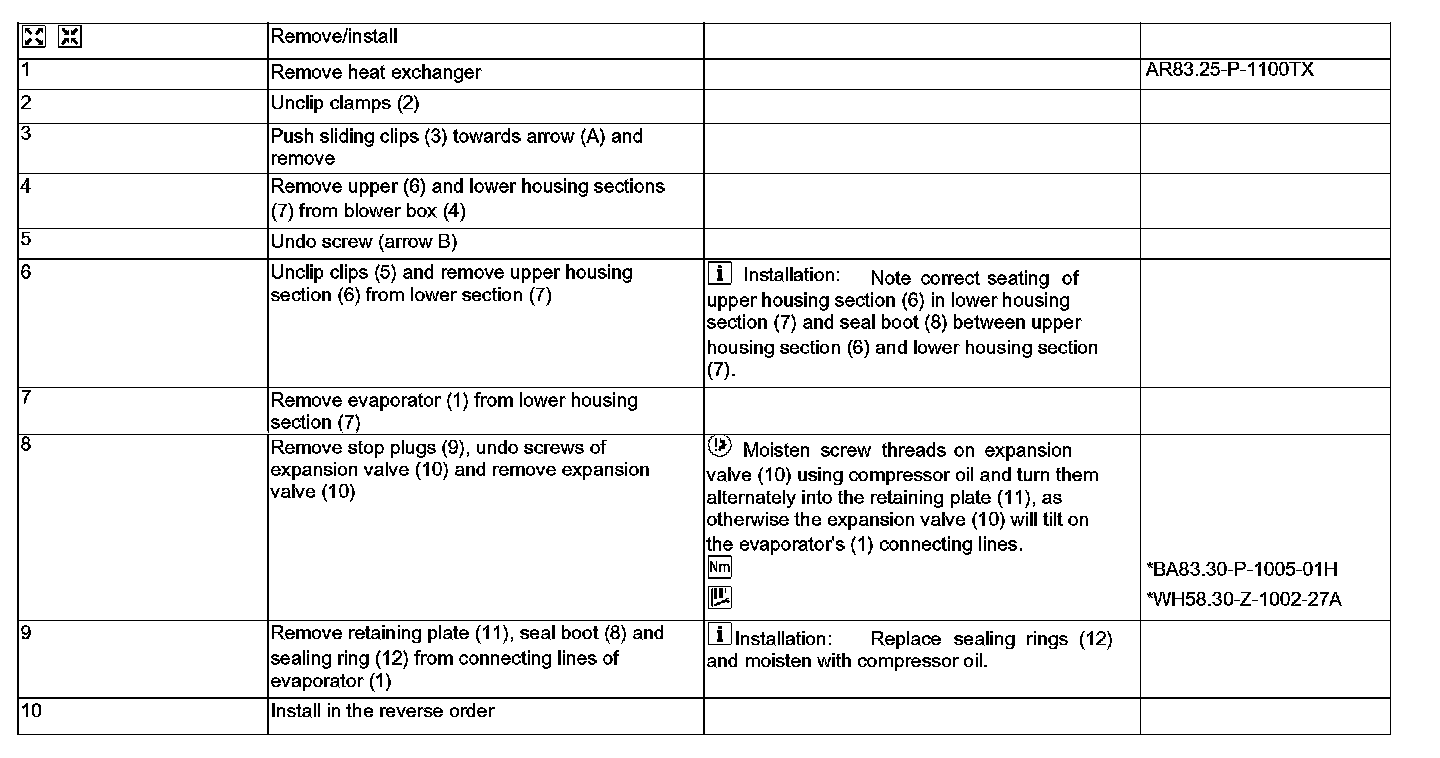

Steps 1 - 10:

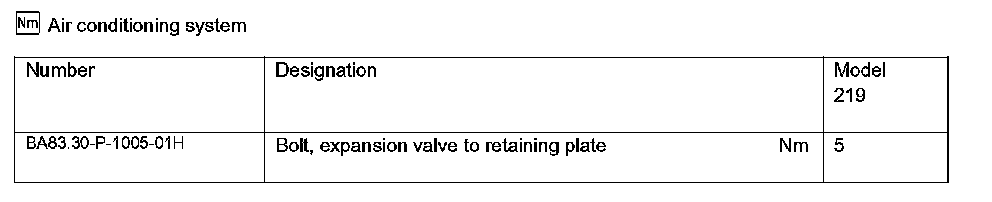

Air Conditioning System:

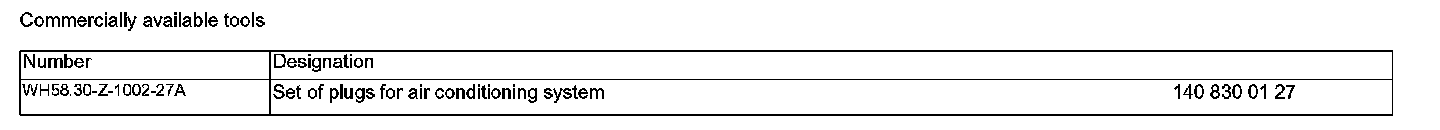

Commercially Available Tools:
