Auxiliary Water Pump: Service and Repair

AR83.25-P-1170TX Remove/Install And Replacing Coolant Circulation Pump

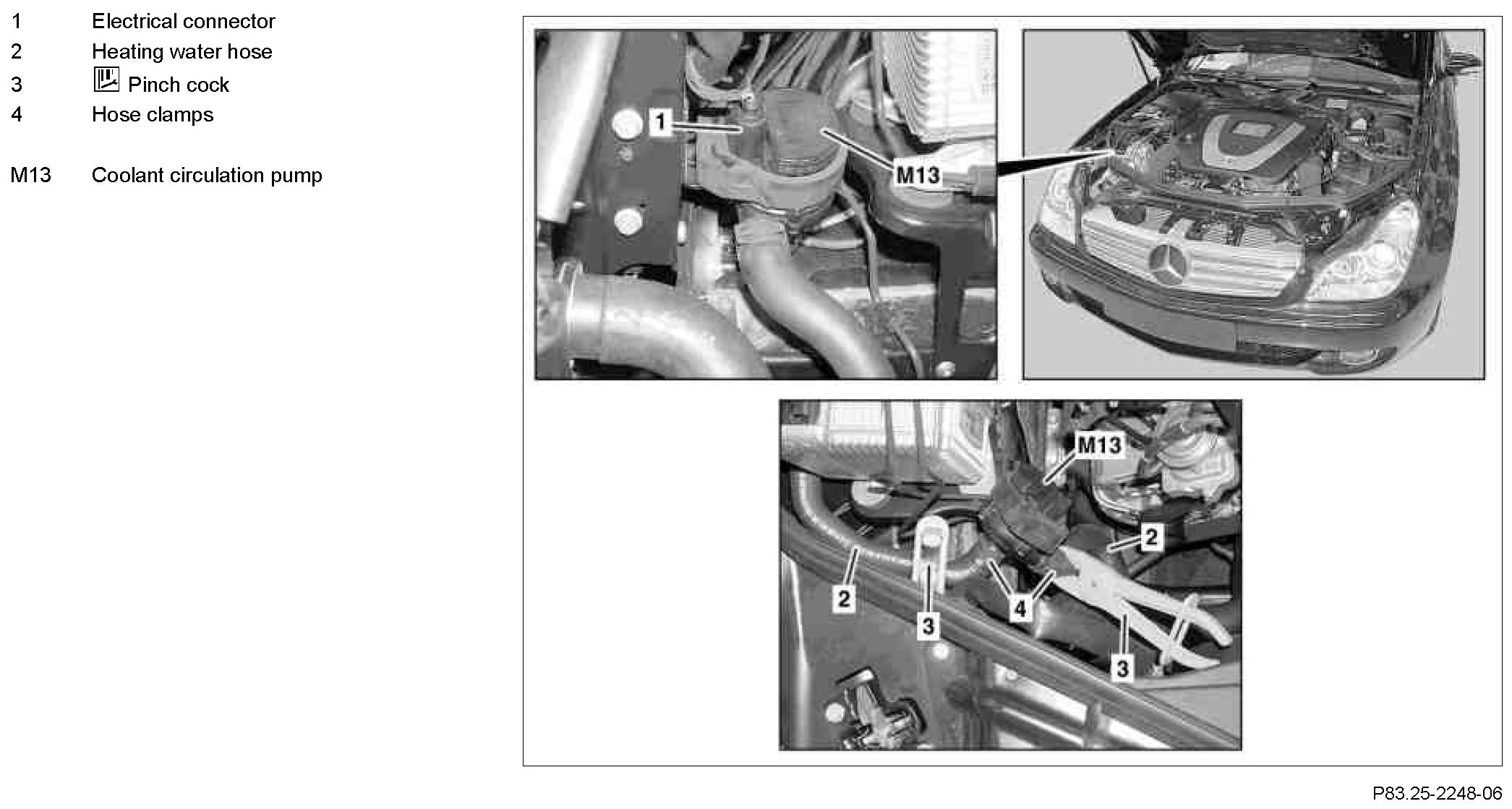

Component Identification:

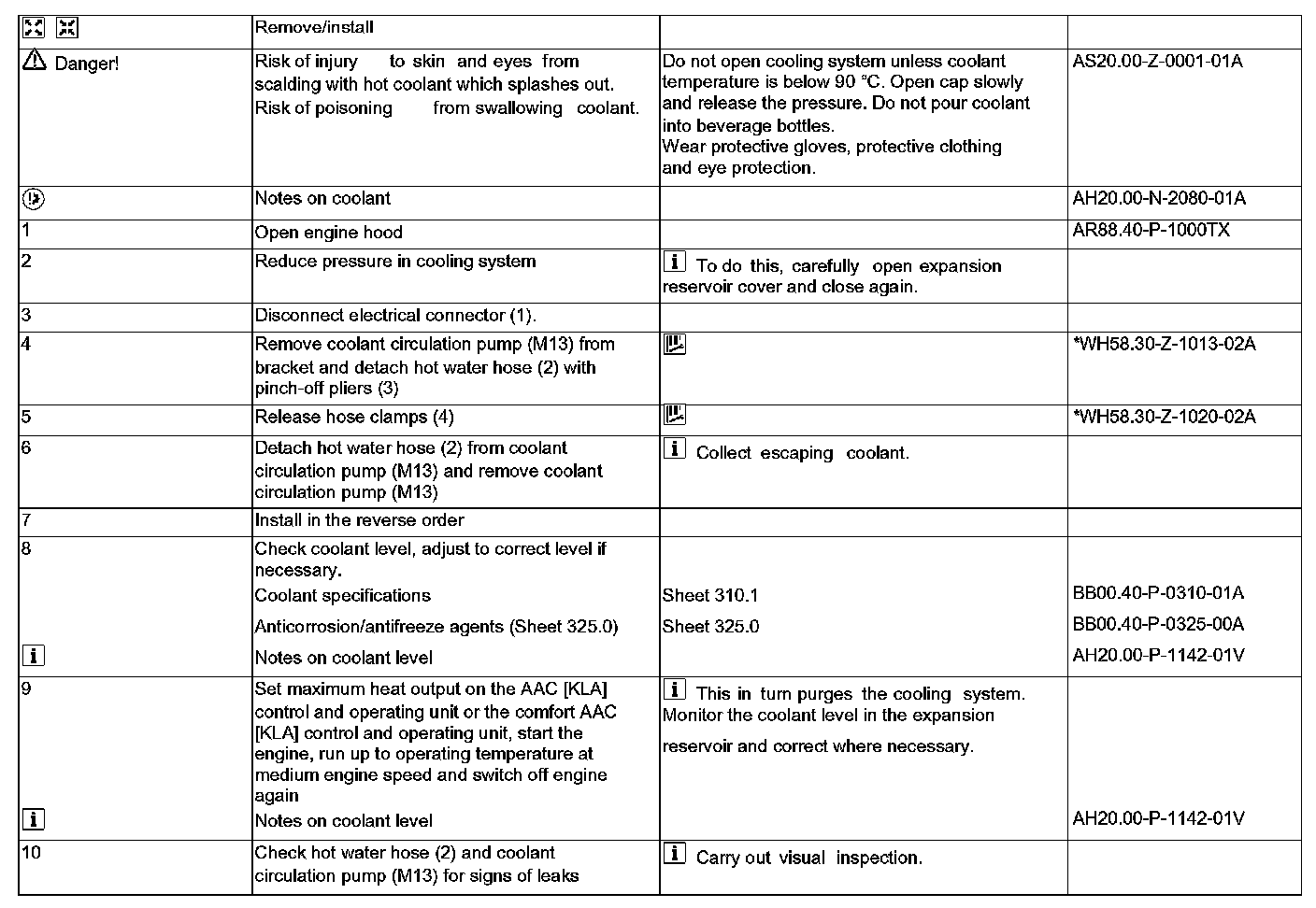

Steps 1 - 10:

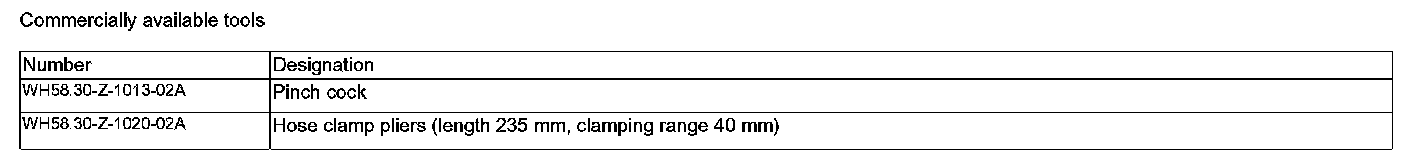

Commercially Available Tools:
