Radiator: Service and Repair
AR20.20-P-3865TS Remove/install radiator

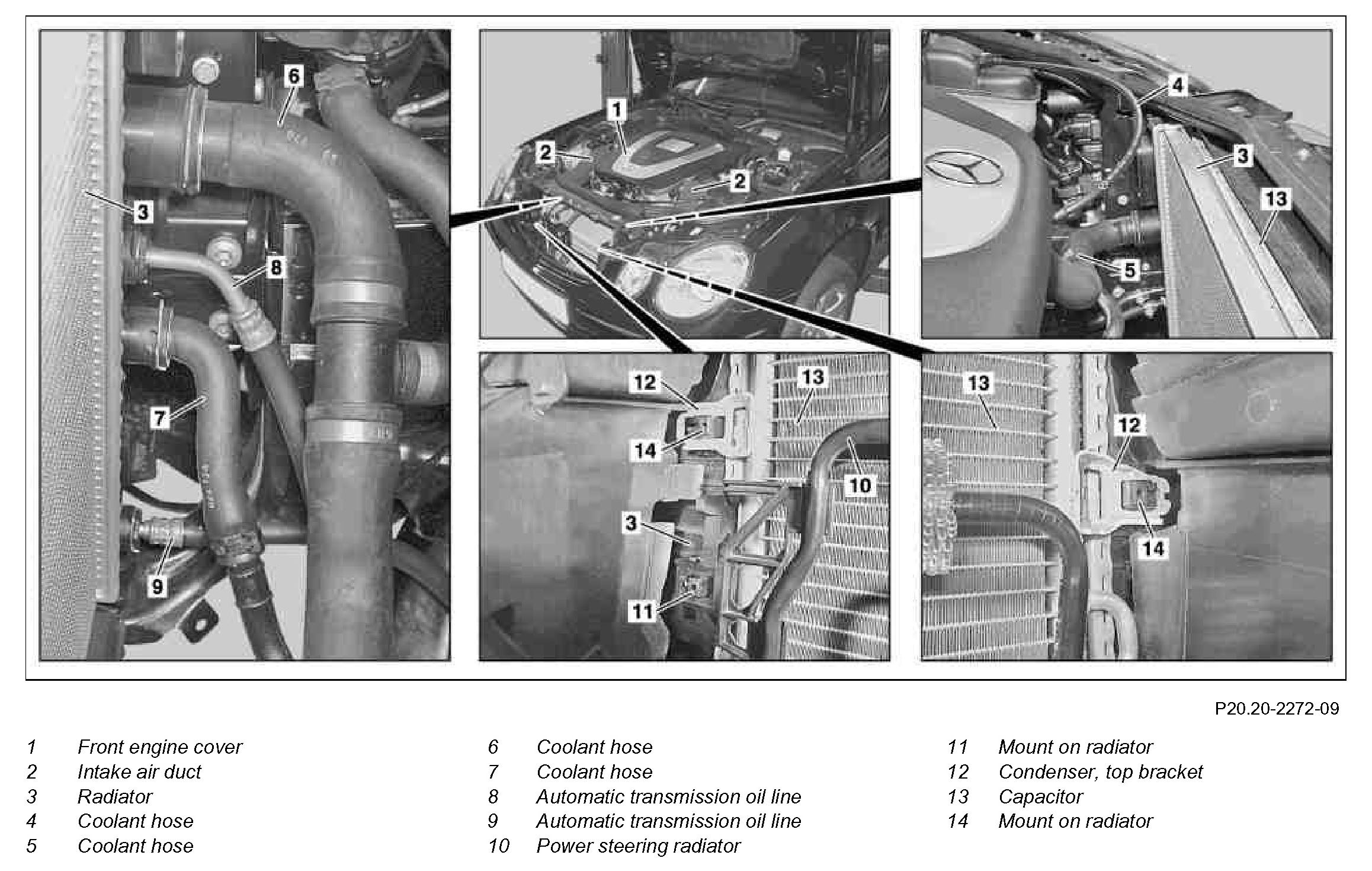

Component Identification:

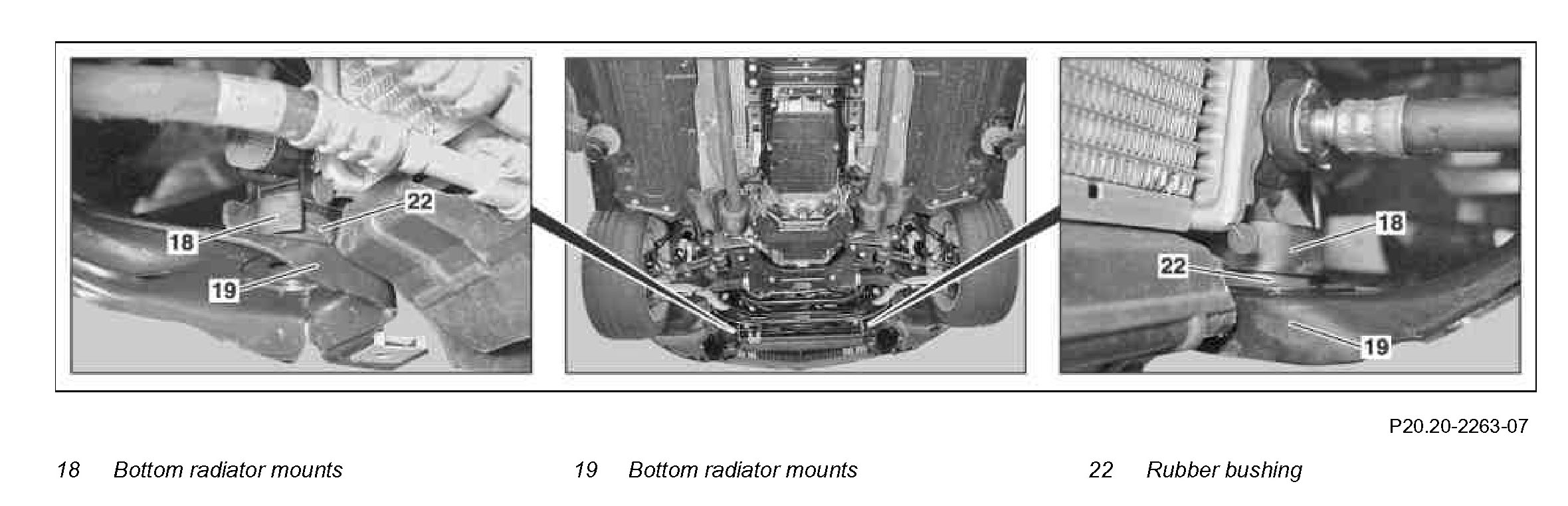

Component Identification:

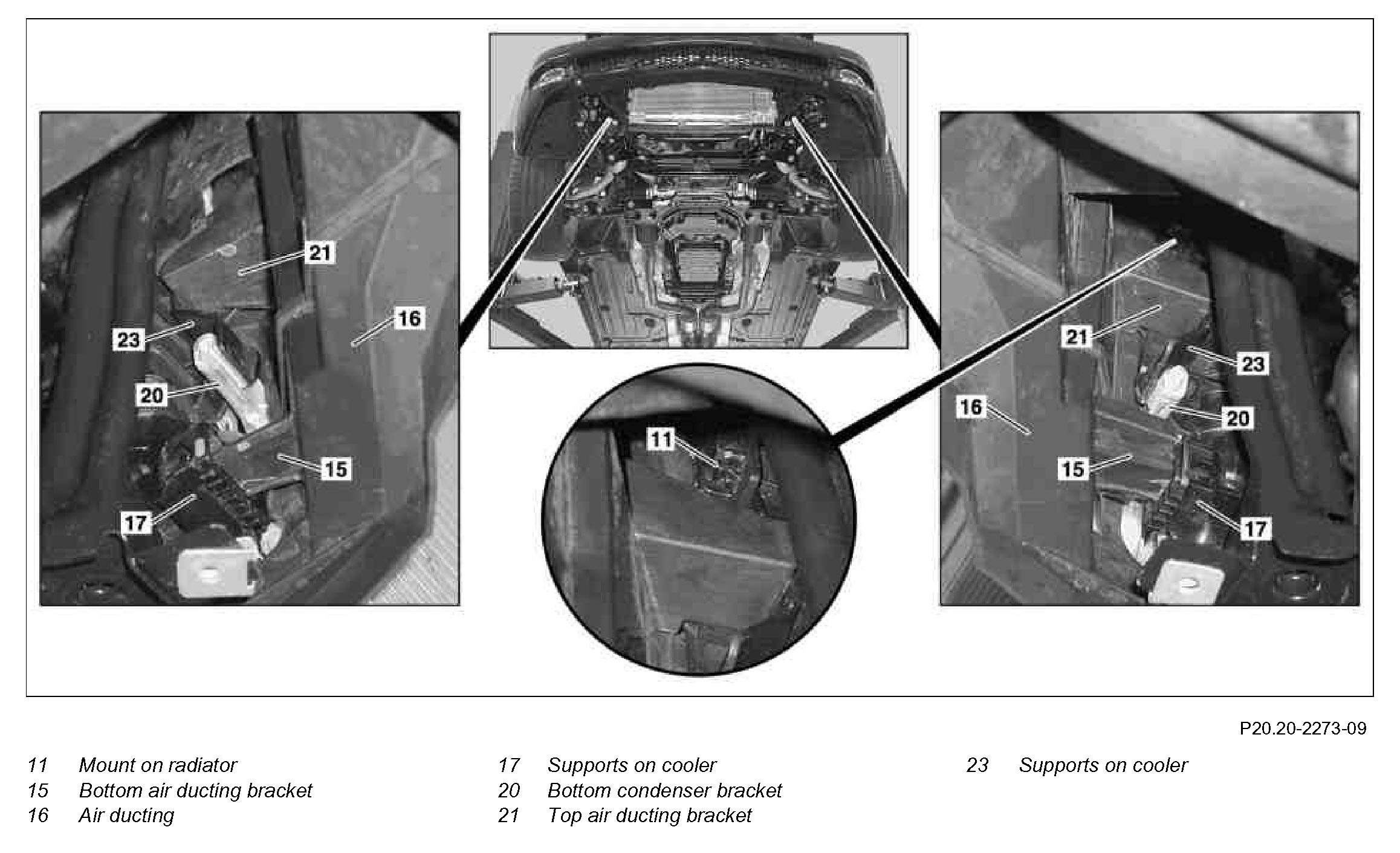

Component Identification:

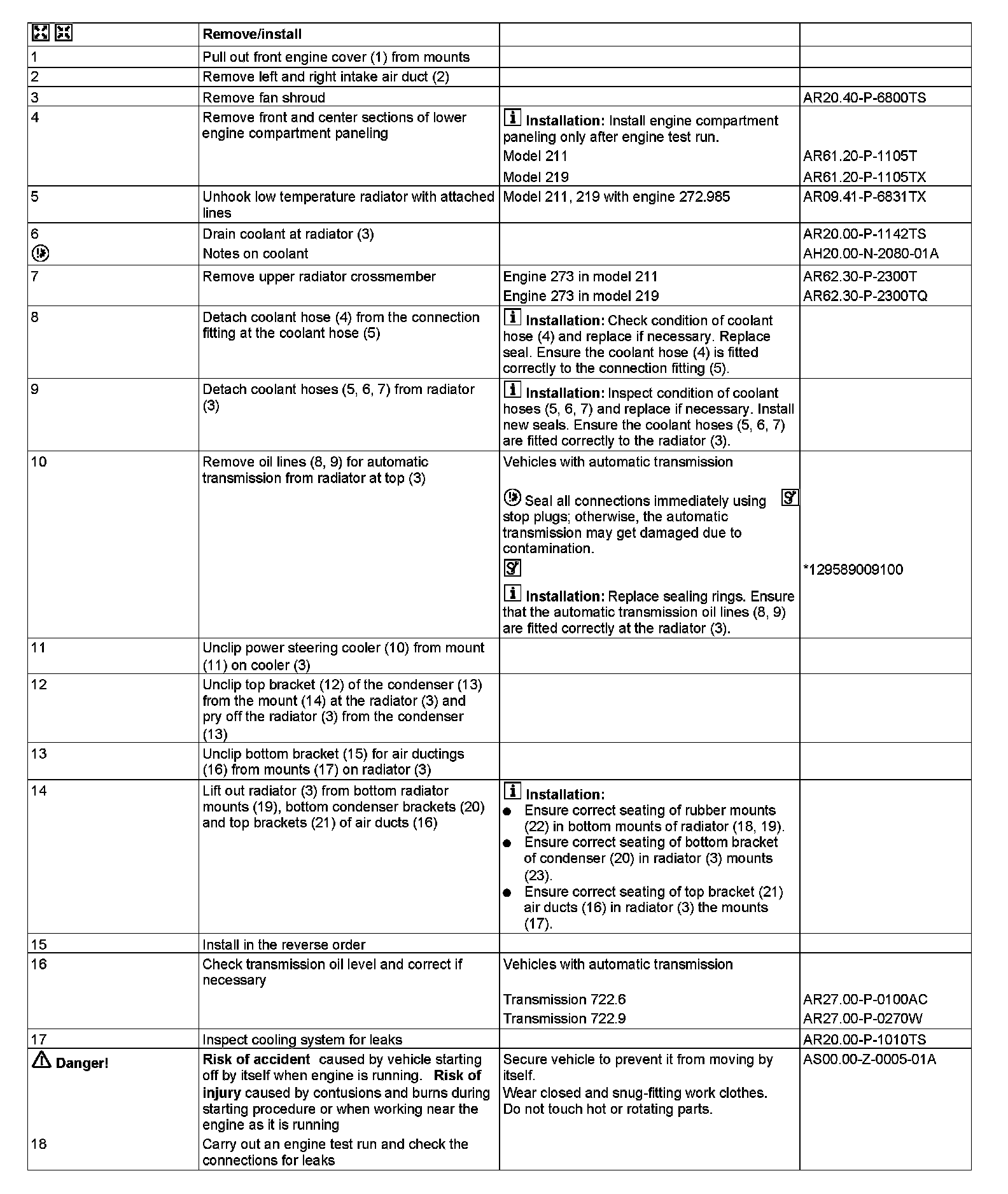

Steps 1-18:

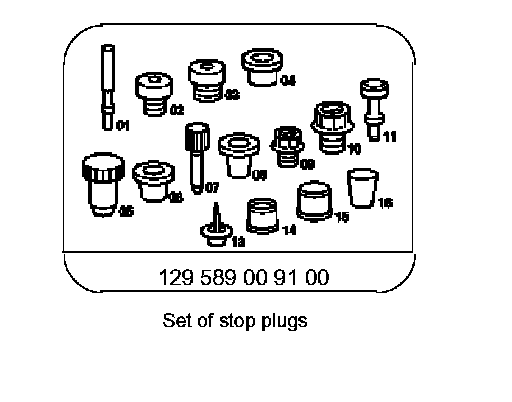

Special Tools:
