Seat Back Frame: Service and Repair



AR91.10-P-3331TX Remove/Install Front Seat Backrest Frame
- except CODE (404) Left multicontour seat
- except CODE (405) Right multicontour seat
- except CODE (433) Left dynamic seat, incl. multicontour seat
- except CODE (434) Right dynamic seat, incl. multicontour seat
- except CODE (242) Electrically adjustable front passenger seat with memory
- except CODE (275) memory package (driver seat, steering column, mirrors)

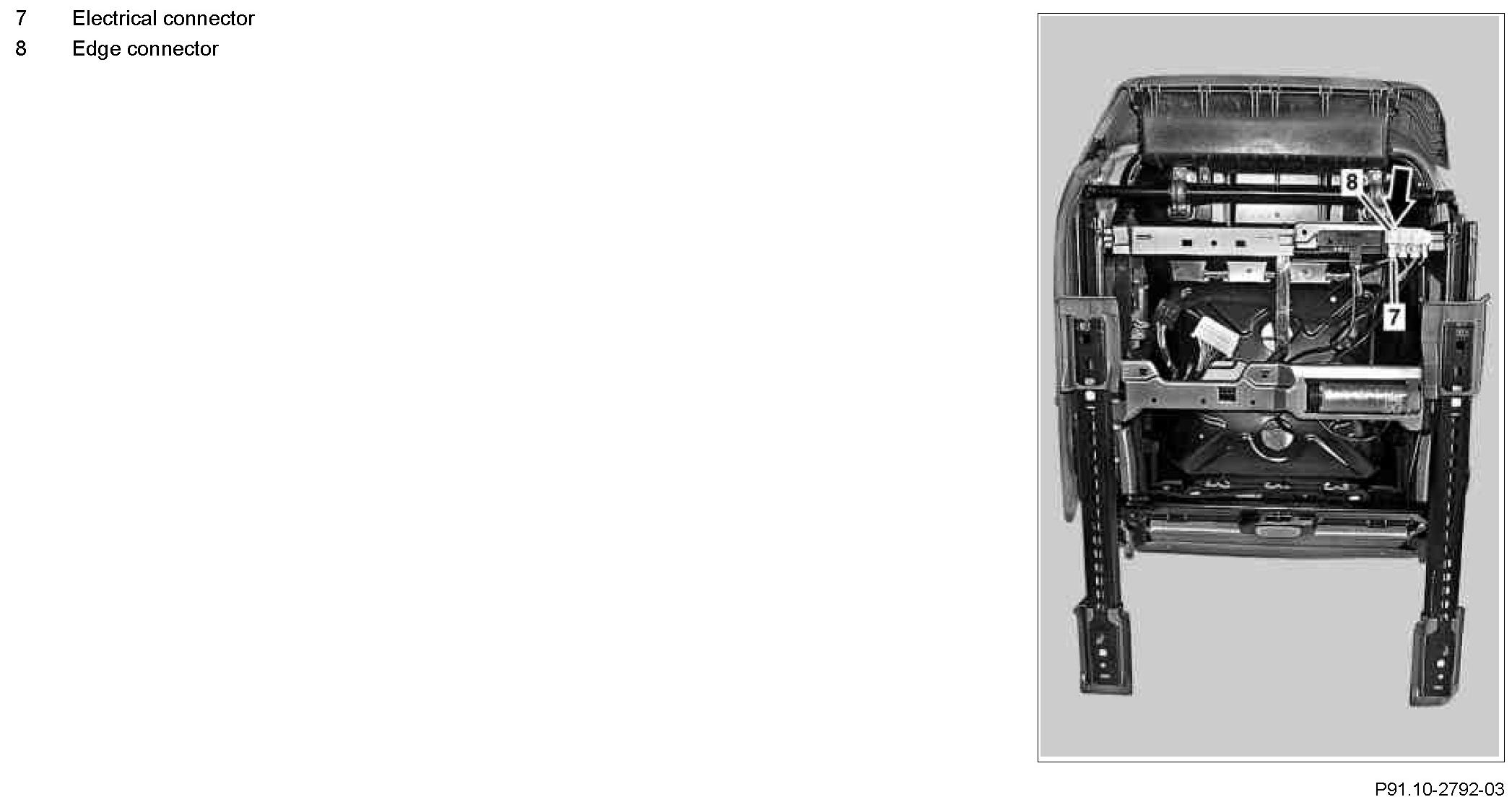

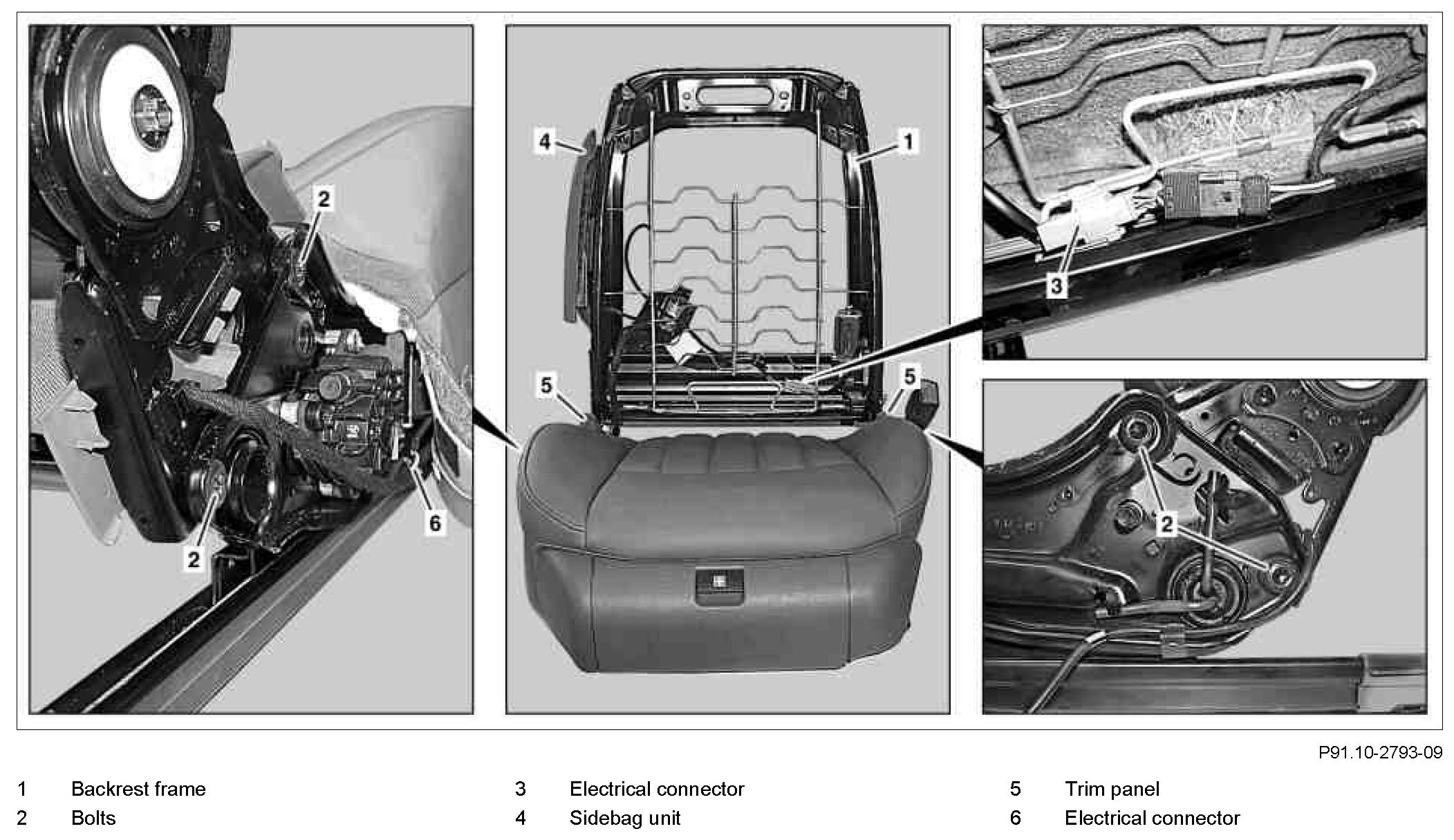

Component Identification:




Component Identification:

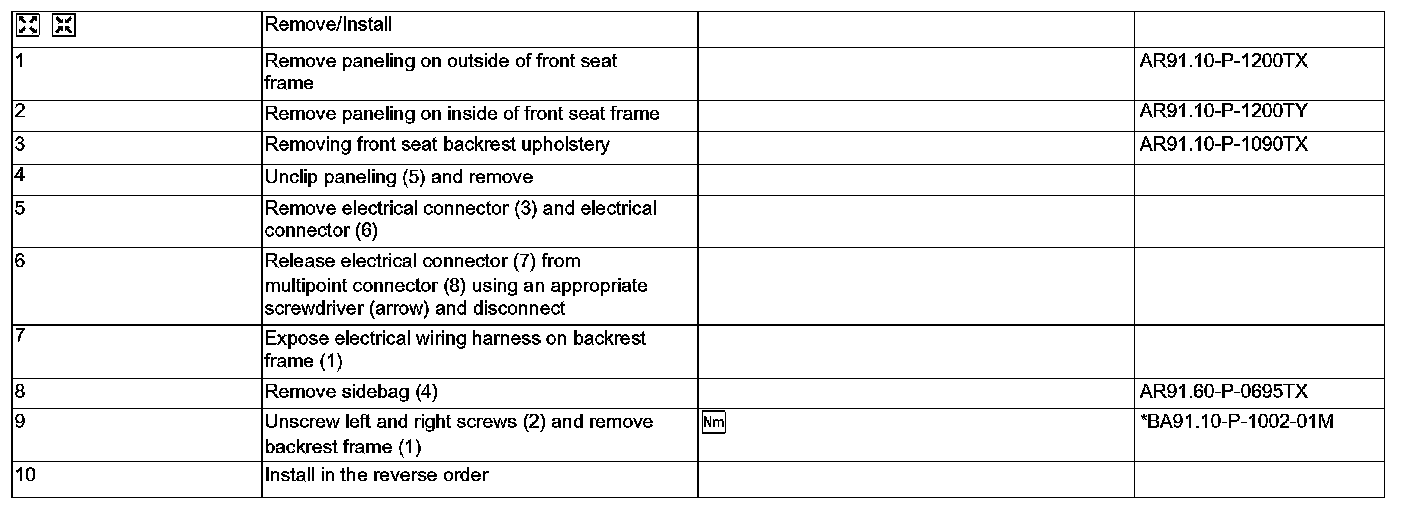

Steps 1 - 10:

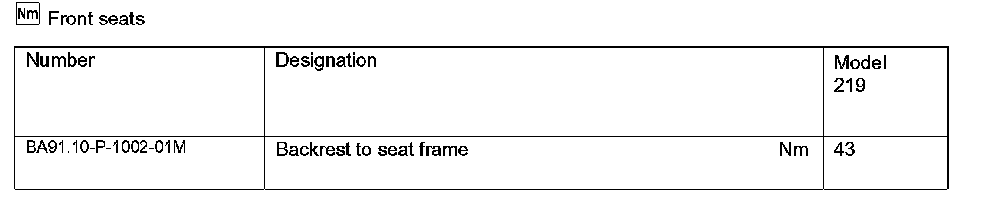

Front Seats:
