AR91.25-P-1820TX Remove/Install Dynamic Seat Switch



AR91.25-P-1820TX Removing And Installing Dynamic Seat Switch
- with CODE (433) Left dynamic seat, incl. multicontour seat
- with CODE (434) Right dynamic seat, incl. multicontour seat

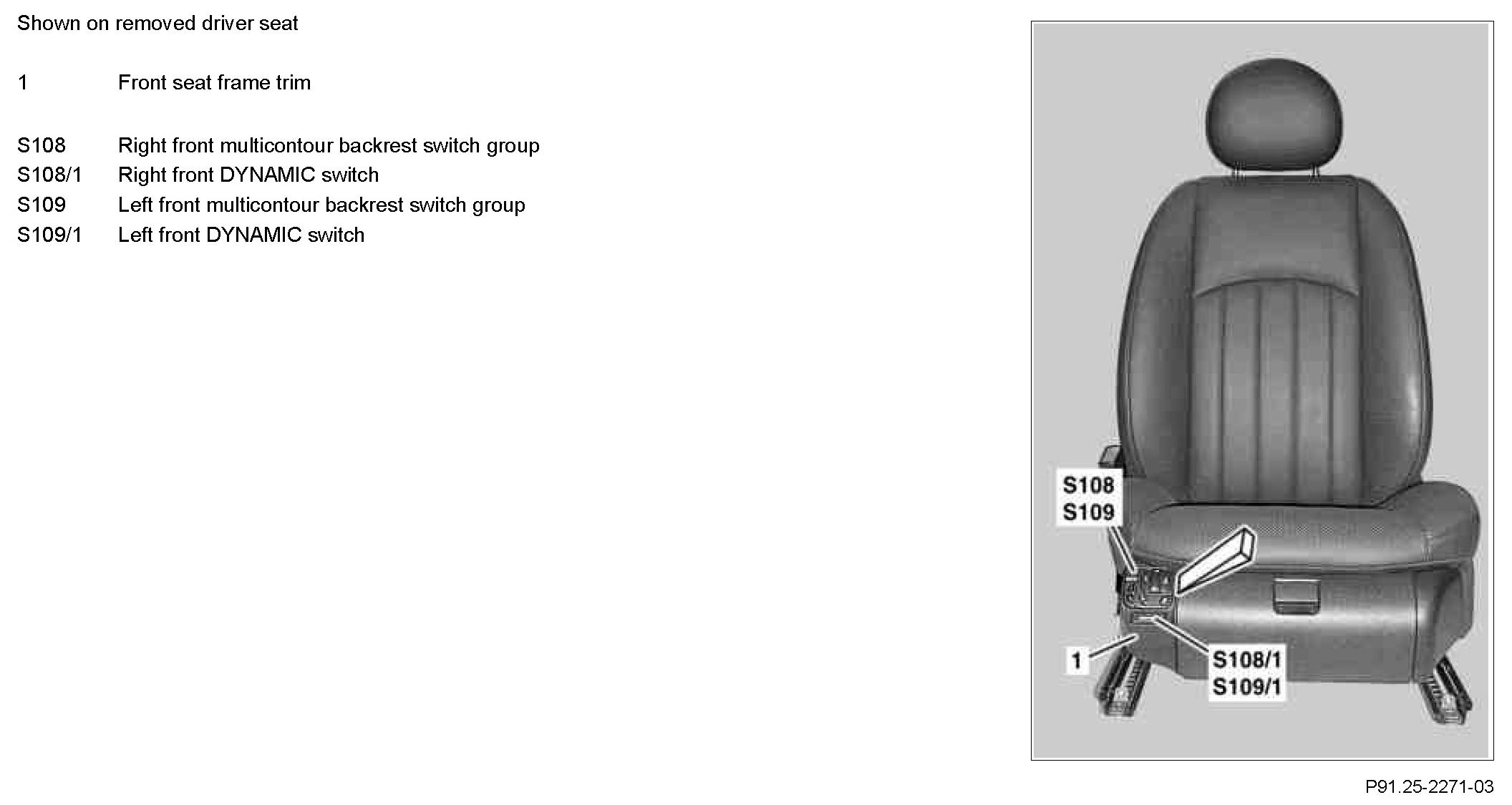

Component Identification:

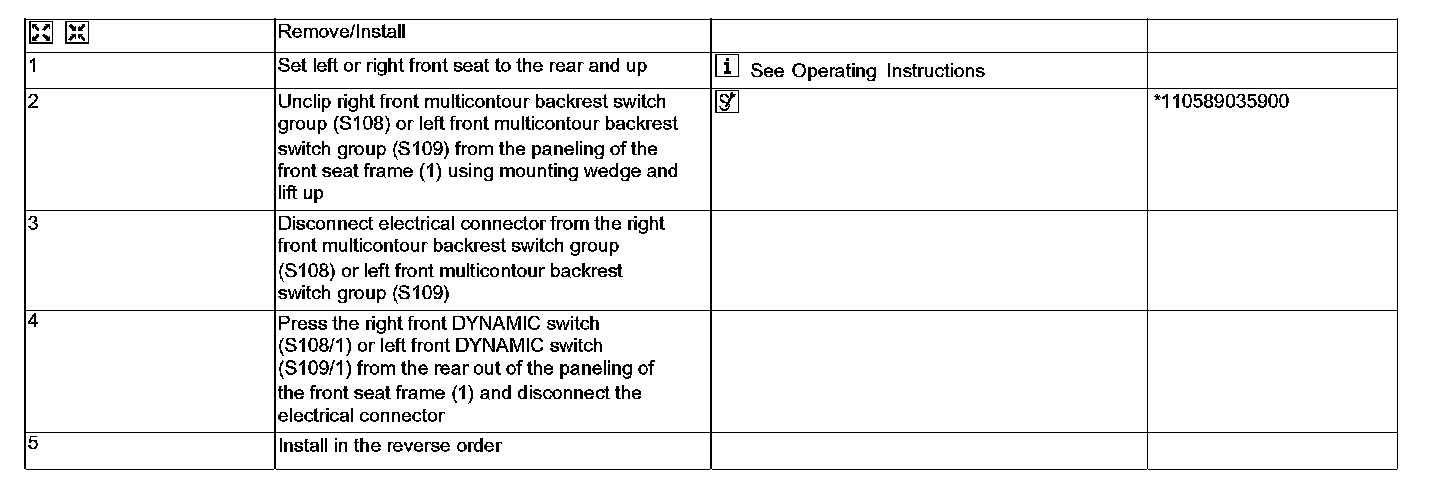

Steps 1 - 5:

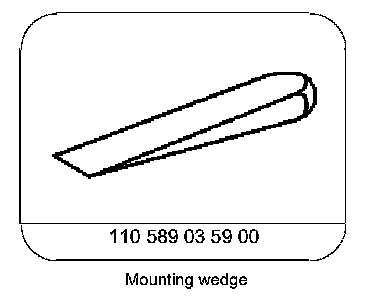

Special Tools:
