Passenger Compartment Cross Beam: Service and Repair
AR62.30-P-1250TX Remove/Install Crossmember Under Instrument Panel

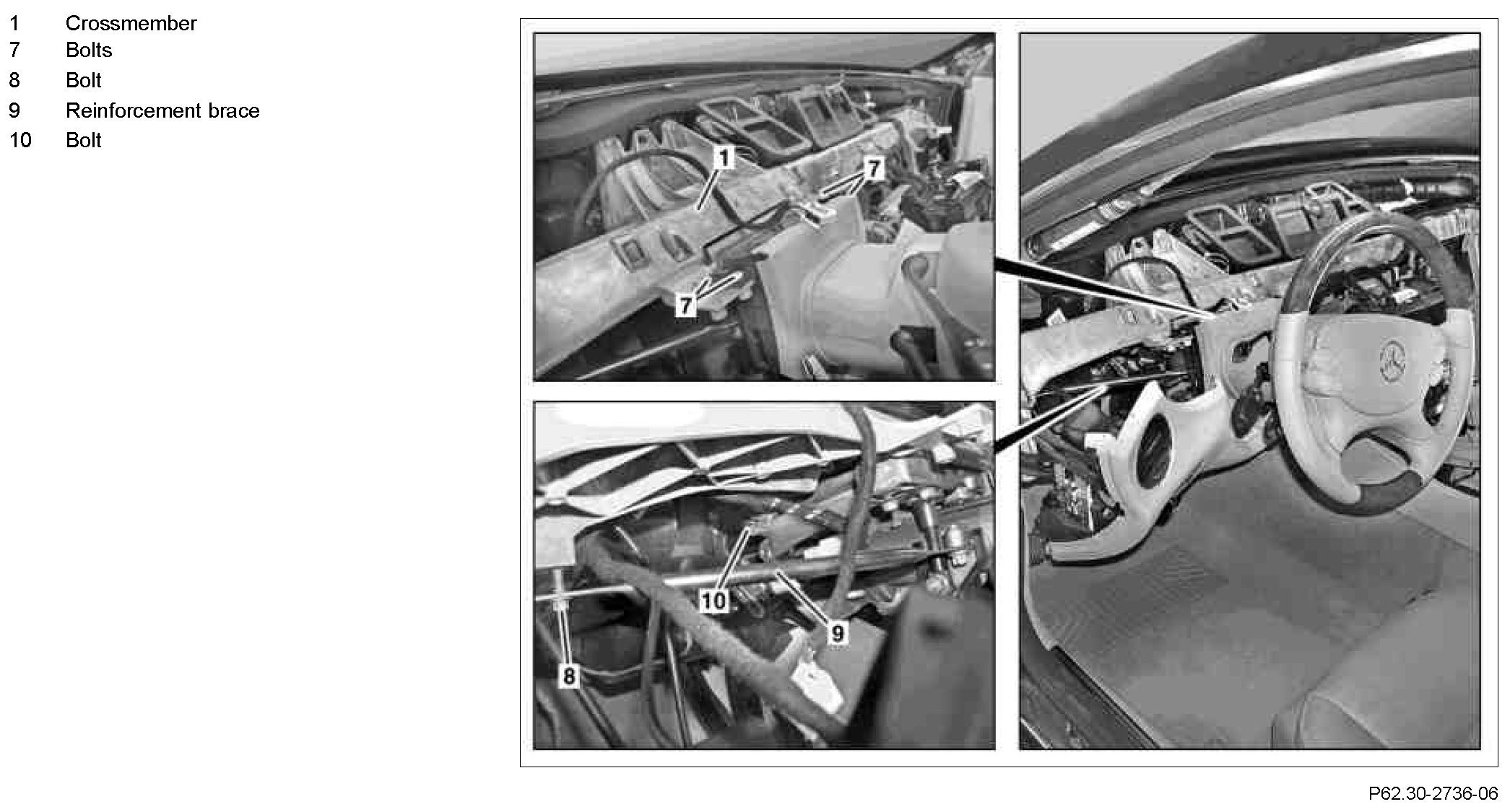

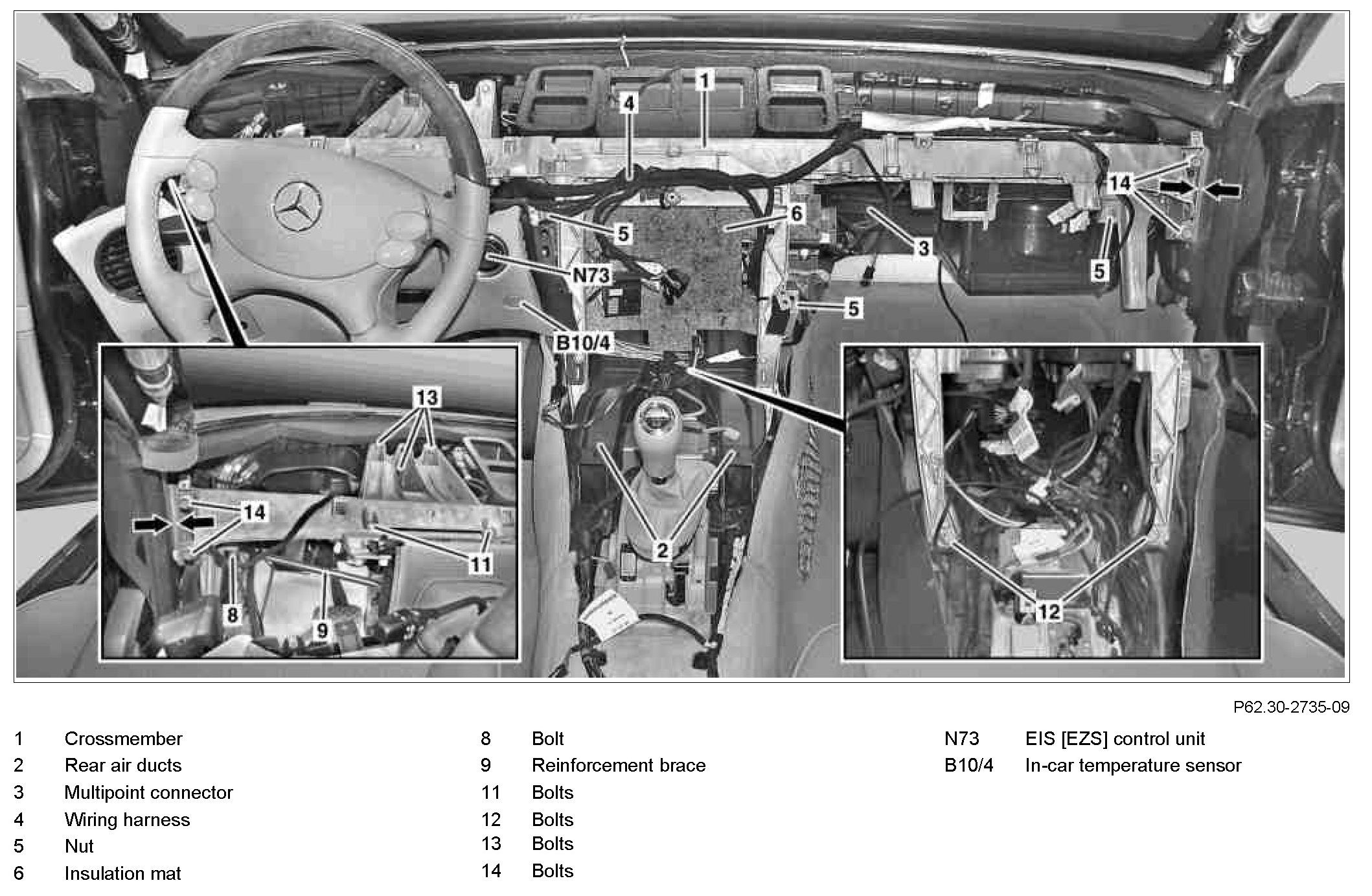

Component Identification:
Component Identification:

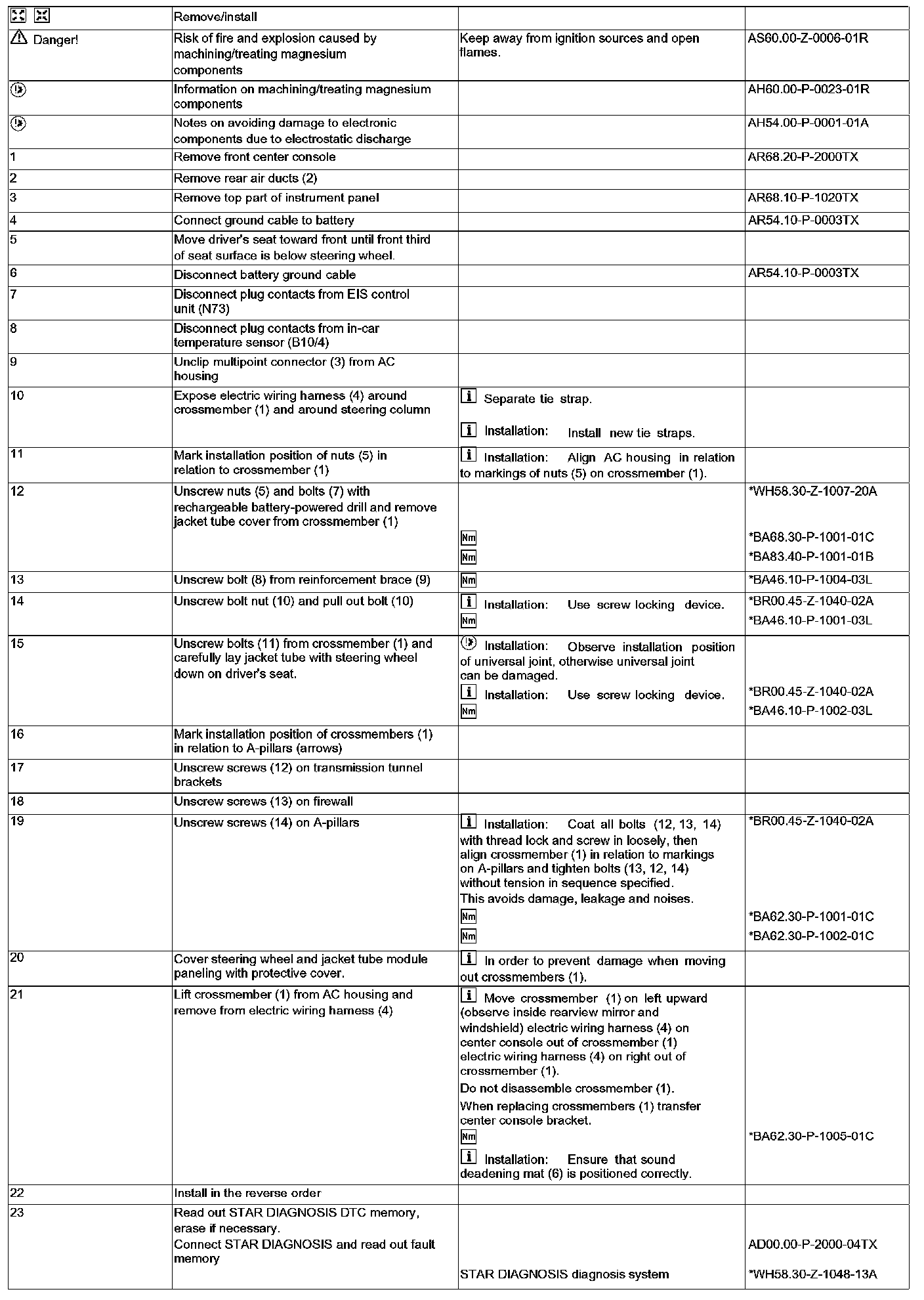

Steps 1 - 23:

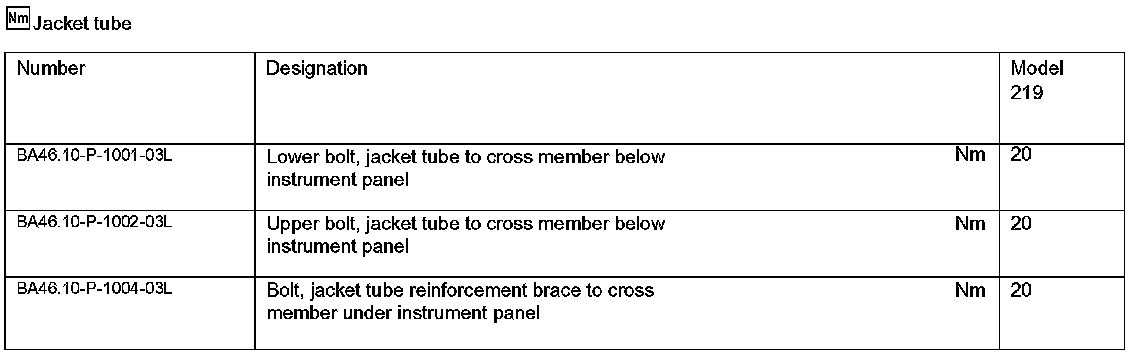

Jacket Tube:

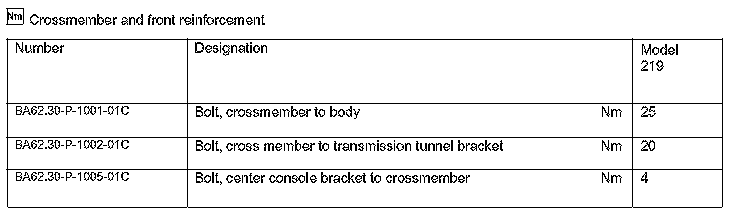

Crossmember And Front Reinforcement:

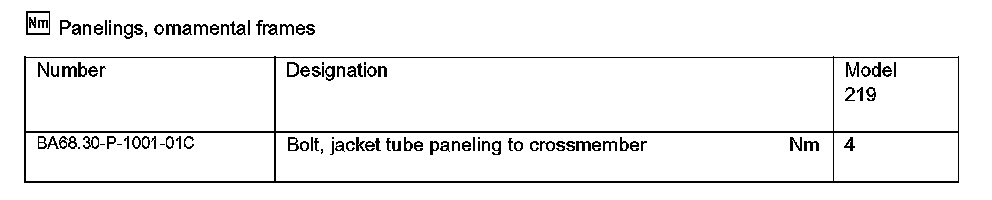

Panelings, Ornamental Frames:

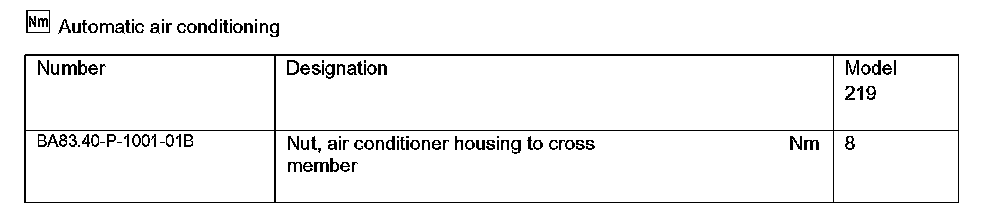

Automatic Air Conditioning:

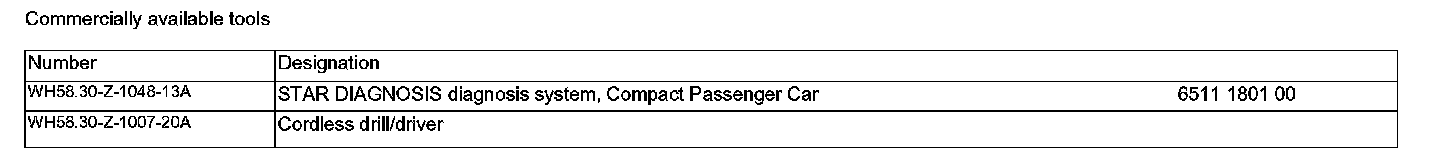

Commercially Available Tools:

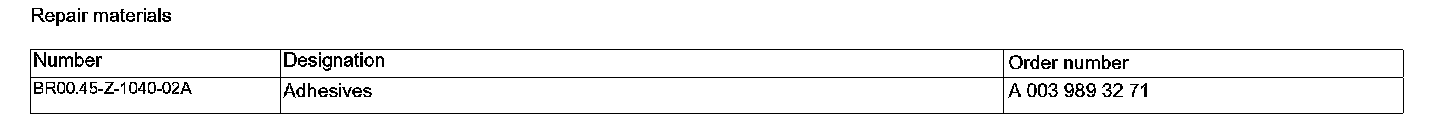

Repair Materials:
