AR88.10-P-1000TX Remove/Install Front Fenders
AR88.10-P-1000TX Remove/Install Front Fenders

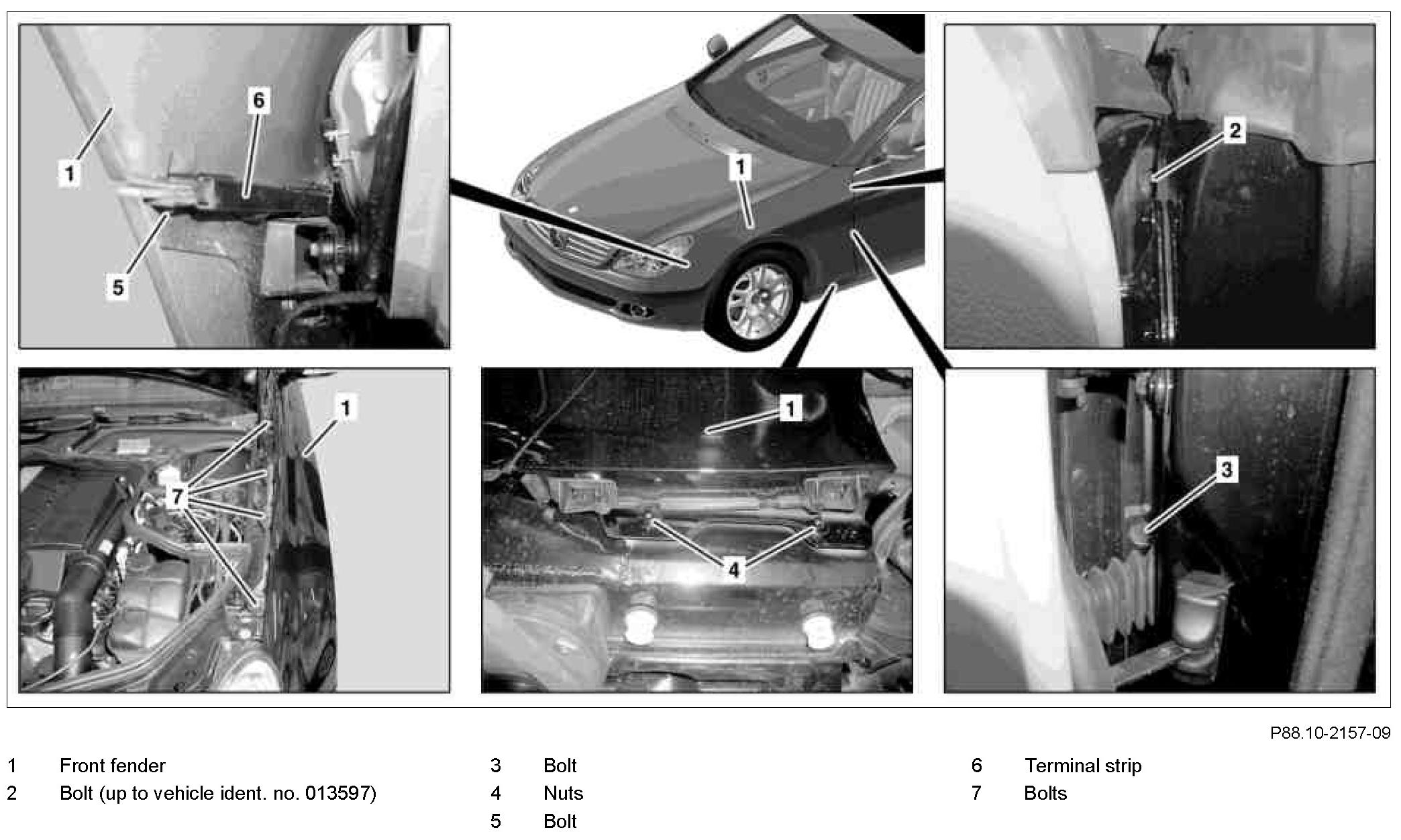

Component Identification:

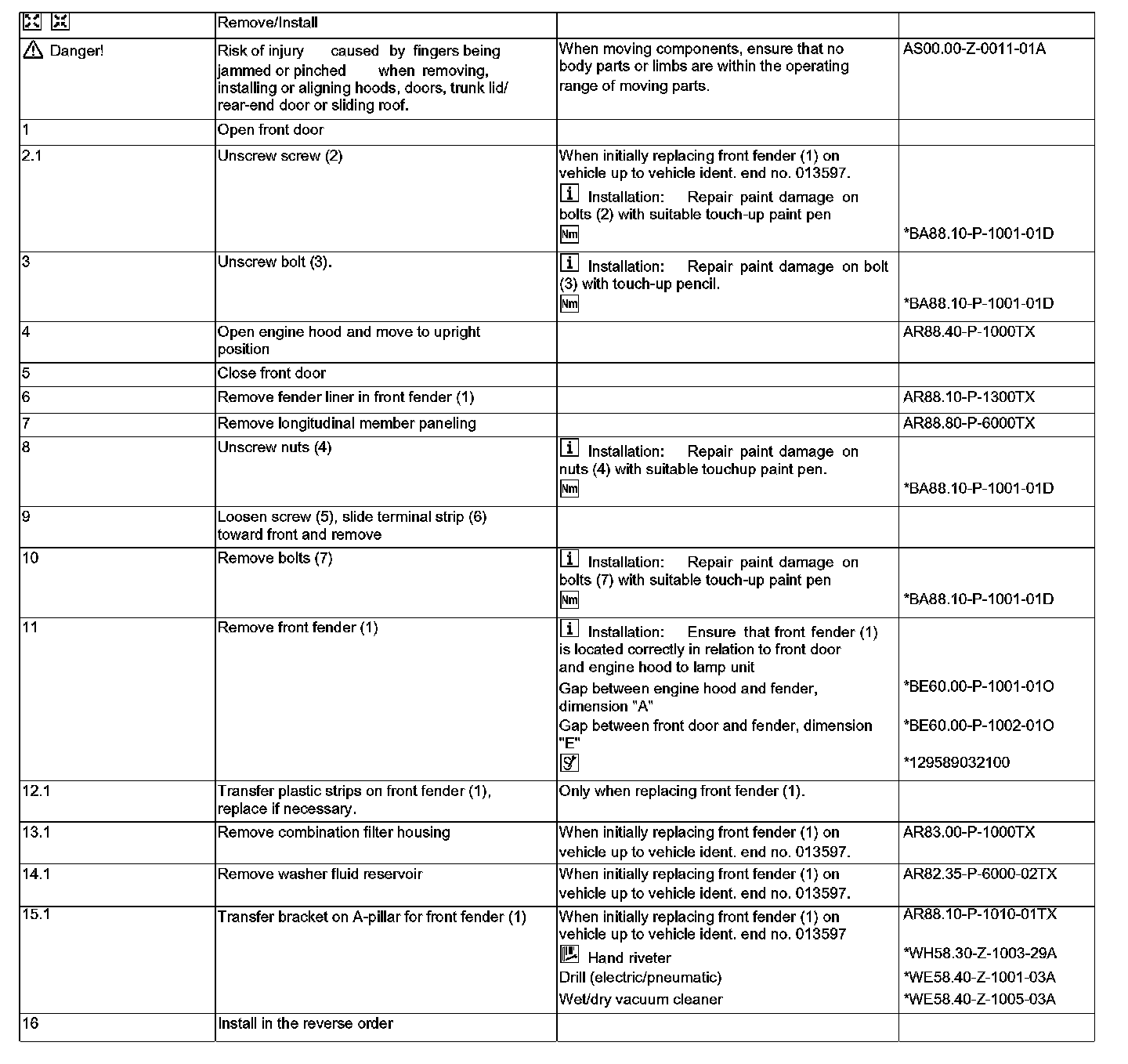

Steps 1 - 16:

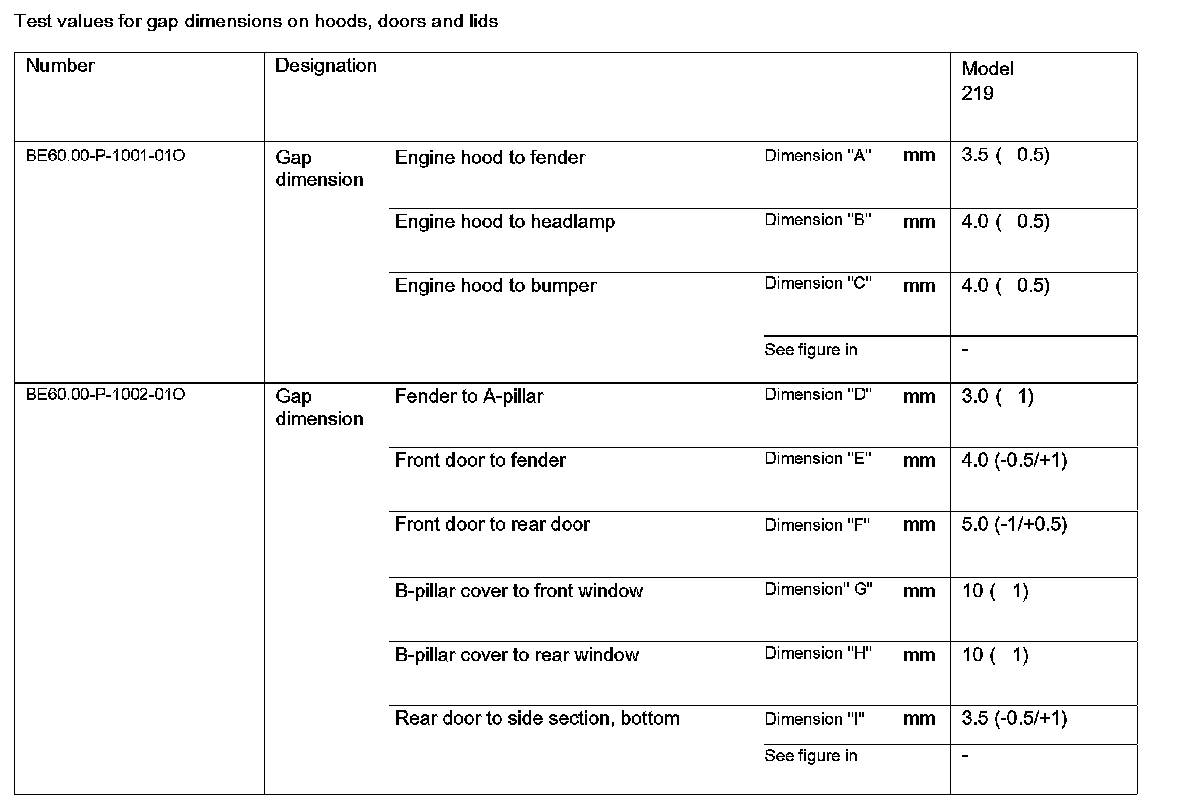

Test Values For Gap Dimensions On Hoods, Doors And Lids:

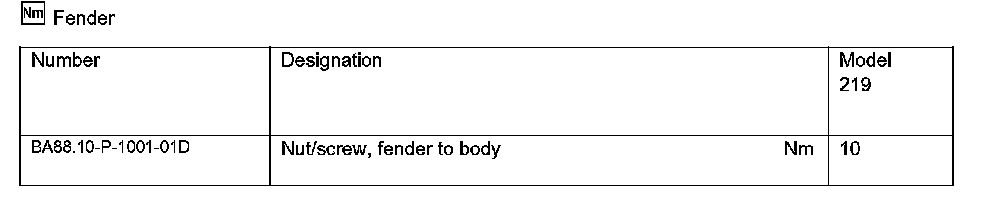

Fender:

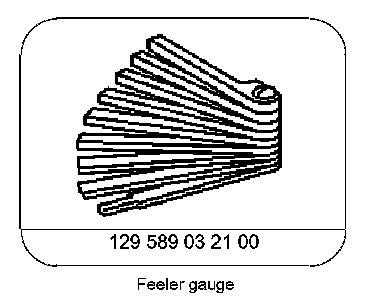

Special Tools:

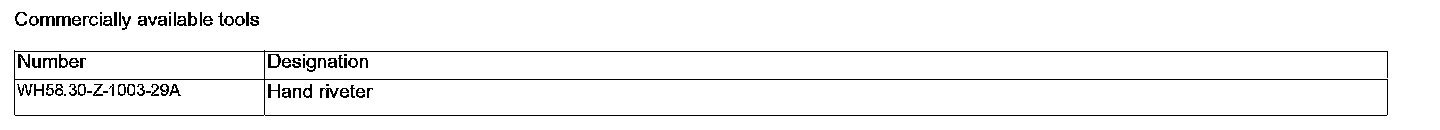

Commercially Available Tools:

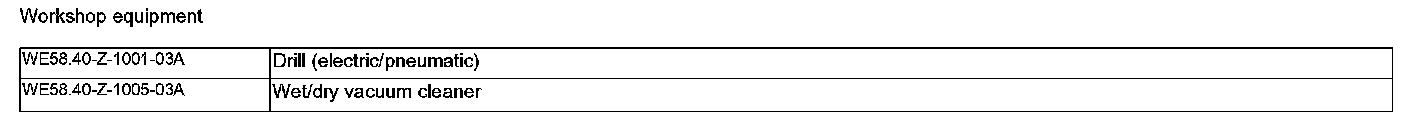

Workshop Equipment:
