Ignition Coil: Service and Repair



Remove/Install Ignition Coils

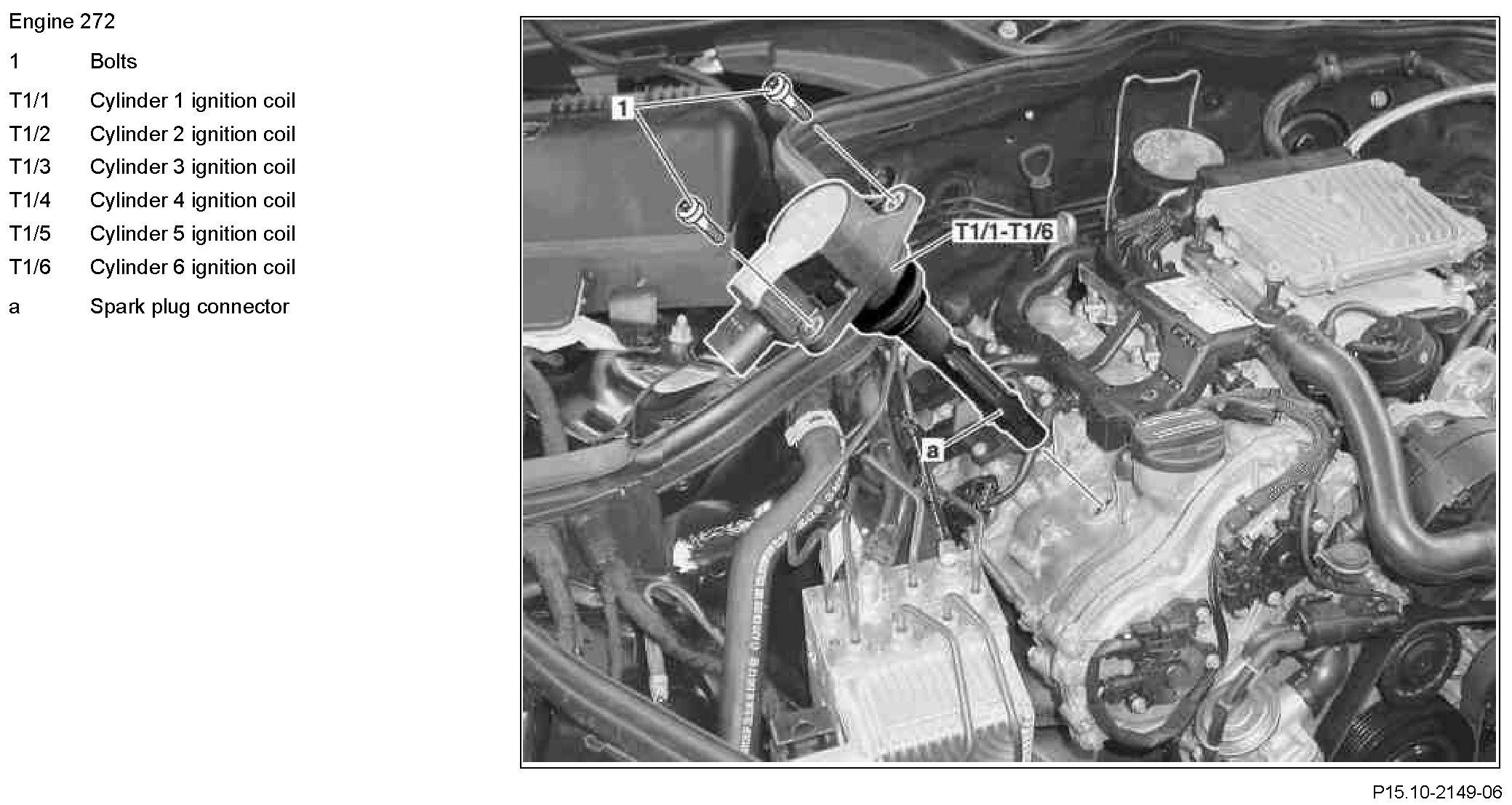

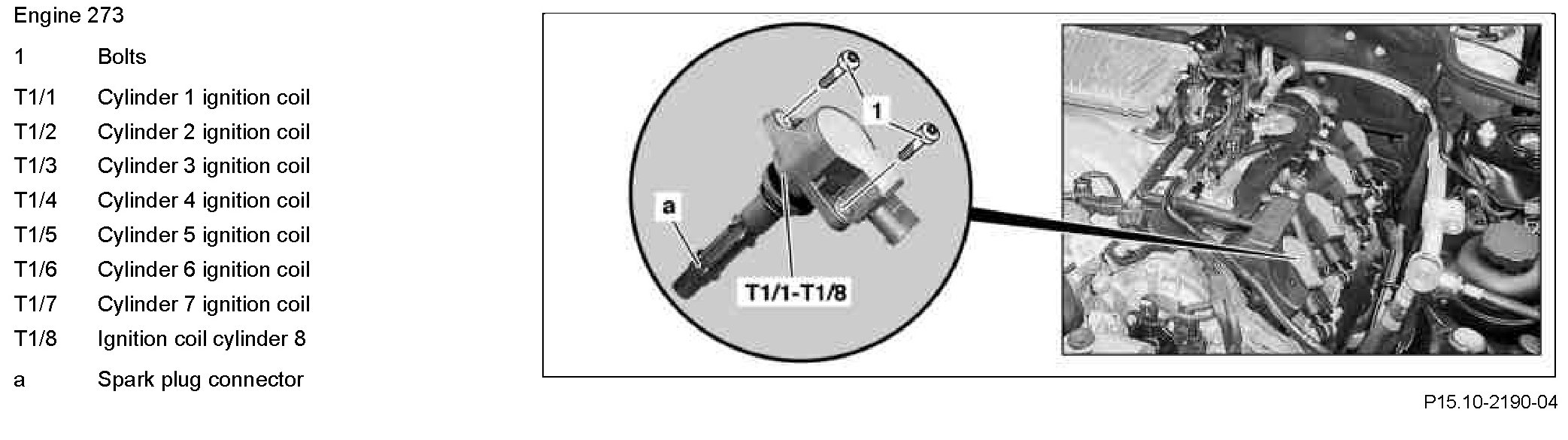

Component Identification:




Component Identification:

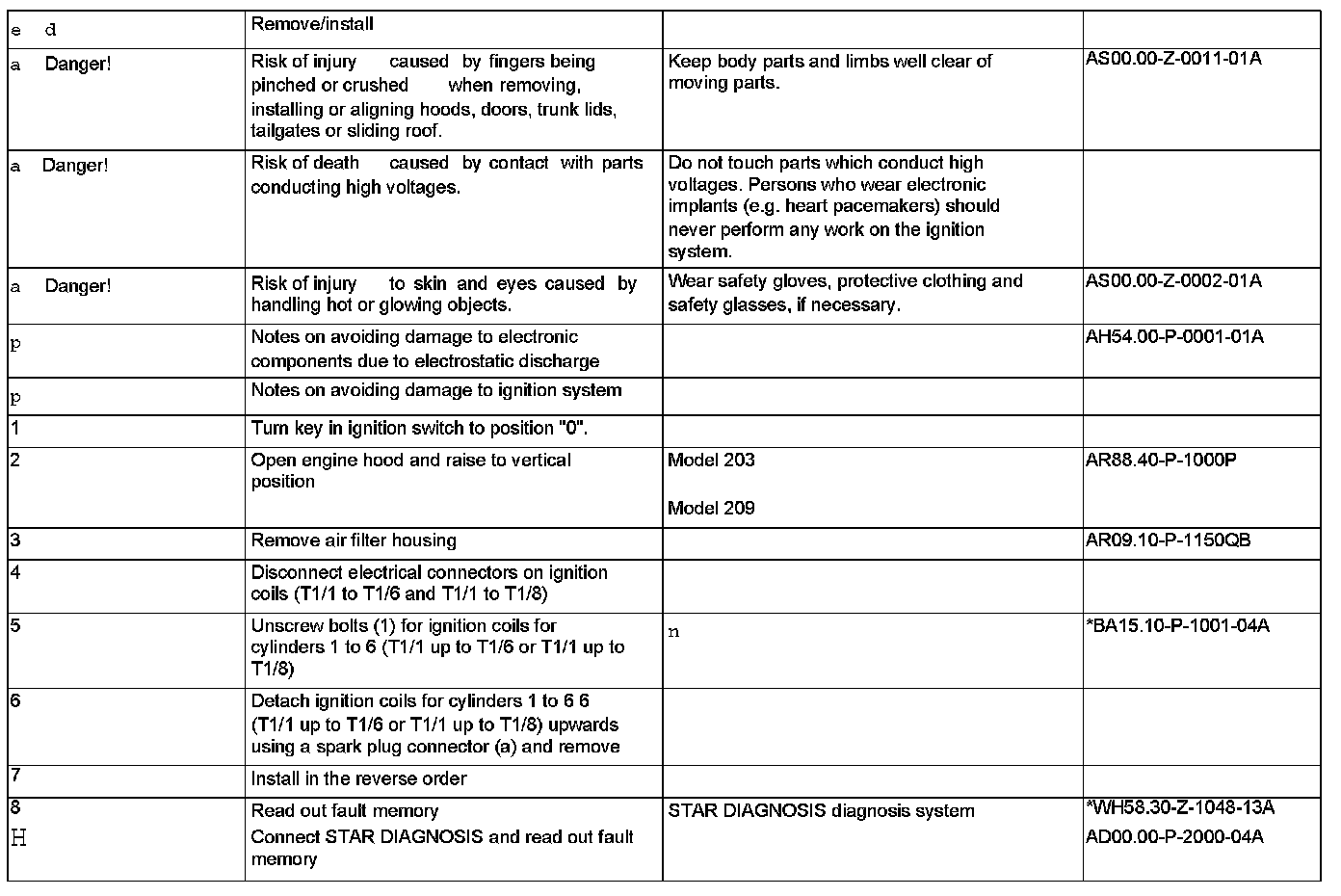

Steps 1 - 8:




Ignition Coil:

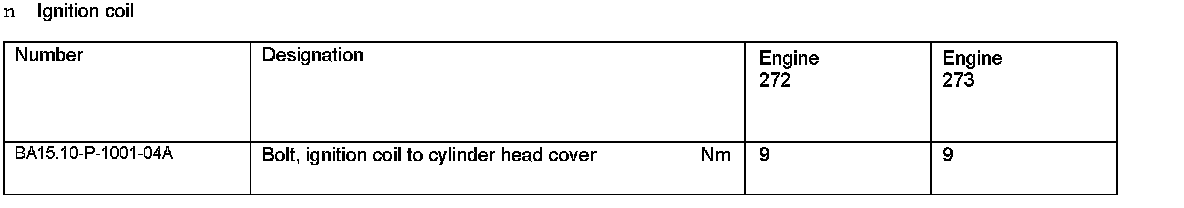

Commercially Available Tools:
