AR03.30-P-5000QB Remove/Install Retaining Lock For Crankshaft / Ring Gear



AR03.30-P-5000QB Remove/install retaining lock for crankshaft / ring gear

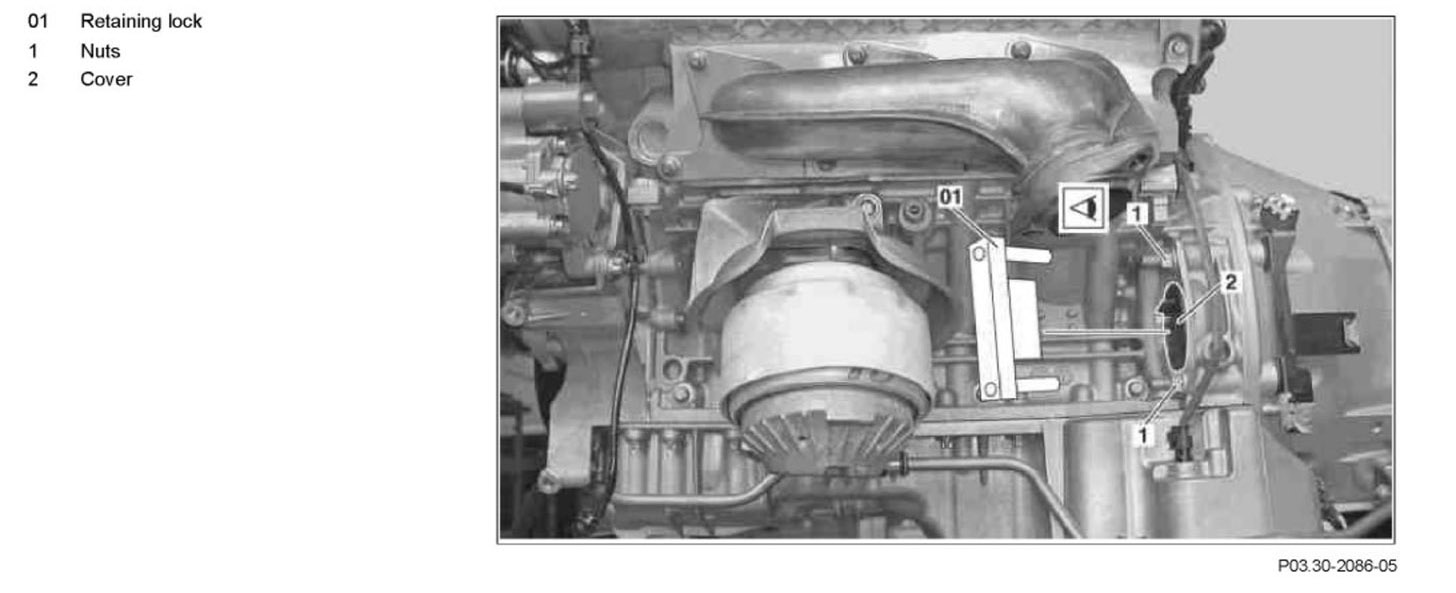

Component Identification:

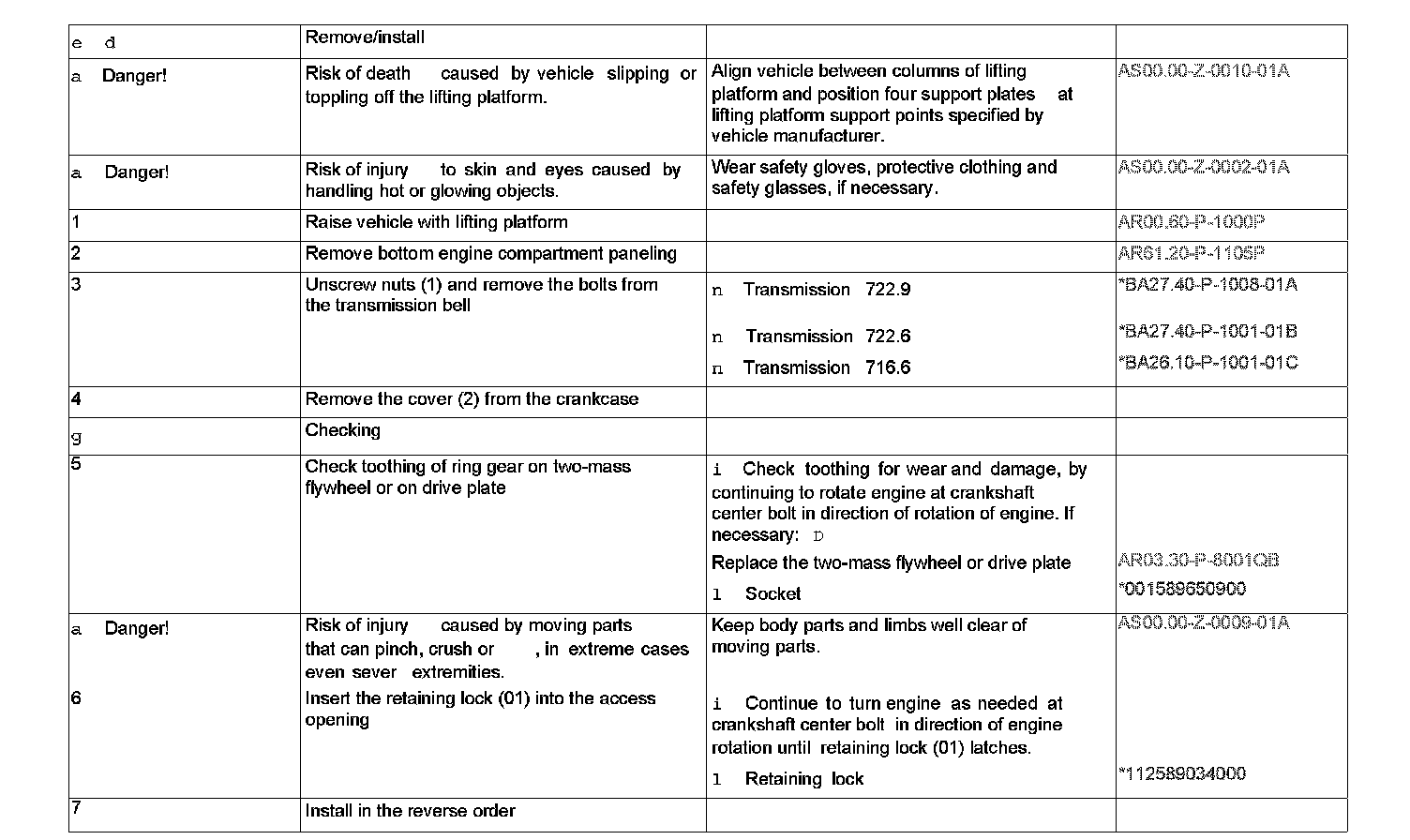

Steps 1 - 7:

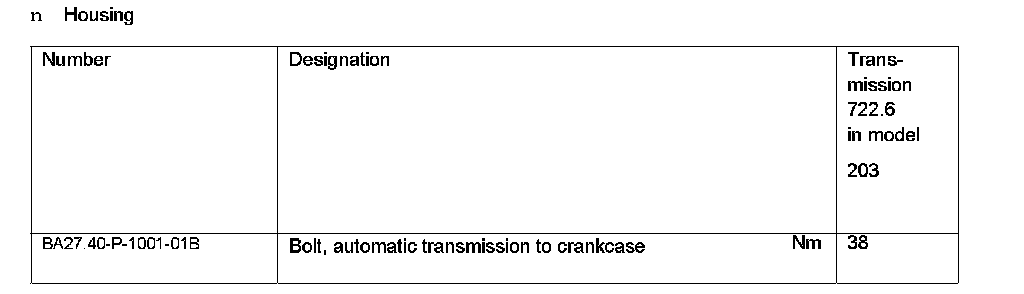

Housing:

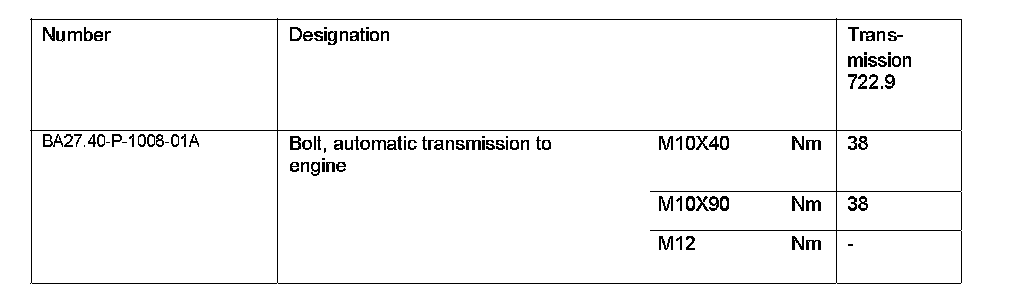

Housing:

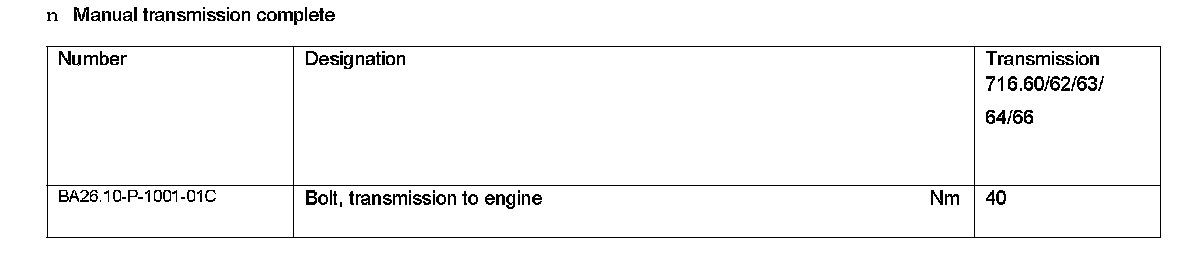

Manual Transmission Complete:

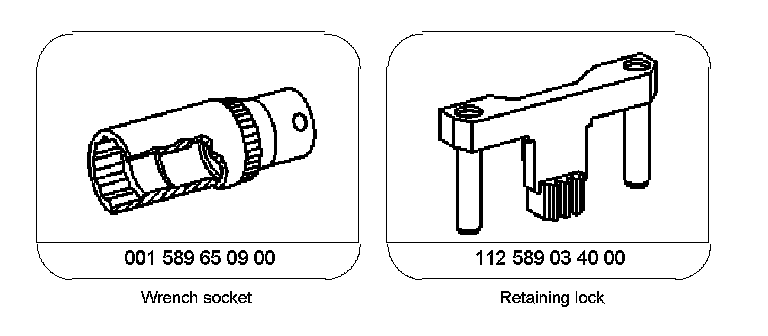

Special Tools:
